BMS 1S 15A Protection Board

1S 15A Lithium Battery BMS Protection Board

Suitable for 3,7V 18650 Li-ion batteries. It does not charge the battery. It is for battery protection.

     1S 15A BMS is a high current protection board for a single 3.7V lithium-ion (Li-ion) cell or for 3.7V packs made of cells connected in parallel. It does not charge the battery; it is for battery protection: it protects the battery against charging above 4.25V, discharging below about 2.5V, overcurrent and short circuit. It carries 12A continuous charge and discharge current, and overcurrent protection trips at 15A.

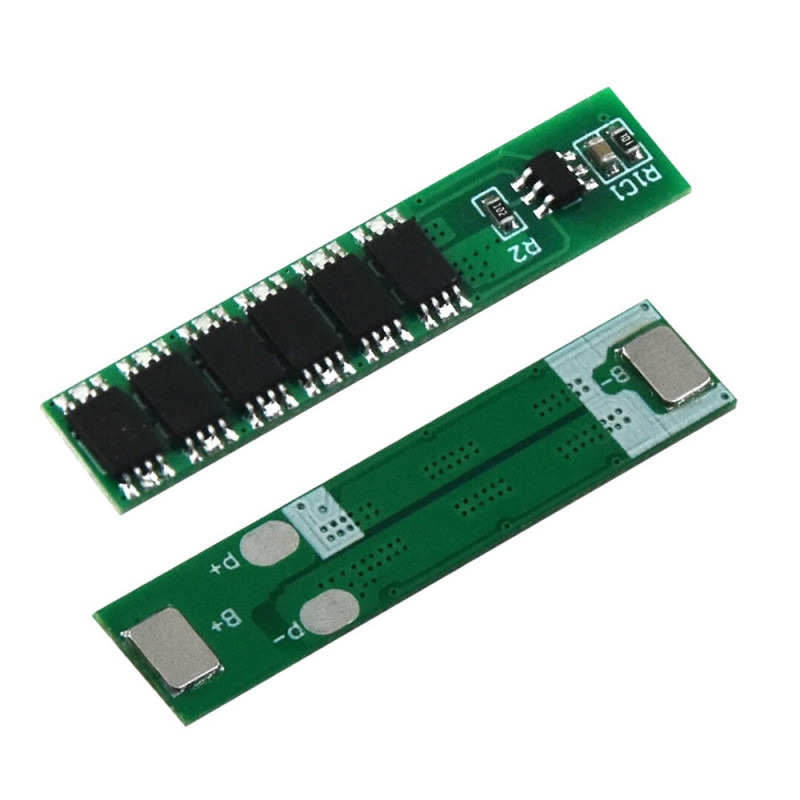

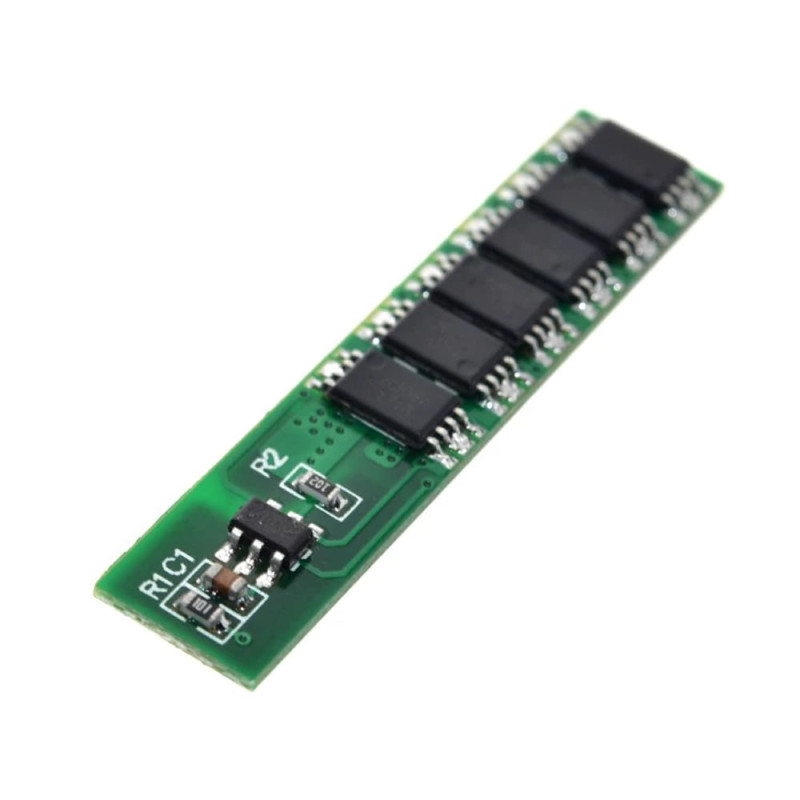

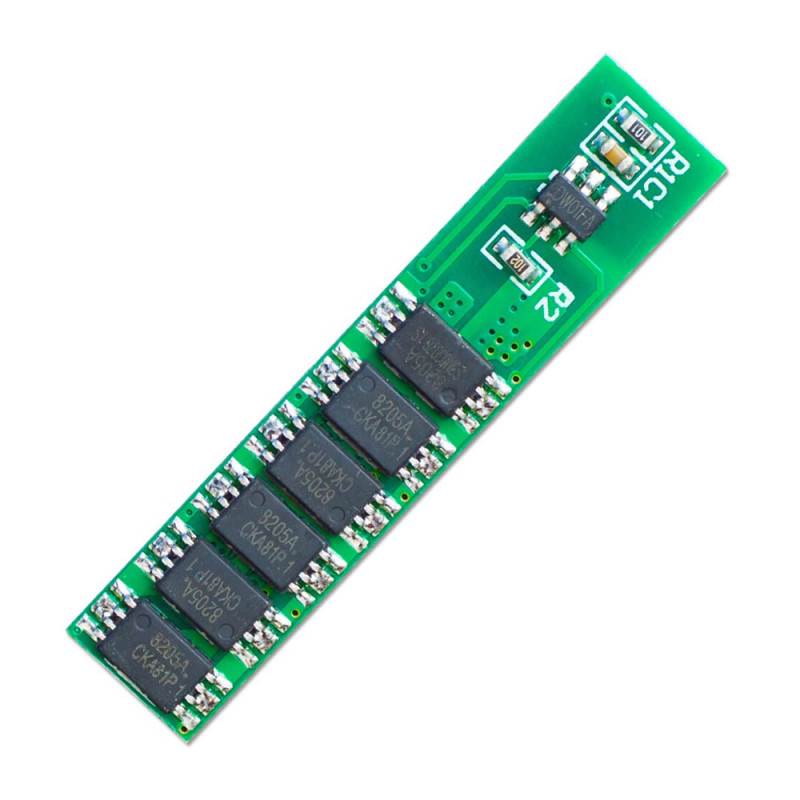

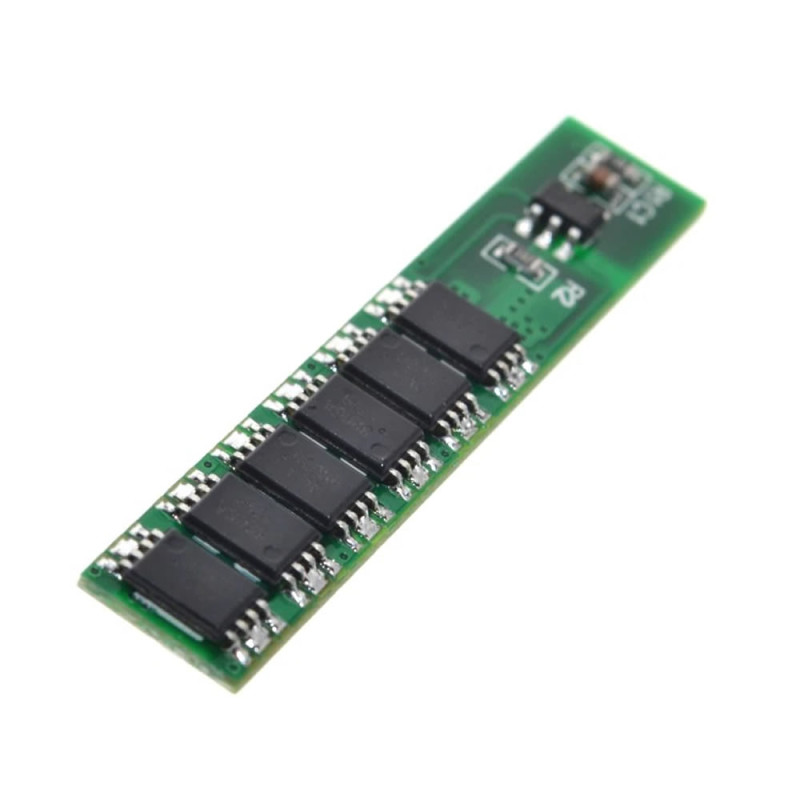

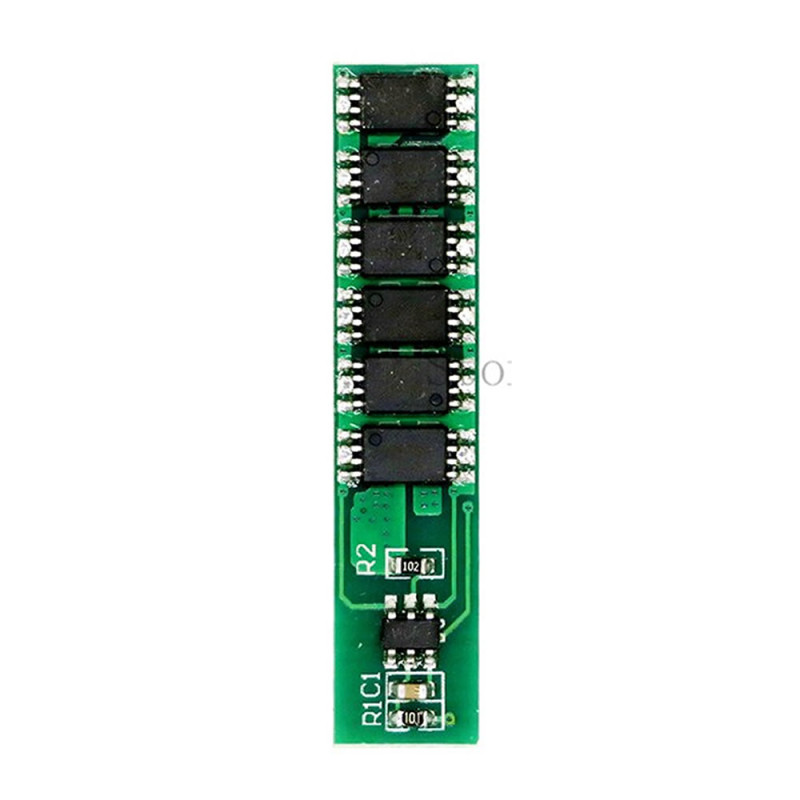

     The board carries 6 pieces of 8205A dual MOSFETs working in parallel and a single cell protection IC. Compared with small 2 MOSFET boards such as 1S 3A, the current is shared by 6 MOSFETs, so it can be used in high current flashlights, speakers and parallel 18650 packs. The thin and narrow 35mm x 7.5mm board fits easily next to the cell or inside the pack.

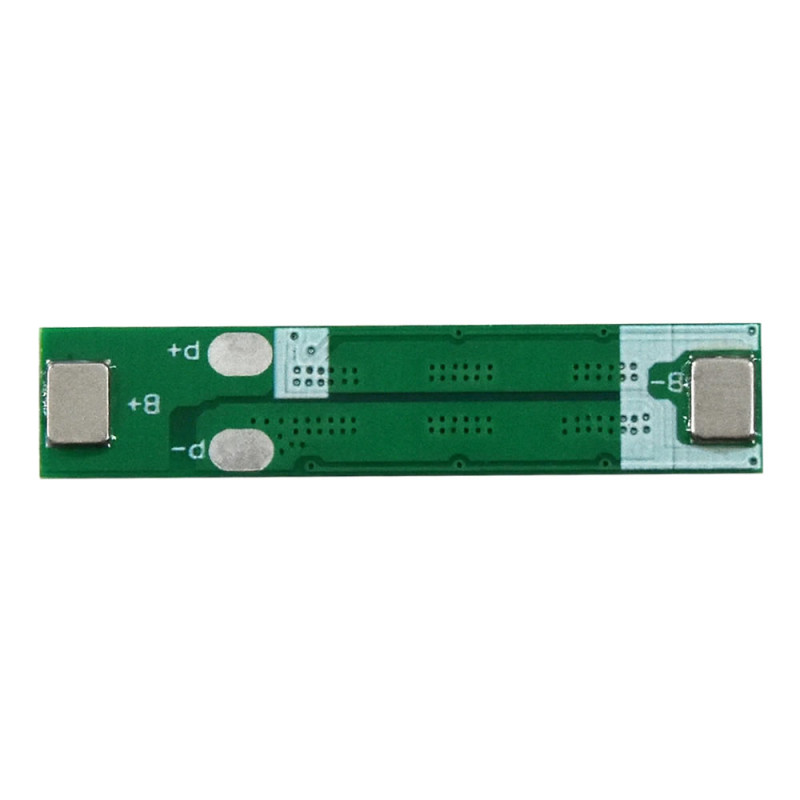

     The wide B- and B+ pads at both ends of the board are soldered to the battery, and the P+ and P- pads in the middle go to the load and to the charger. The battery connection can be made with nickel strip or thick wire.

Key features:

     High current: 12A continuous charge and discharge current, 15A overcurrent protection. The current is carried by 6 pieces of 8205A MOSFETs in parallel; it suits much higher current than 2 MOSFET boards of the same size.

     Three way protection: It disconnects the battery at 4.25V on overcharge and at about 2.5V on over discharge; it shuts off the output on overcurrent and short circuit.

     Thin and narrow board: With 35mm x 7.5mm size and about 2mm thickness it fits next to an 18650 cell or inside a battery pack.

     Separate battery and load pads: B+ and B- pads are for the battery, P+ and P- pads are for the load and the charger; connections do not get mixed up.

     Suitable for parallel packs: It protects a 3.7V pack of parallel connected 18650 cells (1S2P, 1S3P) like a single cell.

Features:

• Product type: 1S (single cell) lithium-ion battery protection board (BMS / PCM)
• Model: 1S 15A BMS
• Cell count: 1S; a single 18650 cell or a 3.7V pack of parallel connected cells
• Nominal battery voltage: 3.7V
• Charge voltage: 4.2V (voltage to be applied from the charger)
• Overcharge protection voltage: 4.25V ±0.05V
• Overcharge release voltage: 4.23V ±0.05V
• Over discharge protection voltage: about 2.5V (seller values 2.45V - 2.54V, ±0.1V)
• Continuous charge current: 12A
• Continuous discharge current: 12A
• Overcurrent protection (maximum discharge current): 15A
• Short circuit protection: yes; cuts the current on output short circuit
• Power switches: 6 pieces of 8205A dual MOSFET (parallel)
• Protection IC: 6 pin single cell lithium battery protection IC (DW01 type according to sellers)
• Connection points: B+ and B- (battery), P+ and P- (load and charger) solder pads
• Charging function: none; the board does not charge the battery, it is for battery protection
• Connection type: soldered; nickel strip or wire
• Material: Green FR4 printed circuit board
• Dimensions: 35mm x 7.5mm x about 2mm
• Weight: less than 10gr

Pin connections:

• B+ : Battery + connection pin
• B- : Battery - connection pin
• P+ : Load + connection pin
• P- : Load - connection pin

Usage information:

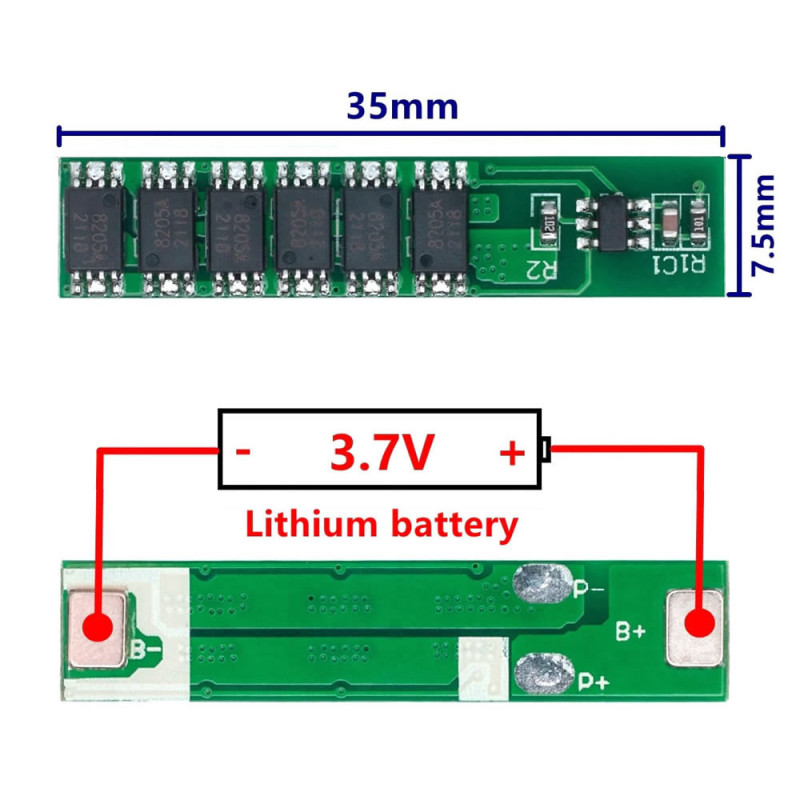

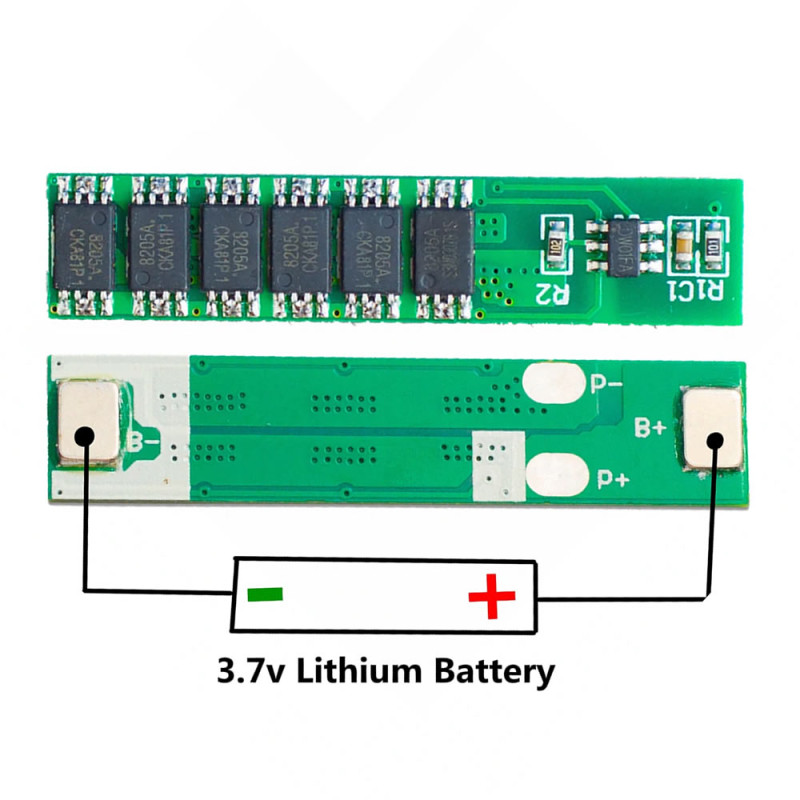

• Solder the negative (-) end of the battery to the B- pad and the positive (+) end to the B+ pad. Connect the load and the charger to the P+ and P- pads.
• For charging, connect a lithium battery charger with 4.2V output (e.g. TP4056 charger module) to P+ and P-. The board does not regulate the charge current; it only cuts charging at 4.25V.
• At currents close to 12A use thick wire or nickel strip on the B and P connections; keep solder joints wide and solid.

Applications:

•  Parallel connected 18650 battery packs (1S2P, 1S3P)
•  Powerbanks and portable chargers
•  Flashlights and headlamps (high power LED)
•  Speakers (portable Bluetooth speakers)
•  Toys (battery powered and remote controlled toys)
•  Lamps (solar garden lamps, LED lamps)
•  Fans (portable rechargeable fans)
•  Protection of 3.7V LiPo battery packs
•  3.7V devices with small DC motors


Precautions:

•  This board is not a charger. A separate 4.2V lithium battery charger is required to charge the battery.
•  It is only for 1S (single cell or parallel cells, 3.7V) lithium-ion and LiPo batteries. It is not used in series 2S, 3S packs; the protection thresholds are not suitable for LiFePO4 (3.2V) batteries.
•  15A is the overcurrent protection limit. Continuous load should not exceed 12A, and the discharge current limit of the battery itself must not be exceeded.
•  Do not let the battery terminals touch each other while soldering. Do not connect the battery in reverse; reverse connection damages the board.

Package contents:

•  1 pcs 1S 15A BMS Protection Board

Note: Battery, nickel strip and charger module are not included in the package.
