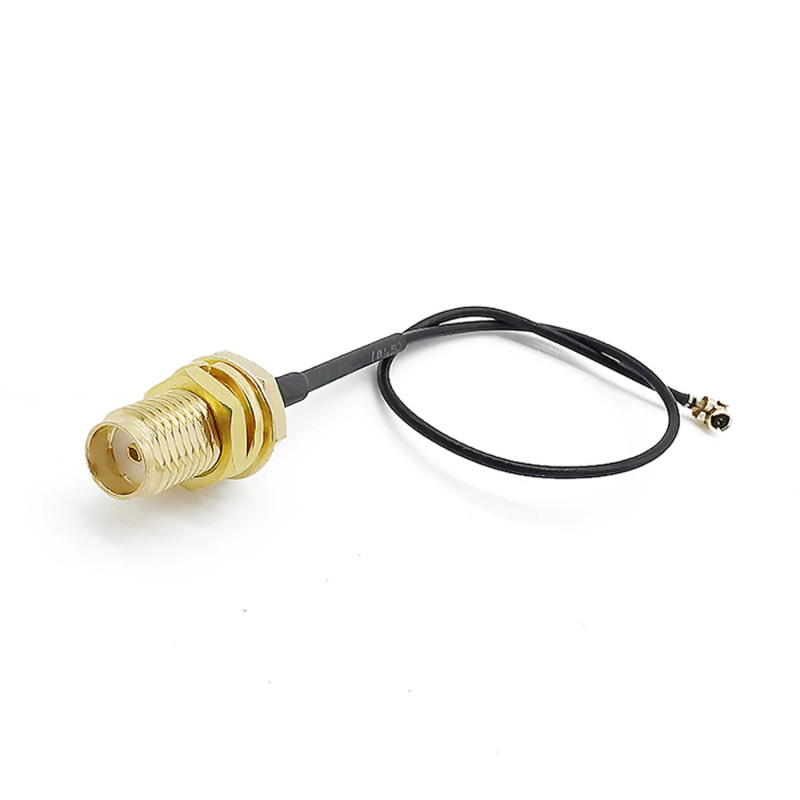

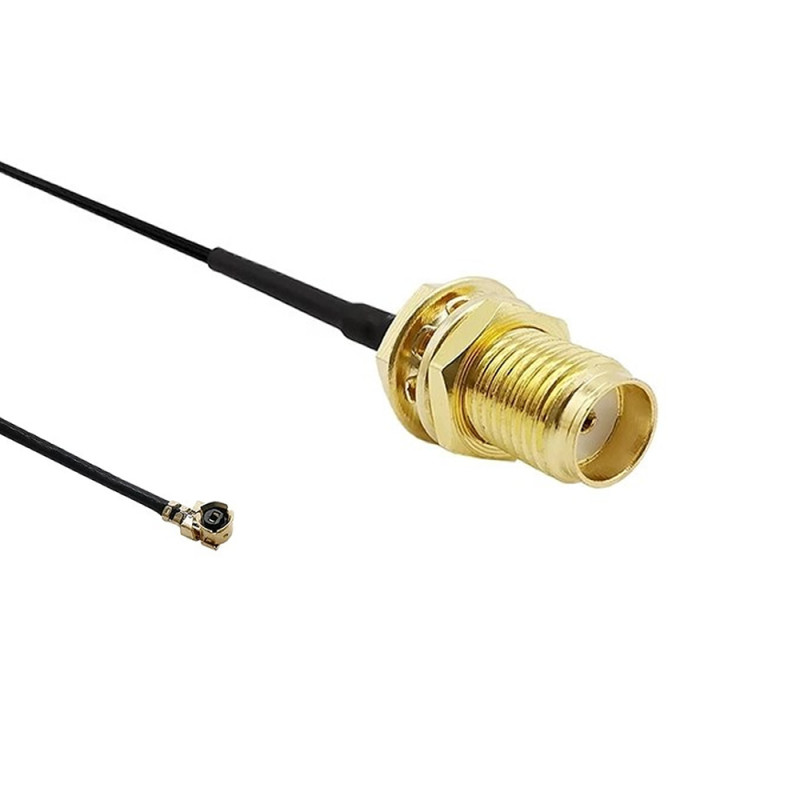

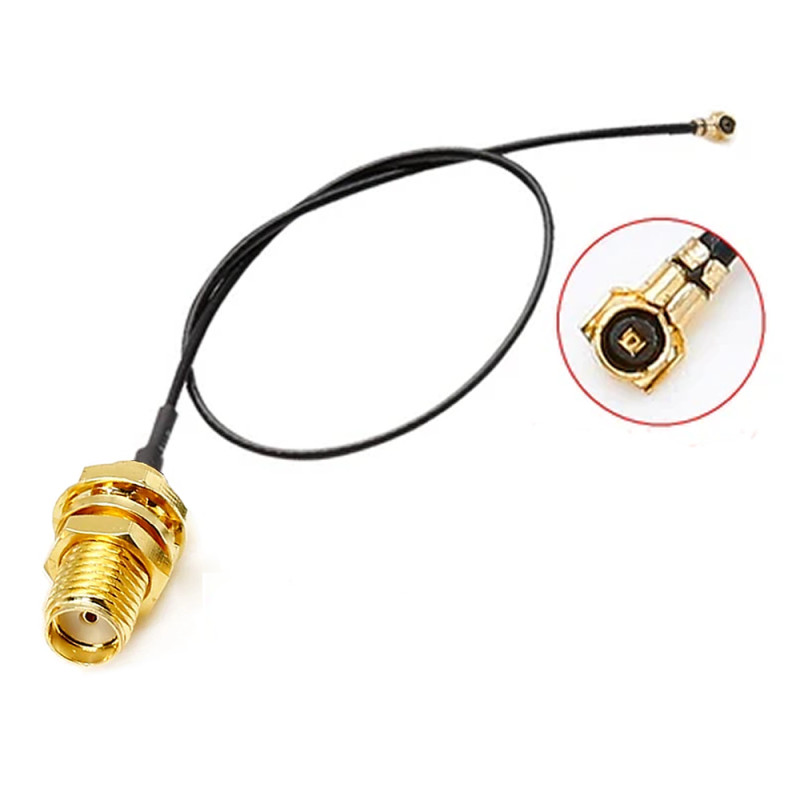

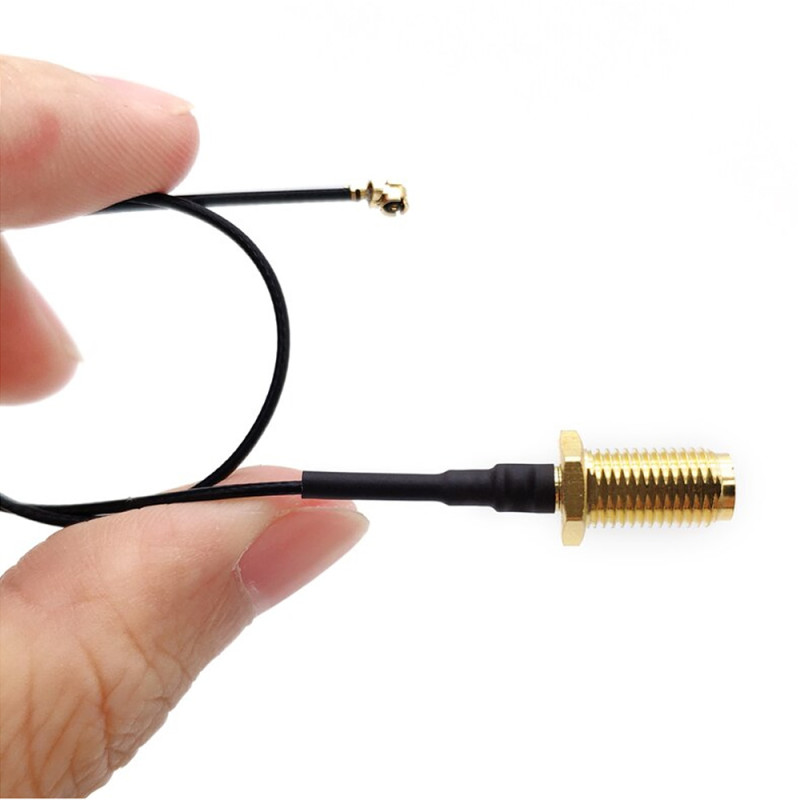

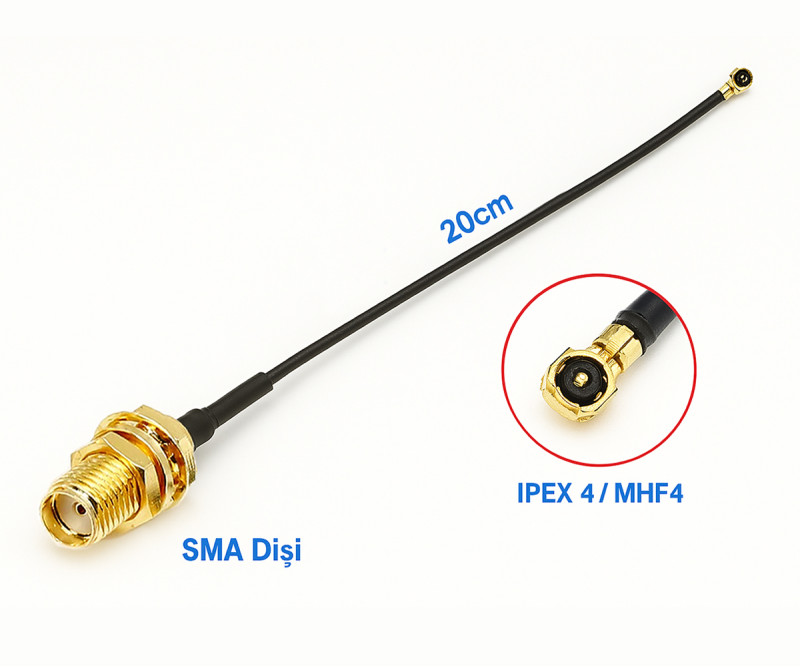

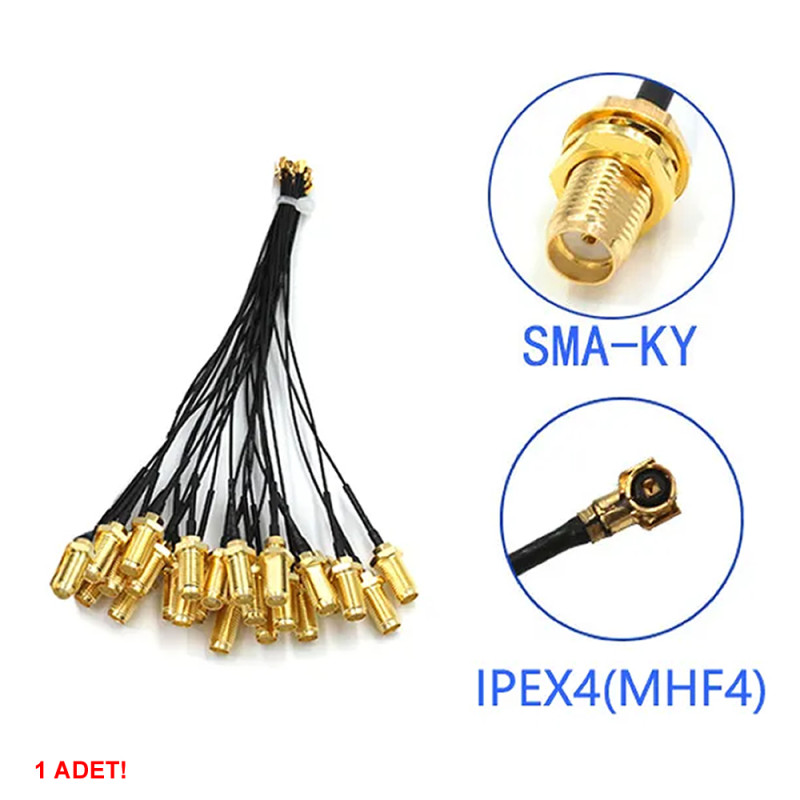

20cm Sma Female Ipex4 Rf Cable

20cm Sma Female Ipex4 Mhf4 Rf Connection Cable

SMA Female Socket to Gold Plated Connector Coaxial Cable UFL U.FL IPX IPEX M2 Ngff Wifi Gsm Gps

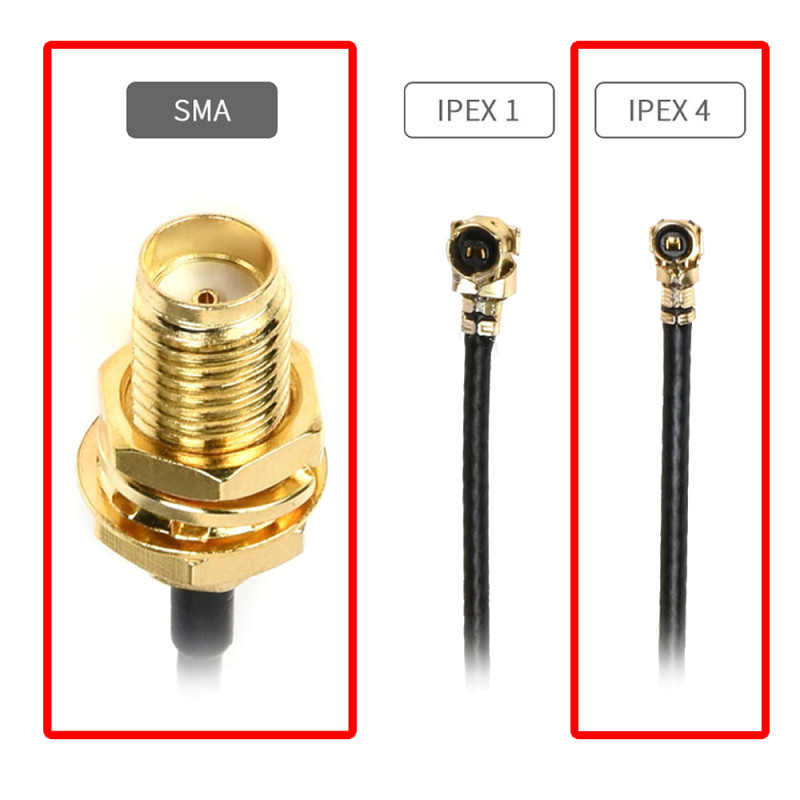

Mhf4 sockets are used on M2 Ngff type computer cards. Learn the name of the socket on your card before purchasing. Mhf1 type sockets are used on mini pcie cards.

     High performance low loss flexible rf connection cable. One side has a female sma socket, the other end has ipex sockets. It can be used over a wide frequency range. It has a cable length of 20cm.

Features:

• Sma female socket

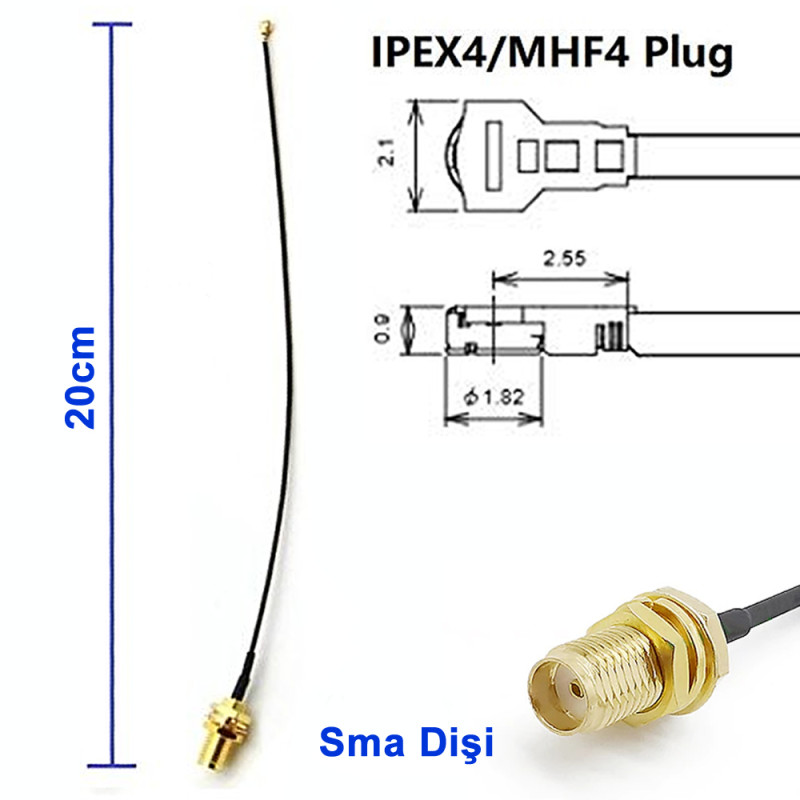

• Ipex4 socket  ( Mhf4 ) ( Compatible with M2 NGFF cards )
• Cable type:  RF113    1.13mm
• Impedance: 50 ohm
• Contact resistance: 3mohm and below
• Frequency range: 0Hz / 12 GHz
• Voltage withstand: 100V maximum
• Breakdown voltage: 3000Vrms
• VSWR: 1.1 and below
• Operating temperature: -45C  /  85C
• Life: less than 500 plug unplug cycles
• High performance
• Low loss
• Flexible structure
• Cable length: 20cm
• Weight: 3.5gr

 Package contents:

• 1 Piece  20cm Sma Female to Ipex4 Rf Cable
