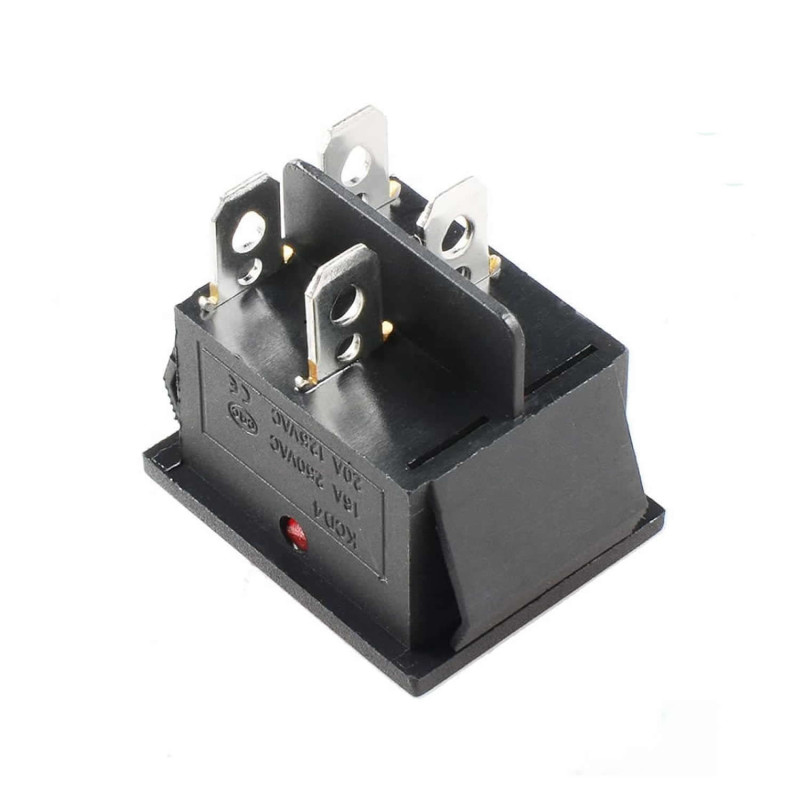

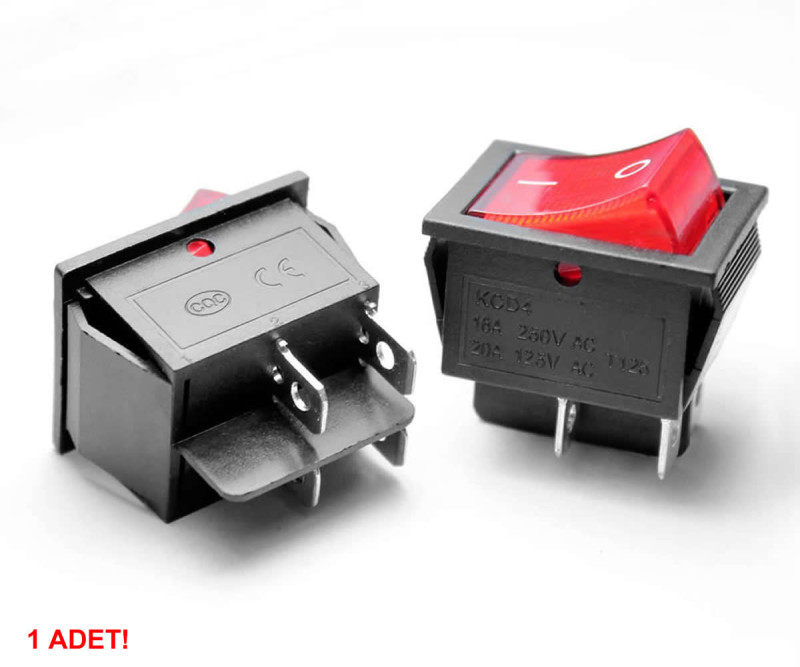

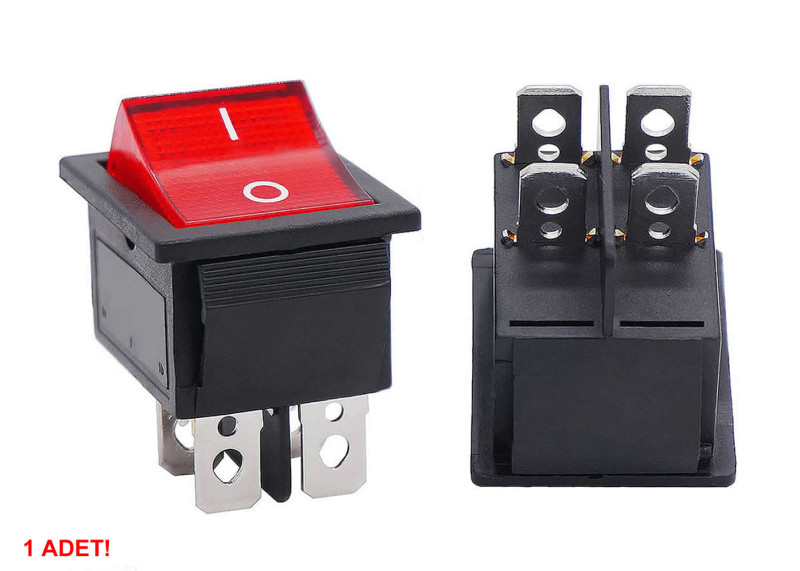

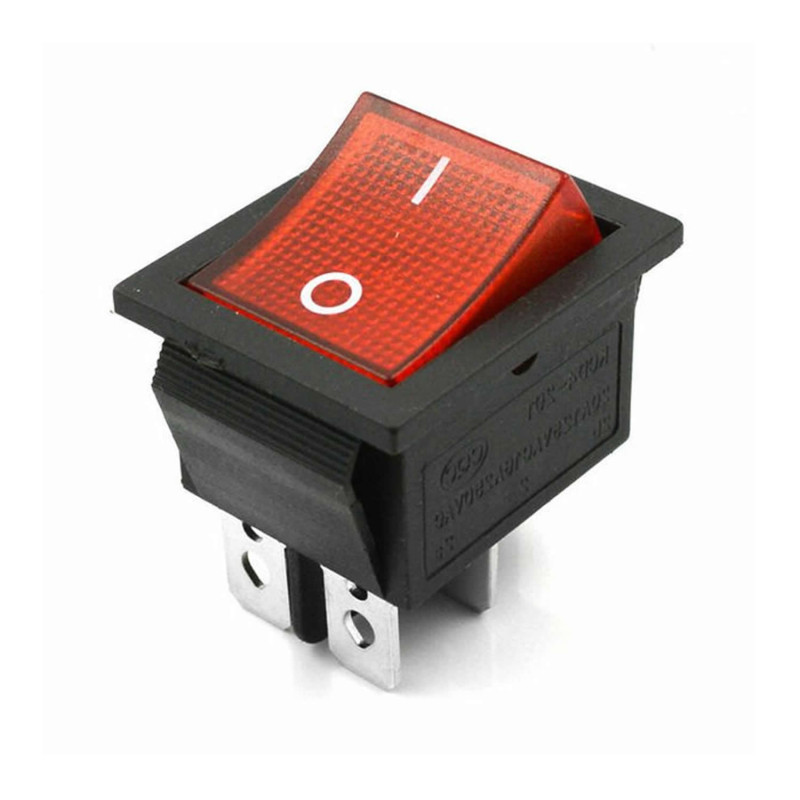

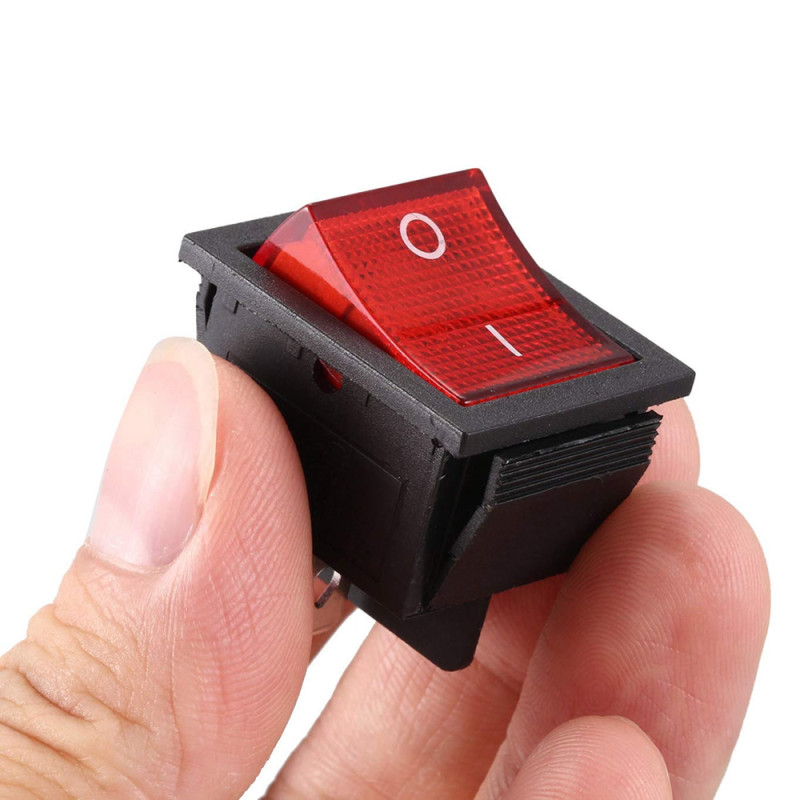

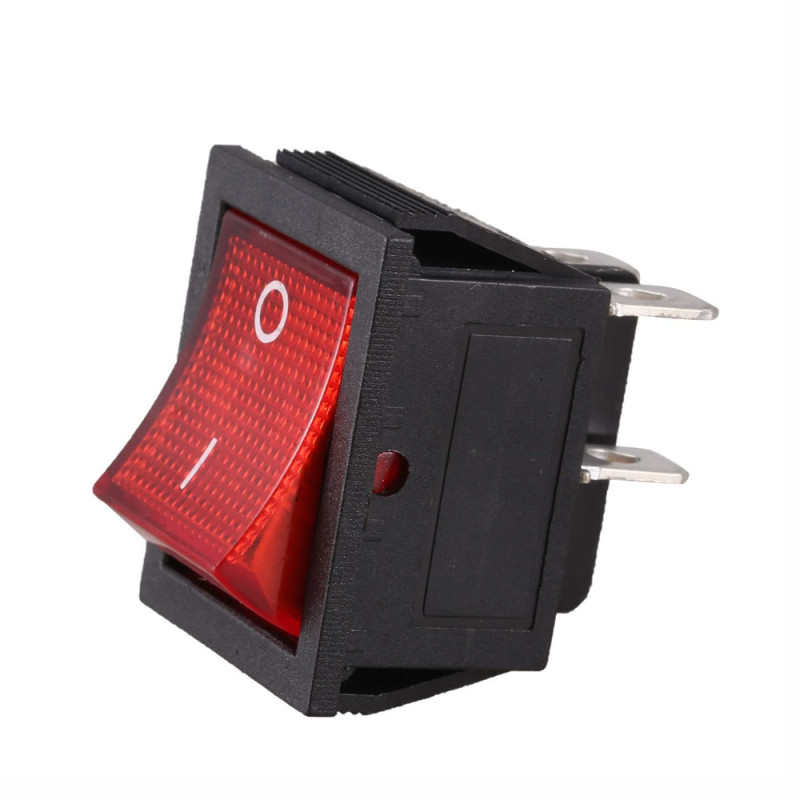

16A 250V Switch Kcd4-201

16A 250V On / Off Switch

Latch 4 Pin Button High Current Kcd4 Led Illuminated Switch Panel Type Mount Box Power Control Machine Motor Car

     It has a high switching capacity of 16A 250V. There are 2 switches independent of each other on the product. It has an illuminated led indicator feature. There are I O markings on the button. “I” means the switch is short circuit and electricity is going to the relevant device. “O” means the switch is open circuit and electricity is not going to the relevant device.

     It has a panel type mountable plastic box. It does not require screws etc. parts, it is easily mounted. It is widely used in many applications such as motors, machines, robots, cars etc.

Features:

• 16A/250V kdc4 switch
• Maximum current: 16A
• Maximum voltage: 250V
• Number of switches: 2
• Function: On / Off
• Label:    I= On  /  O= Off
• Movement Type: Latch ( It stays continuously in the I or O state )
• Material: Plastic /  Metal
• Contact resistance: 50mohm and below
• Operating Temperature:  -25C  /   +65C
• Color: Red / Black
• Light color: Red
• Lifetime: More than 50000
• Mountable plastic box

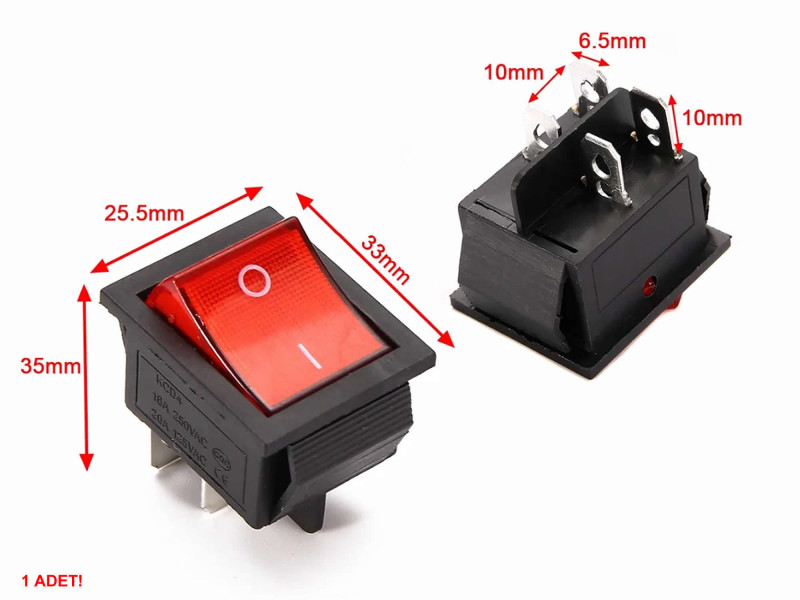

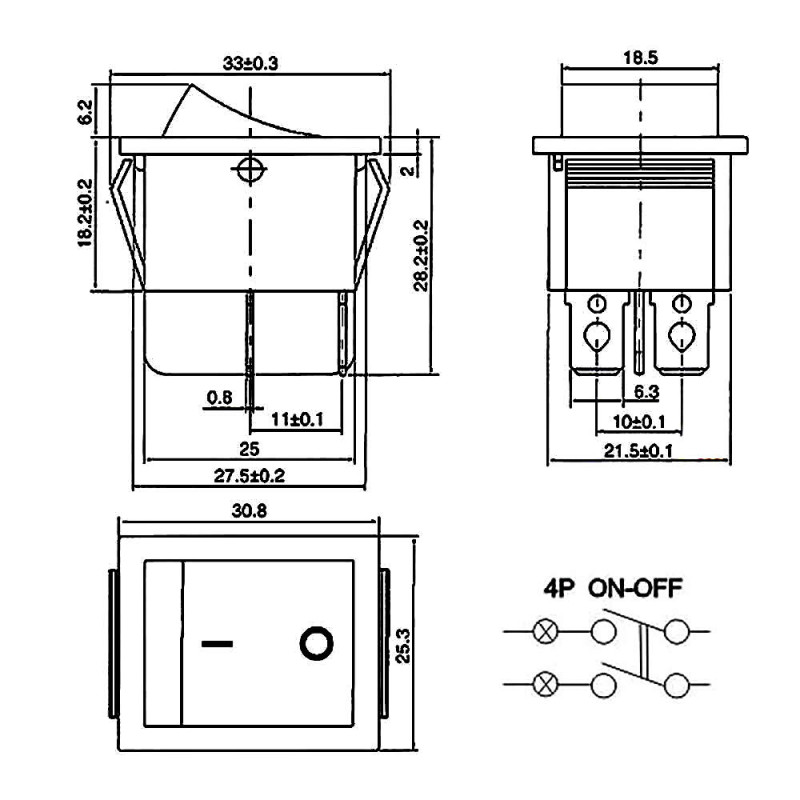

• Dimensions: 25mm x 33mm x 35mm
• Weight: 11gr

Package contents:

• 1 Pcs 16A 250V Switch Kcd4-201

.
