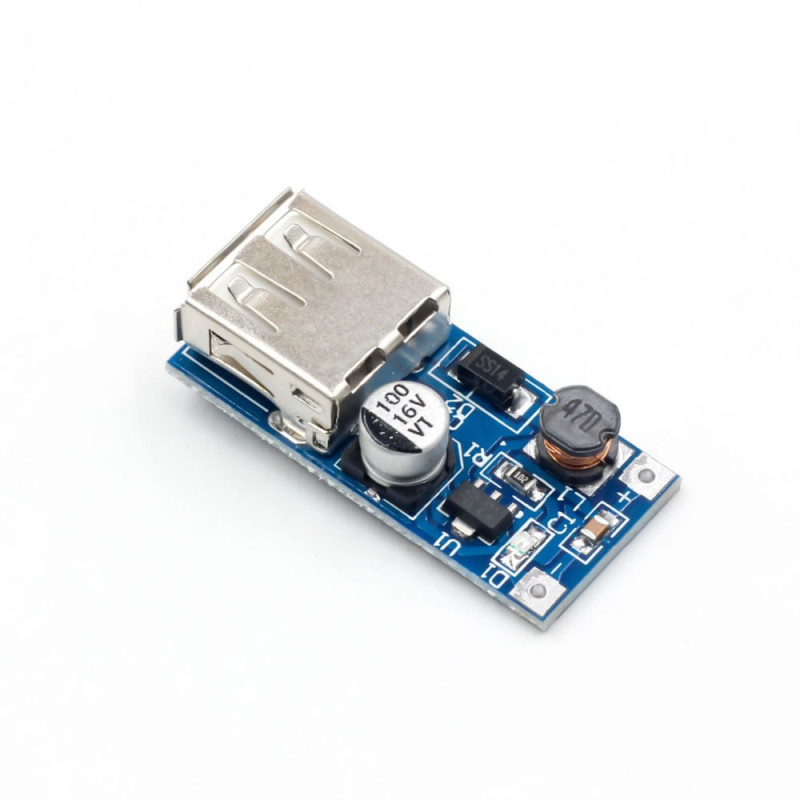

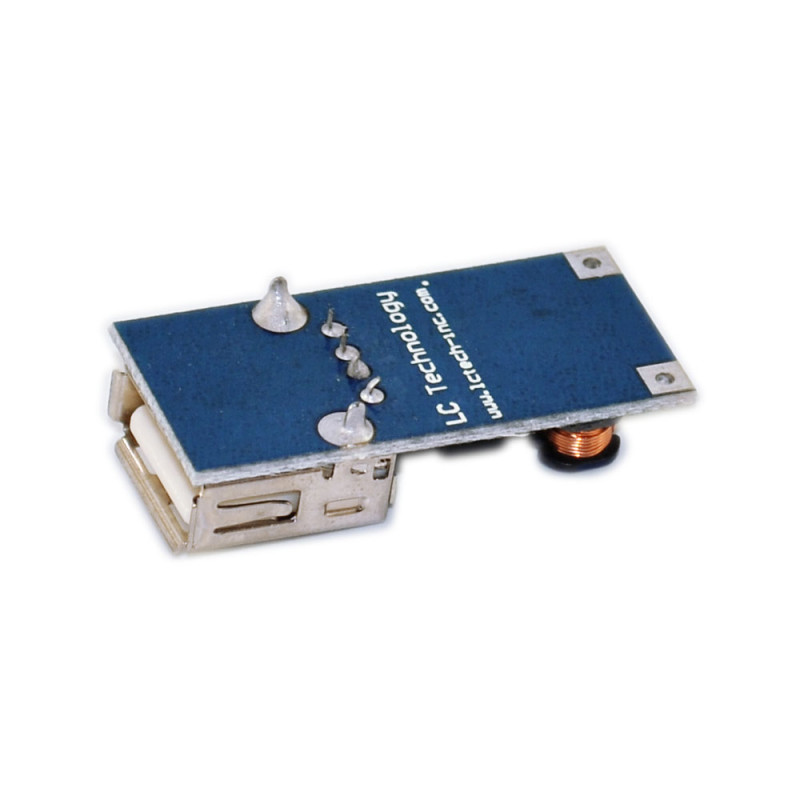

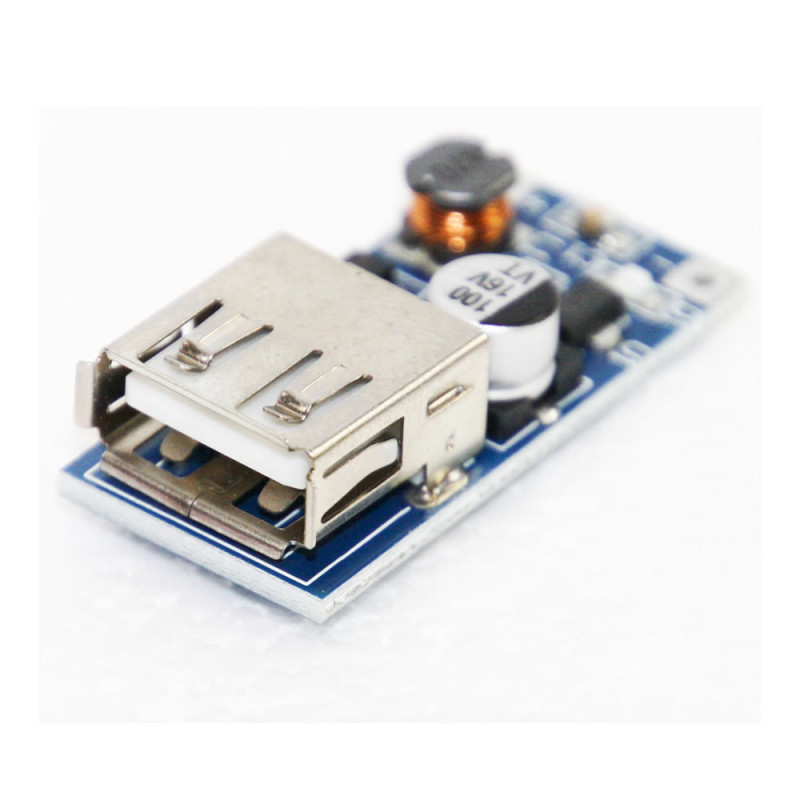

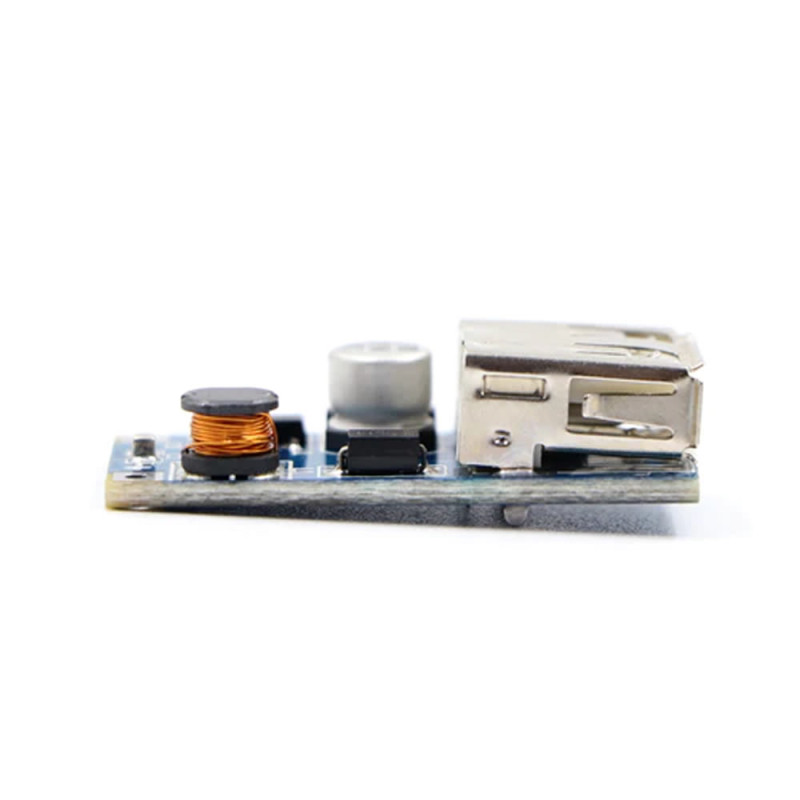

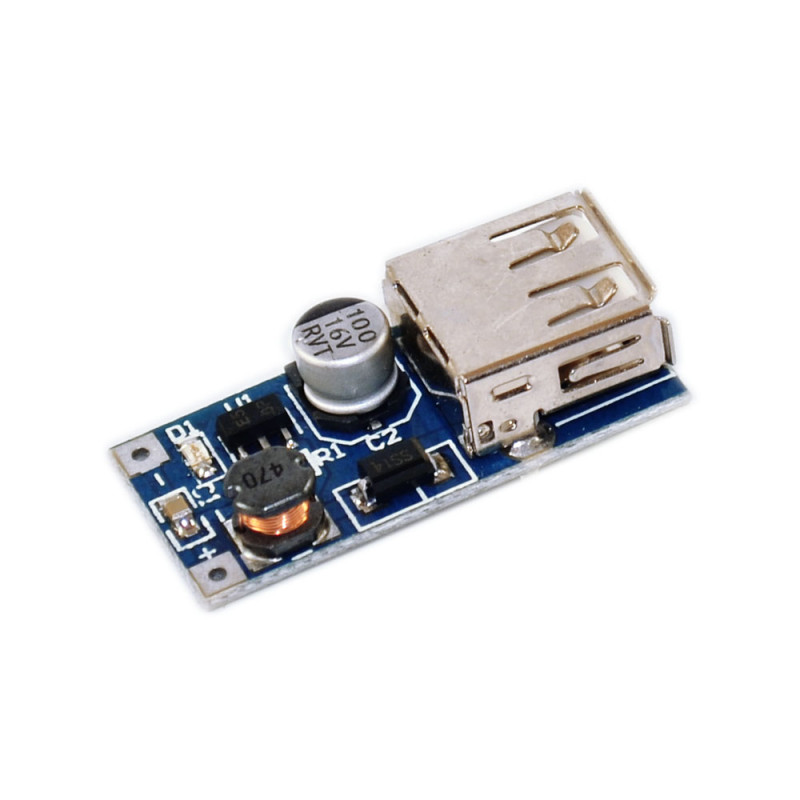

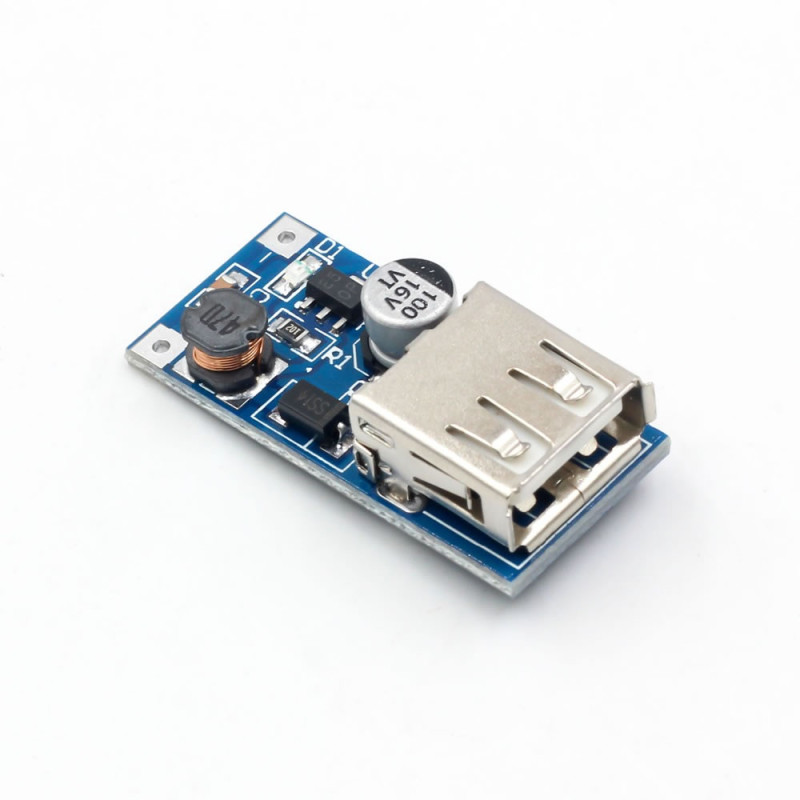

DC USB Boost Module

DC USB 5V 600mA Voltage Booster Module

DC-DC USB Step Up Boost 0.9V/5V DC Power Supply High Efficiency

     It raises the energy coming from sources with an input voltage between 0.9-5V to the 5V level. It transfers this 5V out through the usb port. In all voltage boosters the general principle is the requirement that the input power be higher than the output power. We are not talking about voltage, we are talking about power. If a power demand higher than the input can supply occurs at the output, you cannot raise the voltage. To give an example, you cannot run a television with a pen battery. If 5V drops when you connect it to a load, know that your source power is insufficient.

Features:

•     Input voltage: DC 0.9-5V
•     Output voltage: DC 5V
•     Output current: 600mA
•     Efficiency: 96%
•     Operating frequency: 500KHz
•     Output noise: 30mV ( Max )
•     Output socket: Standard Usb
•     Supply indicator led.
•     Short circuit protection: No
•     Input reverse connection protection: No

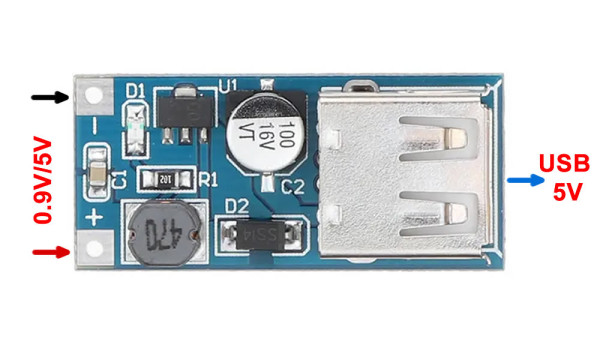

•     The + marking indicates the input positive terminal.
•     The - marking indicates the input negative terminal.
•     Operating temperature:  -10C /  +65C

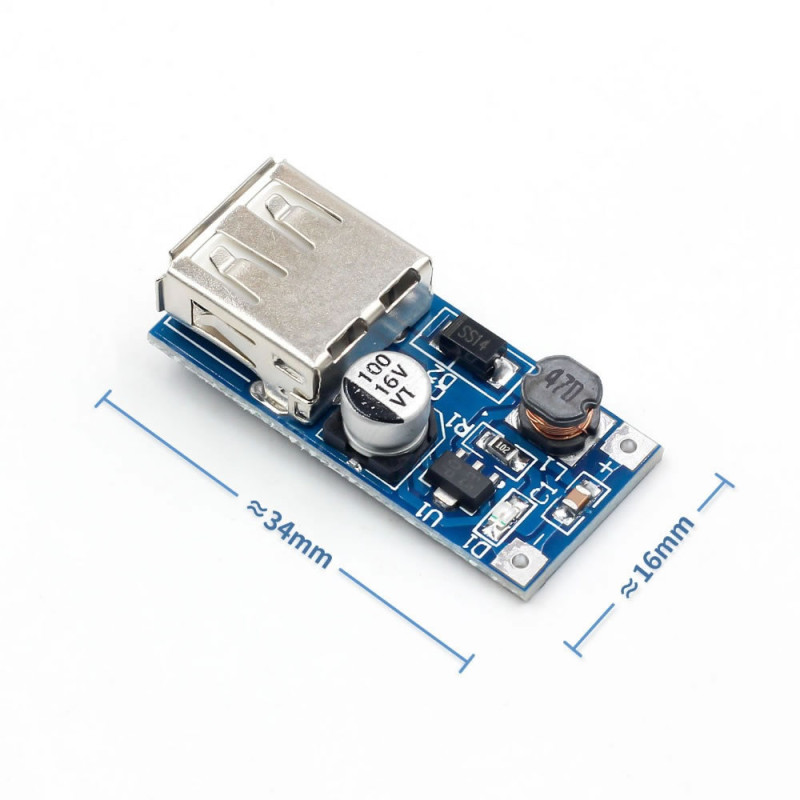

•     Dimensions:  0.8mm x 1.8mm x 2.9mm
•     Weight:  5gr

Package Contents

•      1 Piece DC USB Boost Module

.
