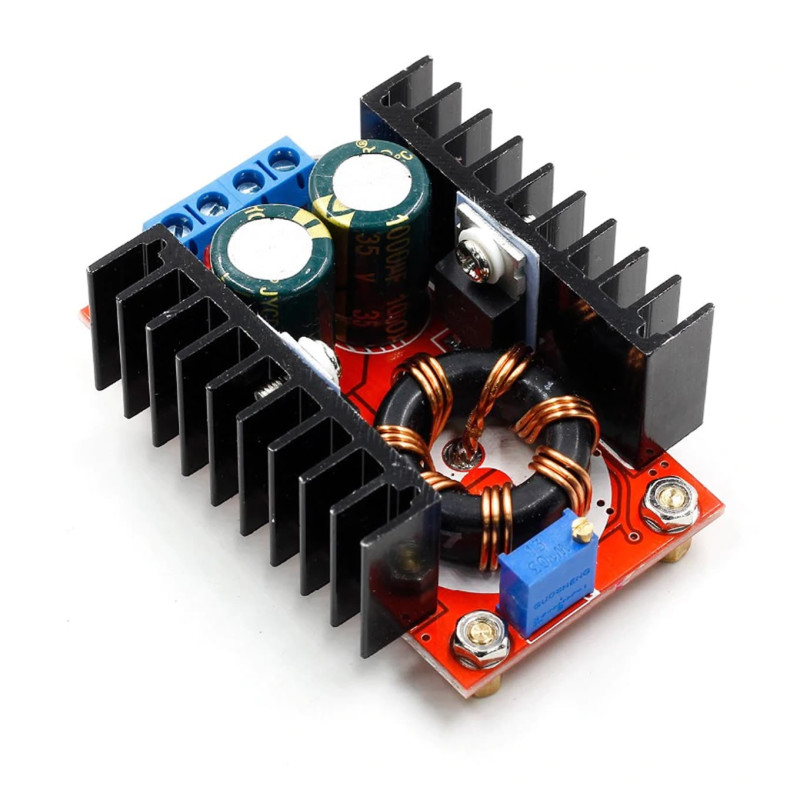

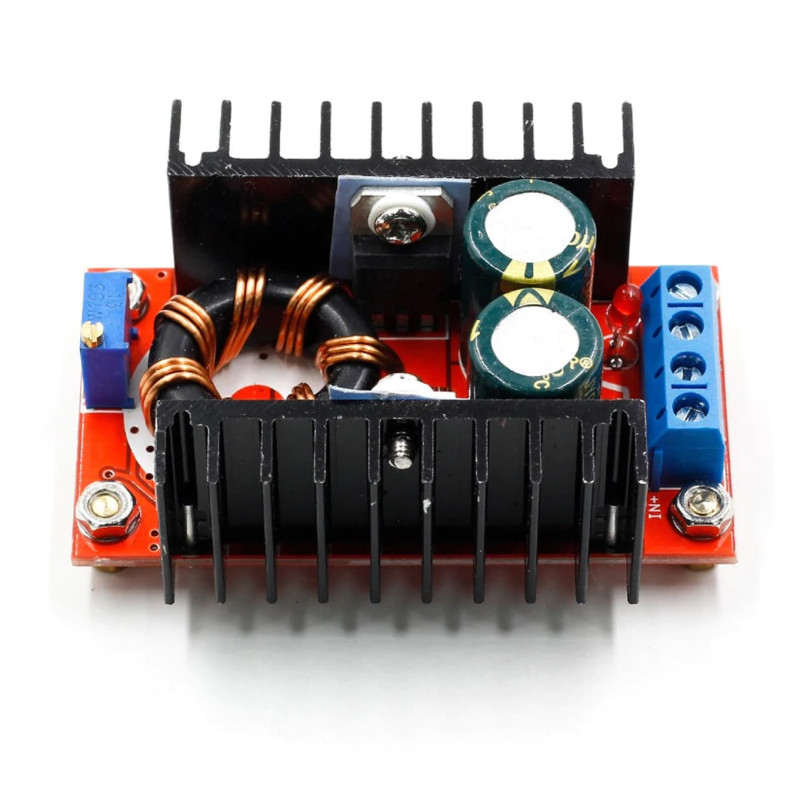

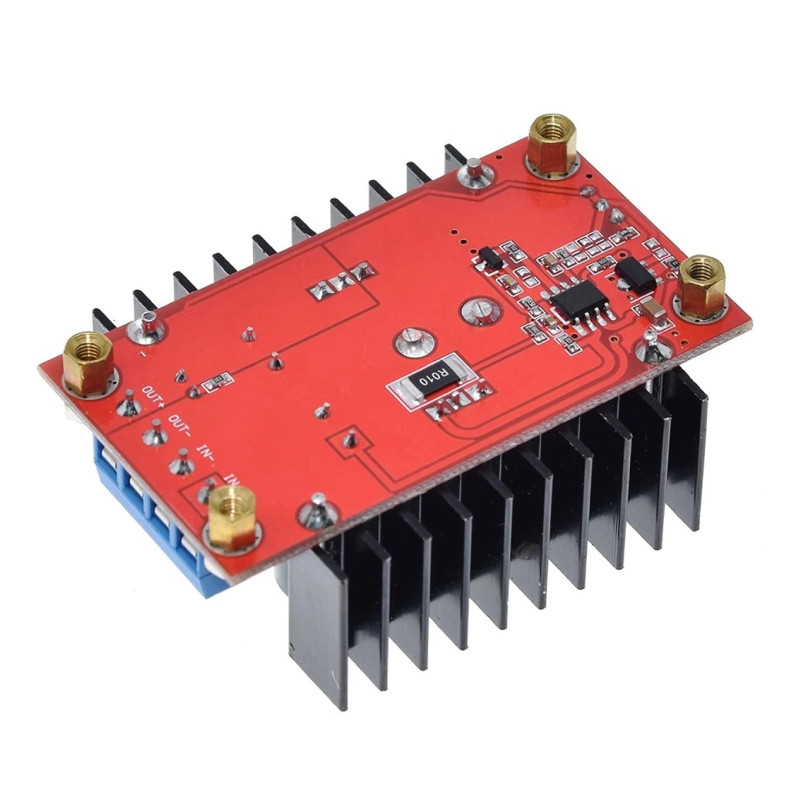

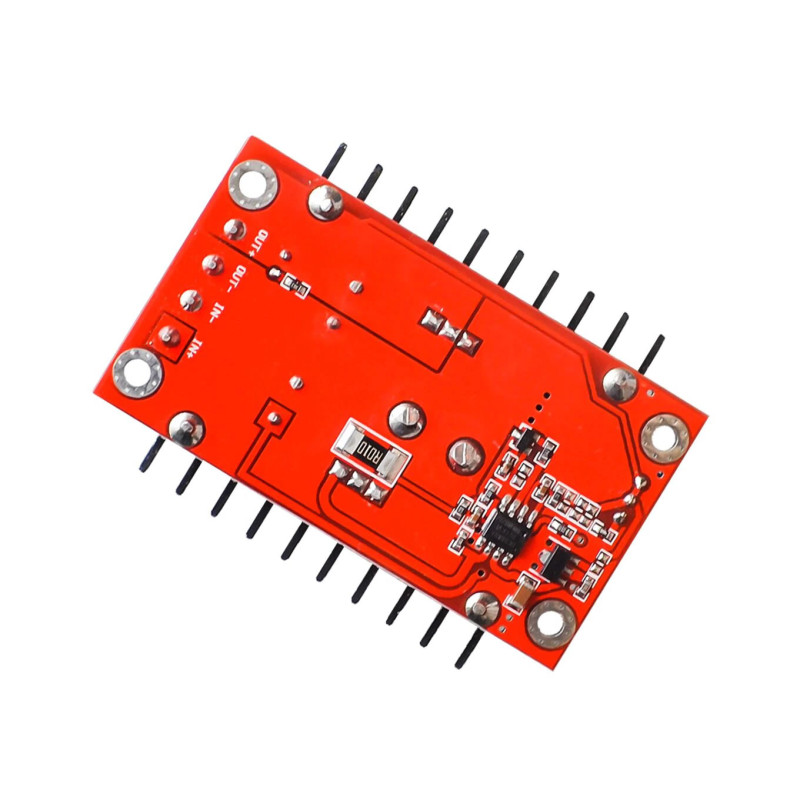

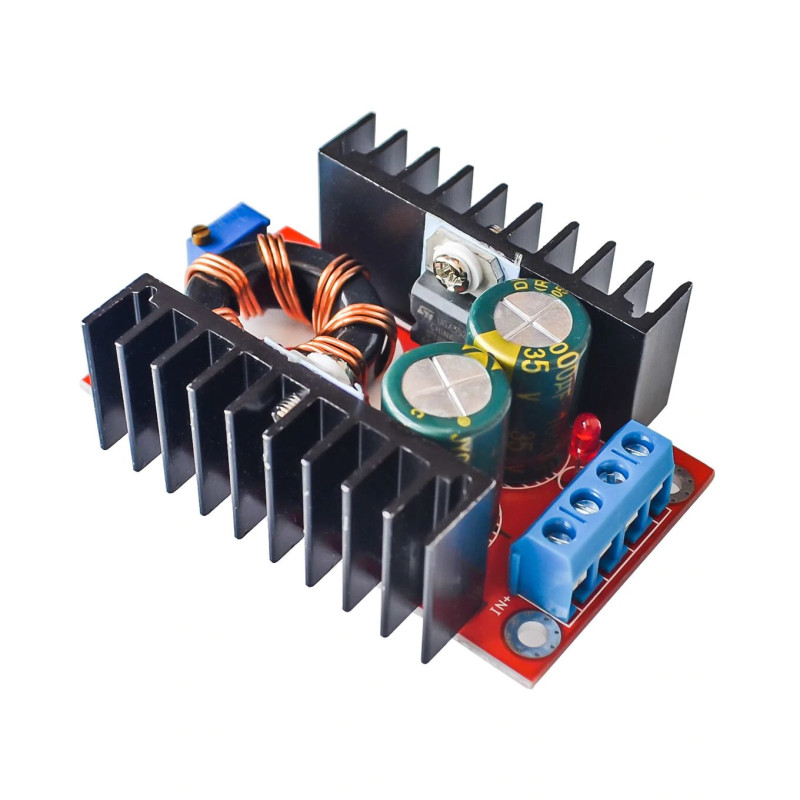

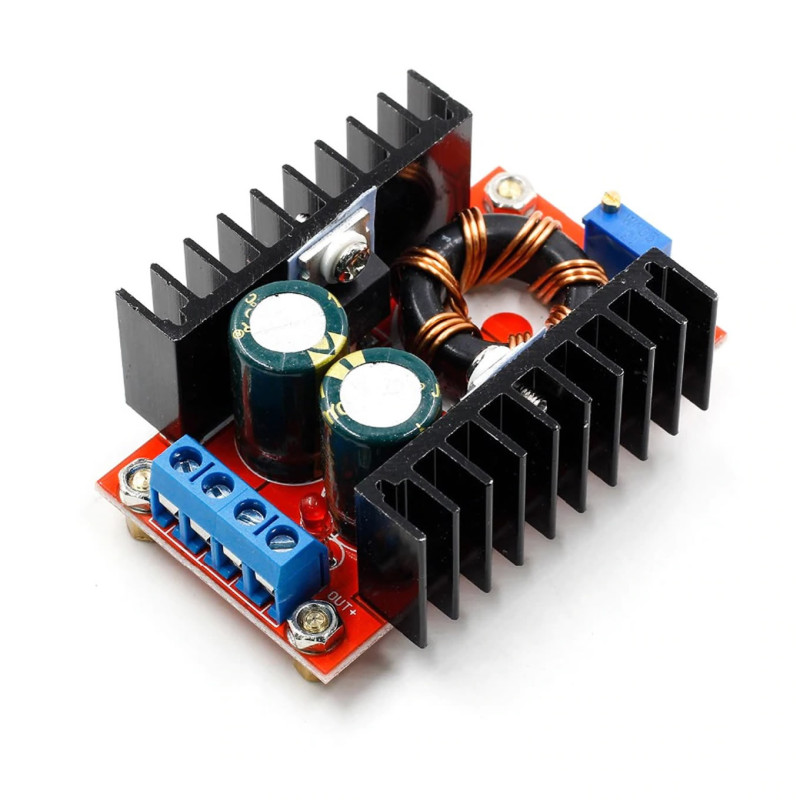

150W Boost Module

150W Boost Voltage Booster Module

DC DC Converter Voltage Adjustable Booster 35V 6A Regulator 150 Watt

The output voltage cannot be lower than the input voltage. It is a voltage booster.

     If the power/current drawn by the load is very high and the input power cannot meet it, the voltage at the output drops down and it tries to increase the current. You will see that the voltage does not rise.  To give a marginal example, you can raise the voltage of a battery with a circuit to for example the 100000V level, but you cannot move a car with it. In terms of power, your input power must always be higher than the output. Since the efficiency is above 90%, it is essential that you use the product with a source that is at least 1.25 times more powerful.

     In a number of applications requiring high voltage such as laptop supply, Solar panel applications, Led driver, it allows the voltage of low power sources to be raised and used.

     Cable connections are made easily with the terminal blocks on the regulator board without using solder.

Features:

•     150W Step Up-module ( Boost)
•     Input voltage: 10V-32V
•     Output voltage: 12V-35V ( Adjustable )
•     Output current: 6A  Max.
•     Input current: 10A  Max  ( A fan must be used above 8A. )
•     Output power: Up to 100w an aluminum heatsink is enough. In uses between 100-150W an external fan (4-5cm) must absolutely be used.
•     Efficiency: 94%
•     Output ripple: 2%( max)
•     Operating temperature: - 20C +80C
•     Temperature rise at full load: 45C
•     No-load current: 25mA
•     Voltage regulation: 0.5%
•     Dynamic response speed: % 5% 200us
•     Short circuit protection: Not available.( Using a fuse would be suitable.)
•     Input reverse polarity protection: Not available ( Connecting the input supply with a series diode would be suitable. )

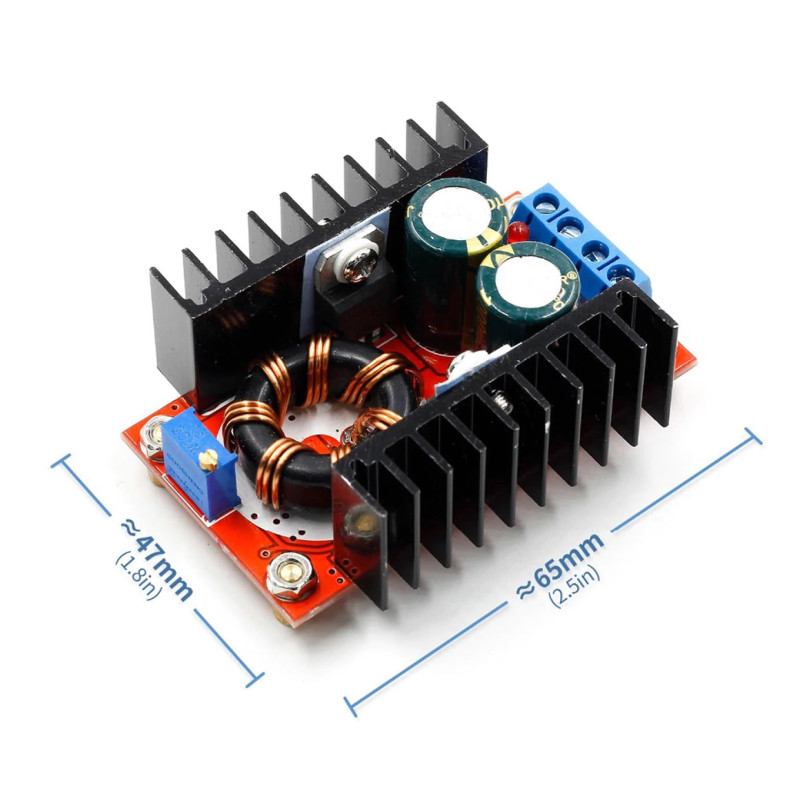

•     Size: 65 x 56.5 x 23mm
•     Weight: 65gr

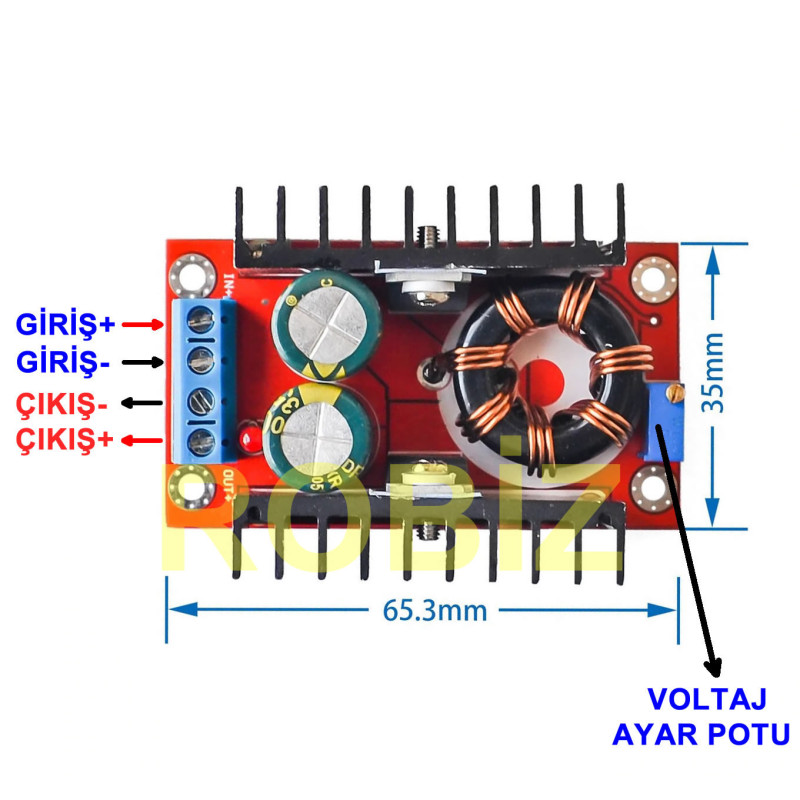

Pot Usage:

•     The pots are multi-turn. They can turn 20-30 turns in both directions. Usually the mistake of turning them very little and thinking the products do not work can be made. To see the effect it is necessary to turn a lot.
•     Turning clockwise; increases the value for the relevant parameter. For example the voltage increases.
•     Turning counterclockwise; decreases the value for the relevant parameter. For example the voltage drops.

Package Contents

•          1 Piece 150W Boost Power Supply Module
