Sound Detection Microphone Module

Sound Detection Microphone Module

High Sensitivity Analog Digital Sound Output Acoustic Control Clap Vibration Recognition

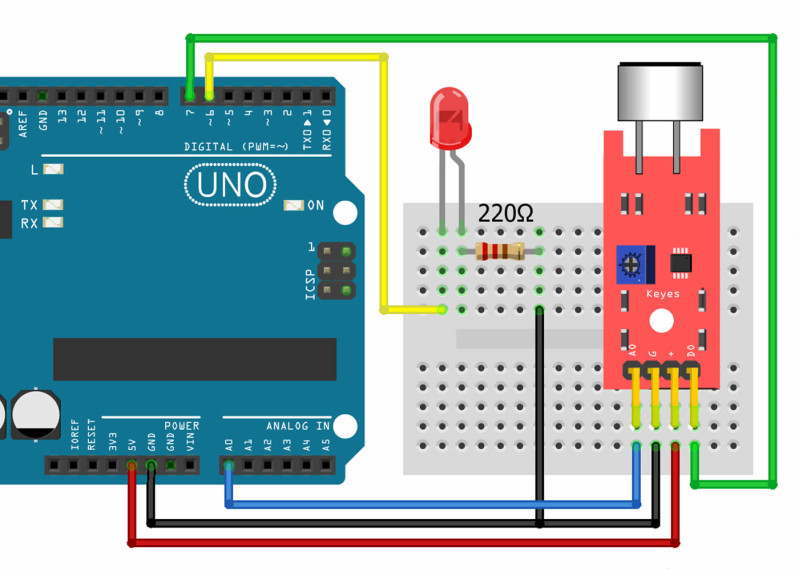

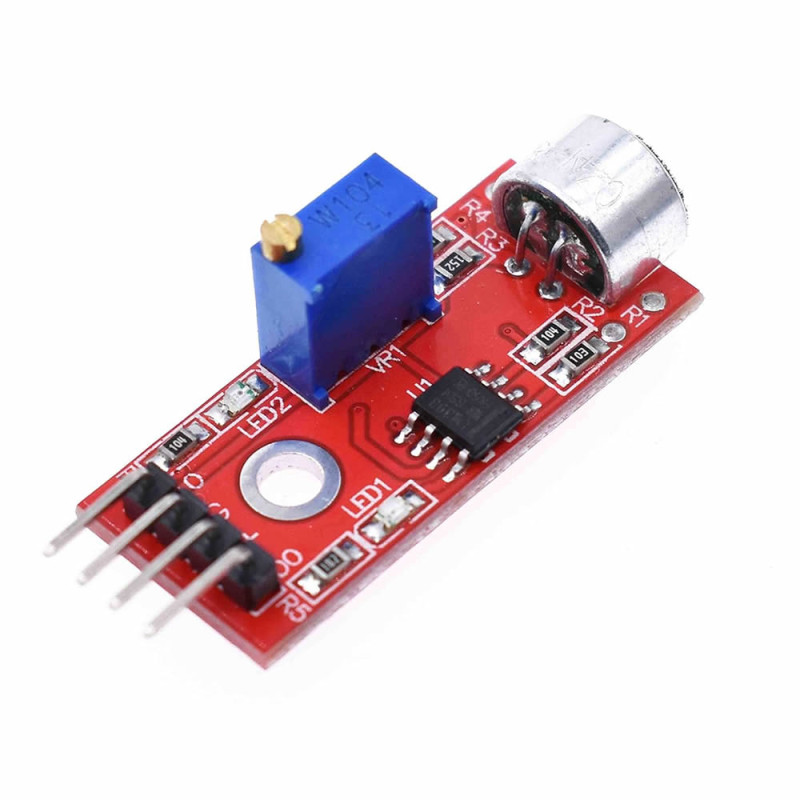

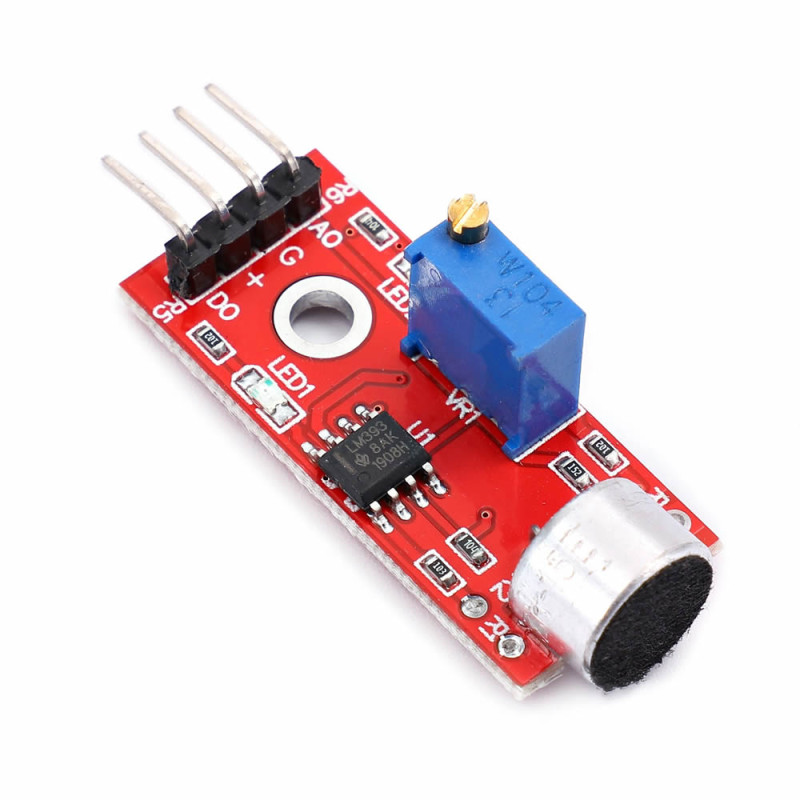

     It is an analog or digital sound detection module. Sound detection is performed with a high sensitivity microphone.  It can provide 2 types of output, analog and digital. There is a sensitivity adjustment potentiometer for the digital output setting. It has supply and digital output indicator leds. When the digital output detects sound at the set level, the output becomes active and the related led lights up at that moment to show the state of the output. Compatible with Arduino, Raspberry Pi and other microcontrollers

Features:

• High sensitivity integrated microphone
• Operating voltage:  Dc 5V
• Analog sound output
• Digital sound output
• Digital output sensitivity adjustment potentiometer
• Effective usage distance 0.5 Meter
• Supply indicator led
• Indicator led
• Color: Red
• Operating temperature: -10C  / 65C

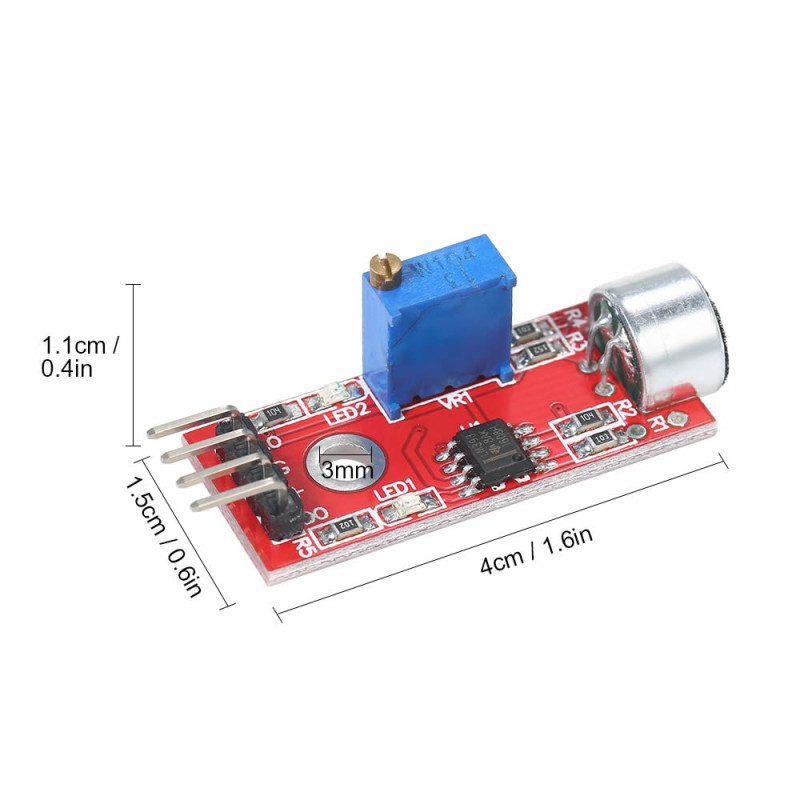

• 3mm mounting hole
• 4 pin male header connection socket

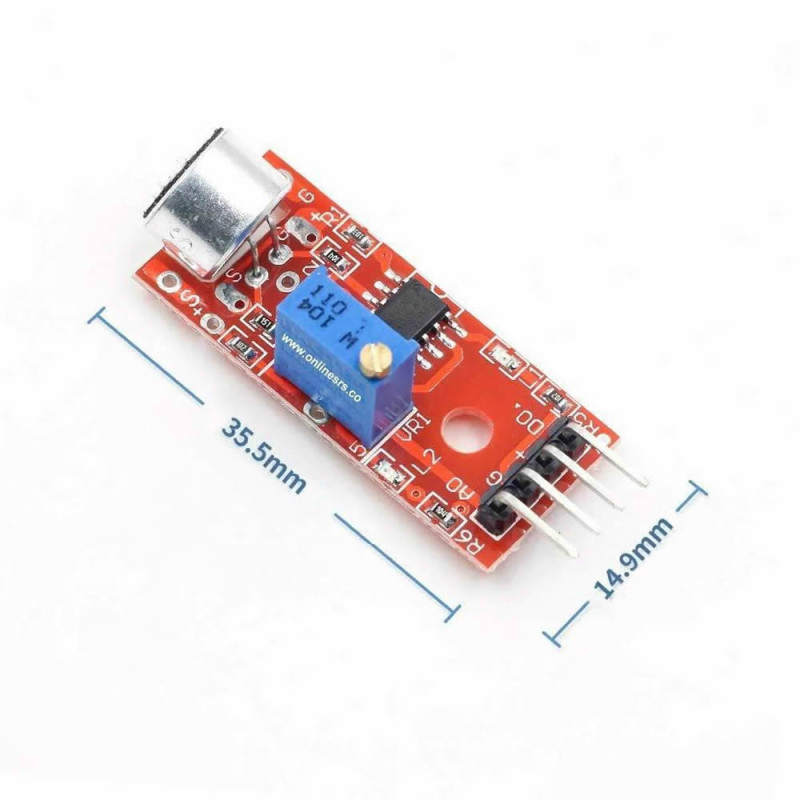

• Dimensions:  15mm x 35mm
• Weight: gr

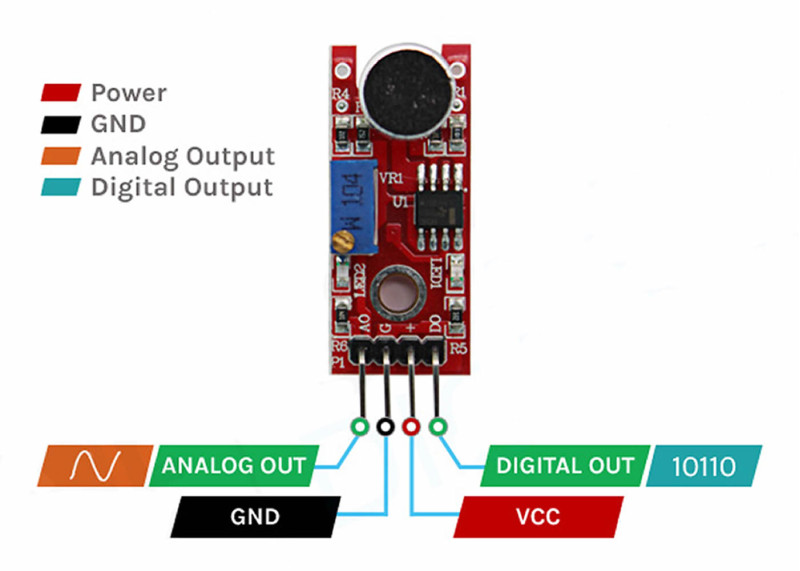

Pin description:

•  AO: Microphone analog sound output
•  GND: Supply ground pin
•  VCC: Supply positive pin
•  DO: Digital output pin

Package contents :

•  1 pcs Sound Detection Microphone Module
