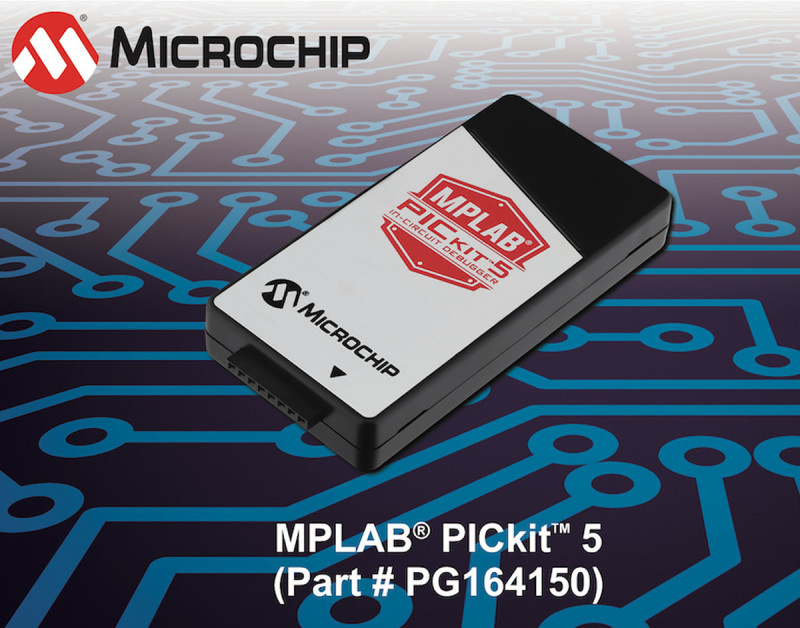

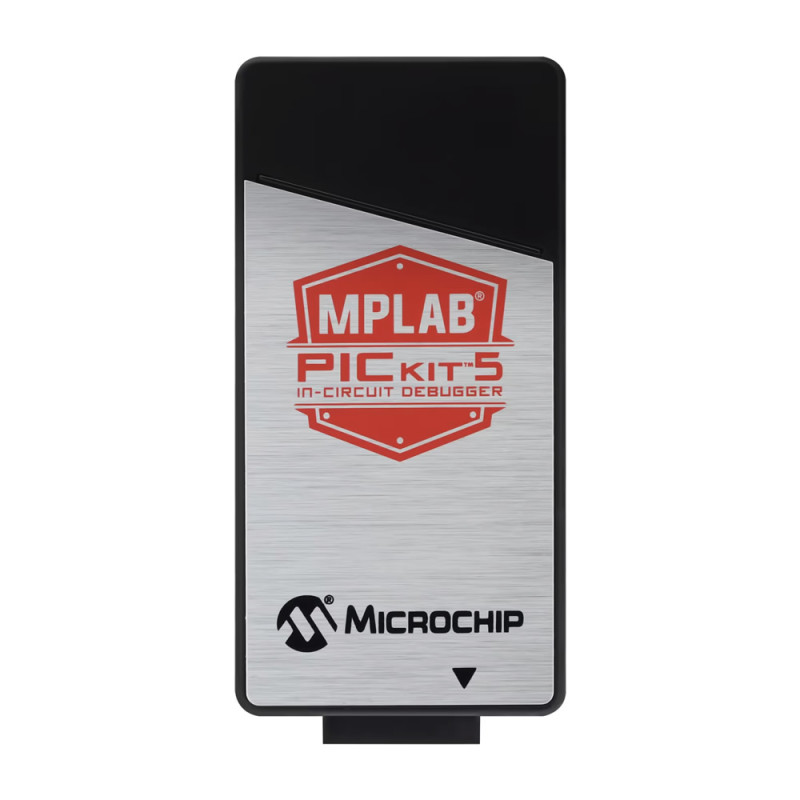

Microchip PICkit 5 In-Circuit Debugger

Microchip PICkit 5 PIC dsPIC AVR SAM Arm

PICKIT 5 Mplab Programmer Debugger Icsp Ptg Bluetooth USB Type-C JTAG SWD UART VCP PG164150

     The MPLAB PICkit 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC microcontrollers (MCUs) and dsPIC Digital Signal Controllers (DSCs), AVR and SAM devices and Arm Cortex-based microprocessors (MPUs). It works alongside the MPLAB X Integrated Development Environment (IDE) to provide a powerful and easy-to-use Graphical User Interface (GUI) for debugging and programming. Alternatively, the MPLAB PICkit 5 in-circuit debugger/programmer can be used stand-alone with the MPLAB Programmer-to-Go (PTG) mobile app, allowing you to connect to the tool from your smartphone via Bluetooth®. With stand-alone programming features accessible from your smartphone, the MPLAB PICkit 5 in-circuit debugger/programmer is a versatile programming companion that lets you prototype and debug your solution and then unplug and bring the device with you to deploy that solution out in the field.

     The MPLAB PICkit 5 supports a wide variety of interfaces such as four-wire JTAG or Serial Wire Debug (SWD) with streaming UART Virtual Comm Port (VCP), and with the Debugger Adapter Board (AC102015) can use standard connectors for JTAG, SWD, ICSP, and AVR Protocols. With the unique programmer-to-go function, the PICkit 5 can also be powered by the target board and program a default image simply by pressing the button hidden under the logo. You can also connect via Bluetooth using the MPLAB PTG mobile app and browse the micro SDTM card installed in the tool for a different image and start programming the target board right from the app.

MPLAB PICkit 5 In-Circuit Debugger

•     Improved Programmer-to-Go (PTG) support with the MPLAB PTG mobile app
•     Connect wirelessly from your smartphone via Bluetooth
•     Select from multiple saved program images on the SD Card
•     Start programming from the app or by pressing on the logo
•     Supply 150 mA to the target
•     Option to be self-powered from the target (2.7V to 5V)
•     Simplify your workspace
•     USB Type-C connector and cable
•     No external power needed when the device is powered by high-speed USB 2.0

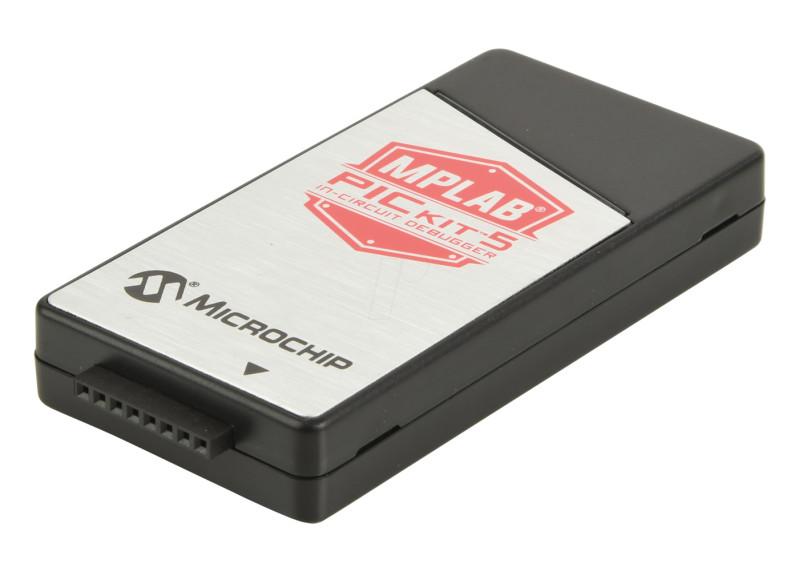

•     Use the eight-pin single in-line header
•     Supports JTAG, SWD, UART VCP
•     Adapter board allows use of standard connectors for JTAG, SWD, ICSP, and AVR Protocols
•     Reduce Costs
•     Features and performance at a fraction of the cost of comparable debuggers/programmers

     Microchip Technology Inc. introduces the MPLAB PICkit™ 5 In-Circuit Debugger/Programmer, the next-generation tool that takes prototyping and programming to new heights, the new version of Pickit 4, of which I am also a user. With its advanced features and enhanced performance, the MPLAB PICkit 5 offers unparalleled functionality for developers working with Microchip components, including PIC, dsPIC, AVR, and SAM (Arm) devices.

1. Seamless Integration: The MPLAB PICkit 5 seamlessly integrates with the MPLAB X Integrated Development Environment (IDE), providing developers with a powerful and user-friendly Graphical User Interface (GUI) for effortless debugging and programming. The IDE offers a comprehensive set of tools and features to streamline the development process and maximize productivity.

2. Enhanced Debugging and Programming: This versatile tool brings enhanced capabilities to the table, allowing developers to debug and program their applications with ease. It supports a wide range of debugging features, including multiple hardware/software breakpoints, stopwatch functionality, and source code file debugging. With the MPLAB PICkit 5, developers can efficiently identify and resolve issues in their code, leading to faster development cycles and improved overall product quality.

3. Broad Device Support: The MPLAB PICkit 5 supports a diverse range of Microchip components, enabling developers to work with various microcontrollers and microprocessors. Whether you’re working on a PIC-based project, utilizing dsPIC capabilities, or exploring the potential of AVR or SAM devices, the MPLAB PICkit 5 has got you covered. Its broad device support ensures compatibility and flexibility across different projects and applications.
PICkit 5 debugger block diagram

4. Advanced Programming Features: The MPLAB PICkit 5 offers advanced programming capabilities, allowing developers to program their devices quickly and efficiently. With support for Programmer-To-Go (PTG), developers can program devices in the field without the need for a dedicated programming environment. The MPLAB PTG mobile app, available for iOS and Android devices, enables seamless program image selection and management via BLUETOOTH connectivity. This flexibility empowers developers to deploy their solutions with ease and convenience.

5. Robust Connectivity Options: The MPLAB PICkit 5 offers multiple connectivity options to meet the diverse needs of developers. It supports interfaces such as four-wire JTAG or Serial Wire Debug (SWD) with streaming UART Virtual Comm Port (VCP). With the Debugger Adapter Board (AC102015), developers gain access to standard connectors for JTAG, SWD, ICSP, and AVR Protocols. This broad range of connectivity options ensures compatibility with various target boards and simplifies the debugging and programming process.
USB Power and communication

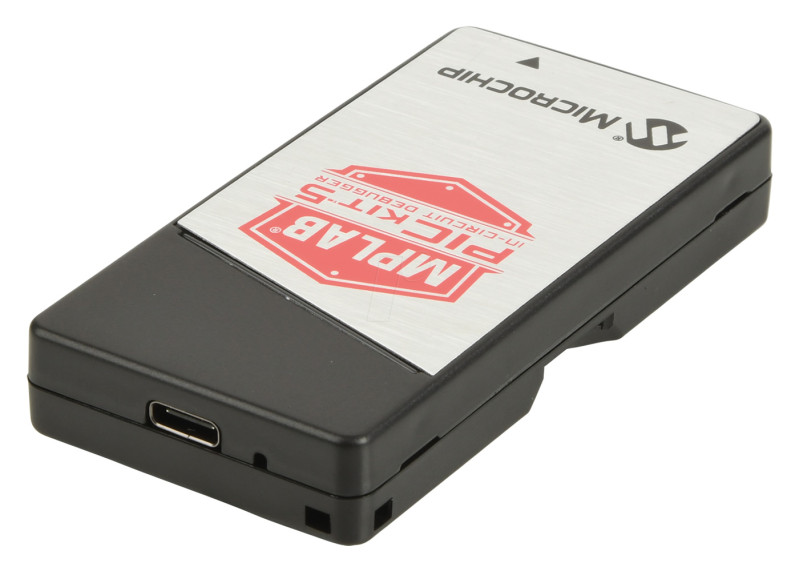

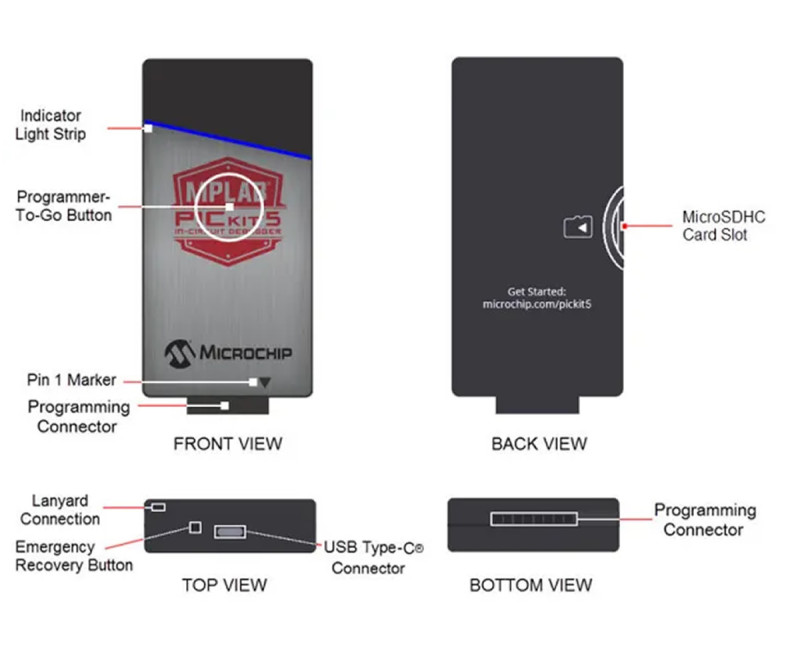

6. User-Friendly Design: Microchip has designed the MPLAB PICkit 5 with the user in mind. Its sleek and compact design, coupled with a user-friendly interface, provides developers with a comfortable and efficient programming experience. The tool features a USB Type-C™ cable for easy connectivity to a computer, and it can be powered either through USB or the target device. Additionally, the MPLAB PICkit 5 boasts a durable black plastic case with a brushed metal top and an indicator light strip, combining functionality and aesthetics.
Connection to Target

7. Future-Proof Development: Microchip is committed to supporting developers with continuous updates and enhancements. The MPLAB X IDE and MPLAB IPE receive regular updates, ensuring compatibility with new devices and offering additional features and improvements. With Microchip’s ongoing commitment to innovation, developers can rely on the MPLAB PICkit 5 for their current projects while staying prepared for future development endeavors.

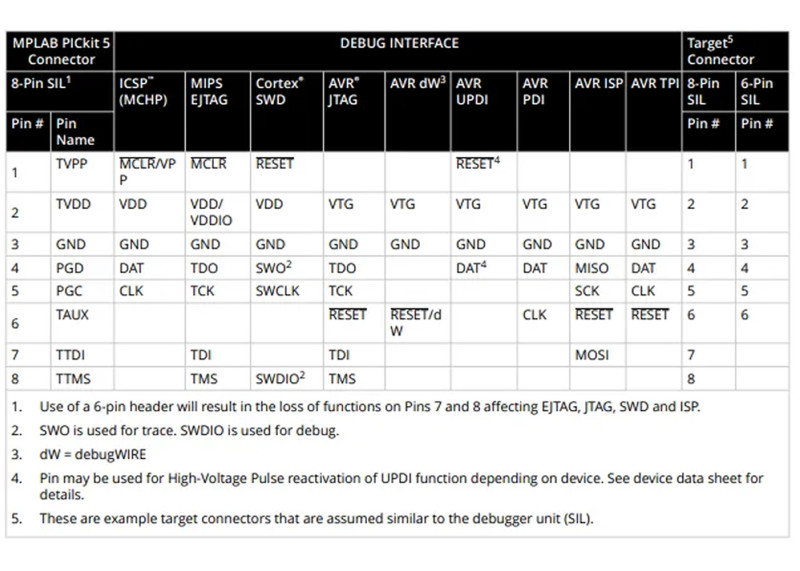

pinouts for debug interfaces

     Experience the power and versatility of the MPLAB PICkit 5 In-Circuit Debugger/Programmer and elevate your development process to new heights. From seamless integration with the MPLAB X IDE to advanced debugging and programming features, this tool empowers developers to create innovative and robust applications with ease. Stay ahead of the curve with Microchip Technology and unlock the full potential of your Microchip components.

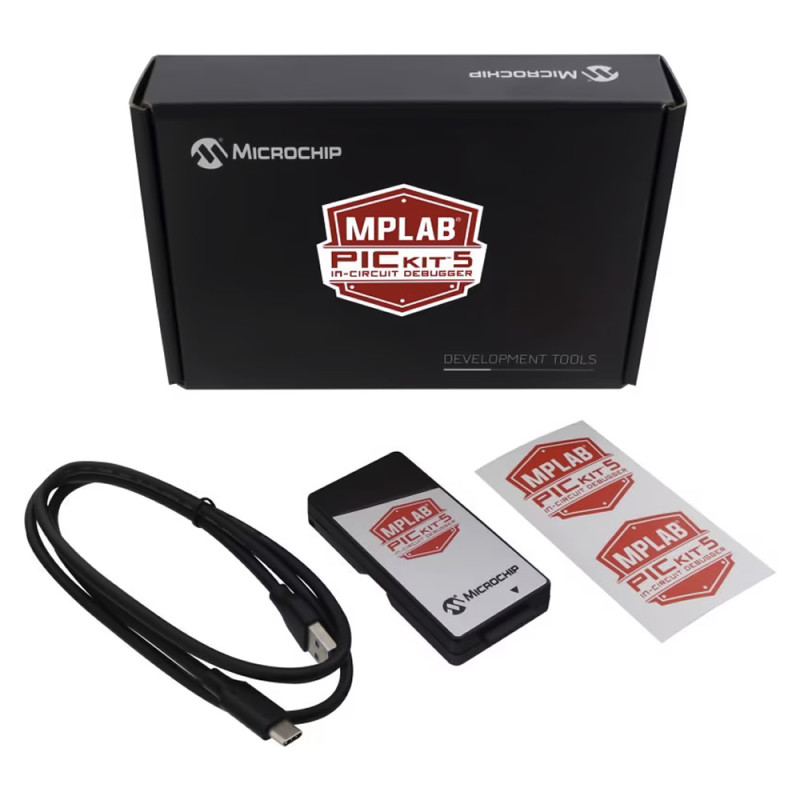

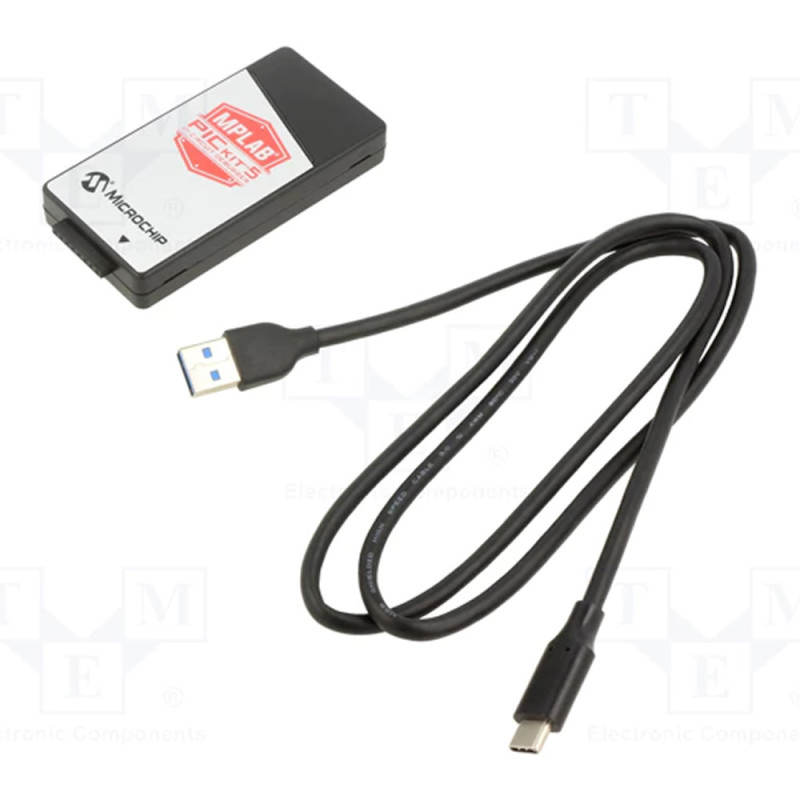

Package Contents:

• 1 pcs Microchip PICkit 5 Programmer
• 1 pcs Usb Cable
