TEMT6000 Light Sensor

TEMT6000 Ambient Light Sensor

Visible Light Intensity Brightness Night Day Illumination Detector Solar Energy Systems Phone Tablet Smart Home

     The TEMT6000 light sensor module is an analog output sensor designed to measure the amount of visible light in the environment. Working in a range close to the spectrum the human eye can perceive, it is sensitive to natural light levels. It is ideal for detecting natural light sources such as sunlight and room light. Since it does not detect IR (infrared) light, it provides a more realistic ambient light measurement. As the light increases, the analog voltage value will also increase proportionally.

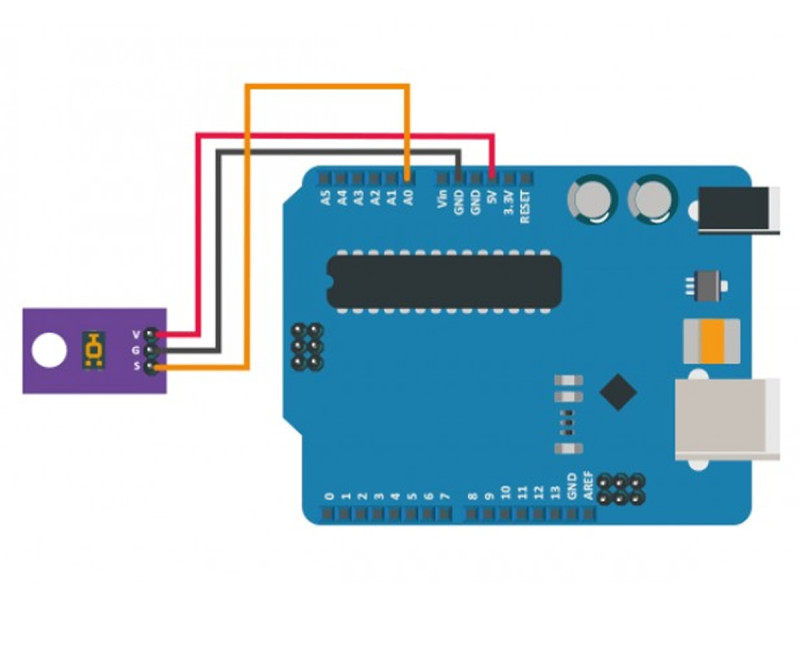

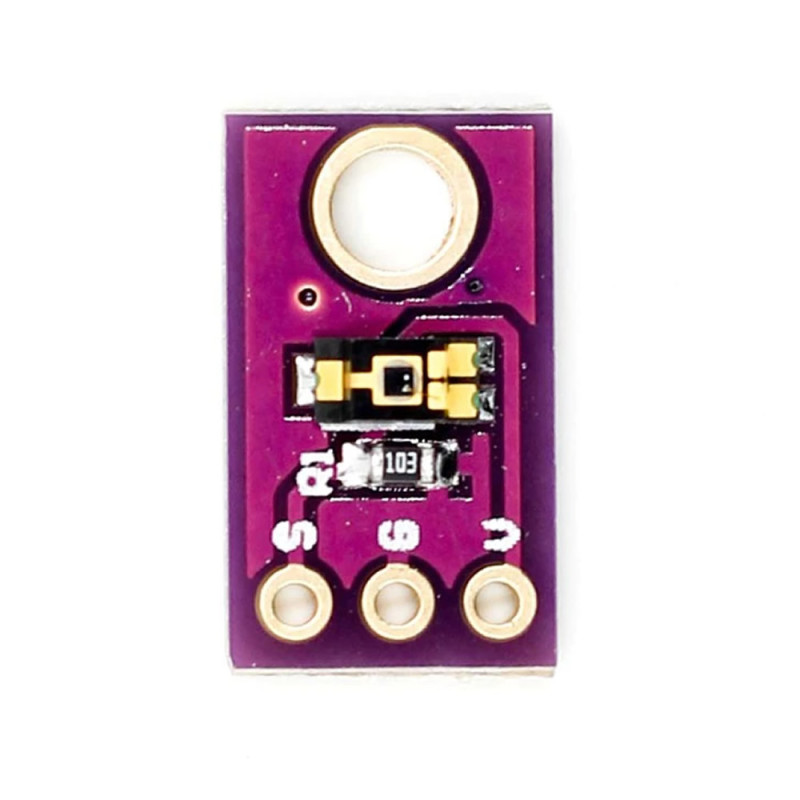

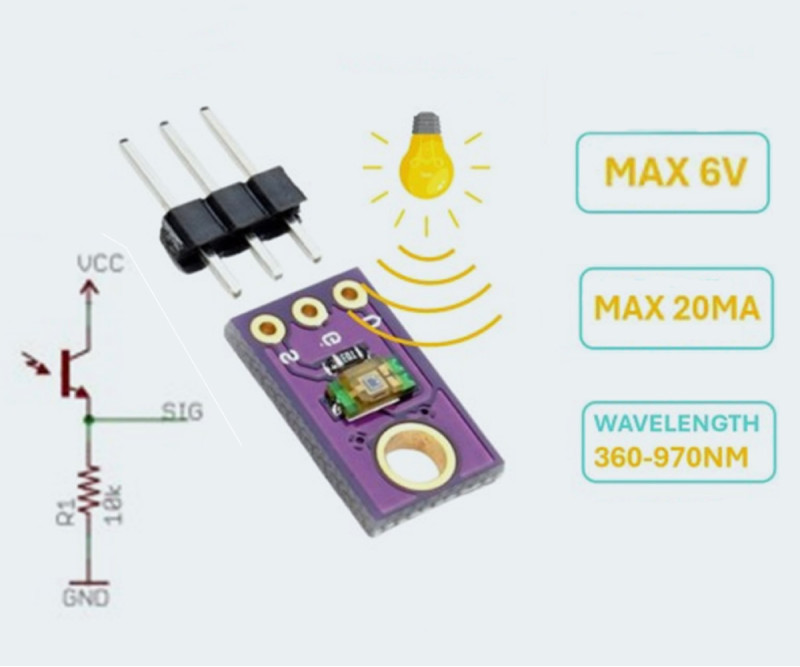

     The module is ready for direct use with the resistors and capacitors on it. It can be used by connecting directly to your microcontroller board (Arduino, STM32, ESP8266, ESP32 etc.) without the need for an external circuit component. An analog voltage between 0 V and VCC is obtained from the signal output pin in proportion to the light intensity in the environment.

     It can be used as an ambient light sensor for the control of screen backlight dimming, in LCD screens and keypad backlighting of mobile devices, in industrial on / off lighting, automotive sensors, mobile phones, laptops, PDAs, cameras and panels.

Features:

• Model: TEMT6000 Light Sensor
• Operating voltage:  DC  3.3V / 5V
• Output type: Analog voltage (depending on light intensity)
• Output current 50 uA ( 100 lux )
• Visible light detection
• Does not detect IR light.
• Linearity range: 1 - 1000 lux (above this range the output voltage may reach saturation
• Response time:  <1 ms
• Response spectrum: 400-700 nm (peak point: 570 nm - green region)
• Viewing angle: 120C  ( +- 60C )
• Color:  Blue
• Operating temperature: -20C /  65C
• One mounting hole
• 3 Pin communication connection empty header pads.

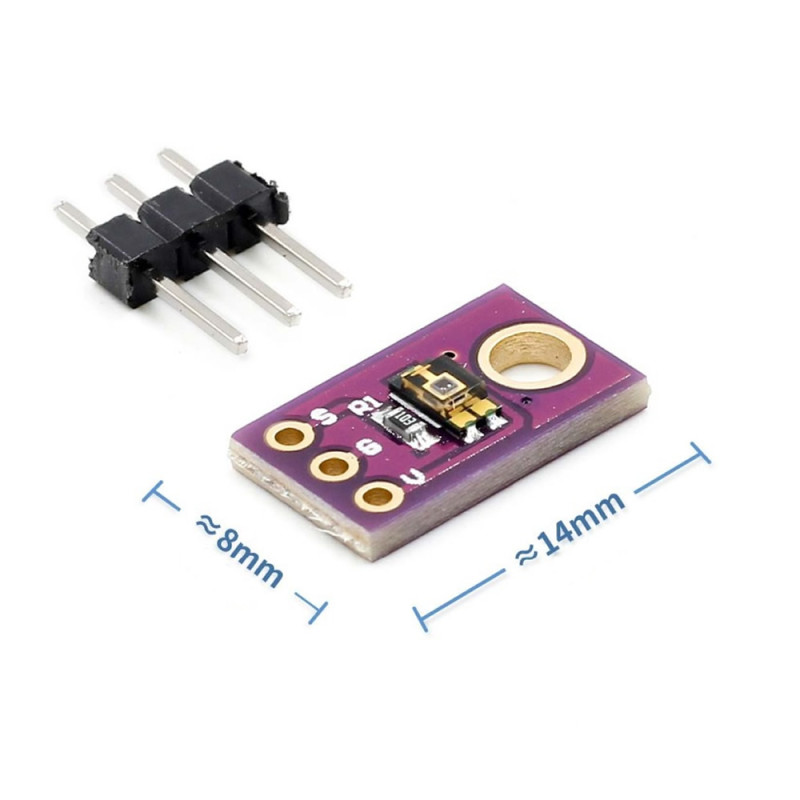

• Dimensions: 8mm x 14mm
• Weight:  1gr

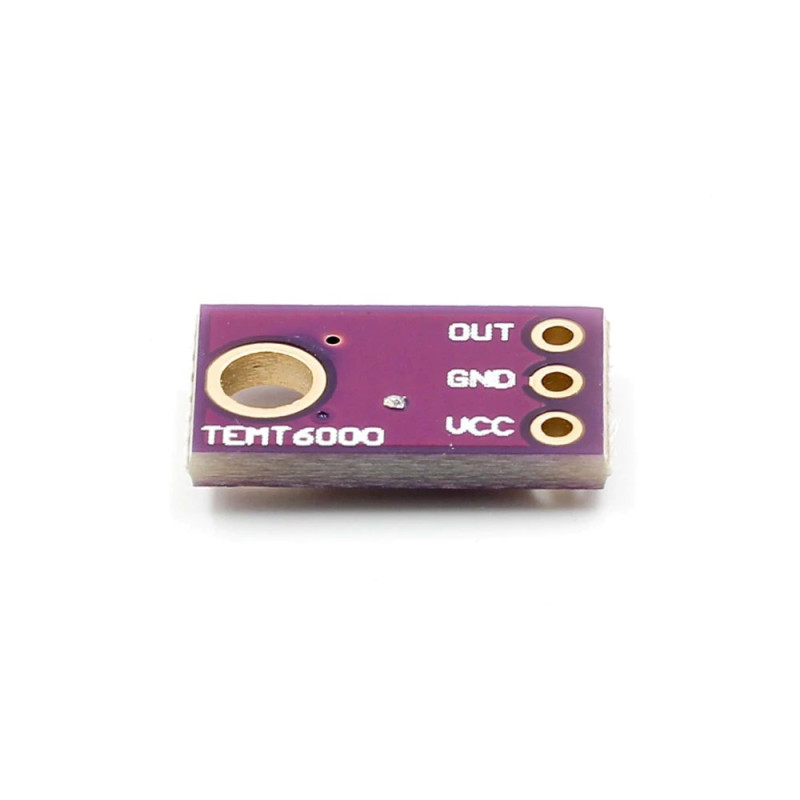

Pin description:

• Vcc= DC 3.3 V / 5 V
• Gnd= Ground
• Out=  Analog signal output pin

Package contents :

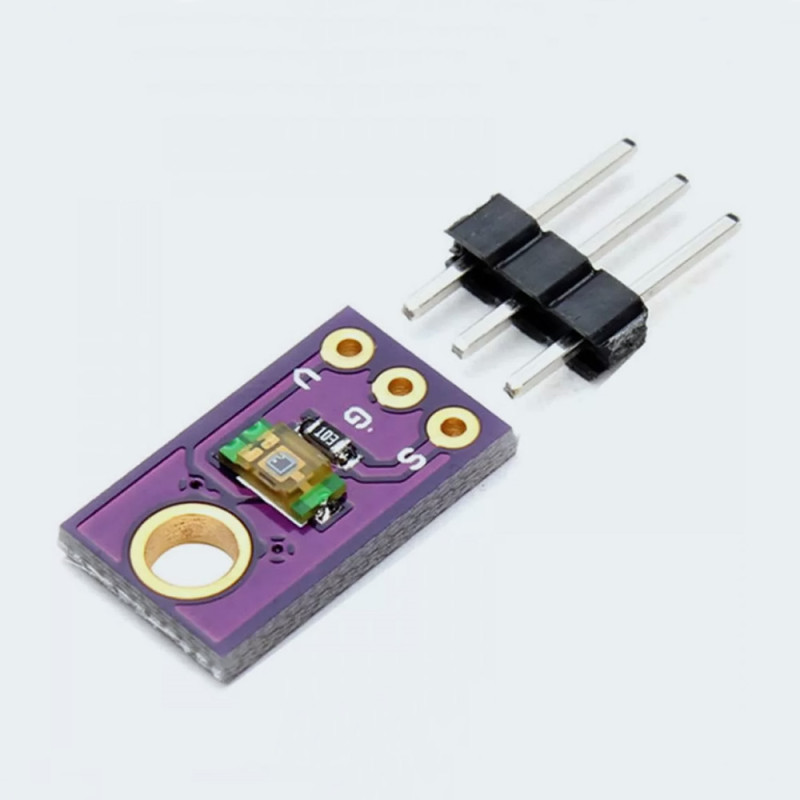

• 1 pcs TEMT6000 Light Sensor Module
•  1 pcs 3 pin male header
