MCP9700 Temperature Sensor

Microchip MCP9700-E/TO Analog Temperature Heat Sensor

LM35 Equivalent -40C +125C 3 Pin To92 Automotive Thermostat Electronic Device Smart Home Automation Warehouse Office

It is an original Microchip product. It is an analog output temperature sensor. We recommend using this product instead of copy Lm35s.

     MCP9700-E/TO is a sensor with which you can measure temperature directly by voltage change. The voltage change for each degree is 10mV. It provides temperature indication as analog. It is used by calculating the temperature corresponding to the analog voltage measured with an adc. It can measure temperature between -40C / 125C. It has a 500mV dc offset. This enables negative temperatures to be measured without a negative supply.

Features:

•    Manufacturer: Microchip
•    Model: MCP9700-E/TO
•    Working voltage: DC 2.3V to 5.5V
•    Very low current consumption: 12uA (max.)
•    Linear temperature sensor
•    Step: 10mV/C
•    Accuracy between 0C to +70C:  +-4C
•    Accuracy between -40C to +125C:  -4C/+6C
•    There is no need for external components.
•    AEC-Q100 quality grade: 0 and 1
•    Color: Black

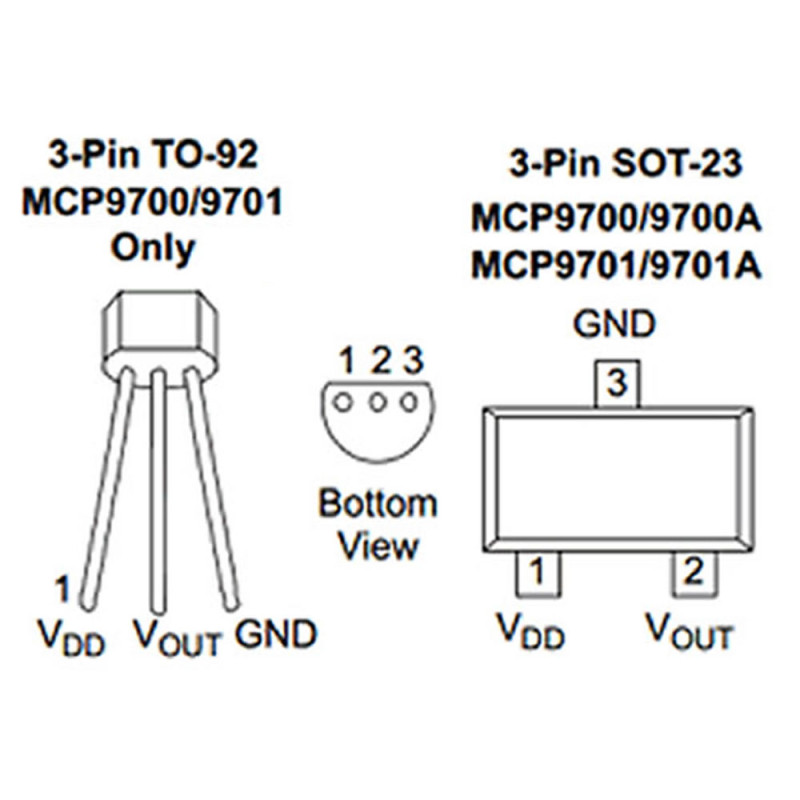

•    Package: To-92

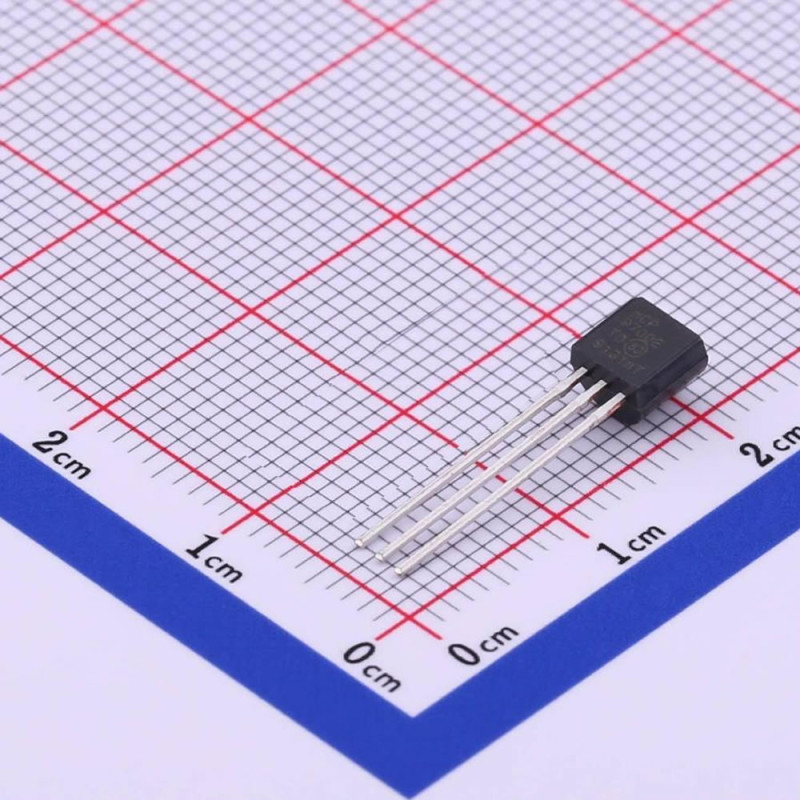

•    Dimensions: 4.5mm x 4.5mm
•    Lead length: 15mm

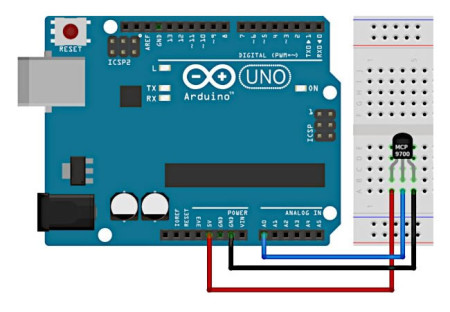

Sample Arduino Code:   startingelectronics.org/beginners/arduino-tutorial-for-beginners/measure-temperature-with-arduino-and-mcp9700/

Package Contents:

•      1 pcs MCP9700-ETO92

.
