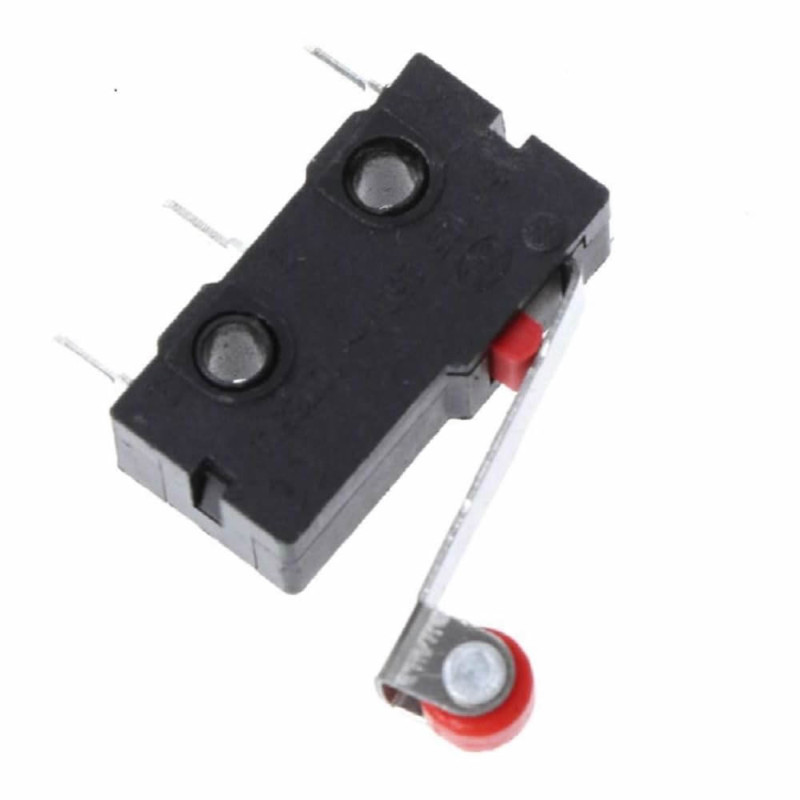

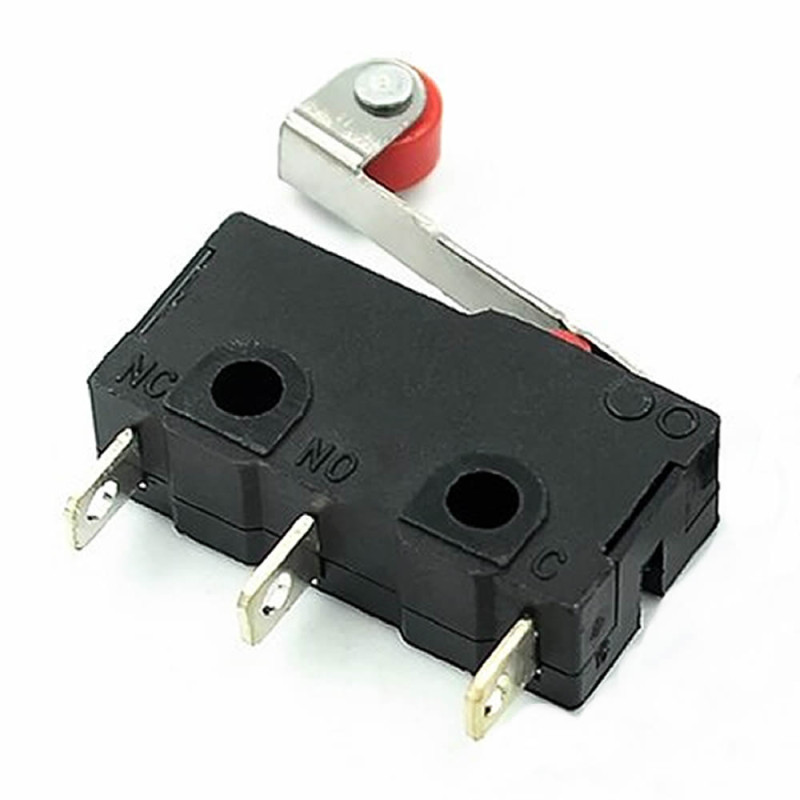

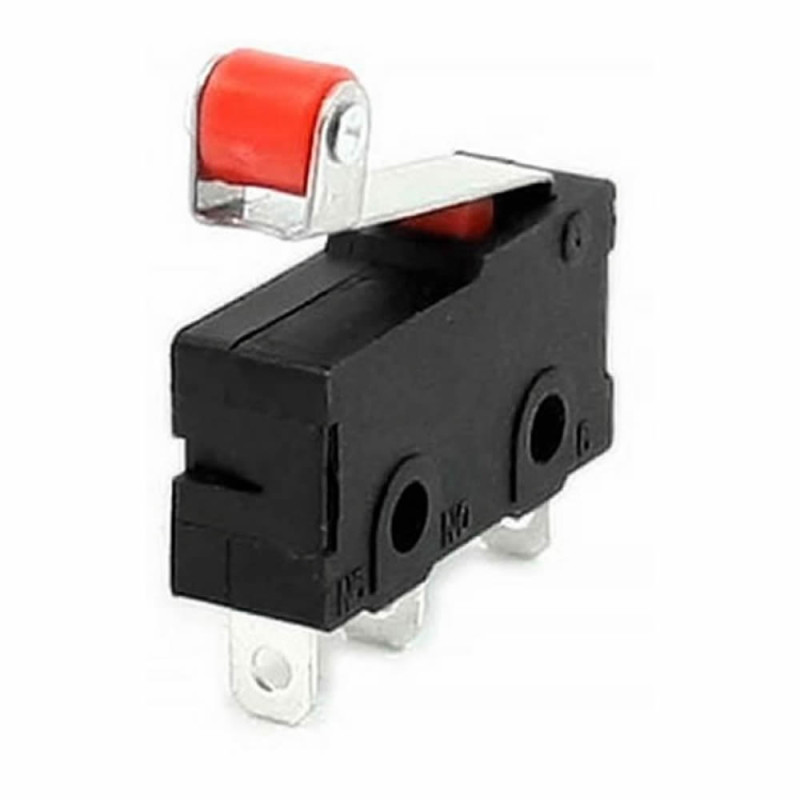

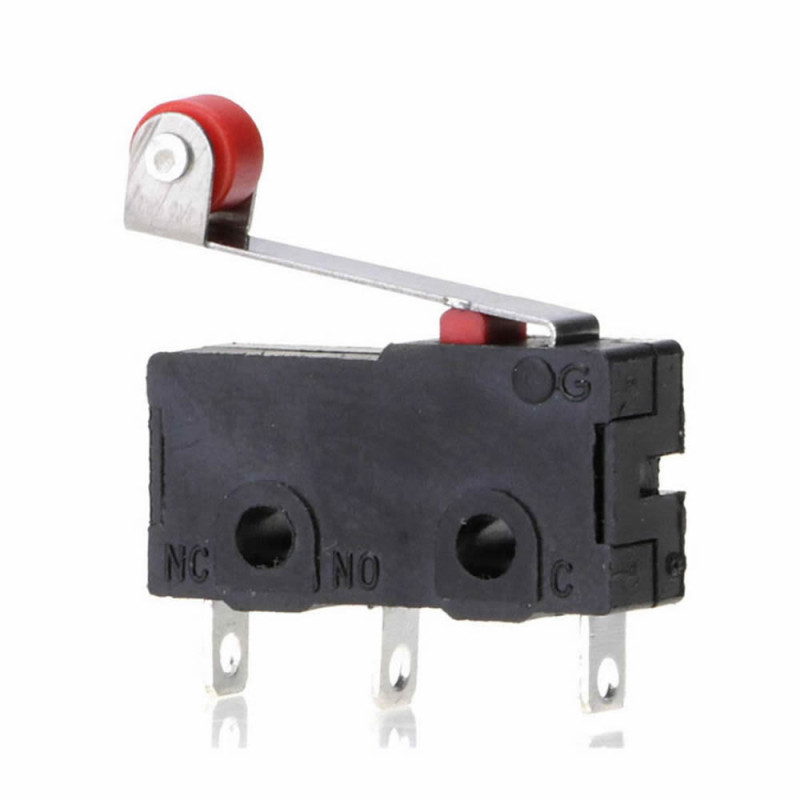

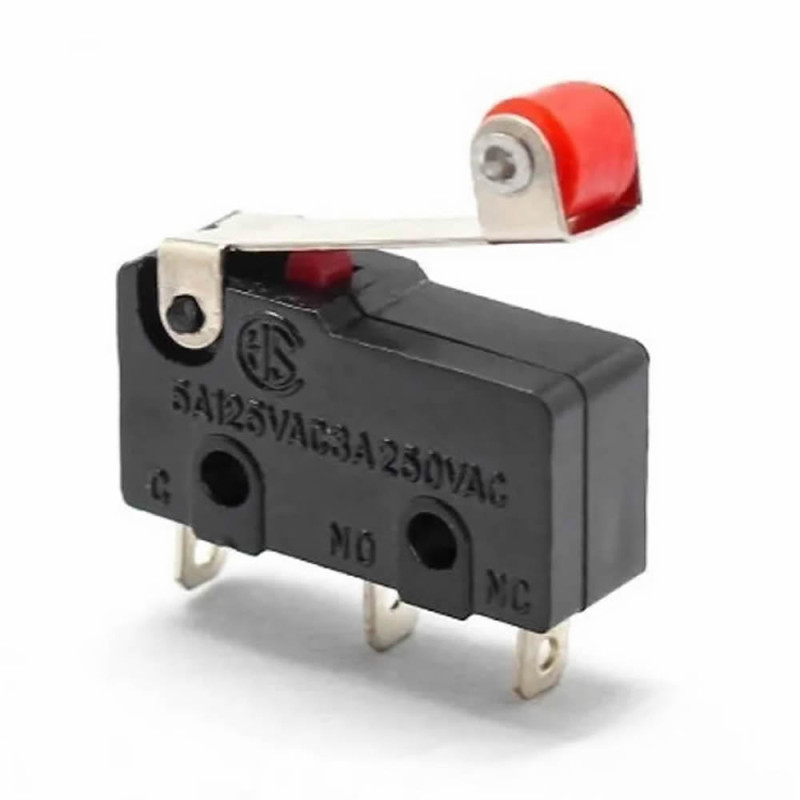

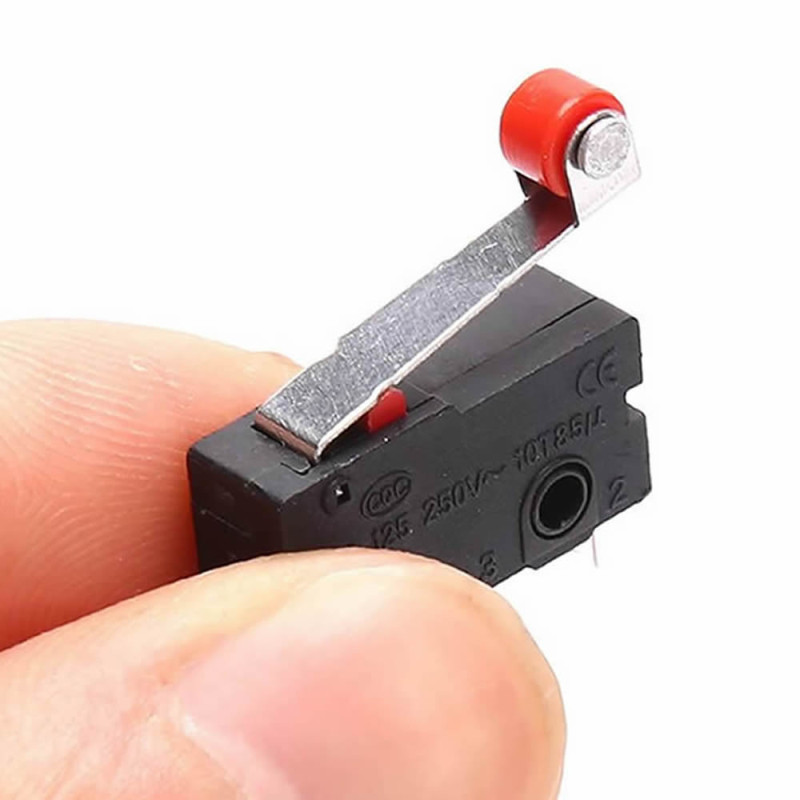

Roller Micro Switch 5A Kw123

Roller Micro Switch 5A

5A 250V Roller Lever NO NC COM SPDT Limit Momentary Button Switch Kw123

     5A 250V Micro switch. It has a roller lever mechanism. It is a high performance, durable and long lasting switch. It is the ideal solution for the control of various electrical devices and your mechanisms. It is a micro switch that works small and fast. It is an electromechanical device that generates an electrical signal by the movement, touch or impact of a machine part or an object.

     The switch is triggered by the force generated by external mechanical force transmission elements (pins, buttons, levers, rollers etc.). After triggering, it can be used in applications of controlling the opening and closing of a door, the stopping of an elevator or the operation of a machine.

Features:

• Roller Micro Switch
• Operating voltage: AC 250V  DC 30V
• Operating current: 5A
• Contact type: SPDT
• Operating type: Momentary
• Roller lever
• The contact gap is small.
• It moves with a short stroke.
• Color: Black
• Small size.
• Pins:  NO NC COM
• Operating temperature: -25C  /  70C
• Mechanical life:  100.000 presses
• Mounting type: Can be soldered to Pcb

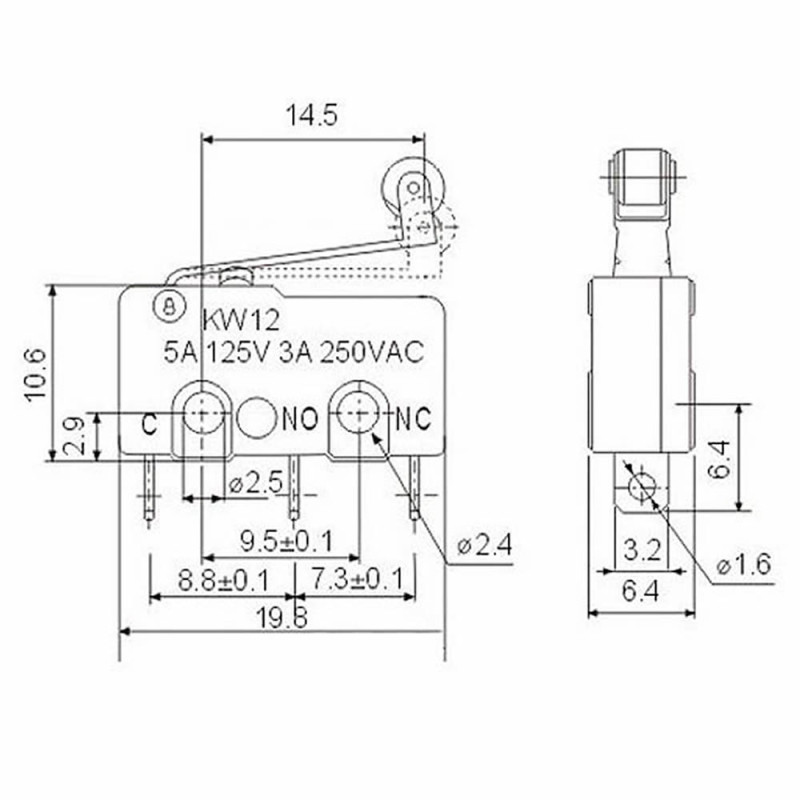

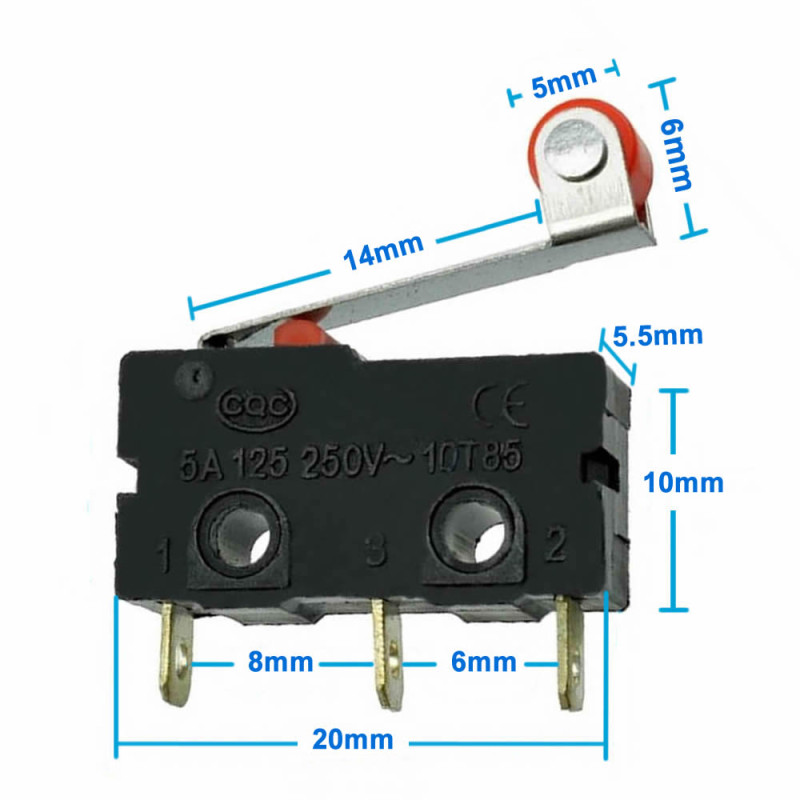

• Size:   5.5mm x 10mm x 20mm
• Weight: 2gr

Package Contents:

• 1 Piece Roller Micro Switch 5A Kw123

.
