CH340G USB to TTL UART Module
85.26TL
71.05TL + KDV
10 or more 72.47TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.577

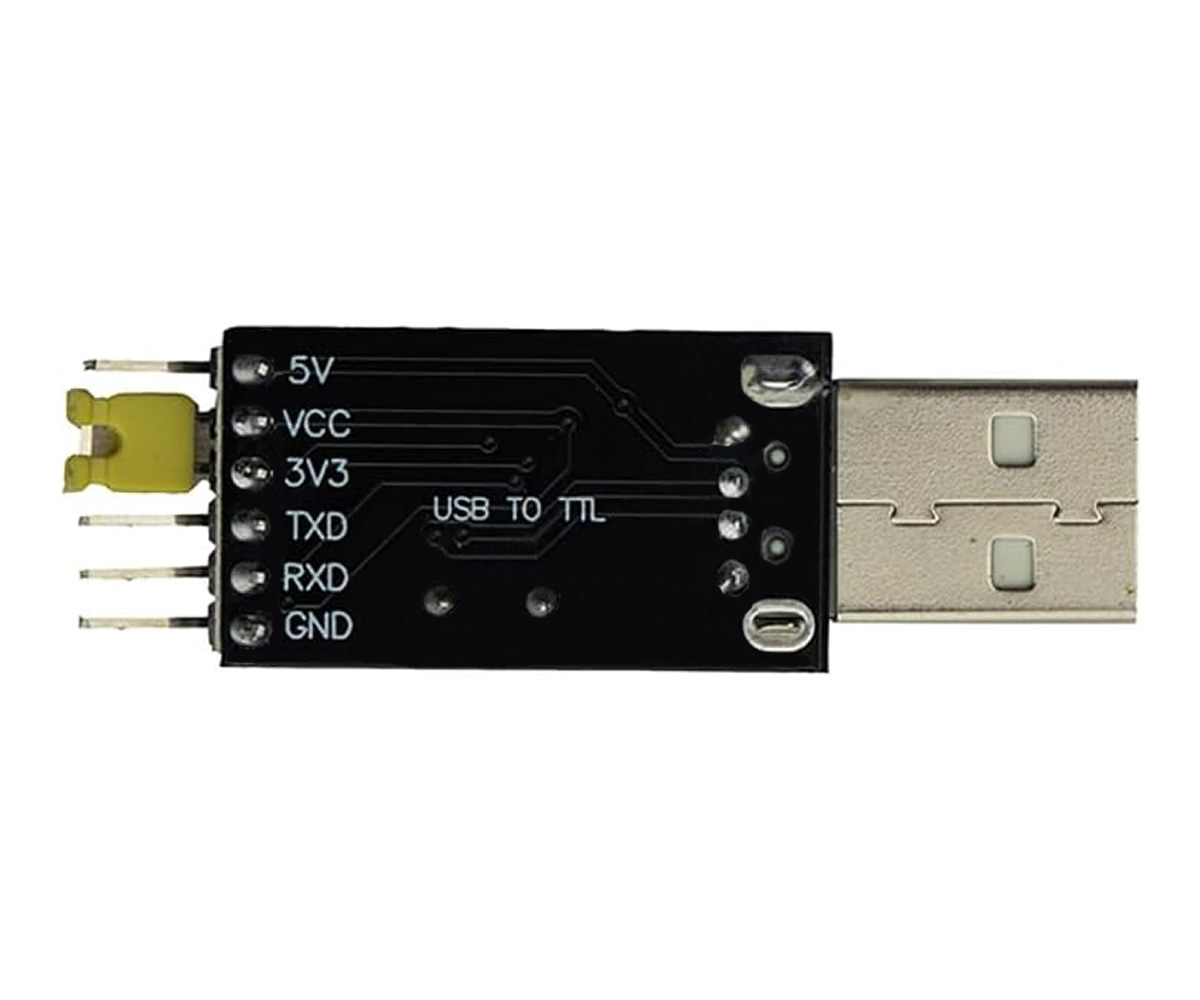

CH340G USB to TTL UART Converter Module
Serial Port Communication Arduino Mcu Satellite Receiver Dvd GSM Phone
A converter circuit that enables data exchange between usb ttl rs232. It is used for serial port communication over usb on computers that do not have a serial port. The CH340G chip has not been used. There is 3.3V 5V supply support. There are 2 communication indicator leds. There is 1 power indicator led.
Specifications:
- Converts the USB port to a TTL serial port.
- The CH340G ic is used.
- It can operate as 3.3V or 5V. The VCC choice is made with a jumper.
- Blue power indicator led.
- Rx, Tx indicator leds.
- There is a standard USB type A male socket.
- 500mA protection fuse.
- Dual protection circuit
- There are 5 Pin ttl connector output pins. These pins are GND, RXD, TXD, 3.3V and 5V.
- The operating voltage is set to the 5V or 3.3V level via the 3 way socket.
- Thanks to the TTL outputs it easily provides communication with an mcu.
- Windows 98SE, 2000, XP, Vista, 7, 10, 11 (32/64 Bit)
- Dimensions: 55mm x 16mm
- Weight: 5gr
Note : The circuit is covered with transparent shrink tubing.
Driver: The CH341SER.EXE file must be downloaded via Google and installed.
wch-ic.com/products/CH340.html
Package Contents :
- 1 Piece CH340G Module
.
