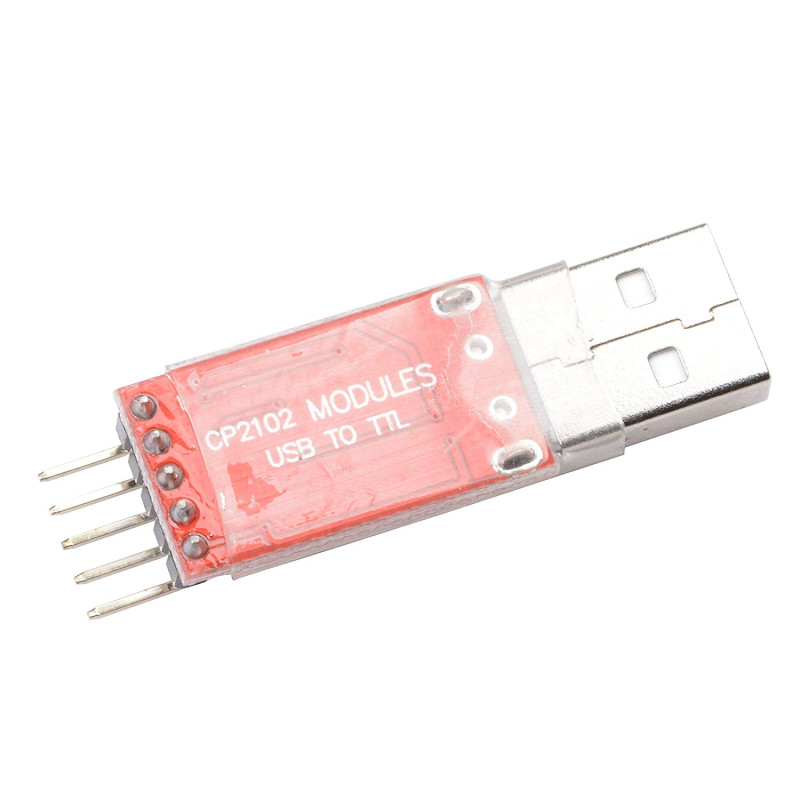

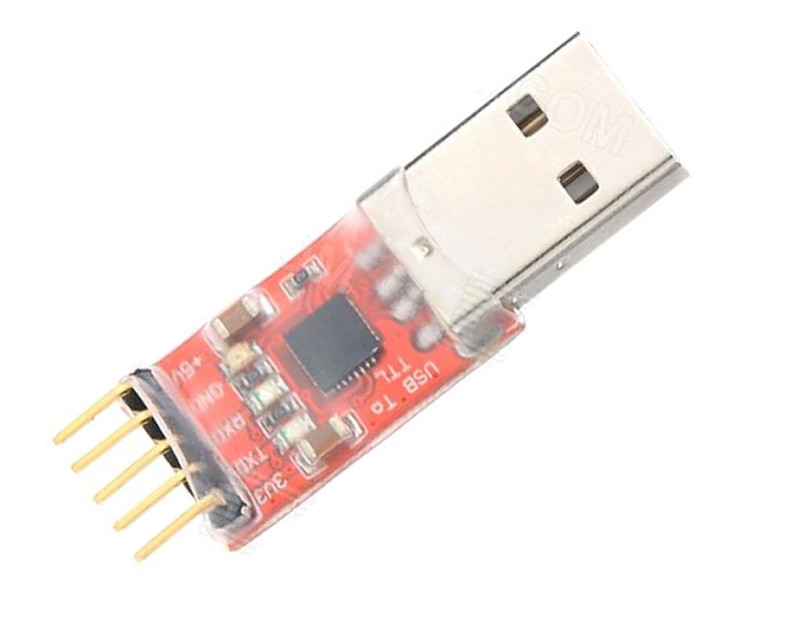

USB to TTL UART CP2102 Module

CP2102 USB to RS232 TTL UART Converter Module

Serial Port Communication Mcu Satellite Receiver Dvd GSM Phone Firmware Update

     It enables ttl serial port communication on computers without a serial port. Silabs Cp2102 integrated circuit is used. When connected to the computer via the usb port, it creates a virtual serial port. The com port that is created is selected and used in the relevant software.

     There are supply and rx tx communication indicators. Connection with the pc is established via the Usb A socket. It has a 5 pin connection socket. It has 5V and 3.3v supply pins along with  Rx and Tx output signals.

Features:

•     Converts the USB port to a TTL serial port.

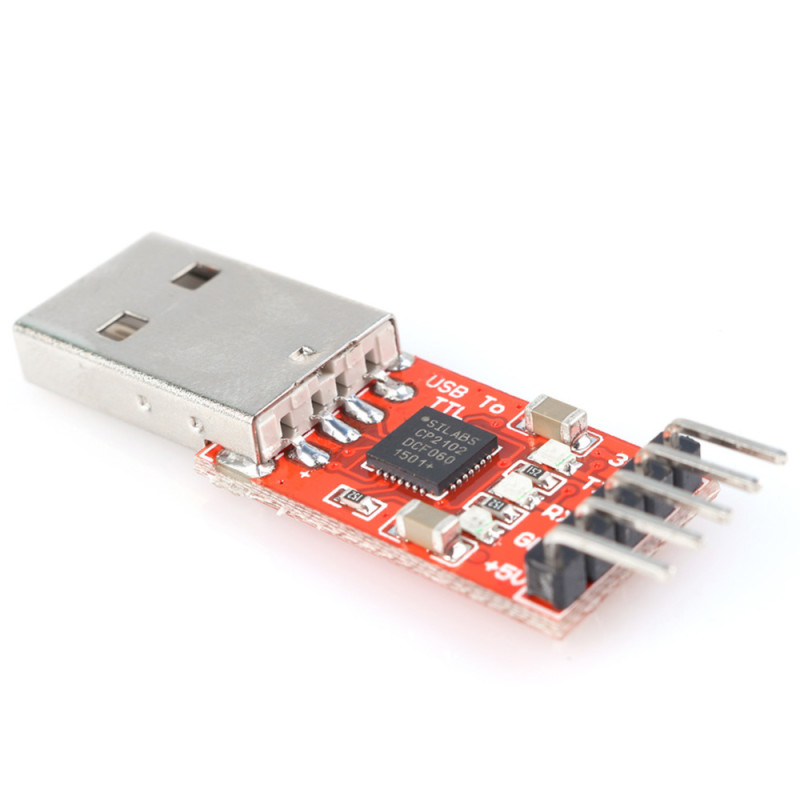

•     Silabs CP2102 integrated circuit is used.
•     Connection socket: Type A usb
•     Performs USB 2.0 compliant communication at 12Mbps speed.
•     Communication speed:  300bps / 1.5Mbps
•     Supports custom speeds that the user can set.
•     Standard USB type A male connection socket

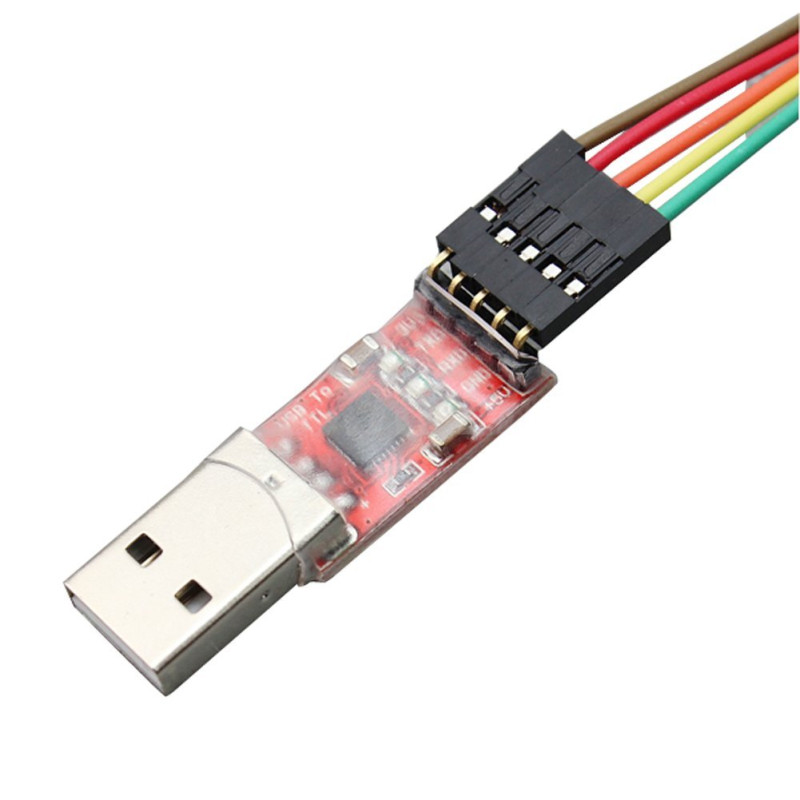

•     5 Pin output socket.  3.3V, TXD, RXD, GND, 5V
•     Thanks to the TTL outputs, it easily enables communication with an mcu.
•     Supply indicator led.
•     Rx tx communication indicator led.
•     Operating system:  Windows 7 /10 / 11, Mac OS, Linux, Android
•     Color:  Red
•     Operating temperature:  -20C  /  65C

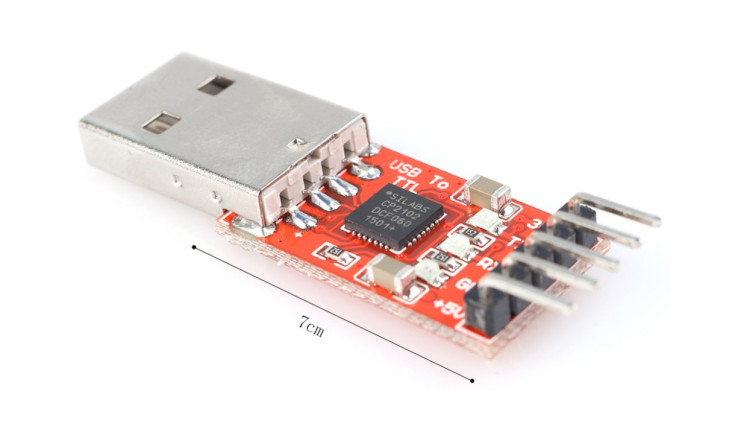

•     Dimensions:  15mm x 45mm
•     Weight:   8gr

Driver:  download from the silabs.com site.  “CP210x Driver”

Package contents:

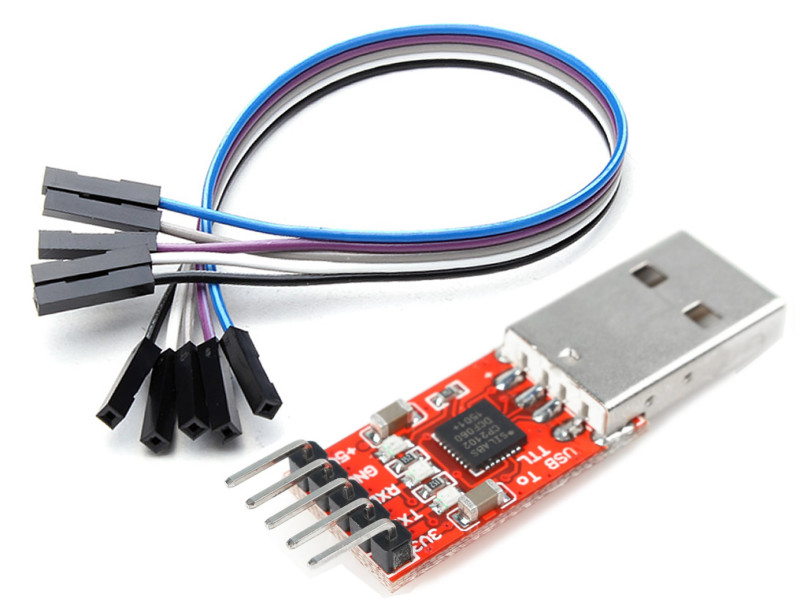

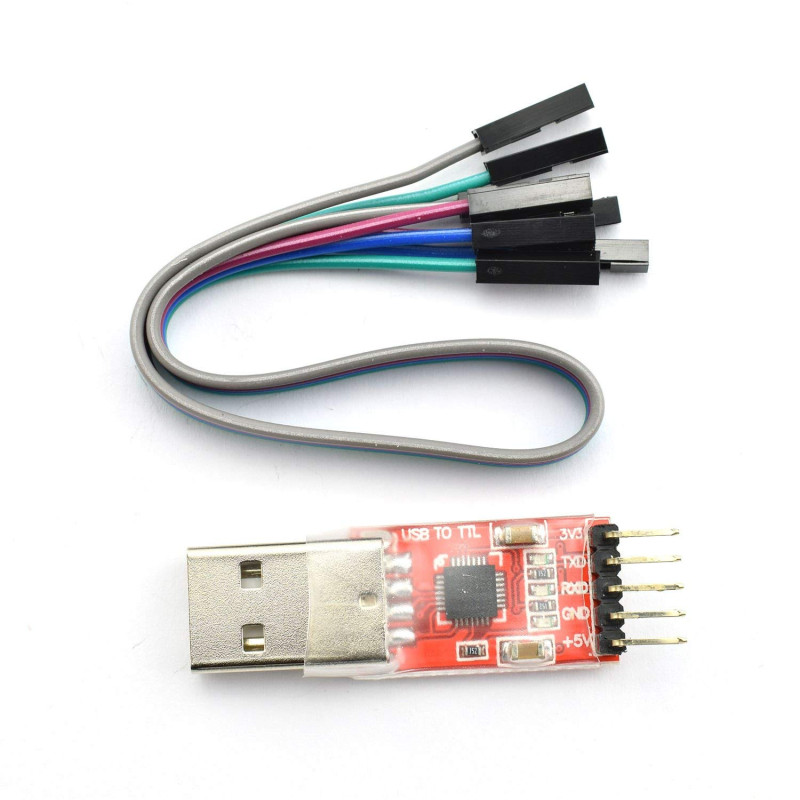

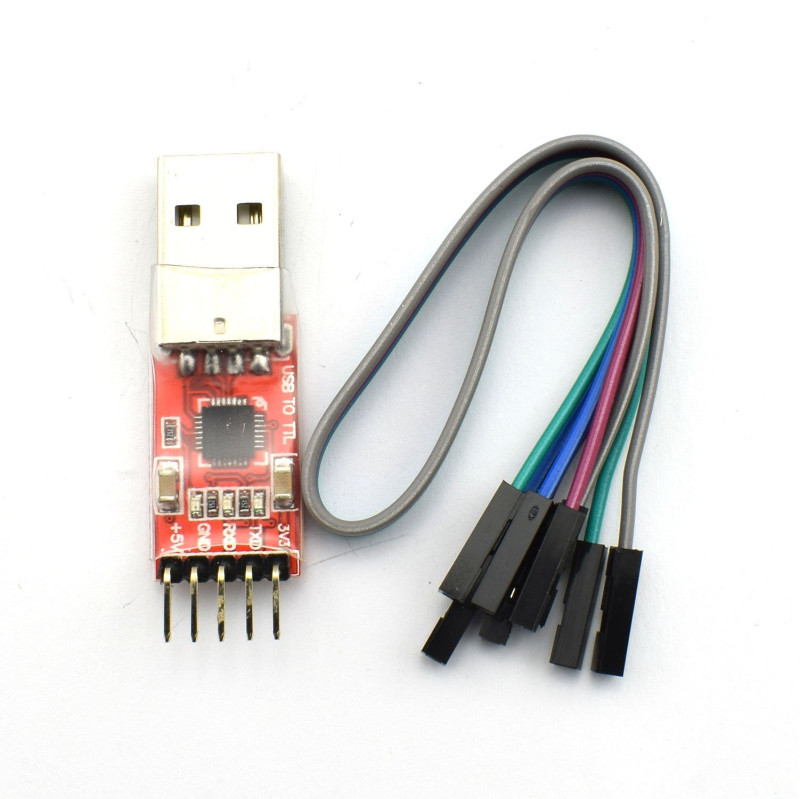

• 1 Piece CP2102 converter module
• 1 Piece 5 pin dupont cable
