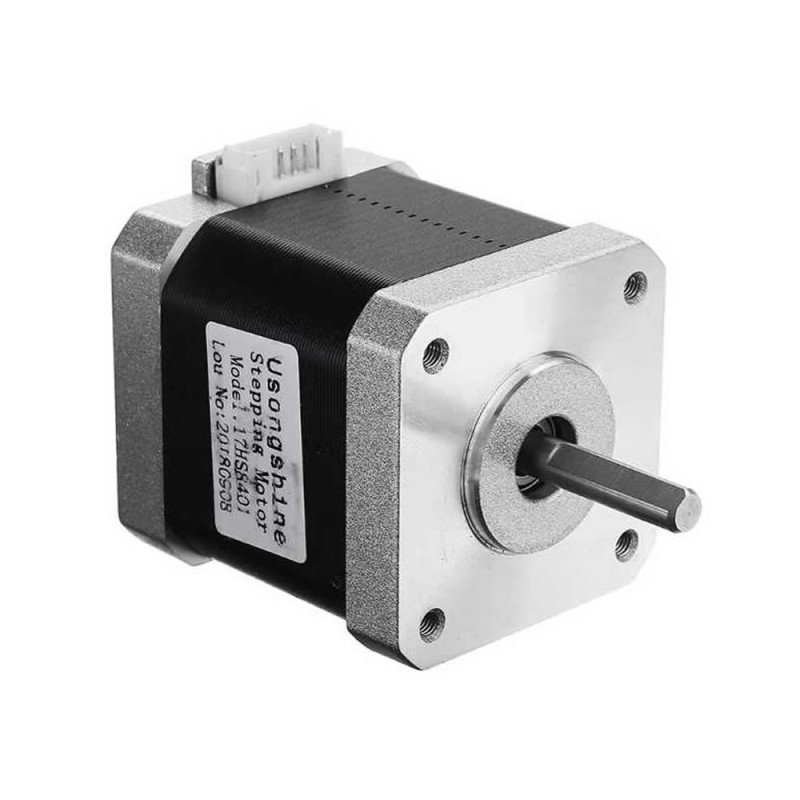

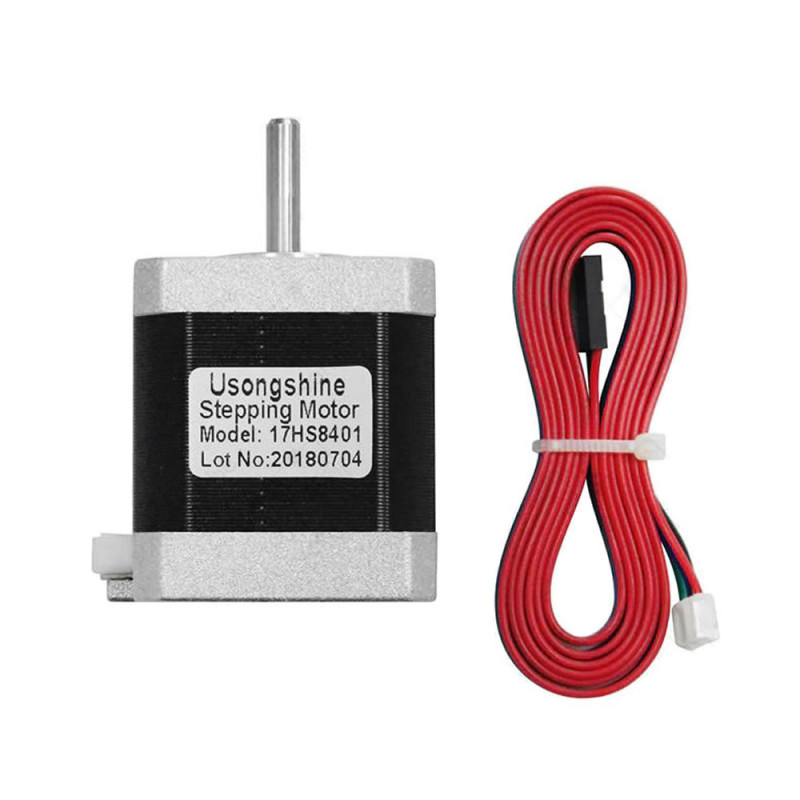

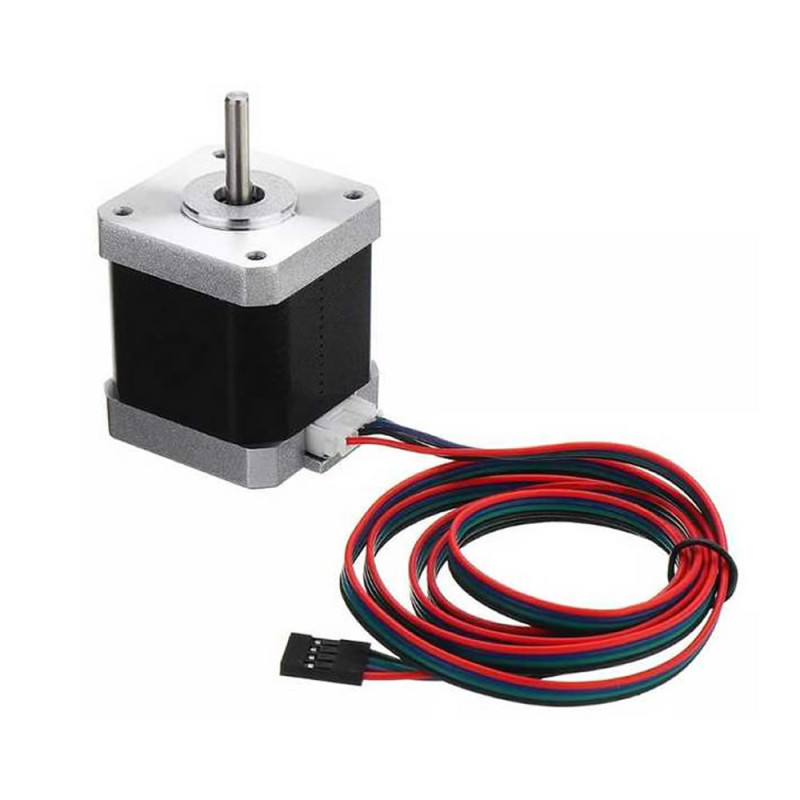

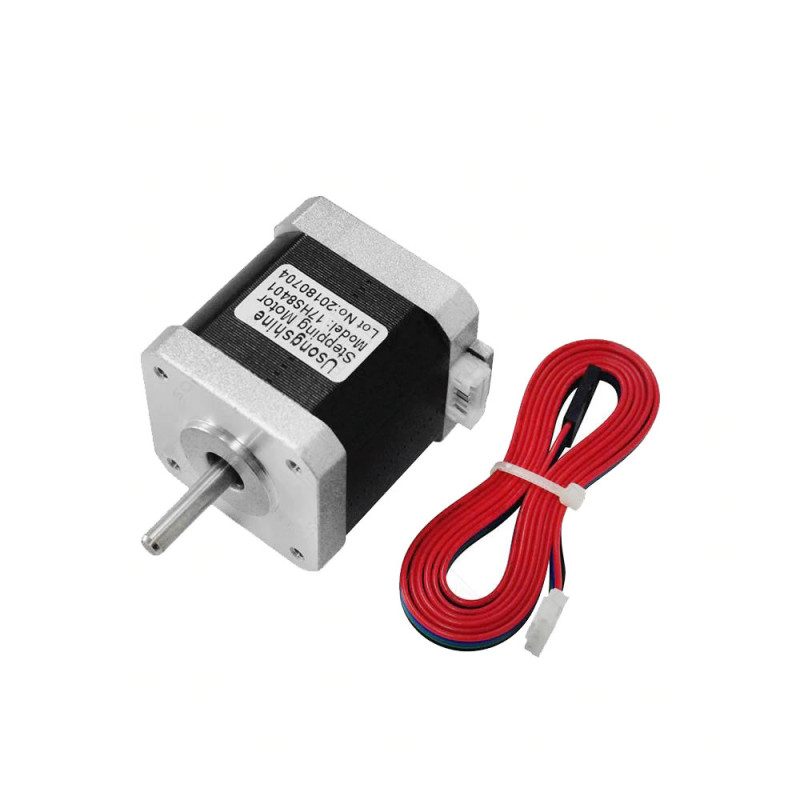

17HS8401 Nema 17 Stepper Motor
662.40TL
Ex Tax: 552.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 17HS8401 Step Motor
- SKU: RBZ.100.752
17HS8401 Nema 17 Stepper Motor 0.5N.m
D Shaft 2 Phase 1.8A 1.8 Degree 200 Step 3D Printer Printer CNC Robotics Laser Engraving Plasma Automation Textile
It is a Nema17 40mm 2 phase stepper motor. The product connection is made with 4 wires. It is used in 3D printers, Cnc, automation, robotics and similar systems. It has a 1.8 degree 200 step angle. It is very suitable for applications requiring precise distance travel.
Features:
- 2 Phase
- Operating voltage: 3V
- Current: 1.5A Maximum
- Torque: 50N.cm
- Resistance: 1.8 Ohm
- Step angle: 1,8 Degree
- Number of steps: 200
- Cable: 4 Wires
- Phase inductance: 3.2mH
- D type shaft
- Shaft diameter: 5mm
- Shaft length: 20mm

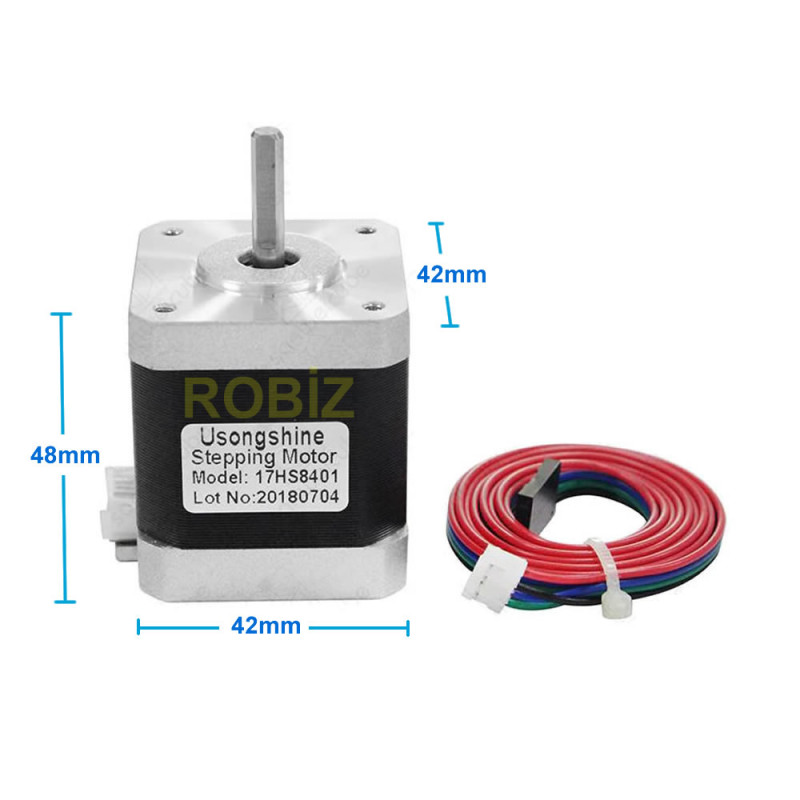

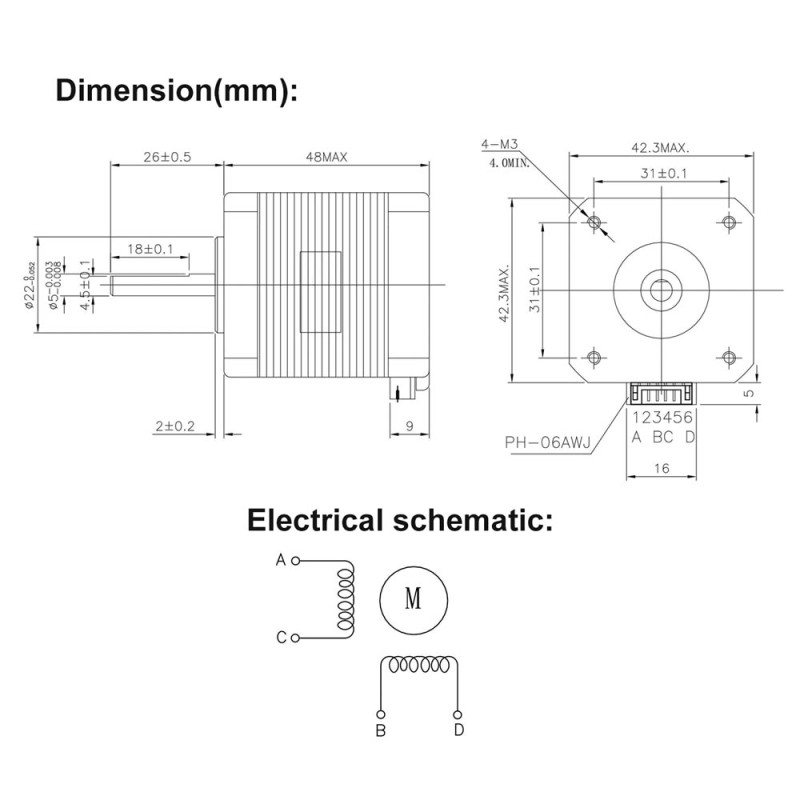

- Dimensions: 42mm x 42mm x 48mm
- Weight: 360gr

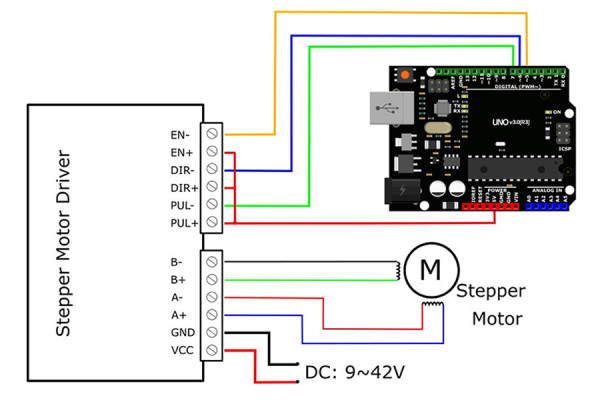

Cable Description:
- Black: A+
- Green: A-
- Red: B+
- Blue: B-
Package Contents :

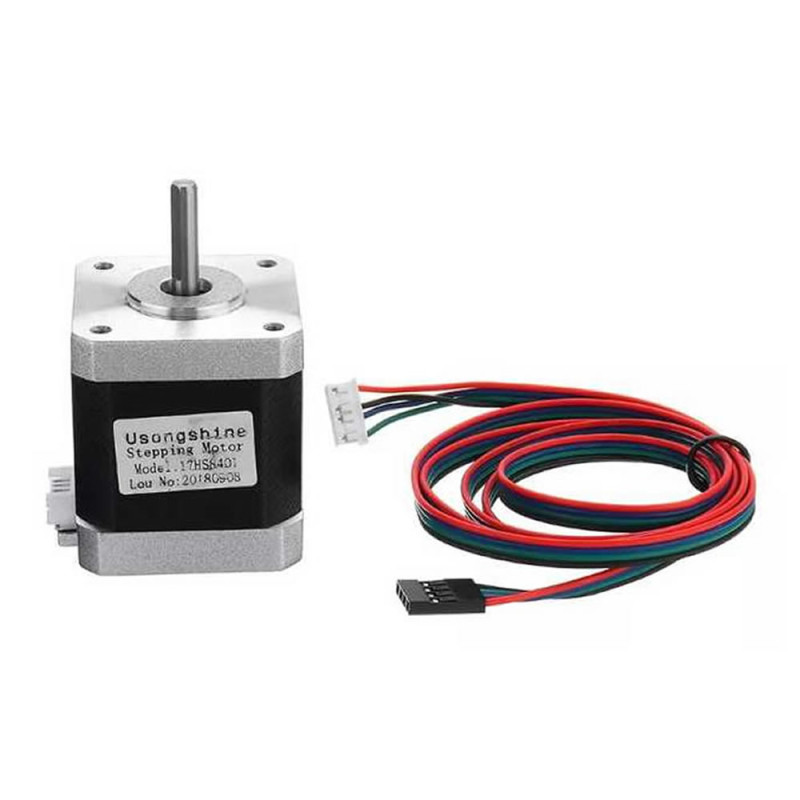

- 1 Piece 17HS8401 Nema17 Stepper Motor
- 1 Piece connection cable 1 meter
.
