17HS4401 Nema 17 Stepper Motor
518.40TL
Ex Tax: 432.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 17HS4401
- SKU: RBZ.100.753
17HS4401 Nema 17 Stepper Motor 0.42N.m
D Shaft 2 Phase 1.5A 1.8 Degree 200 Steps 3D Printer CNC Robotics Laser Engraving Plasma Automation Textile
It is a Nema17 40mm 2 phase stepper motor. The product is connected with 4 wires. It is used in 3D printers, Cnc, automation, robotics and similar systems. It has a 1.8 degree 200 step angle. It is very suitable for applications requiring precise distance travel.
Features:
- 2 Phase
- Operating voltage: 4.8V
- Current: 1.5A Maximum
- Torque: 42N.cm
- Power: 6.6W
- Resistance: 1.5 Ohm
- Step angle: 1,8 Degree
- Number of steps: 200
- Cable: 4 Wires
- Phase inductance: 2.8mH

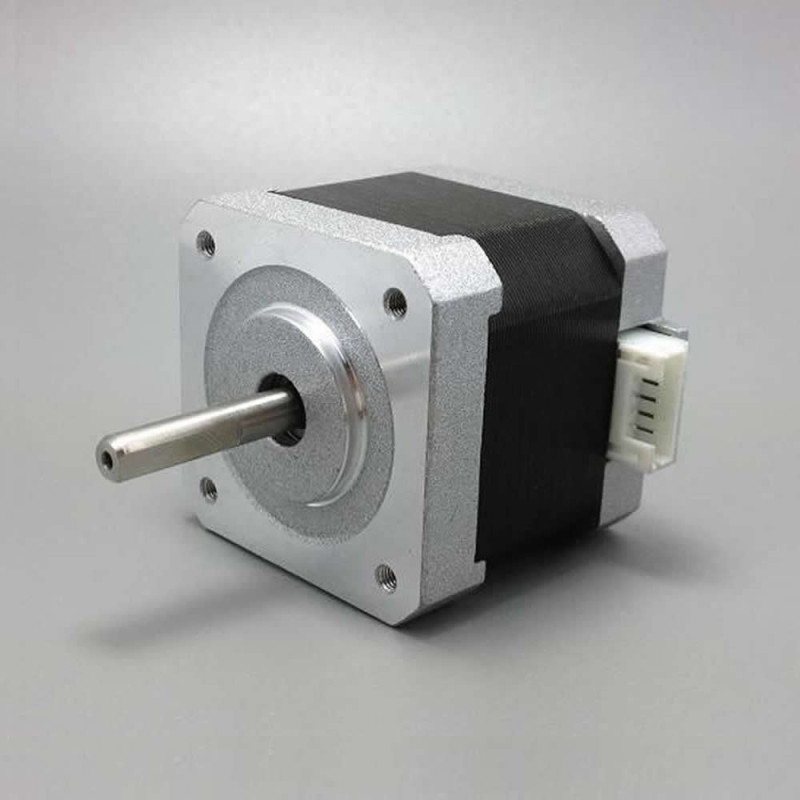

- D type shaft
- Shaft diameter: 5mm
- Shaft length: 22mm

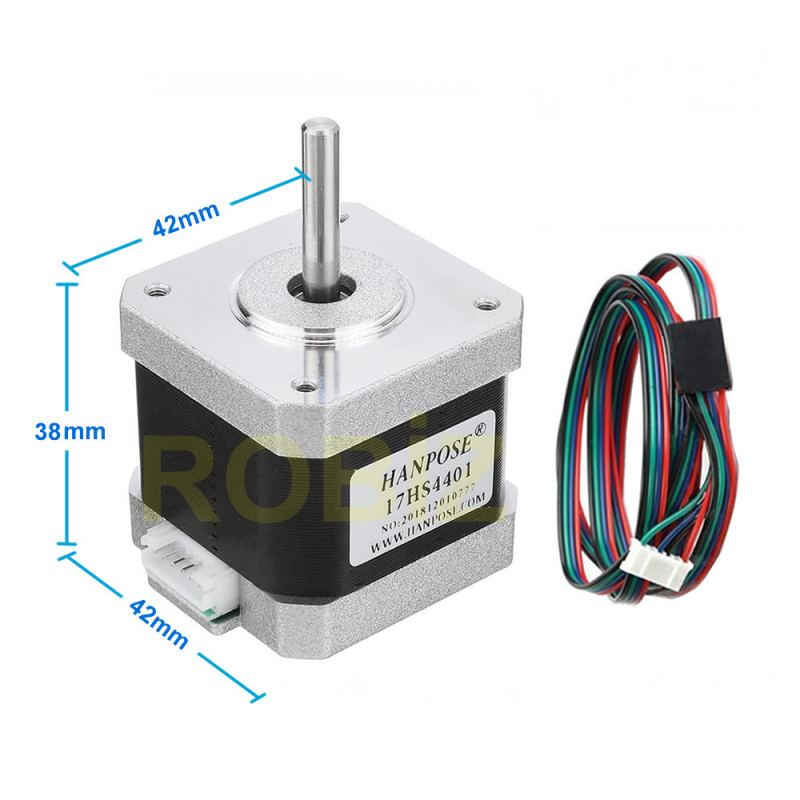

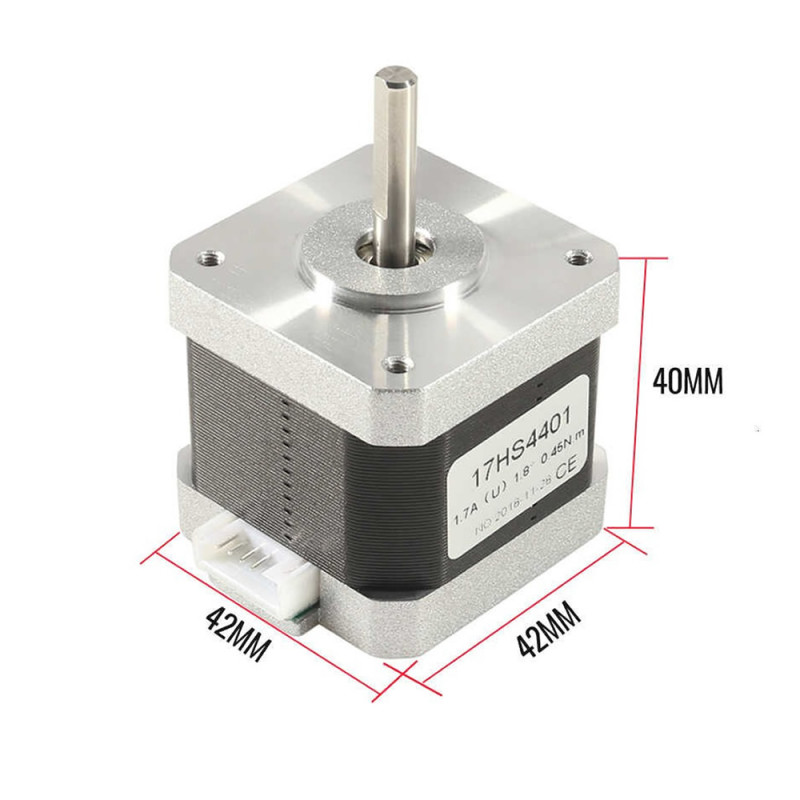

- Dimensions: 38mm x 42mm x 42mm
- Weight: 255gr

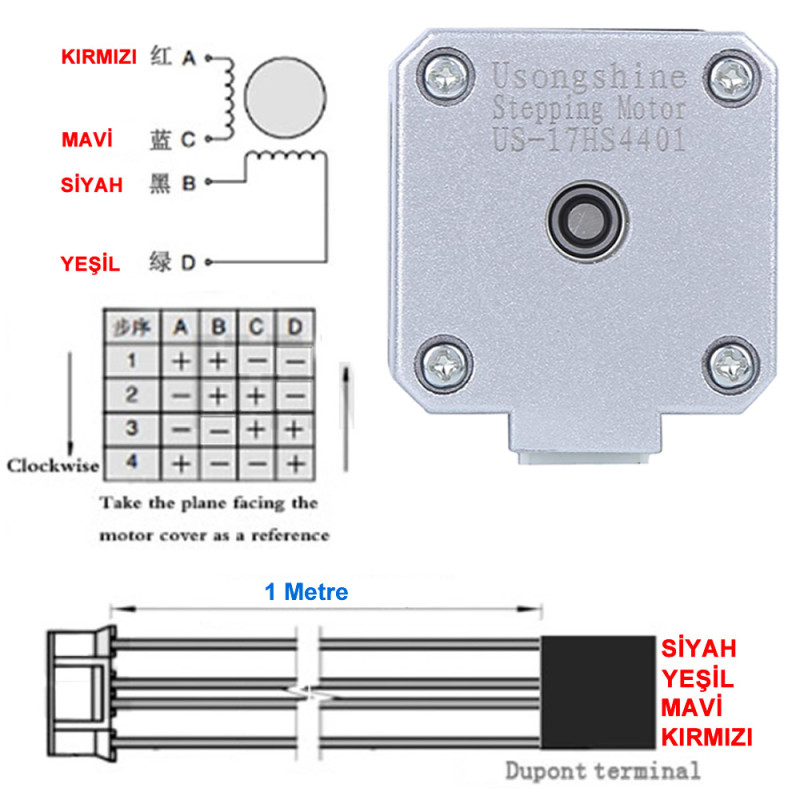

Cable Description:
- Black: A+
- Green: A-
- Red: B+
- Blue: B-
Package Contents :

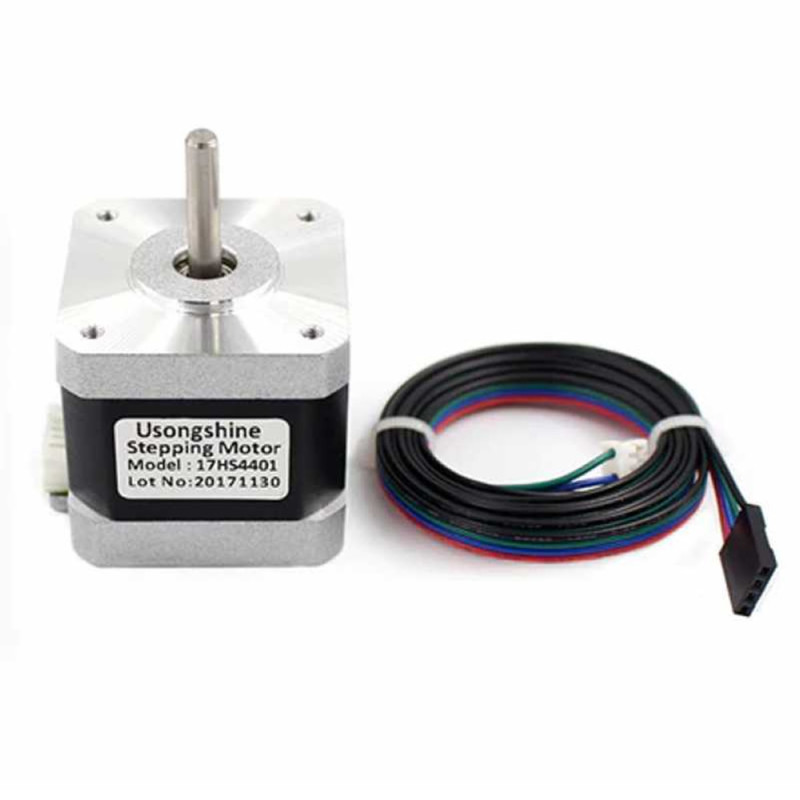

- 1 Piece 17HS4401 Nema 17 Stepper Motor
- 1 Piece Connection Cable 1 Meter
.
