Liquid Level Sensor 220V

     It is used to detect the liquid level in liquid filled tanks. It can activate devices such as a pump, indicator, alarm and the like. With the liquid level sensor you can see whether your reservoirs are full or empty. The sensor gives output in the form of a dry contact. Depending on the position you place it, it can be normally open or normally closed.

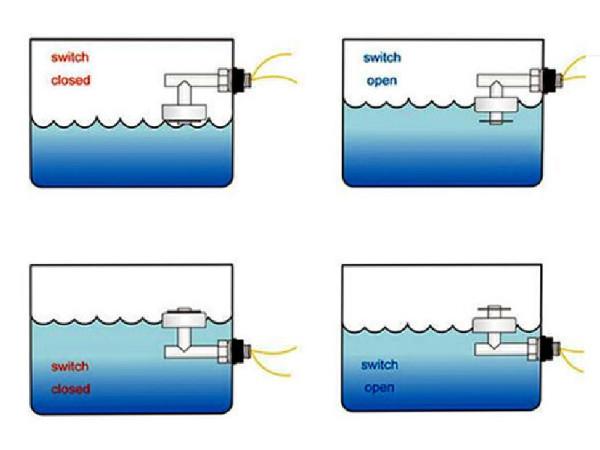

     It can be placed on the liquid or inside the liquid. The connection forms and working structure can be observed in picture number 7. It is used in vertical type containers, boilers, reservoirs, rooms and similar places where liquids are present. The moving part is magnetic. According to the movement of the moving part on the sensor rod, the switch changes to No Nc states. Depending on the placement direction, detection of water present or not is provided.

Features:

•     Product name: Liquid Water Level Sensor
•     Communication: NO + NC  ( If the moving part is close towards the outer side, the NC switch is short-circuited )
•     Power: 10W
•     Maximum switching voltage: 100V DC
•     Maximum switching current: 0.5A
•     Contact resistance: 100 mohm
•     Breaking height: 45 mm
•     Angle: 90 Degrees
•     Temperature: -10C  /  85C
•     Operating pressure: 1Mpa Maximum
•     Material: Plastic
•     Cable length: 35cm

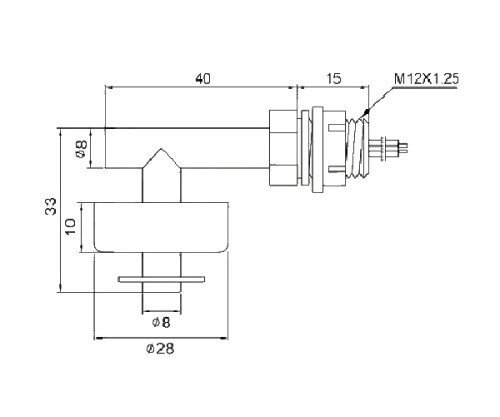

•     Nut diameter: 23.5 mm
•     Mounting hole: 20 mm
•     Body length: 90 mm
•     Dimensions: 50mm x 17mm
•     Weight: 12gr

Package Contents:

•      1 Piece 220V Liquid Level Sensor
