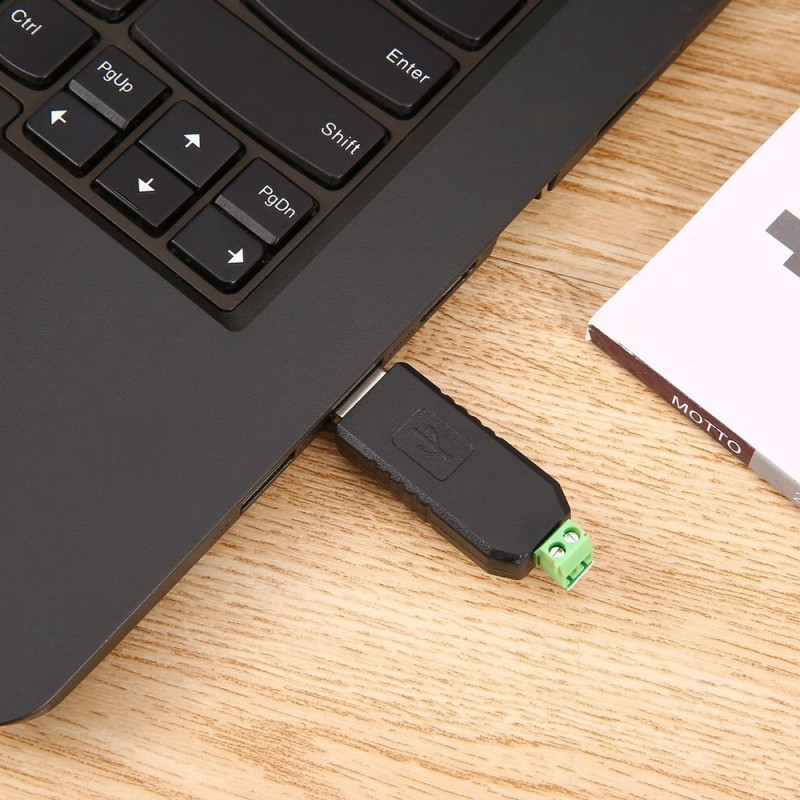

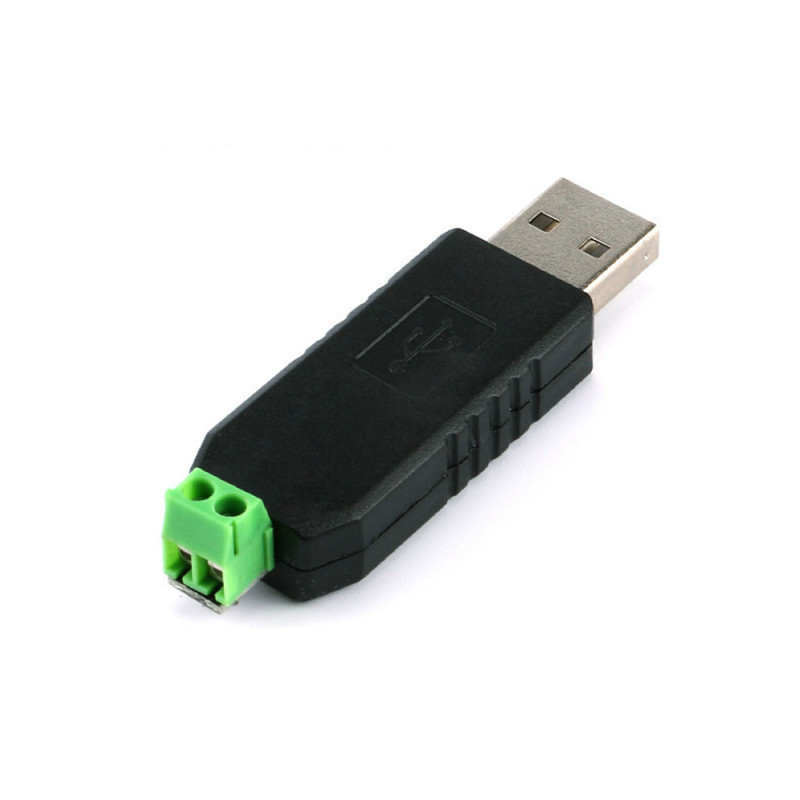

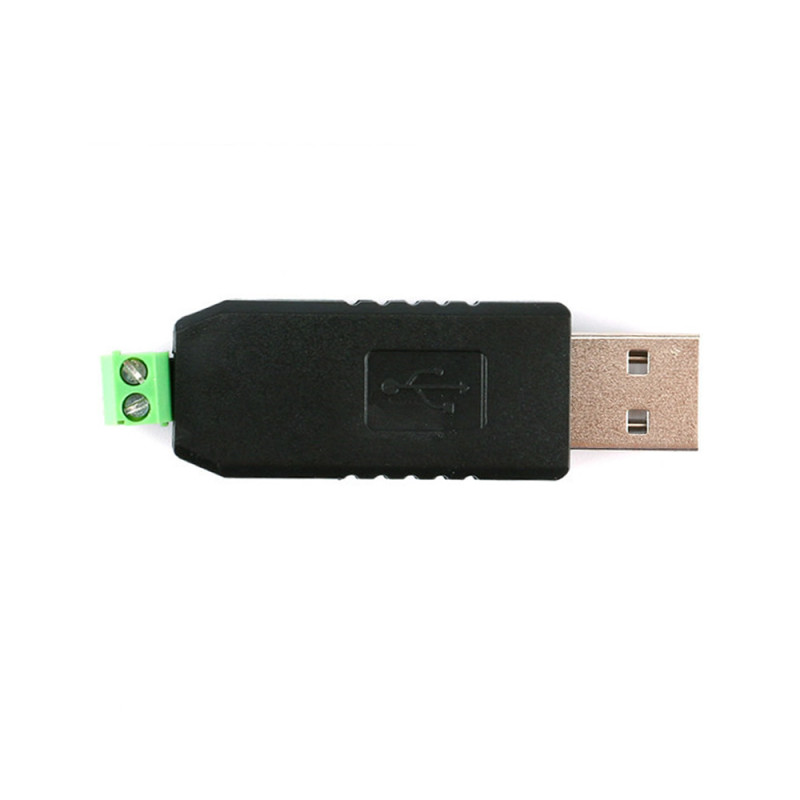

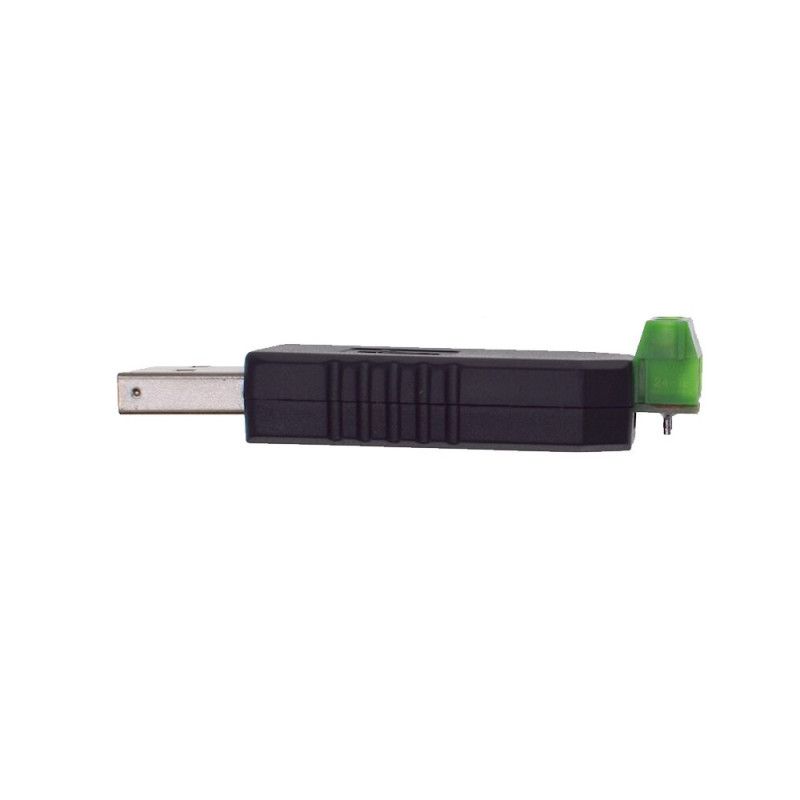

USB to RS485 Converter Module

USB to RS485 Module Boxed

Com Serial Port Signal Converter Communication Automation Plc Medical

     It is a converter module that provides connection to the RS485 network. It is used over the serial port created with the ch341 ttl converter through the usb port. It has high voltage protection. It has a black plastic box. Communication cable connections are made easily with screw type terminal block. It can work without external power supply. The communication distance is a maximum of 1200 meters.

Features:

•     Compatibility: USB2.0  / USB1.1  ( USB type A Socket )
•     It can work without external power supply. Usb 5V
•     IC:  CH341
•     Communication support: RS-485

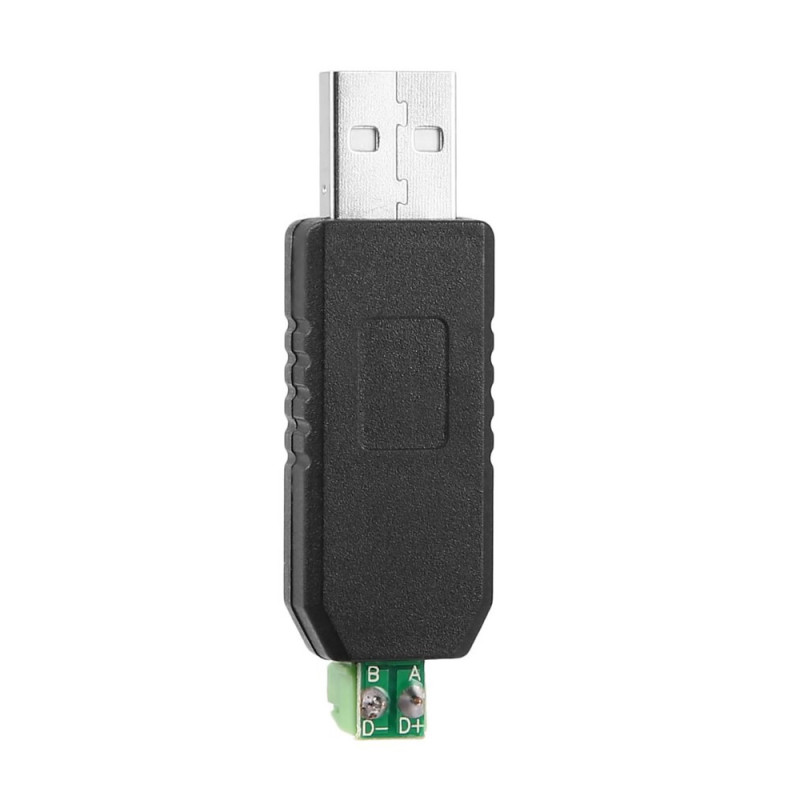

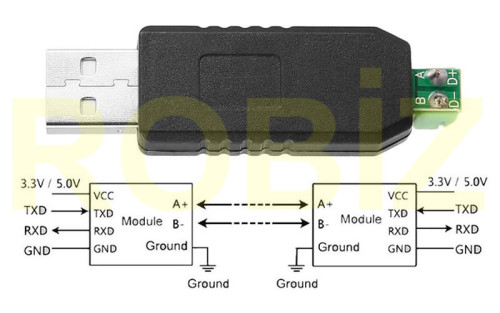

•     RS485 signals: A B
•     Hot-swap plug and play support
•     It provides its power over the usb port. It does not require external power supply.
•     Output: RS485 Port 2 pin terminal block socket
•     Interface: Half duplex ( bidirectional but communication in one direction at a time )
•     Communication distance: 1200 m (9600 b/s)
•     Communication speed: 600bps to 115.2Kbps
•     Operating system: WIN7/8/9/10/11, MAC OS 8.6 ( 32 bit / 64bit )
•     Material: Plastic / Metal
•     Black plastic box
•     Connection: Screw type terminal block
•     Color: Black
•     Operating temperature:   -20C  /  +65C

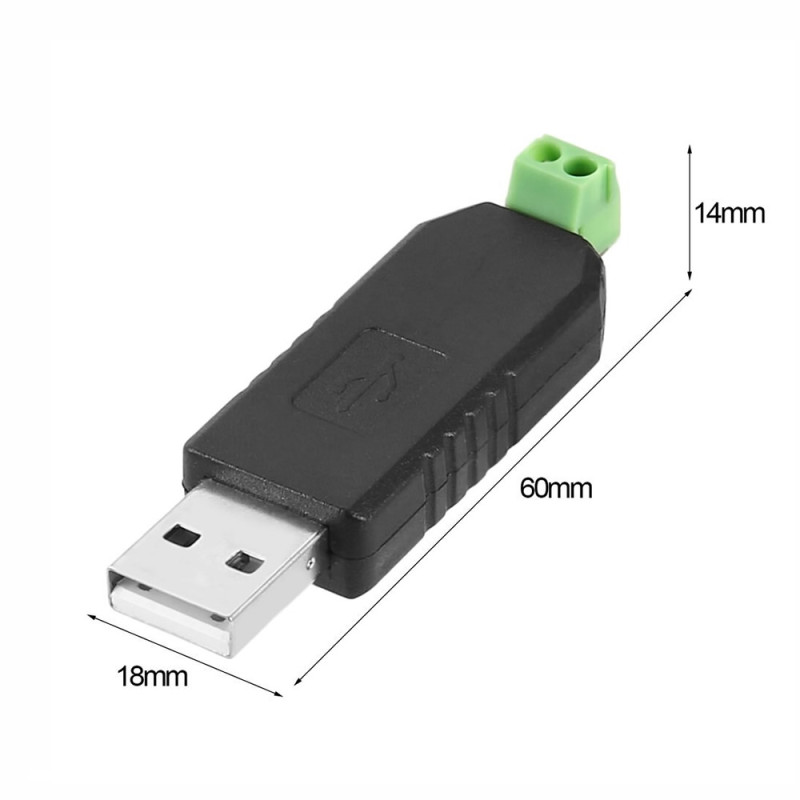

•     Dimensions: 60mm x 18mm x 14mm
•     Weight: 8gr

Driver:  The CH341SER.EXE file should be downloaded via Google and installed.

wch-ic.com/products/CH340.html

Package Contents :

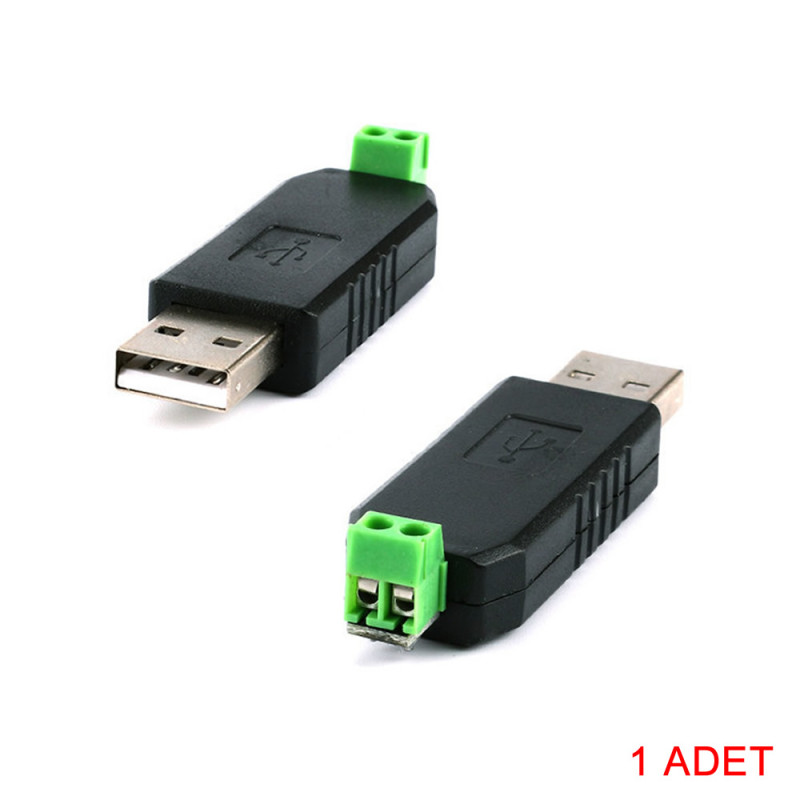

• 1 pcs USB RS485 Converter Module

.
