AS5600 Magnetic Angle Sensor

AS5600 Magnetic Angle Measurement Sensor Module

12 Bit Contactless Position Potentiometer RC Servo Pedal Mechanical Angle Rotary Control Hall Effect

     The AS5600 magnetic angle measurement sensor module performs absolute angle measurement contactlessly with a diametric magnet. Thanks to its 12 bit resolution, it precisely detects the rotation angle between 0C and 360C. Its contactless structure eliminates mechanical wear and provides long-life use.

     The module can provide analog or pwm output. The desired angle range can be defined by programming the start and maximum angle points via the i2c interface. Thanks to its smart low power mode and stable measurement structure, it is suitable for potentiometer alternative applications.

     It can be used in contactless potentiometer, rotary control knob, pedal, servo and angular position measurement projects.

Technical Specifications:

• AS5600 IC
• Contactless angle measurement
• Operating voltage: DC 3.3V / 5V
• Current: 100mA
• Output: Analog or pwm
• Low power operating mode
• High reliability and stability
• Communication: I2C
• Easily programmable.
• Programmable start and stop positions 0C to 360C
• Angle range: 0C / 360C
• Selectable output: Analog ( Ratiometric ) or Digital ( PWM Encoded )
• High output resolution: 12 bit DAC
• Operating temperature: -20C to 65C

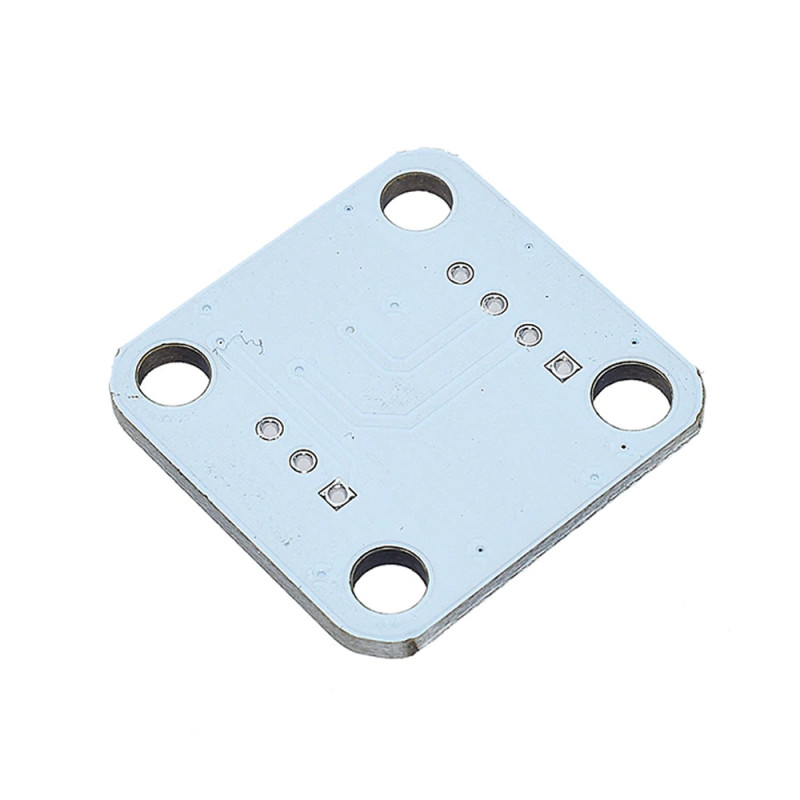

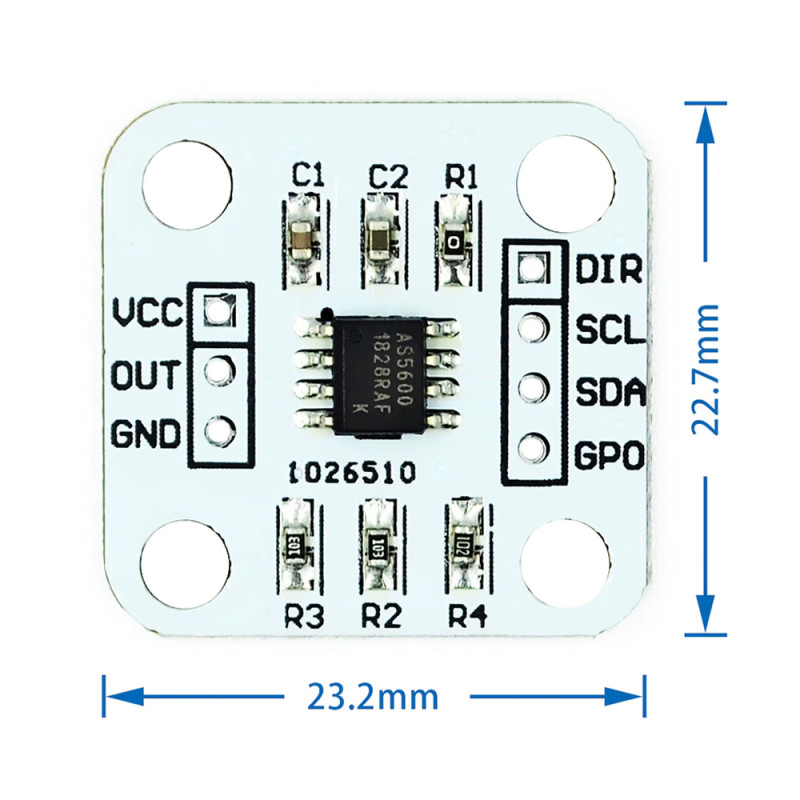

• Dimensions: 23 x 23 mm

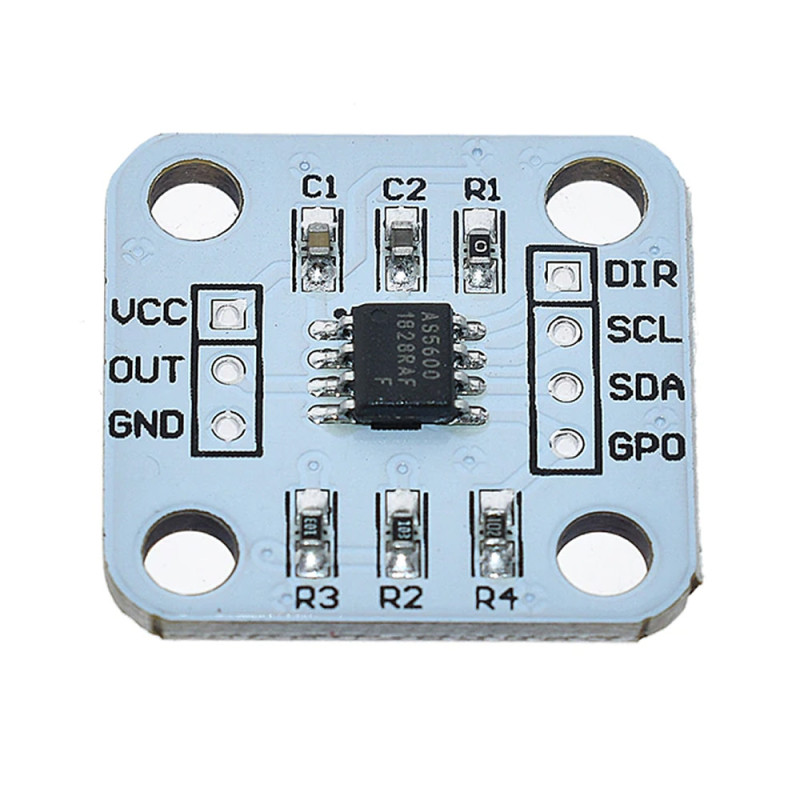

Pin Descriptions:

• VCC: Dc 3.3V 5V
• GND: Power Ground
• OUT: PWM / Analog Voltage Output
• DIR: Rotation Direction
• SCL: Communication Clock Line
• SDA: Data Communication Line
• GPO:  Mode Selection

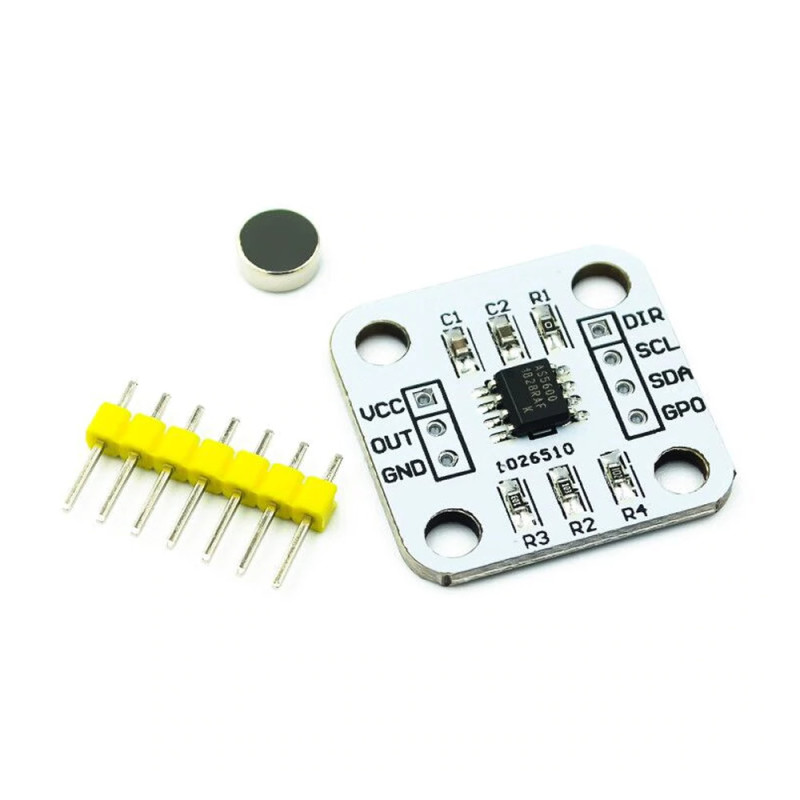

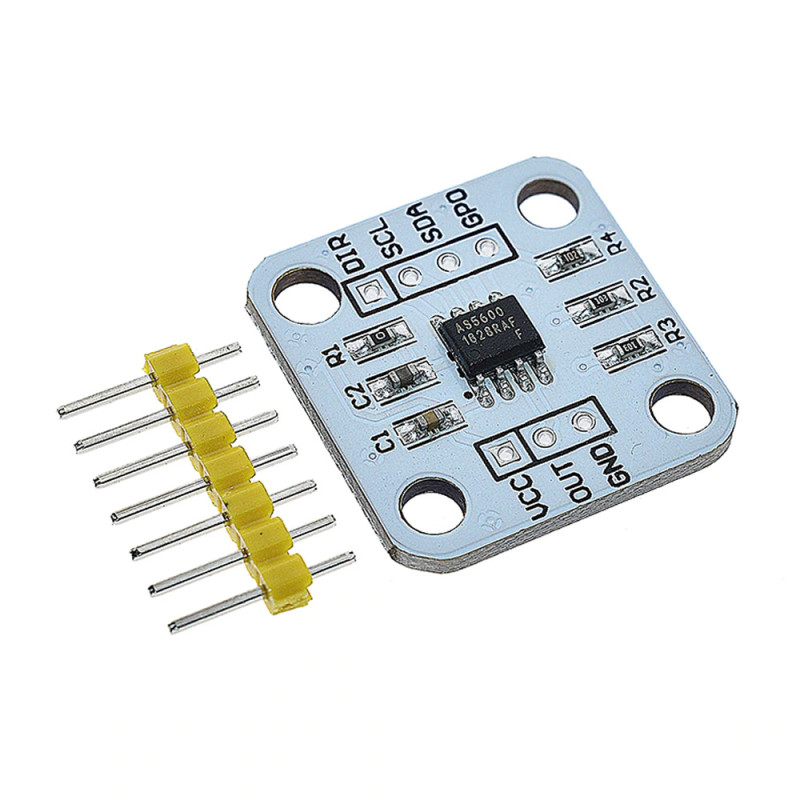

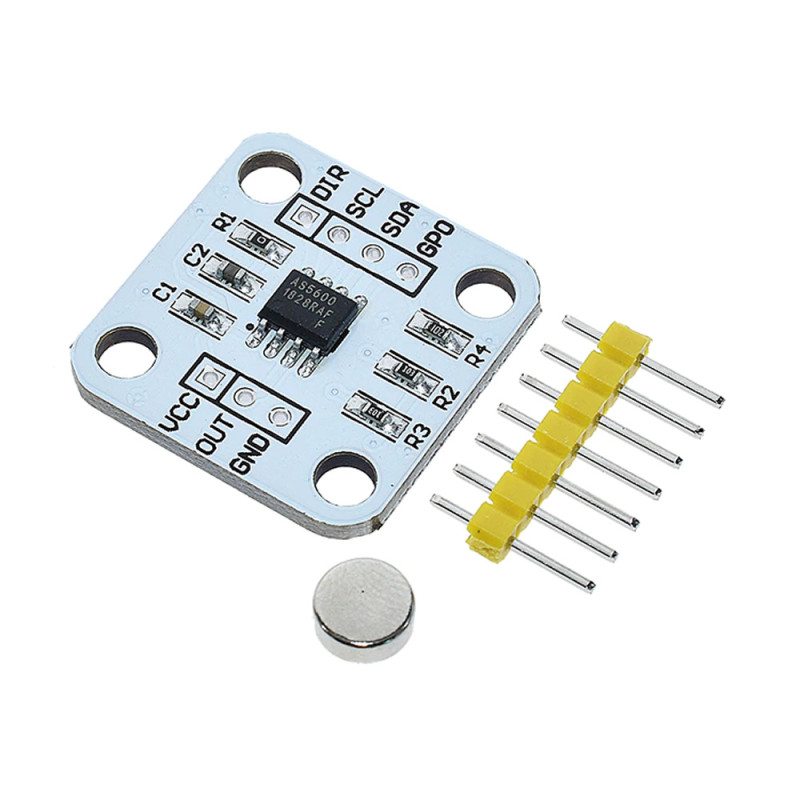

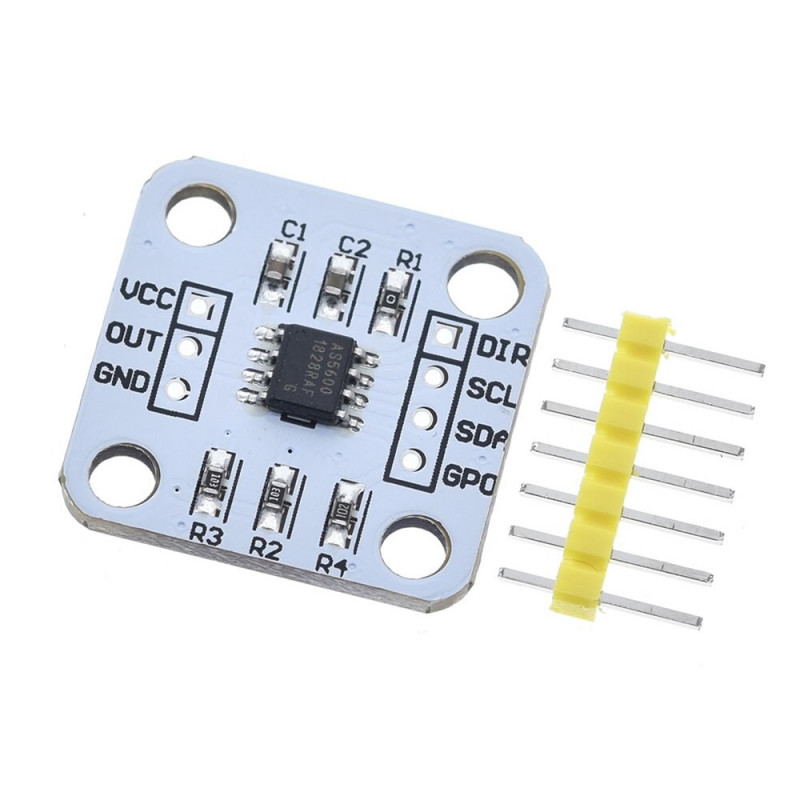

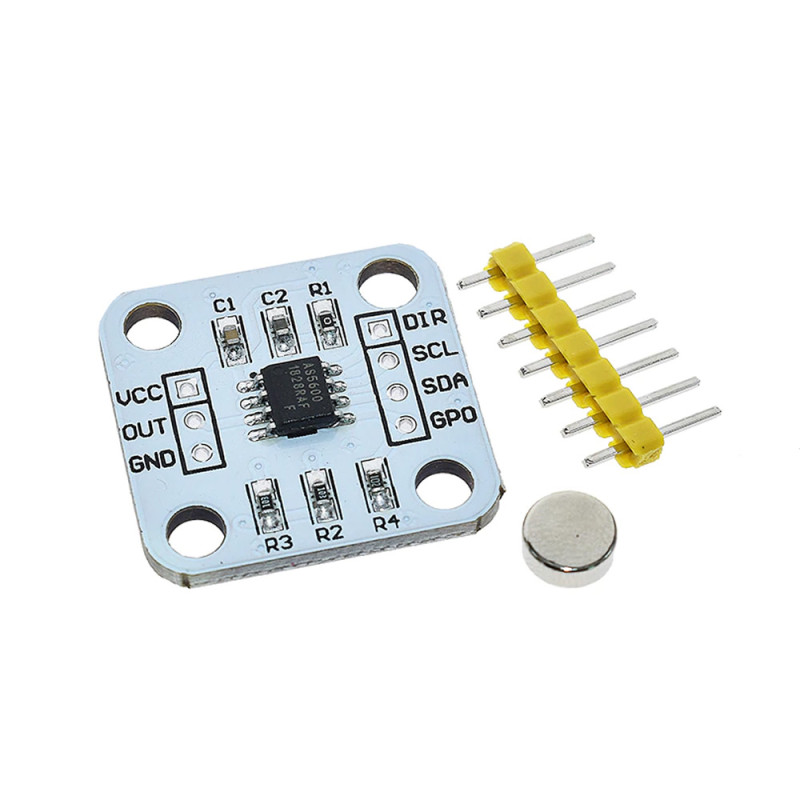

Package contents:

• 1 Pc AS5600 Magnetic Induction Angle Measurement Module
• 1 Pc 7 Pin Header
• 1 Pc Magnet
