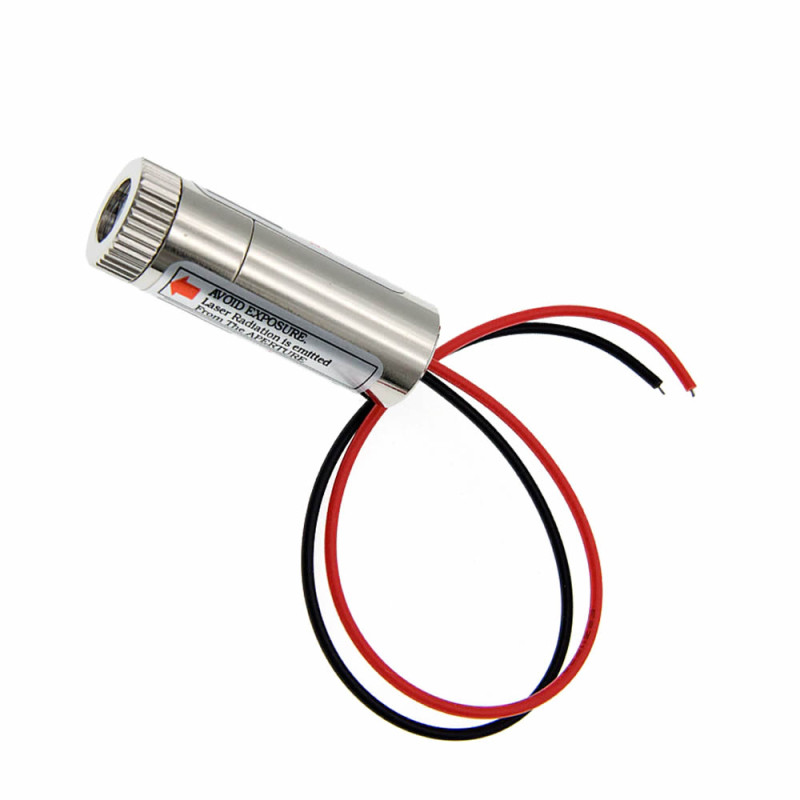

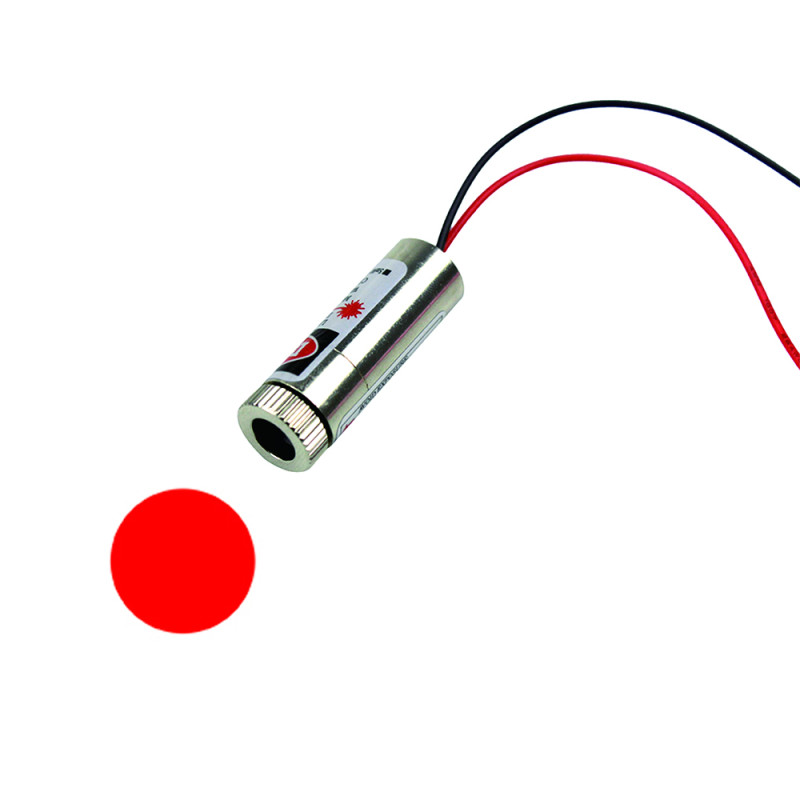

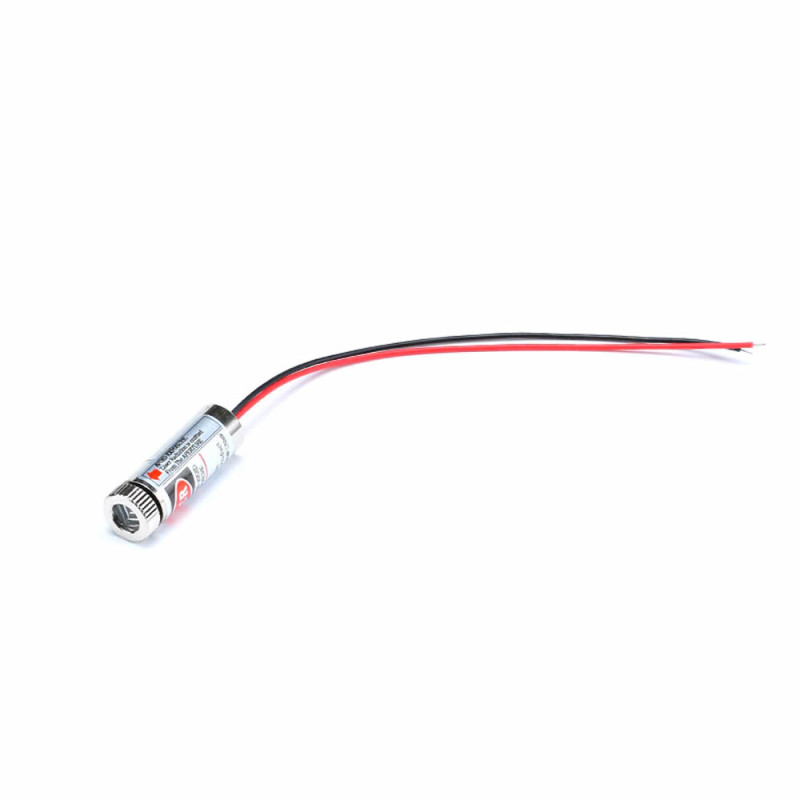

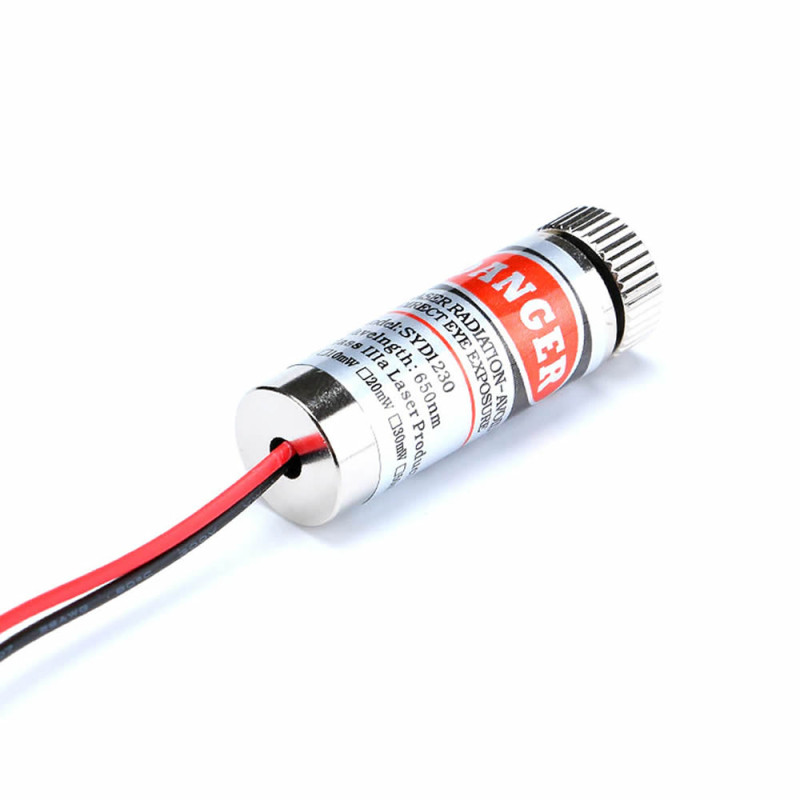

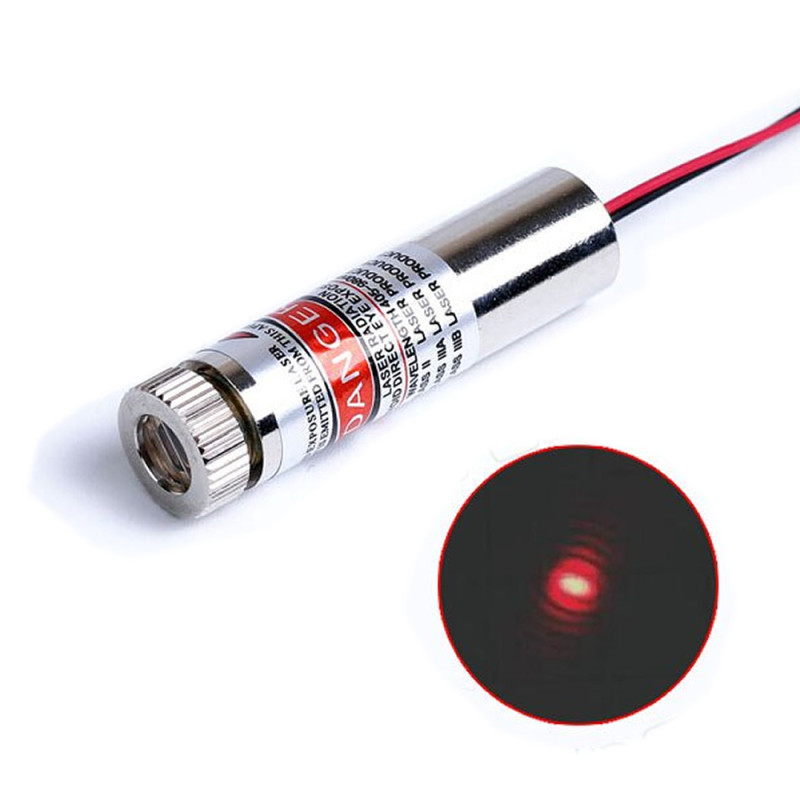

Dot Laser Module Red 5mW 650nm

5mW 650nm Red Dot Laser Module

Focus Adjustable with Lens 12mm Diameter

   Lasers are led diode materials with directed high light power. It has high brightness. It is a product with 5mw power that can be used for various indication operations. It is easy to use and stable.


Features:

• Laser Shape: Dot
• Operating Voltage: DC 3 to 5V
• Operating Current: 40mA  Maximum
• Output Power: 5mw   It needs to be cooled at high powers
• Wavelength: 650nm
• Operating Temperature: 10C to 40C
• Lens:  Yes ( Plastic )

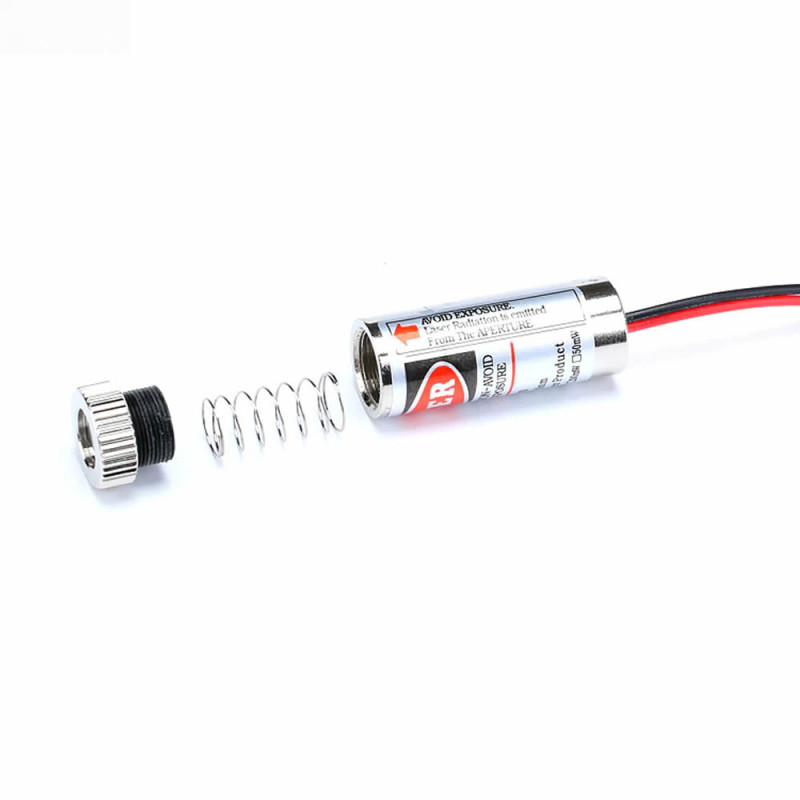

• Focusing: Yes
• Material: Metal
• Life 10000 Hours
• Weight: 13.5gr

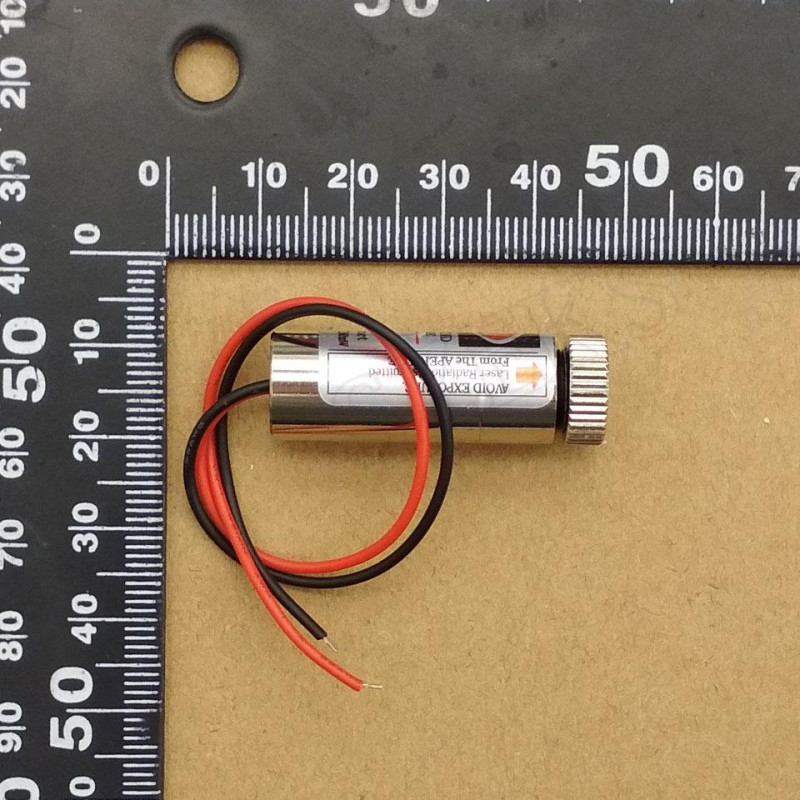

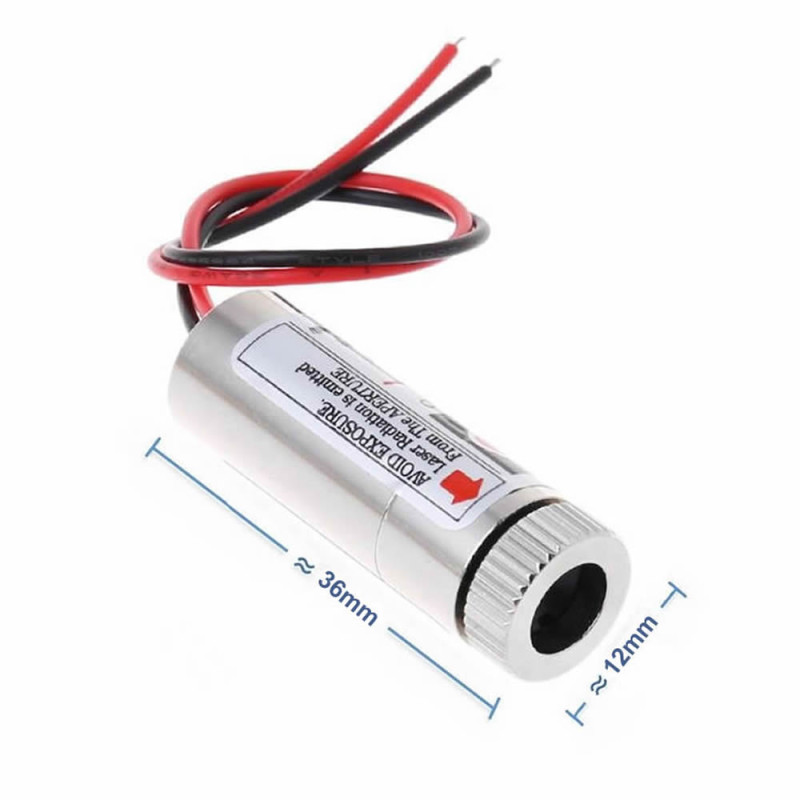

• Diameter:12mm
• Length: 36mm
• Cable Length: 10cm

Usage:

     The product works with a supply between DC 3-5V. If you apply high voltage, the product will be damaged. By connecting 3 of the 1.2V pen batteries in series, you can connect the + battery end to the red cable.  Keeping the lens end clean will increase the light brightness and clarity. The light must not be applied to the human eye.

Package Contents:

• 1 Piece 650nm Red Dot Laser Module
