Voltmeter 0.36" DC 4-30V Red

0.36 inch DC 4,2V-30V Digital Voltmeter Red

3 Wire 0.36” DC 0-30V Voltage Supply Power Supply Battery Meter 3 Digit 7 Segment

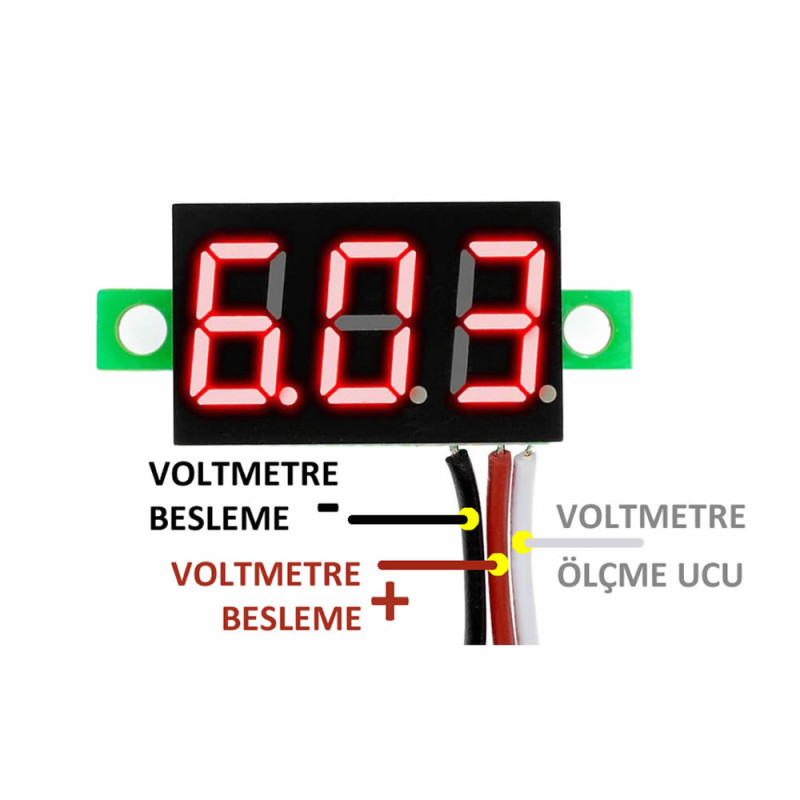

     The red and black wires are the voltmeter supply leads. It must be powered with a supply between 4.5 / 30V. If you apply a voltage above 30V the product will be damaged. The red wire is the positive lead, the black wire is the ground connection point. The white wire is the voltage measuring lead. Measurement can be made between 0V / 30V. If you use the Red and White wires joined together, you can measure between 4.5V / 30V. It has reverse connection protection.

Features:

• Operating voltage: DC 4.2V / 30V
• Measuring voltage: DC 0 / 30V  ( If no external supply is given DC 4.5 / 30V )
• It has reverse connection protection.
• 3 digit 0,36" 7 Segment display indicators.
• Indicator color: Red
• Current consumption: 20mA
• Accuracy: 0.1V  1% (+/-1 digit), +/-0.3V
• Refresh rate: 300ms
• Operating temperature: -10C  /  65C

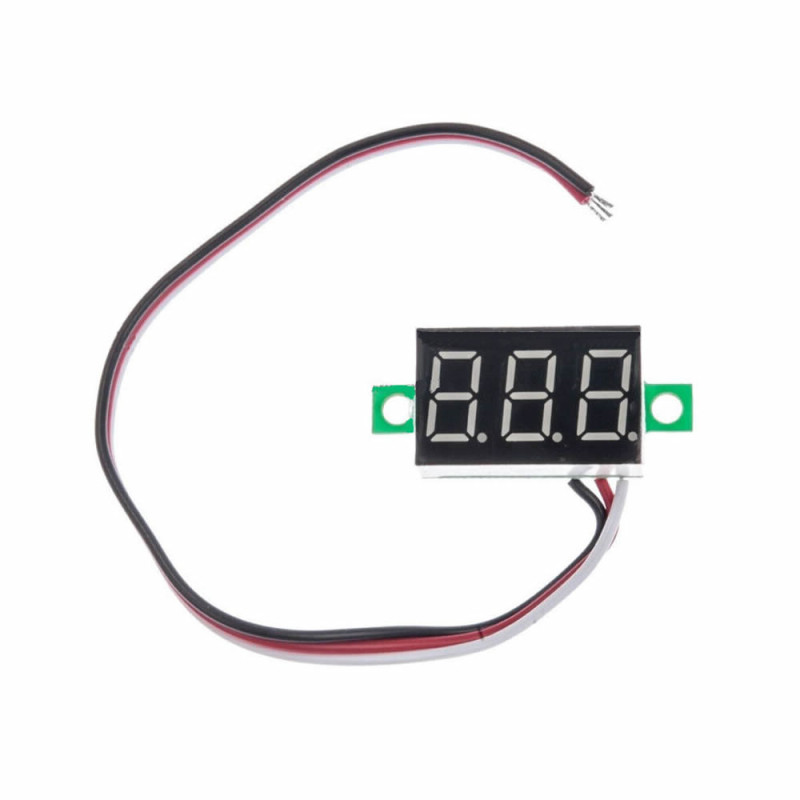

• Cable length: 15cm

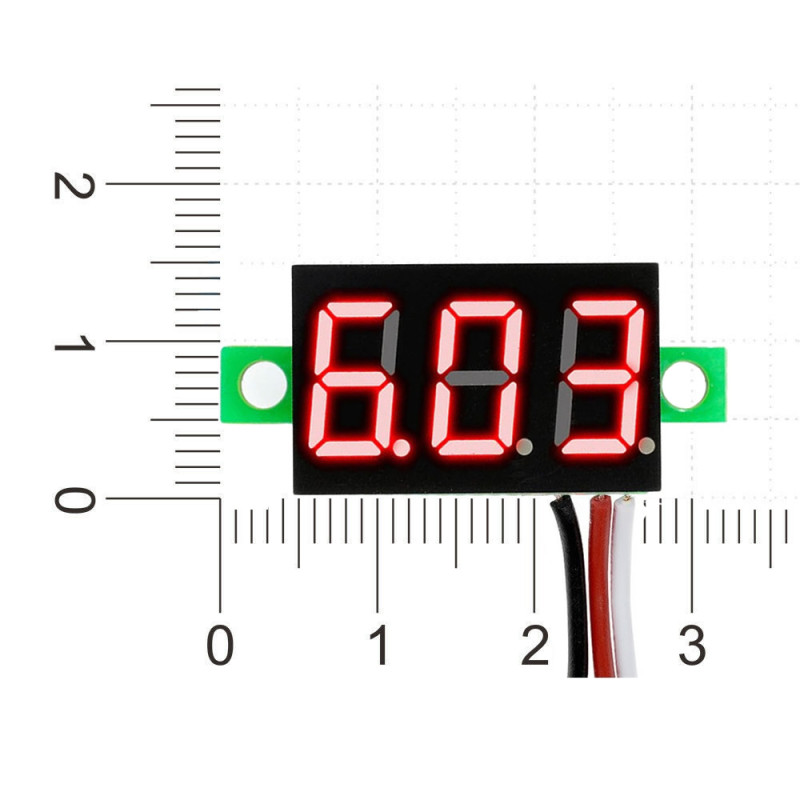

• Dimensions. 23mm x 15mm x 9mm
• Weight: 5gr

Attention:   Voltage above 30V must not be applied. At higher voltages the product is damaged.

Package Contents :

•     1 Piece Voltmeter 0.36" DC 4-30V Red

.
