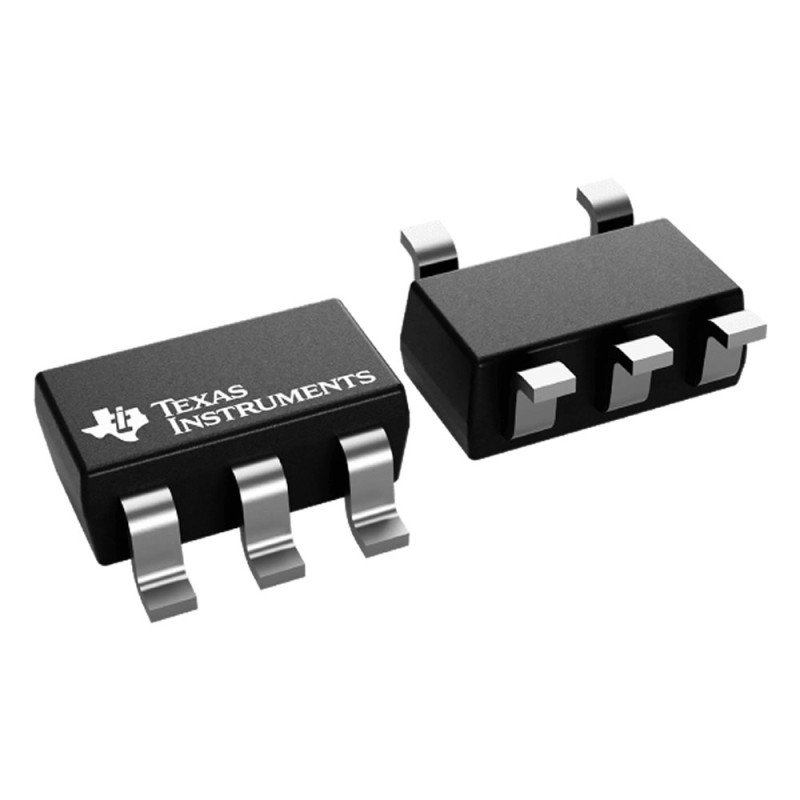

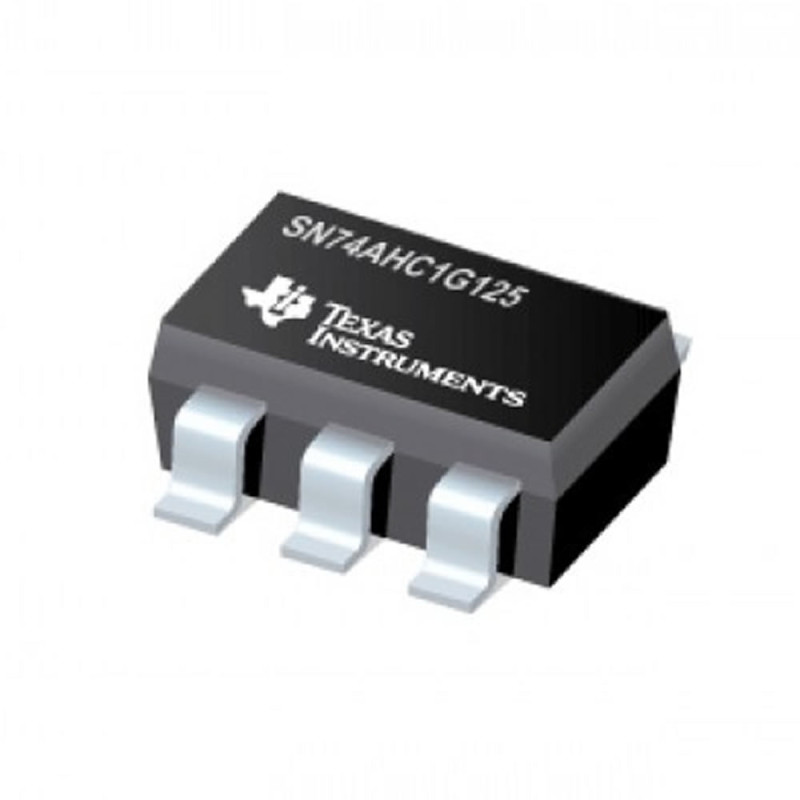

SN74AHC1G125DBVR Single Bus Buffer

SN74AHC1G125 Single Bus Buffer Gate With 3-State Output

     The SN74AHC1G125 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable (OE) input is high. When OE is low, true data is passed from the A input to the Y output.

Features:

•     Operating Range:  DC 2V to 5.5V
•     Max tpd of 6 ns at 5 V
•     Low Power Consumption, 10uA Max ICC
•     Current - Output High, Low    8mA, 8mA
•     Number of Bits per Element    1
•     Operating Temperature:   -40C / 85C
•     Mounting Type:  Surface Mount
•     Device Package SOT-23-5
