Male Type C to Dip Socket
17.28TL
Ex Tax: 14.40TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: Erkek Type C to Dip Soket
- SKU: RBZ.101.588
Male Type C to Dip Socket 4 Pin USB 3.1
Smd Solderable Pads Connector Phone Charging Board Usb Cable Flash Disk
Type C male usb socket. It has 4 pin smd solderable pads. You can access the supply pins and the D+ D- communication pins. With its small structure it takes up little space.
Features:
- Male Type C to Dip Socket
- Communication: Usb Type C 3.1
- Electrical rating: DC 20V 3A Maximum ( not 60w! )
- Number of pins: 4 pin
- Solderable type
- Reversible socket structure
- Pins: V, D-, D+ and Gnd
- Insertion force: Maximum 6-20Ndk
- Easy fast use
- Operating temperature: -20C / 85C
- Color: Gray / Green

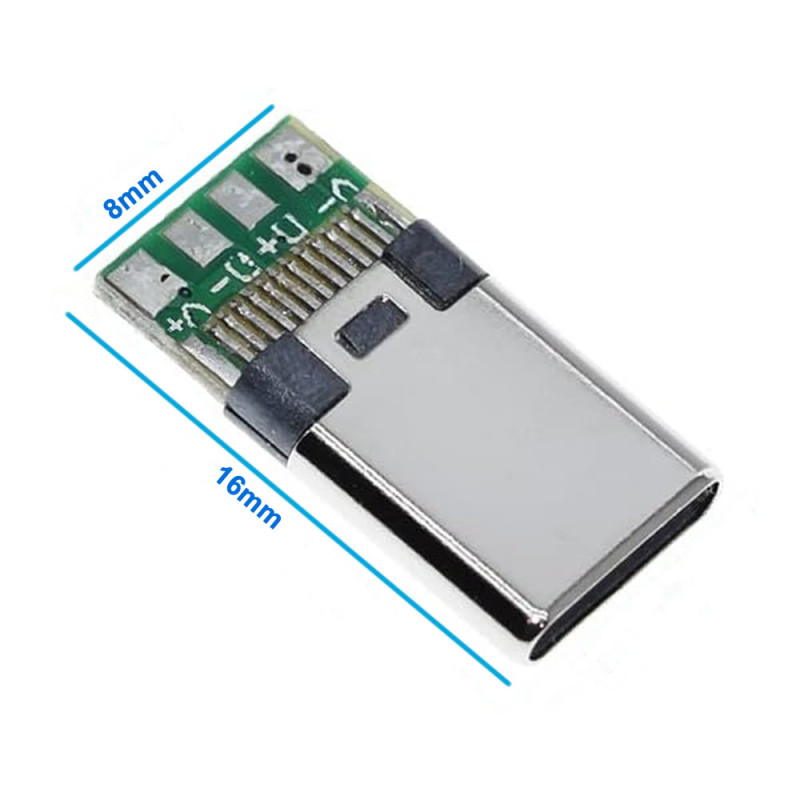

- Dimensions: 8mm x 15.5mm
- Weight: 0.5gr

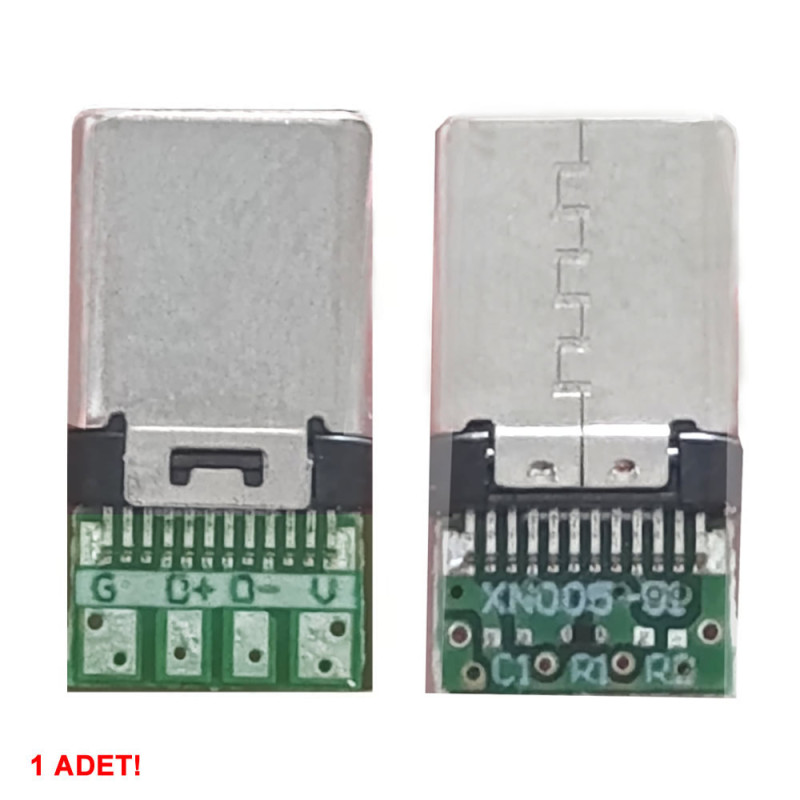

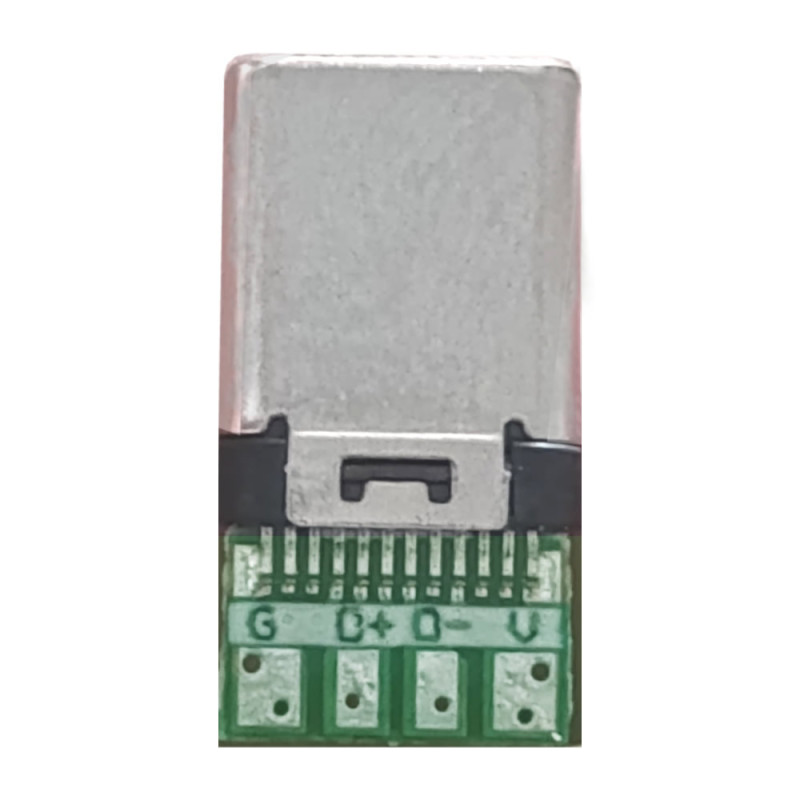

Pin description:
- V+: Supply positive pin
- D-: Data - pin
- D+: Data + pin
- G: Ground
Package contents:
- 1 Piece Male Type C to Dip Socket
