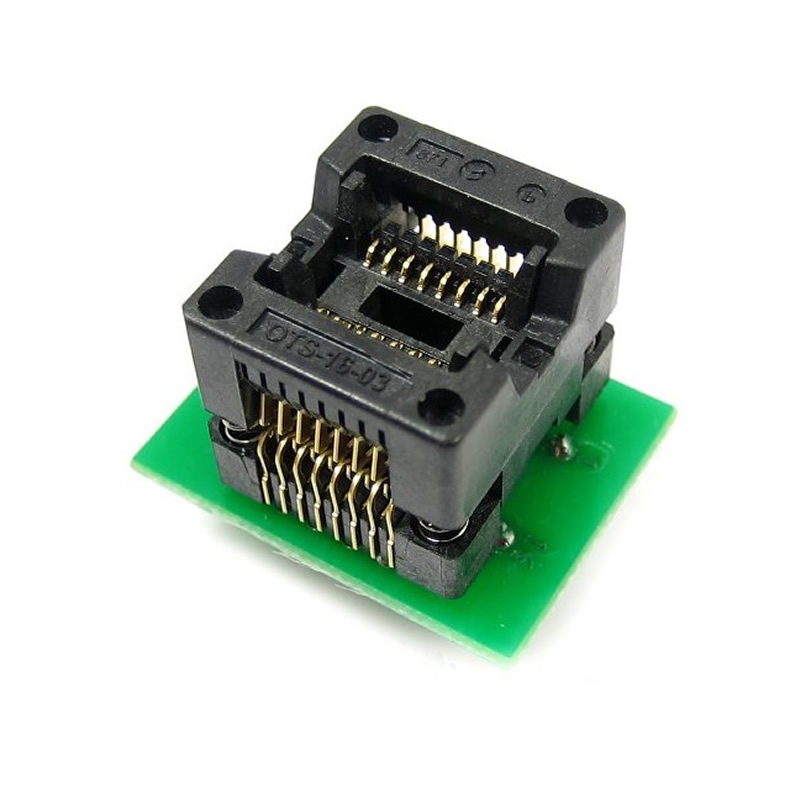

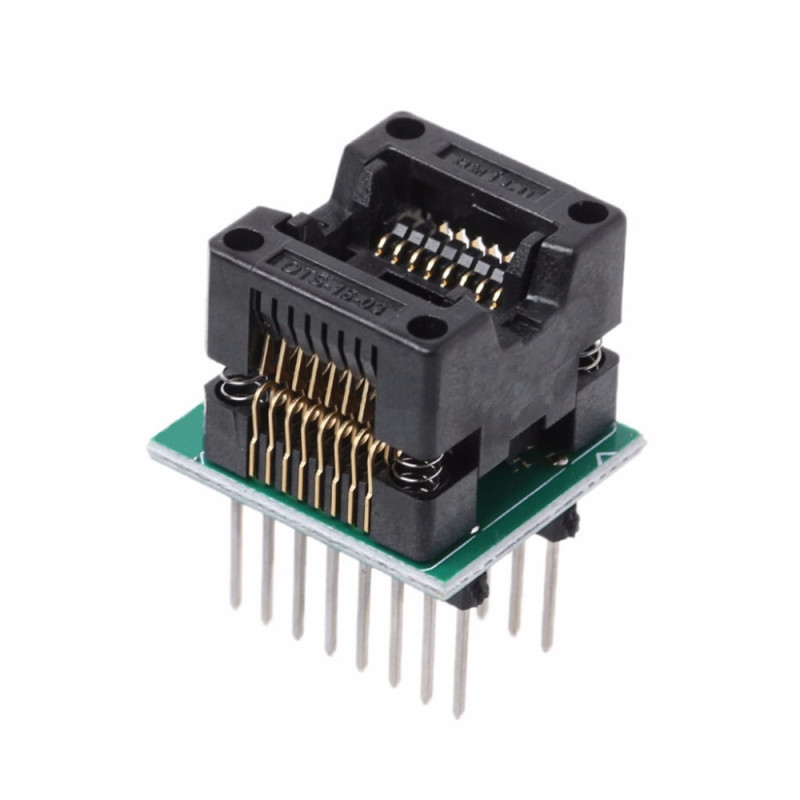

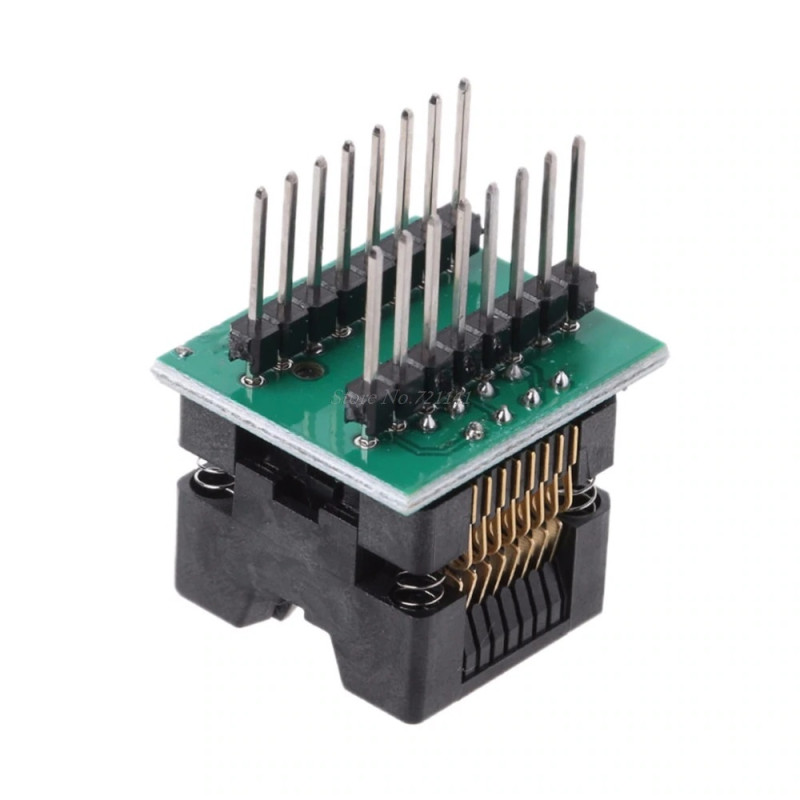

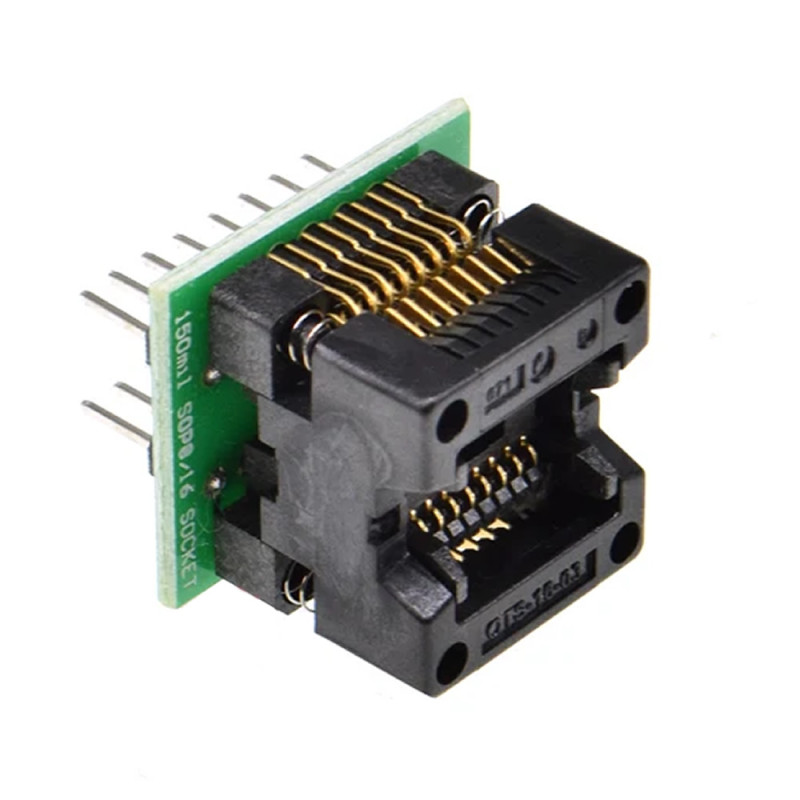

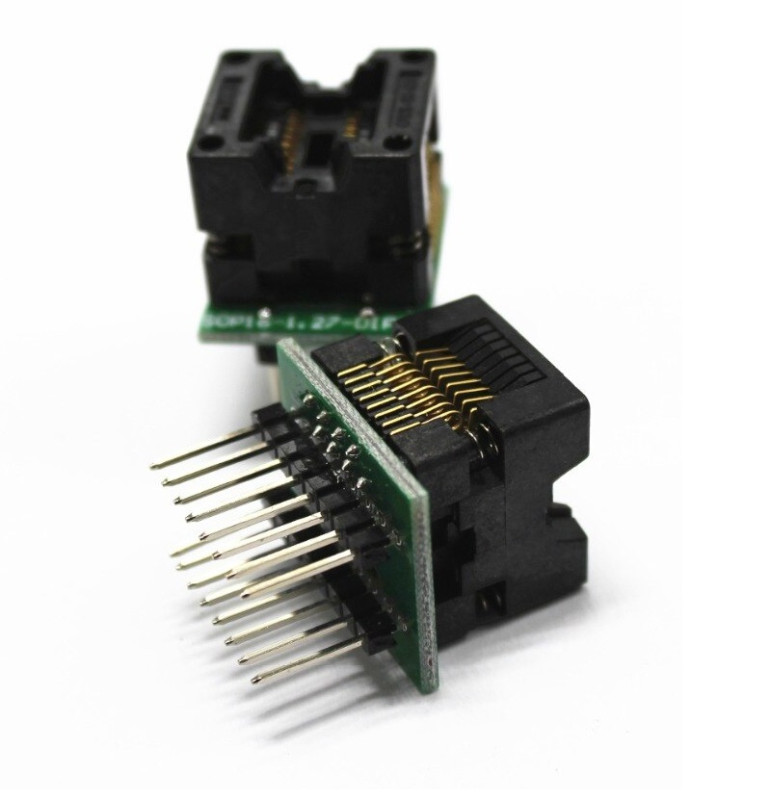

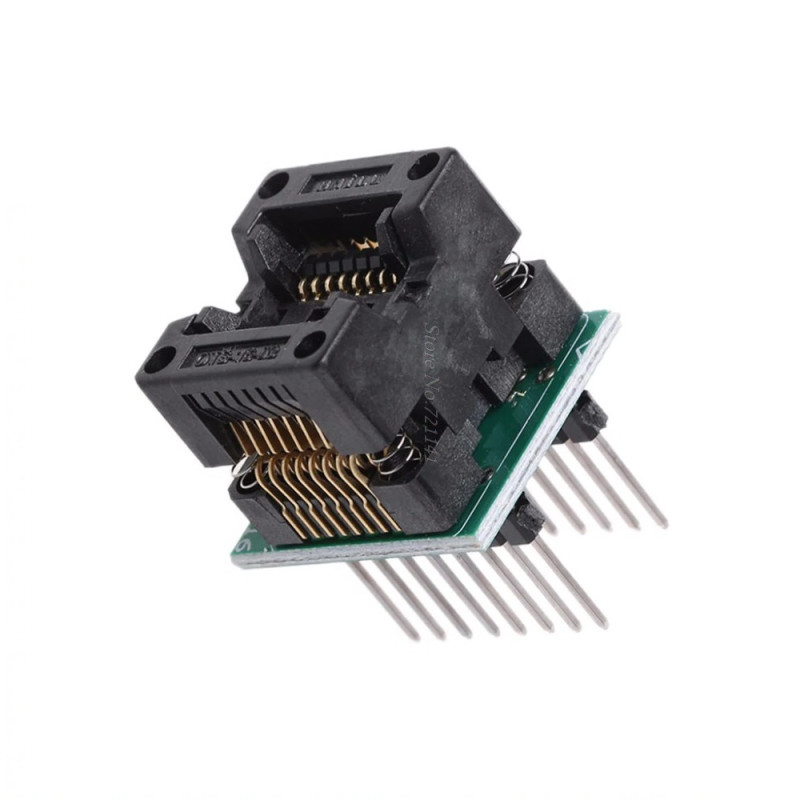

SOP16 SO16 to DIP16 Spring Loaded Adapter Socket

SOP16 SO16 to DIP16 Spring Loaded Adapter Socket

Soic16 150mil Test Programming Smd IC Converter Zif Socket Dip16 Adapter Programmer Apparatus

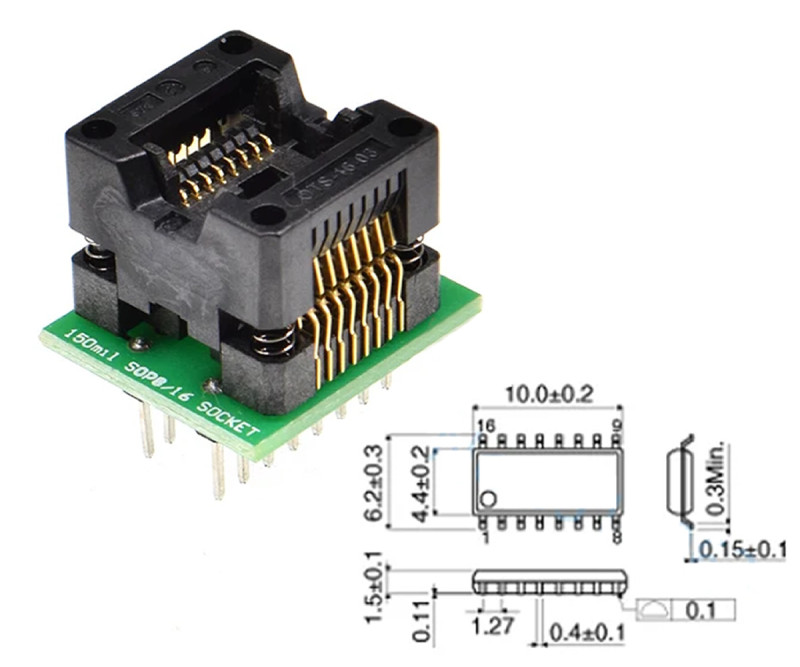

This product is designed only for narrow type SMD ICs with a 150mil body width.

     It is a spring loaded adapter socket used to convert SO16, SOIC16 and SOP16 SMD ICs with a 150mil body width to the DIP16 format. It is used in fast test, software loading, fault detection and prototyping processes without requiring soldering.

     Thanks to its ZIF like spring loaded mechanism, you can place the IC into the socket and fix it easily, and remove it again and again without damaging it. It is especially suitable for use with programmer devices and development boards.

Features:

• Compatible with SO16, SOIC16 and SOP16 (150mil) packages
• Provides use on breadboard and socketed circuits with its DIP16 output structure
• Supports SMD ICs with 1.27mm pin pitch
• Solderless use possibility with the spring loaded mechanical structure
• Ideal for test, programming and temporary connections
• Reuse without damaging the IC legs
• Structure compatible with programmer devices
• Insulator material: PEI, PPS
• Contact structure: beryllium copper
• Mechanical life: 15000 uses
• Operating temperature: -60C to 155C

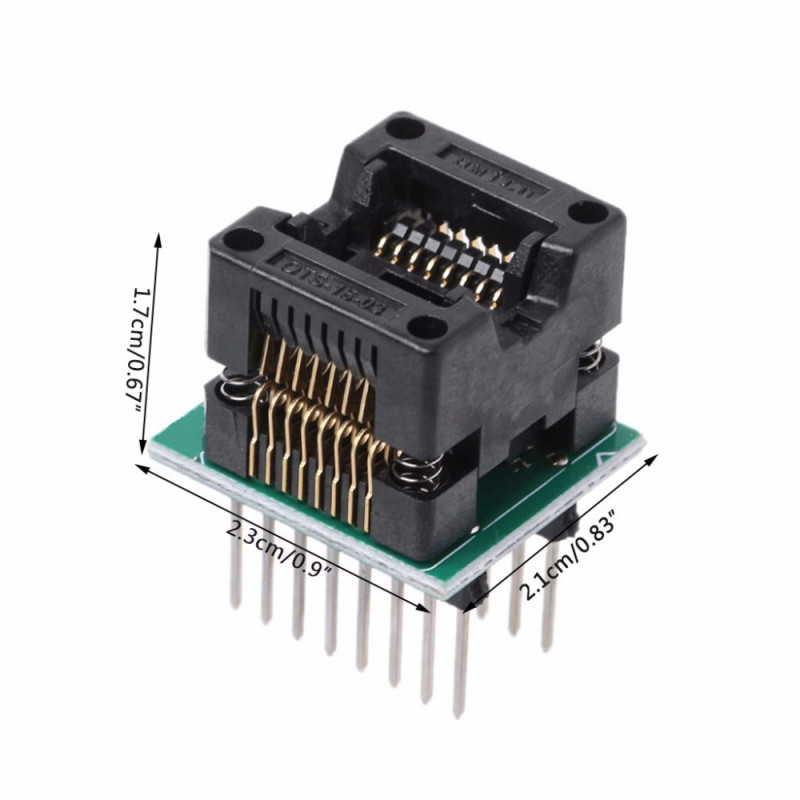

• Dimensions:  21mm x 23mm x 27mm
• Weight:  8gr

Areas of use:

• EEPROM, Flash and microcontroller programming
• SMD IC test operations
• Fault detection and measurement applications
• Prototype development
• Laboratory and technical service use

Package contents:

• 1 Piece SOP16 SO16 to DIP16 Spring Loaded Adapter Socket
