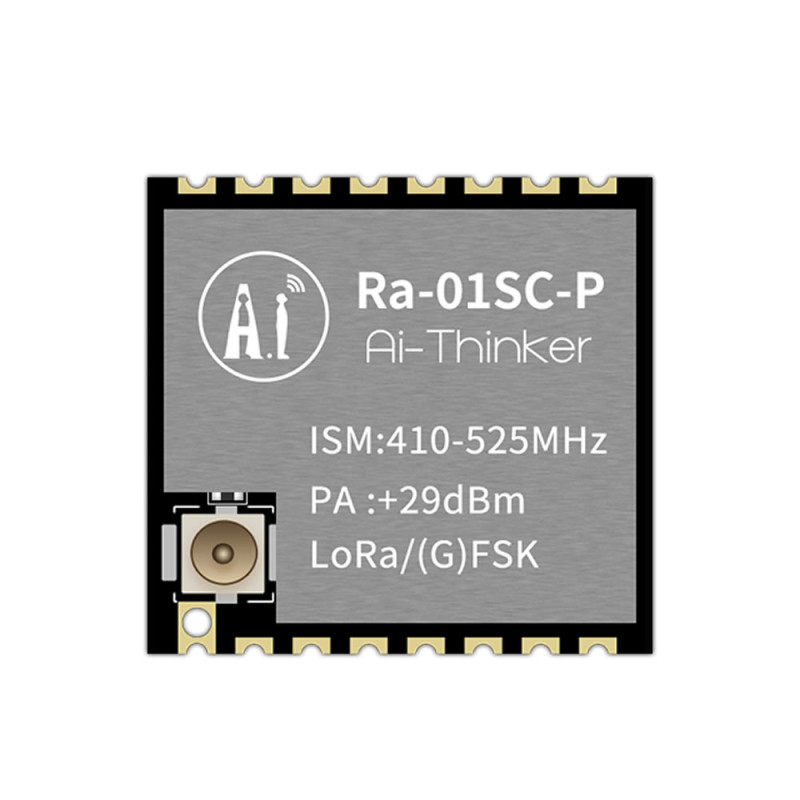

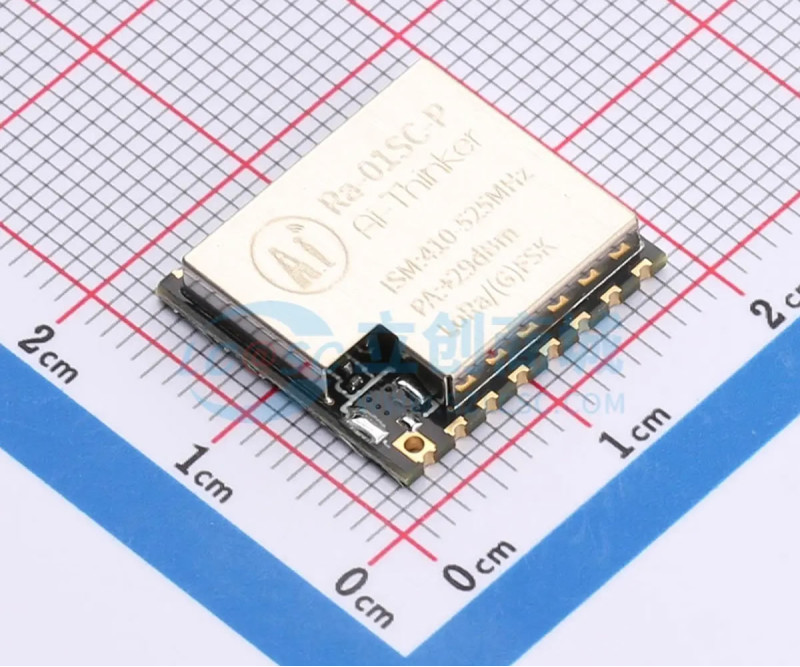

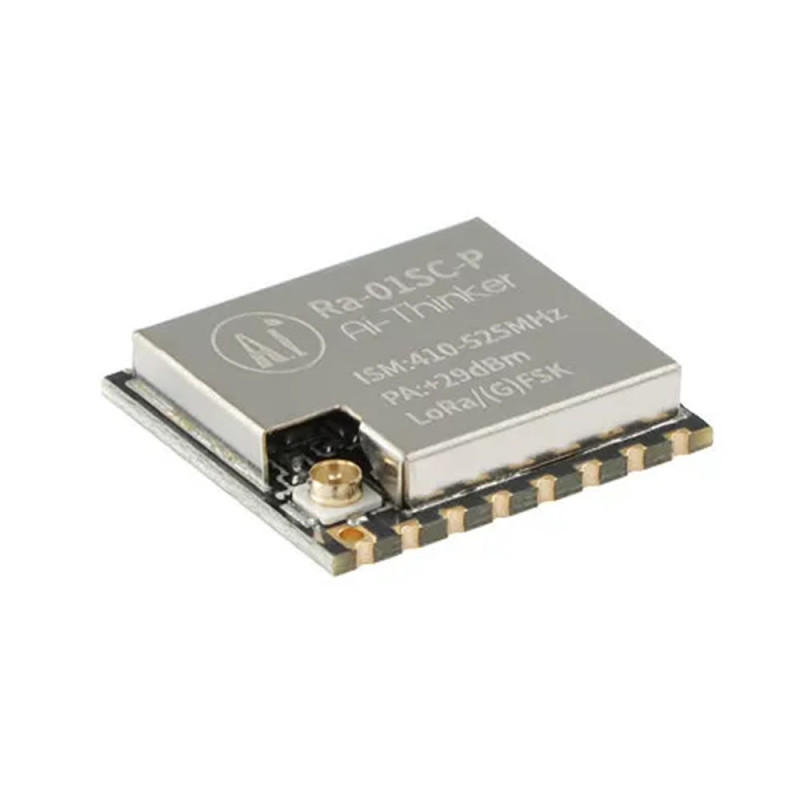

Lora RA-01SC-P Rf Module
410MHz-525MHz LLCC68+ Transceiver Long Range 0.5km/10km Water Electricity Gas Meter Wireless Sensor Temperature Data Monitoring Remote Control Telemetry Automation Robot Pump Electrical Control
RA-01SC-P LoRa (long range radio) communication module. The LLCC68+ IC is used. Thanks to the built-in PA (power amplifier) on it, it reaches a much higher output power (+29dBm) than standard modules. This high power allows rf signals to pass through obstacles more easily. Stable communication is observed at up to 6-7km with standard antennas, and up to 10-15km in open areas with high gain antennas.
It is widely used in applications such as Iot sensor reading, various control and automation operations, and meter reading. It can also operate in the 410MHz-525MHz frequencies. An external antenna connection is made with the Ufl socket. In addition, it can be used with the antenna pin on the edge via the pcb or by soldering helical etc. antennas of suitable thickness.
The RA-01SC-P module has a built-in PA (power amplifier) and LNA (low noise amplifier). The PA raises the output power of the chip from the standard +22dBm level to +29dBm. The LNA comes into play on the receiver side and brings the sensitivity to the -137dBm level. These two components together significantly increase the link budget and, with the same antenna in ambient conditions, provide stable communication over longer distances compared to modules without a PA. The PA can be disabled by controlling the CPS pin from the MCU, so the module can also be used in applications requiring short range or low power.
Features:
- Ai-Thinker RA-01SC-P Lora Transceiver
- IC: LLCC68+
- Operating voltage: DC 3.3V (3.0V - 3.6V) ( Current capacity should not be below 1A)
- Operating current receiver: 11mA
- Operating current transmitter: 700mA (With built-in PA)
- Output power: +29dBm 700mA
- Communication range: 0.5km - 15km ( Suitable antenna and communication environment affect performance)
- Operating frequency: 410MHz - 525MHz
- Communication interface: Spi
- Maximum packet size: 256 byte
- Programmable data rate: maximum 300kbps
- LoRa bandwidth: 125kHz, 250kHz, 500kHz
- FSK, GFSK, LoRa modulation support
- Spreading factor: SF5-SF11
- Sensitivity: -137dBm
- Metal shielding case

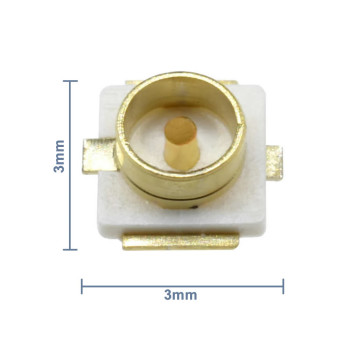

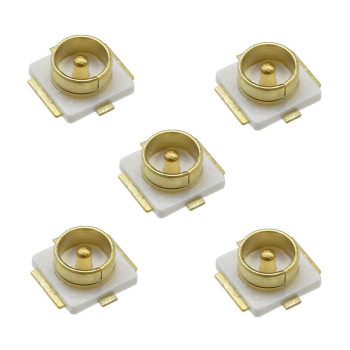

- External antenna connection support with Ufl socket
- Operating temperature: -40C / 85C
- Package: Smd (16 pin)
- Pin pitch: 2mm

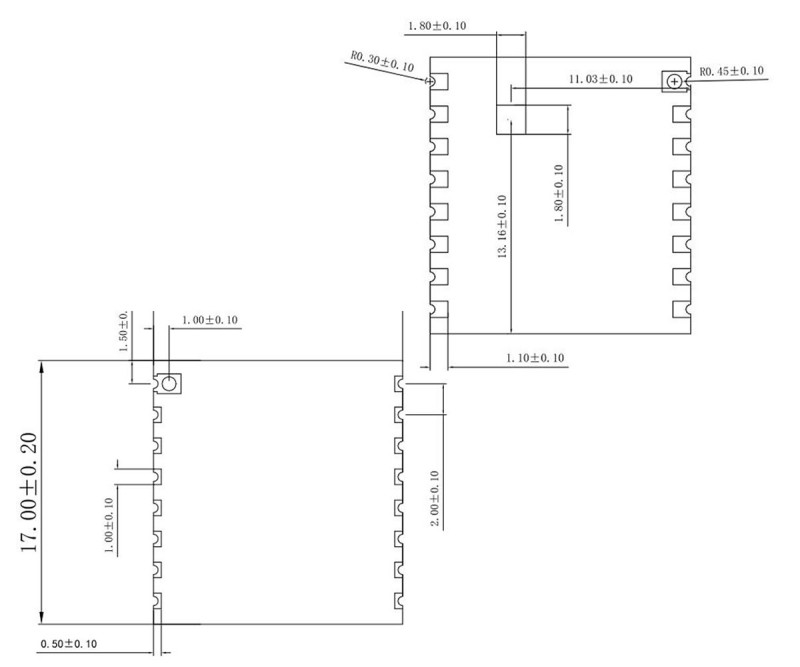

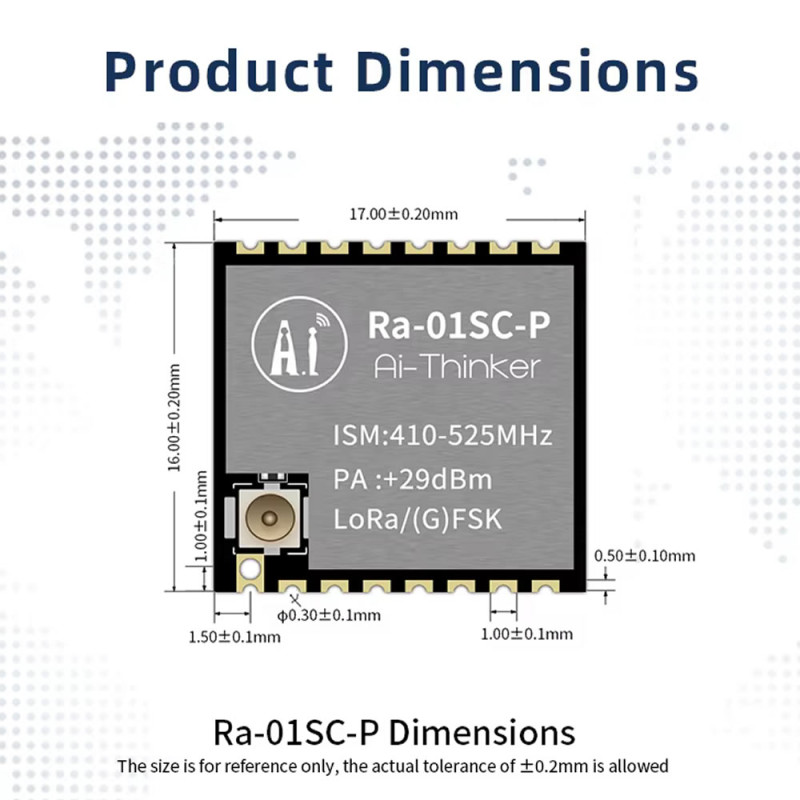

- Dimensions: 16mm x 17mm x 3.2mm
- Weight: 3gr

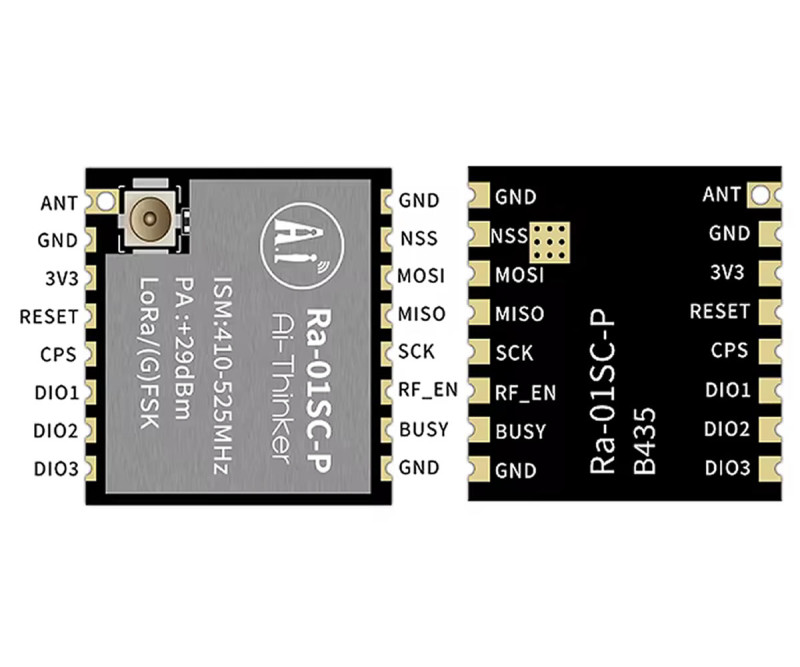

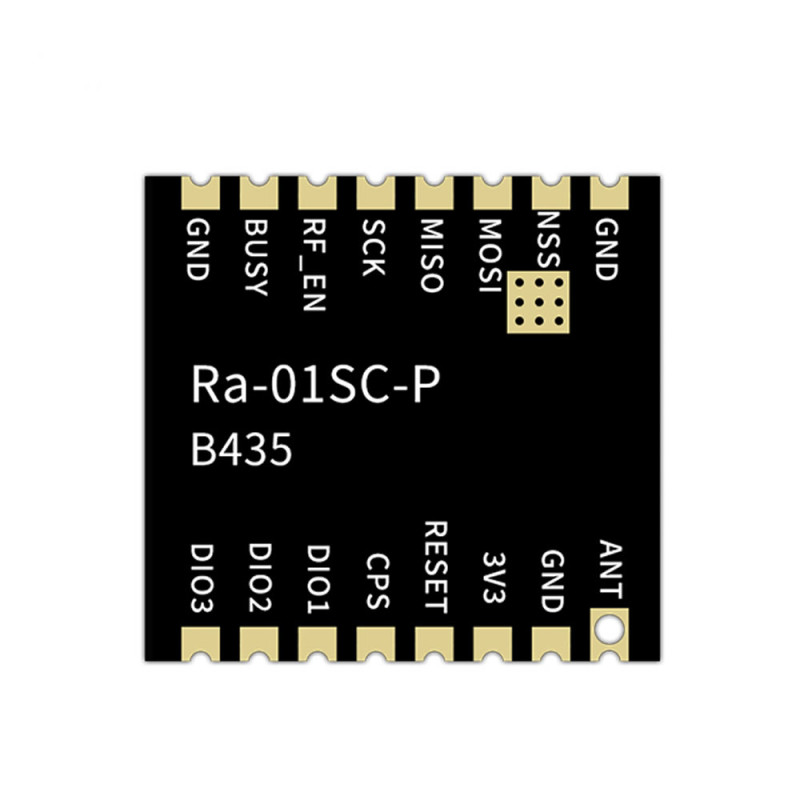

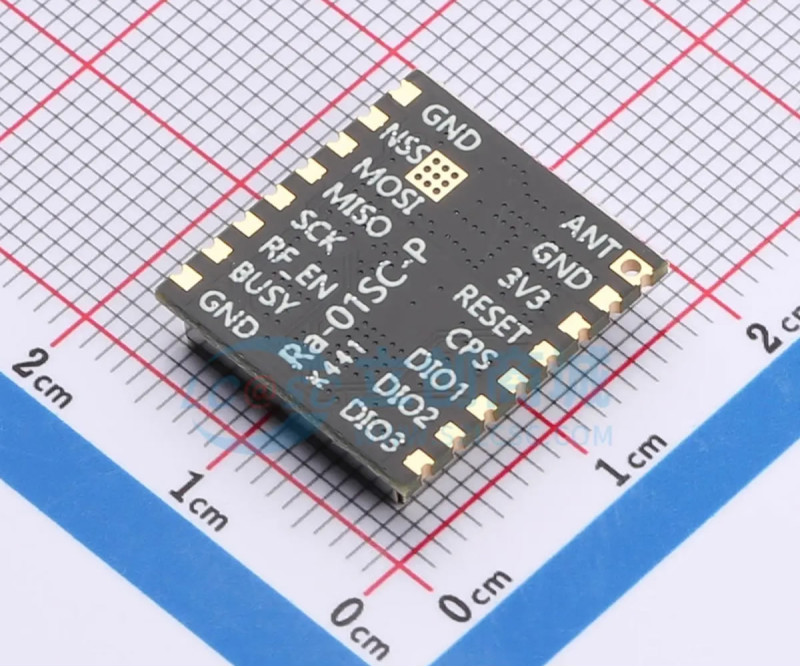

Pin description:
| No | Name | Function |
| 1 | ANT | Connect antenna |
| 2 | GND | Ground |
| 3 | 3V3 | Typical value 3.3V power supply |
| 4 | RESET | Reset pin |
| 5 | CPS |
FEM chip TX pass-through enable pin; in transmit mode this pin is low level RF and is directly output without PA amplification, and is internally pulled up by default |
| 6 | DIO1 | Digital IO1 software configuration |
| 7 | DIO2 | Digital IO2 software configuration |
| 8 | DIO3 | Digital IO3 software configuration |
| 9 | GND | Ground |
| 10 | BUSY | Status indication pin |
| 11 | RF_EN |
FEM chip enable pin; high level is effective, the module is pulled up by default; high level is in working state, low level is in sleep state |
| 12 | SCK | SPI clock input |
| 13 | MISO | SPI data output |
| 14 | MOSI | SPI data input |
| 15 | NSS | SPI chip select input |
| 16 | GND | Ground |
| EPAD | GND | Ground; reliable grounding is required to facilitate heat dissipation |
Package contents:
- 1 Piece RA-01SC-P Lora Transceiver
