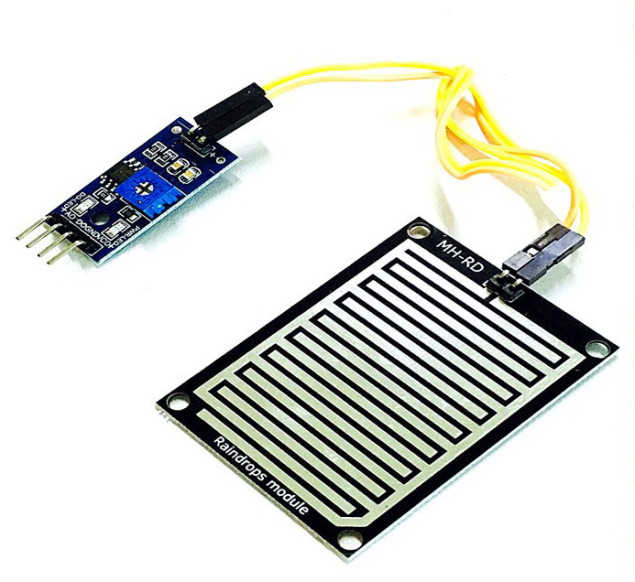

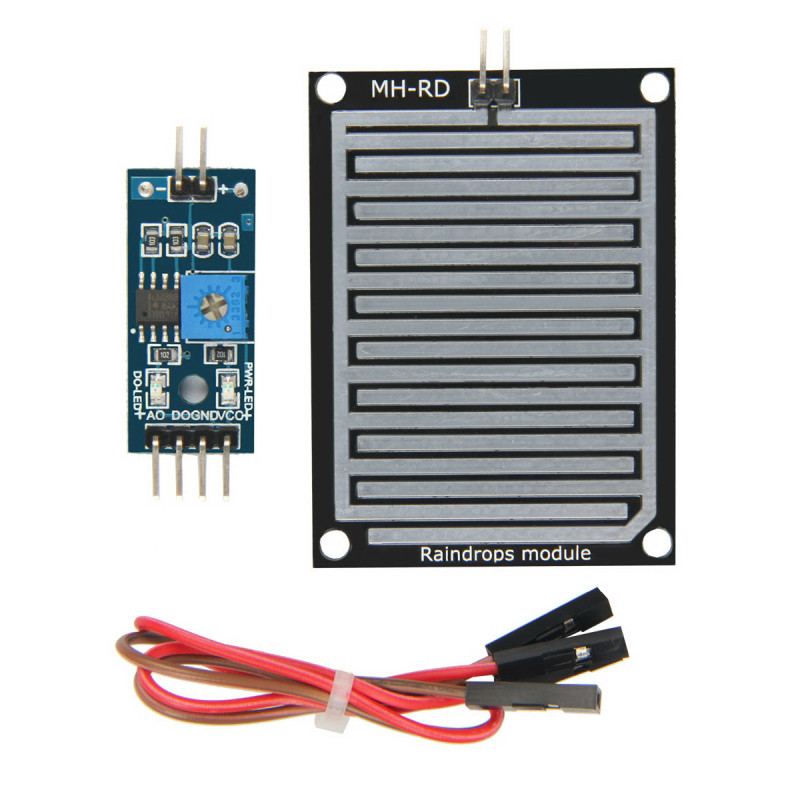

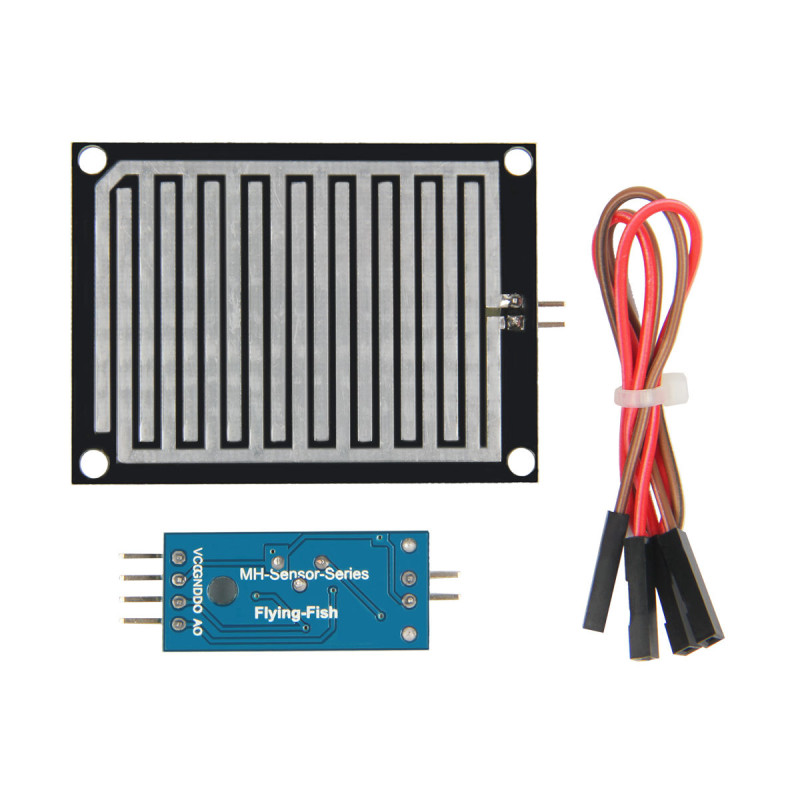

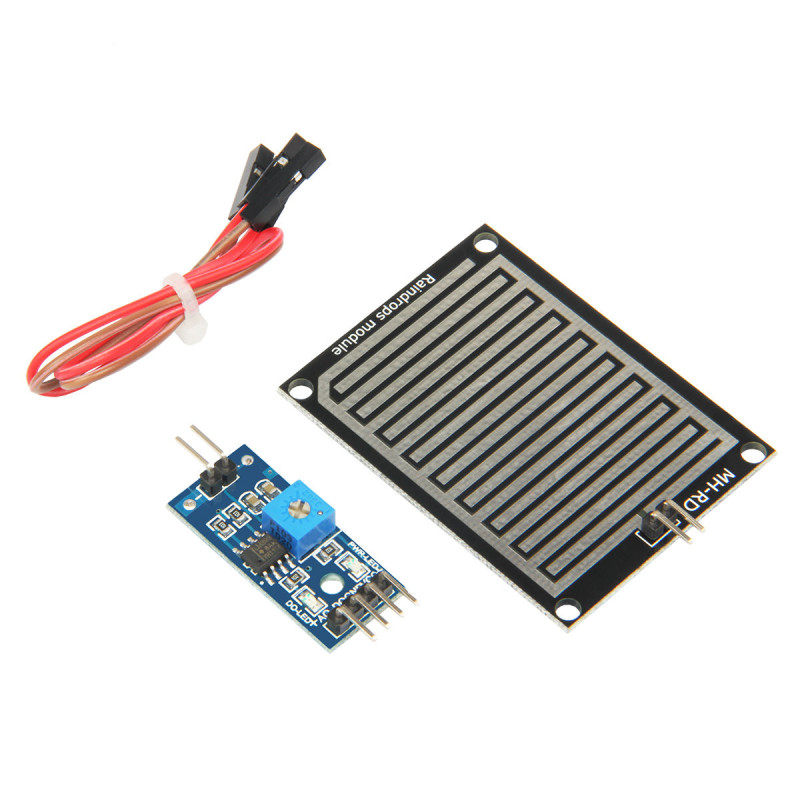

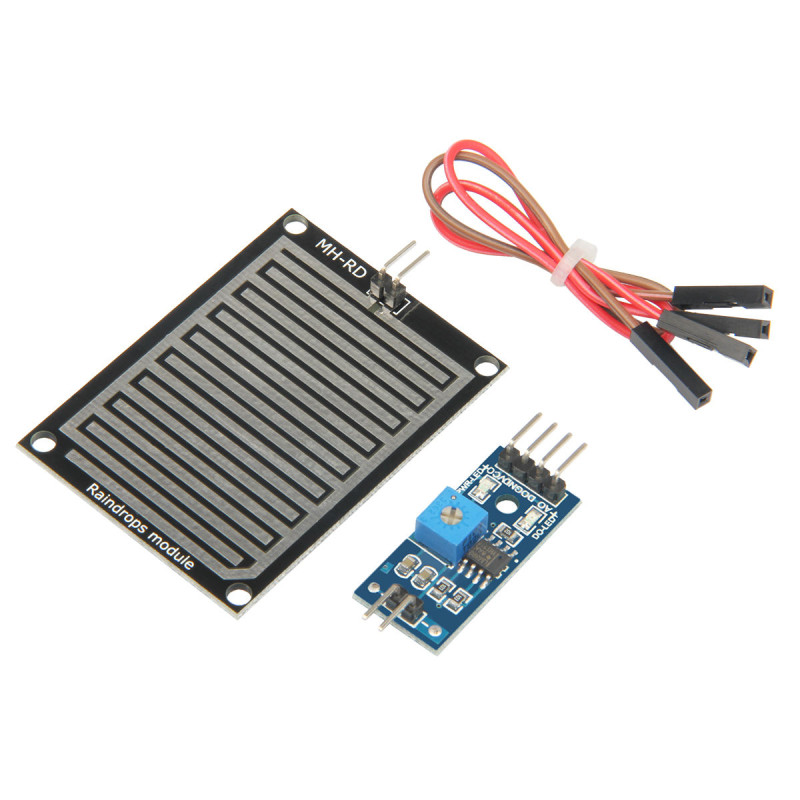

Rain Sensor Module
59.40TL
49.50TL + KDV
10 or more 50.49TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.700
Tags:
Rain Sensor Module
Rain Sensor Module
Feature:
- Working Voltage: 3.3 V- 5V

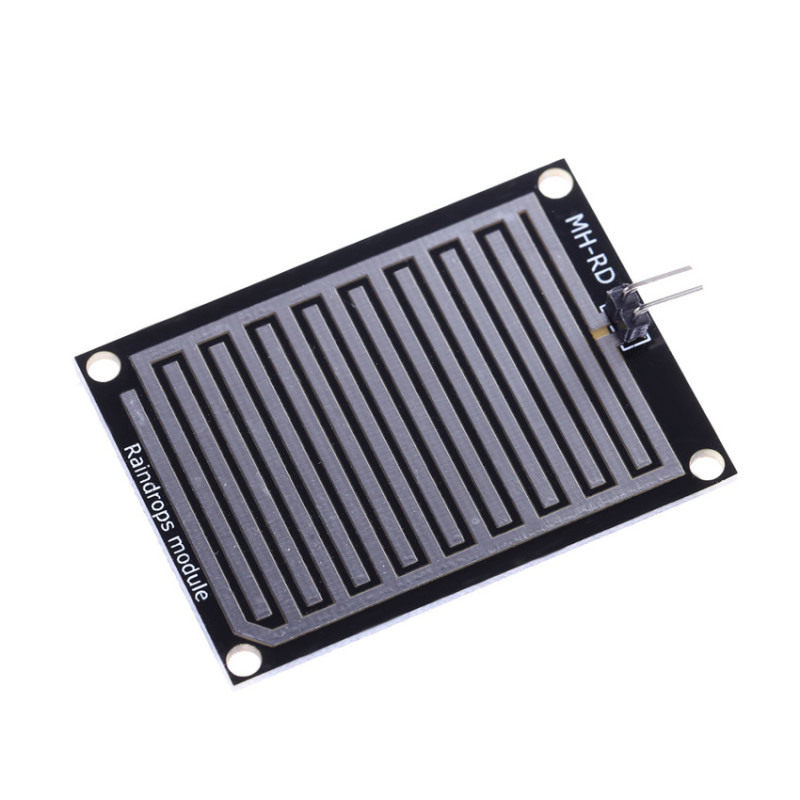

- The sensor USES the high quality FR - 04 double material, large area of 5.5 x 4.0 CM, treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance

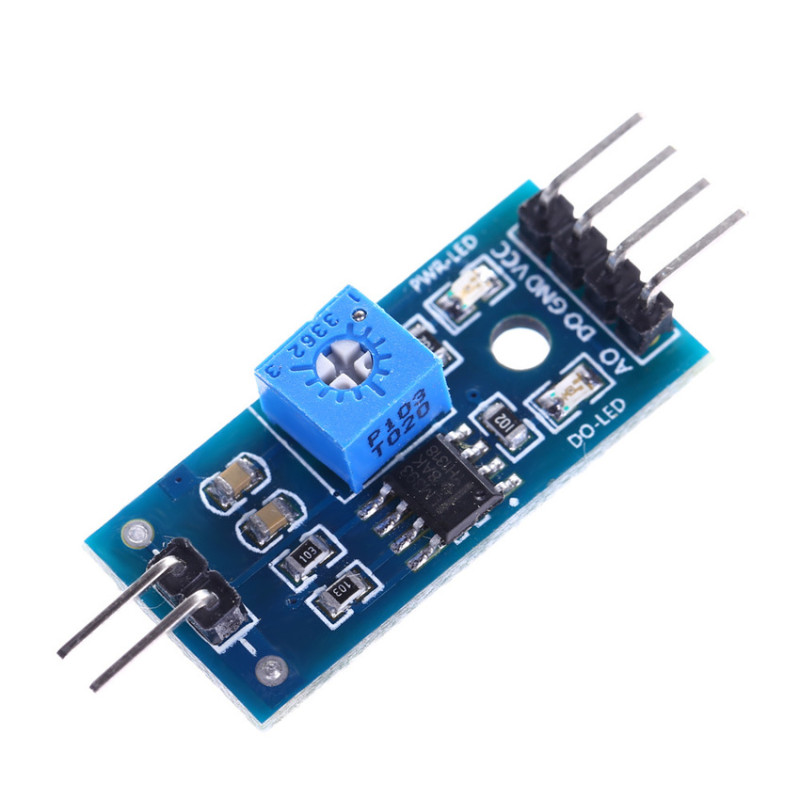

- The LM393, use of wide voltage comparator
- The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA.
- With potentiometer sensitivity adjustment
- Has a fixed bolt hole, convenient installation
- Weight: 30 gr
Function:
- Connected to 5 v power supply, power indicator, no water droplets on induction plate, the DO output high level, switch indicator light out, drop a drop of water on, the DO output for the low level, the switch light is lit, Brush away the water droplets, again to return to, the output high level
- AO analog output, which can be connected to the microcontroller AD mouth detection drops of rainfall in the above size
- DO TTL digital output also can connect to the single chip microcomputer detect whether there is rain
Connection mode
- VCC: Positive (3-5 v)
- GND: Connect power anode
- DO: TTL switch signal output
- AO: Analog signal output
Package Contents :
- 1 pcs Rain Sensor Module
- 1 pcs Control Board

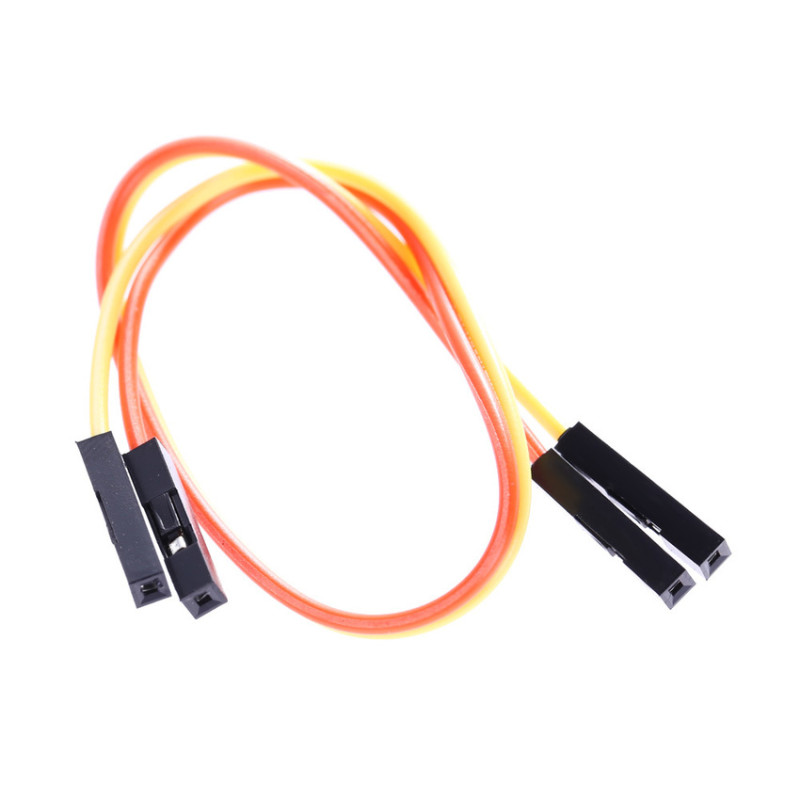

- 2 pcs 20cm Dupont Cable
