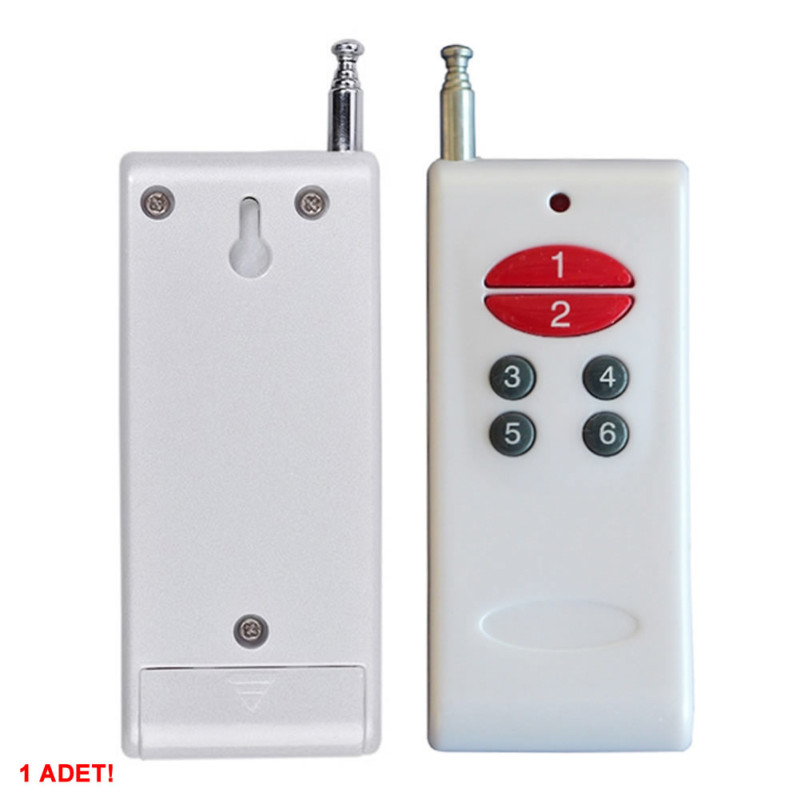

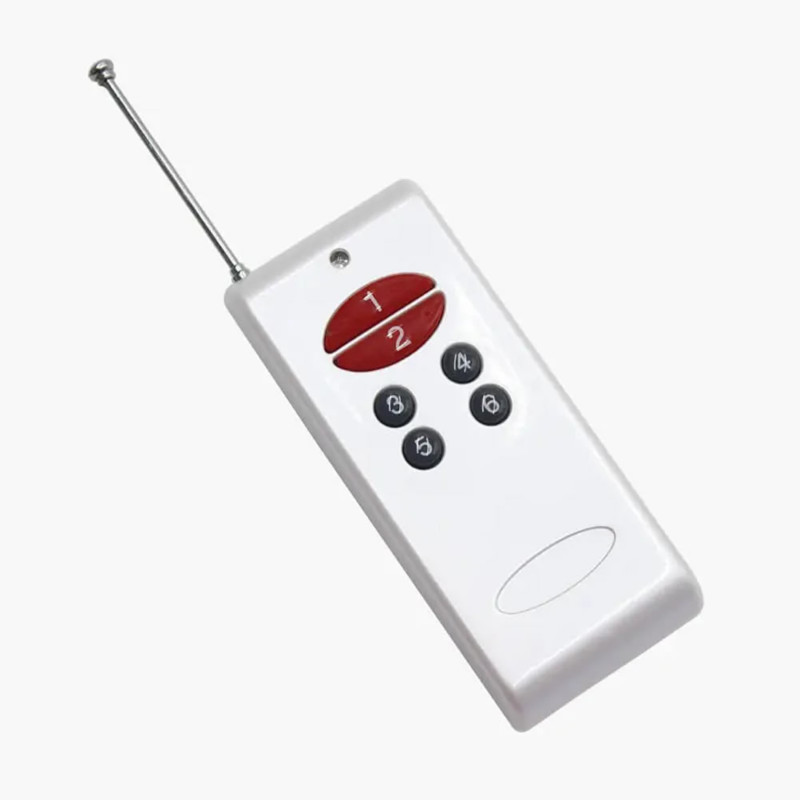

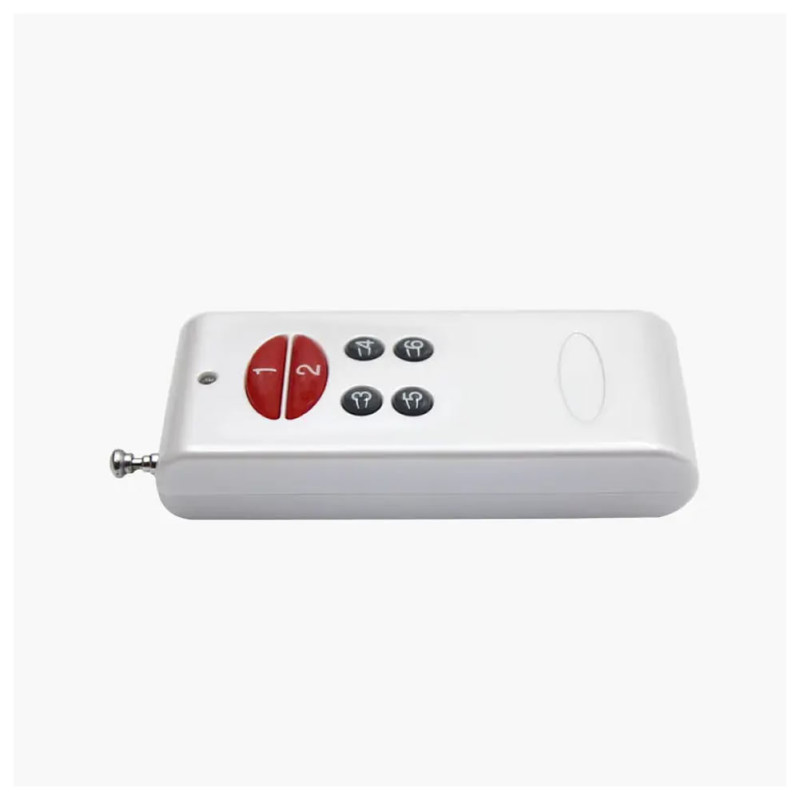

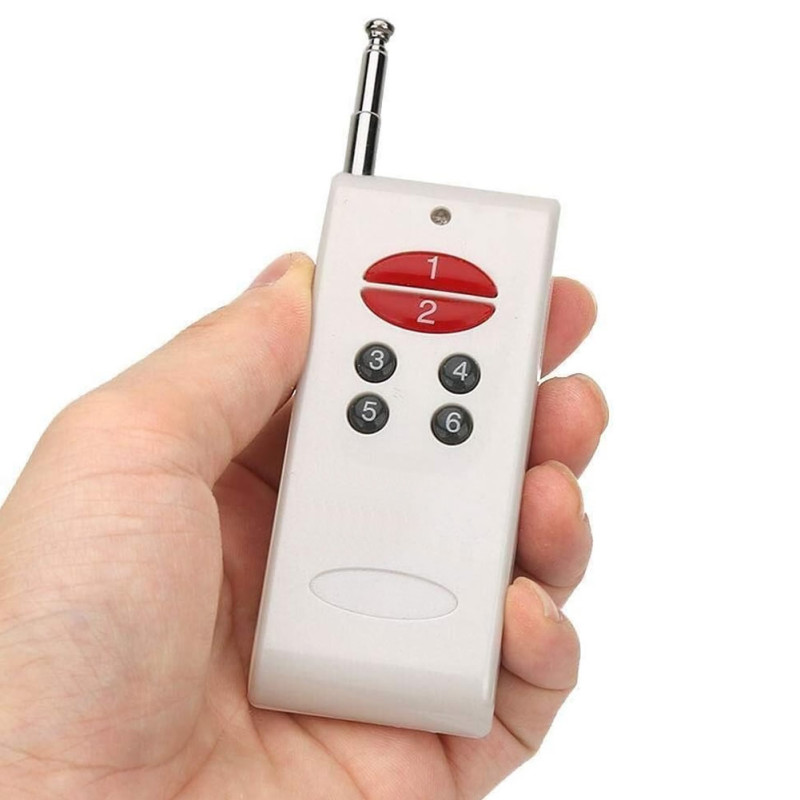

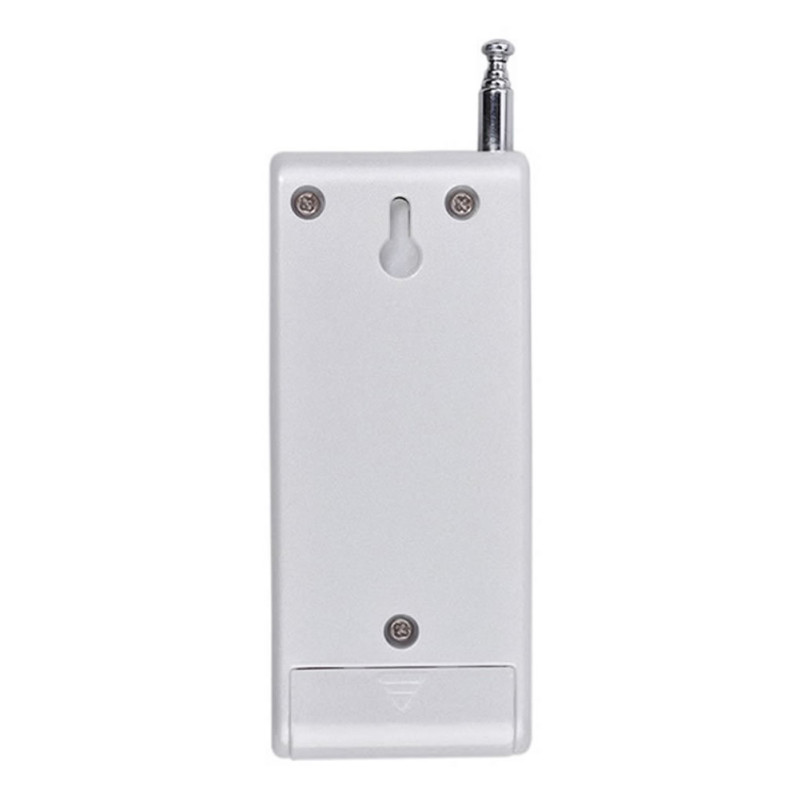

6 Channel 433Mhz Remote Control

6 Channel 433Mhz Remote Control

Garage Automatic Door Shutter Barrier Alarm Lamp Motor Control Switch Smart Home Parking 2264 2262 2260 eV1527 2240 HCS301

This remote control does not have a learning function. Its ID is fixed!

     It is a 6 button 6 channel 433Mhz remote control circuit. The product does not have learning and copying functions. The remote control can be used together with systems that can learn. If your device has a learning function, you can buy it. Generally, after pressing and holding the learning button, the remote control is registered to the relevant system by pressing the buttons of this remote control. Afterwards, while using those systems, you can perform wireless control operations with your new remote control.

     It is compatible with systems working with 1527 Type coding. It is widely used in many areas such as garage automatic doors, shutters, barriers, lamps, motors.

Features:

• 6 Button wireless remote control ( cannot learn, its ID is fixed )
• Operating frequency 433Mhz
• Number of channels: 6
• Communication distance: 1000 meters ( In open area )
• Chip type: It can be registered to products with 1527 type receivers ( PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV1527 )
• Learning code: HS1527, EV1527, HT6P20B
• Fixed code HS2260, HS2262, PT2264SC2262
• Rolling code HCS301, HCS300, HCS200
• Indicator led
• Material: Plastic / Electronic parts
• Color: White / Red
• Operating voltage: DC 12V Battery
• Operating current: 12mA
• Operating temperature: -20C / +70C

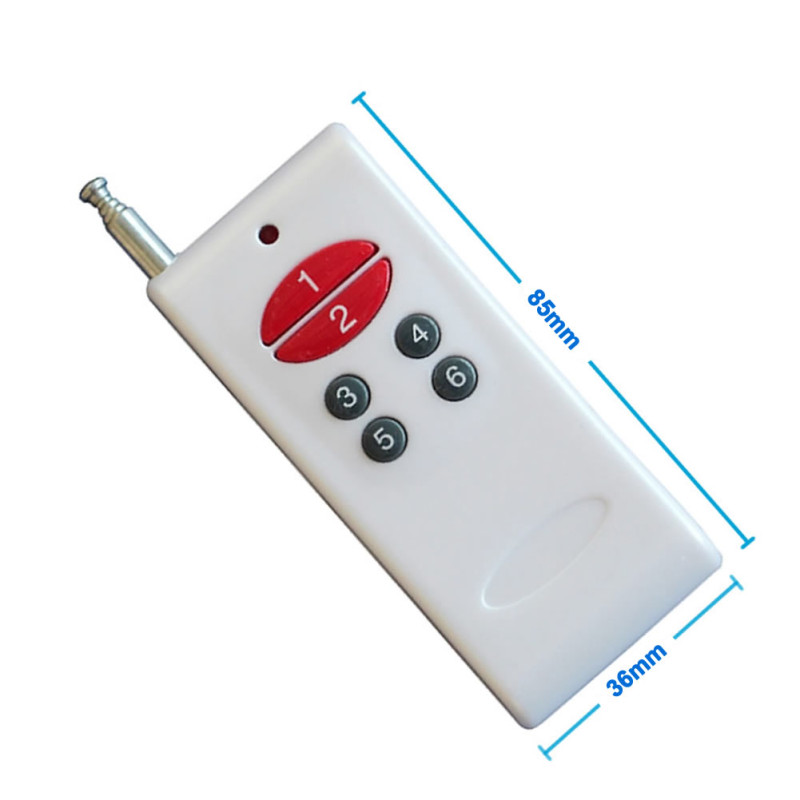

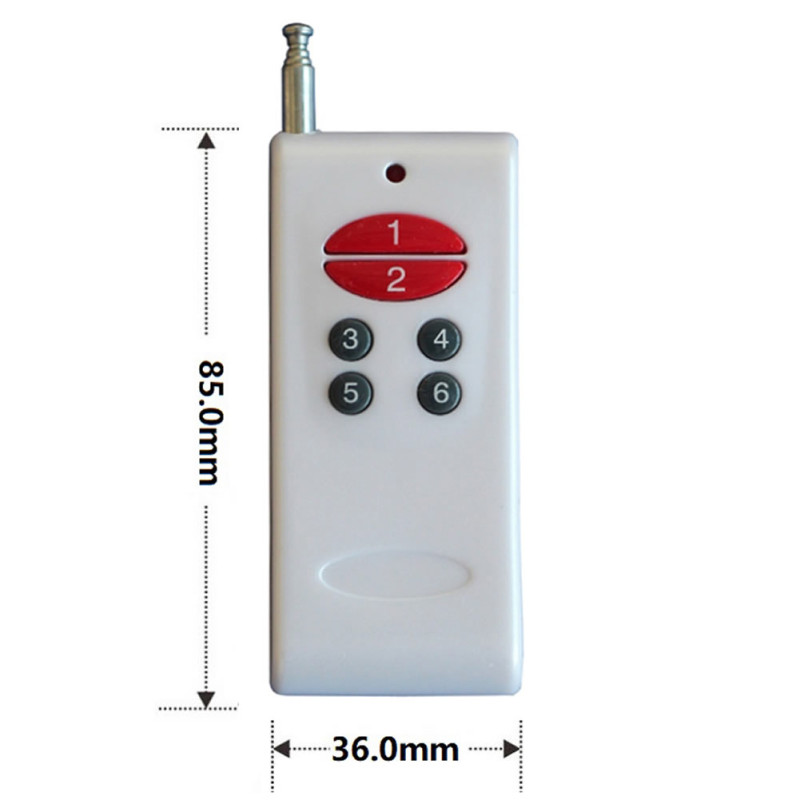

• Measurements: 16,5mm x 36mm x 85mm
• Weight: 35gr

Package Contents:

• 1 Piece 6 Channel 433Mhz Remote Control

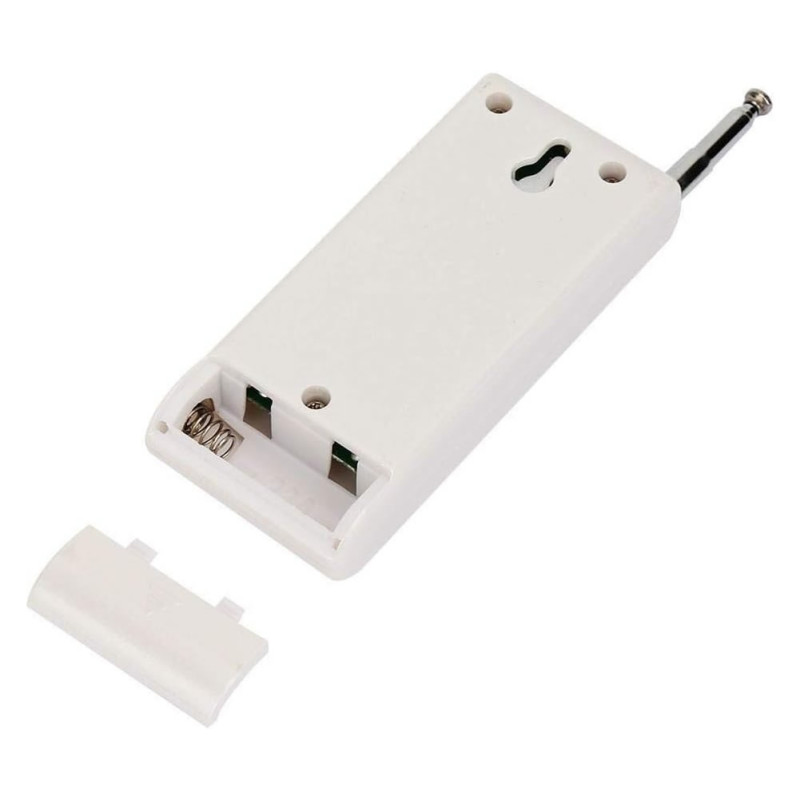

• 1 Piece Battery

.
