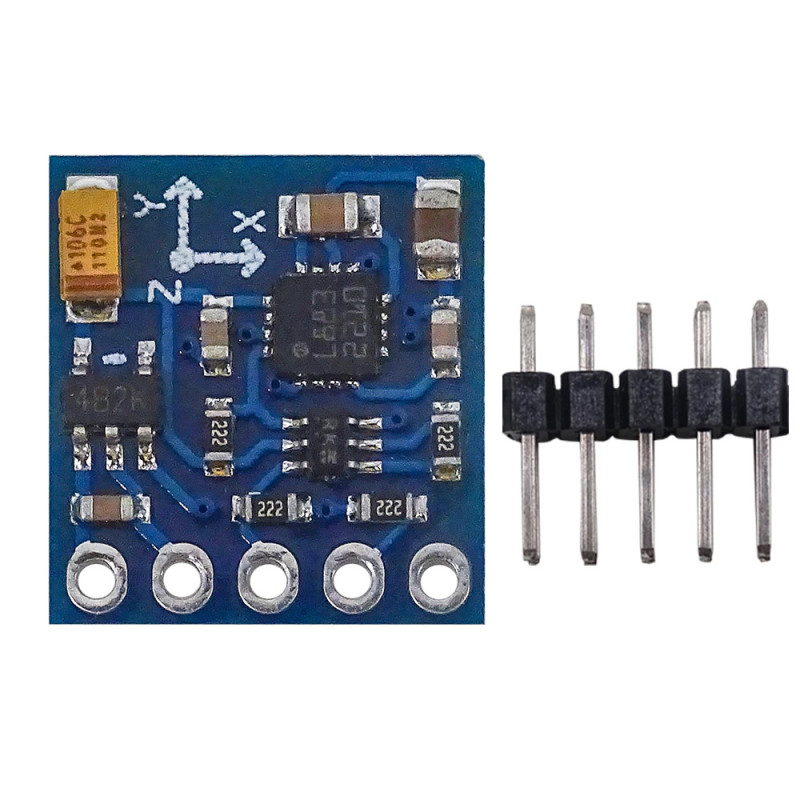

HMC5883 GY-271 Module

HMC5883 GY-271 Three Axis Gyro Sensor Module

3V-5V Magnetometer Magnetic Field Measurement 3 Axis Compass

     It is a 3 axis compass sensor using the HMC5883L IC. There is a 3.3V voltage regulator on the module. Thanks to this, it can be used in 5V supplied systems. The sensor uses the I2C communication protocol. There is a 12 bit adc on the board. It can measure with high precision such as 2 milligauss.  It has very low power consumption. It is used in applications such as mobile phones, robot motion control, mobile devices, vehicle navigation etc.


Features:

• Model: GY-271
• Operating voltage: 3V / 5V
• Operating current: 100uA
• Sleep current: 2uA
• IIC digital communication
• 12 Bit Adc
• Frequency: 160mhz
• Magnetic field range: ±8 gauss
• Angle precision: 1-2 Degrees
• Precision: 2milli gauss
• 5 Pin 2.54mm empty connection socket
• Operating temperature: -20C   /  +85C
• Color: Blue

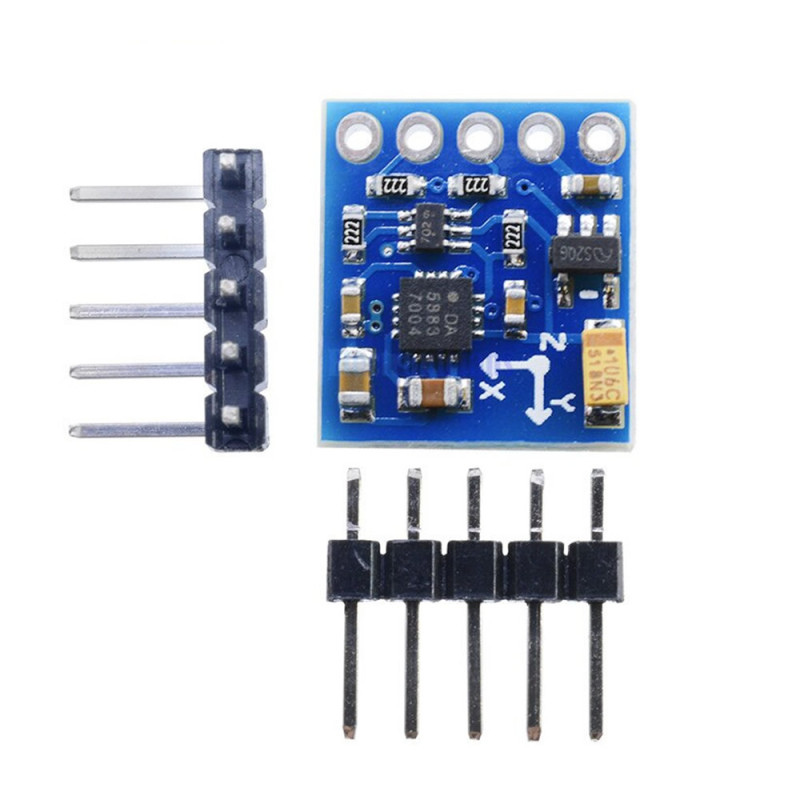

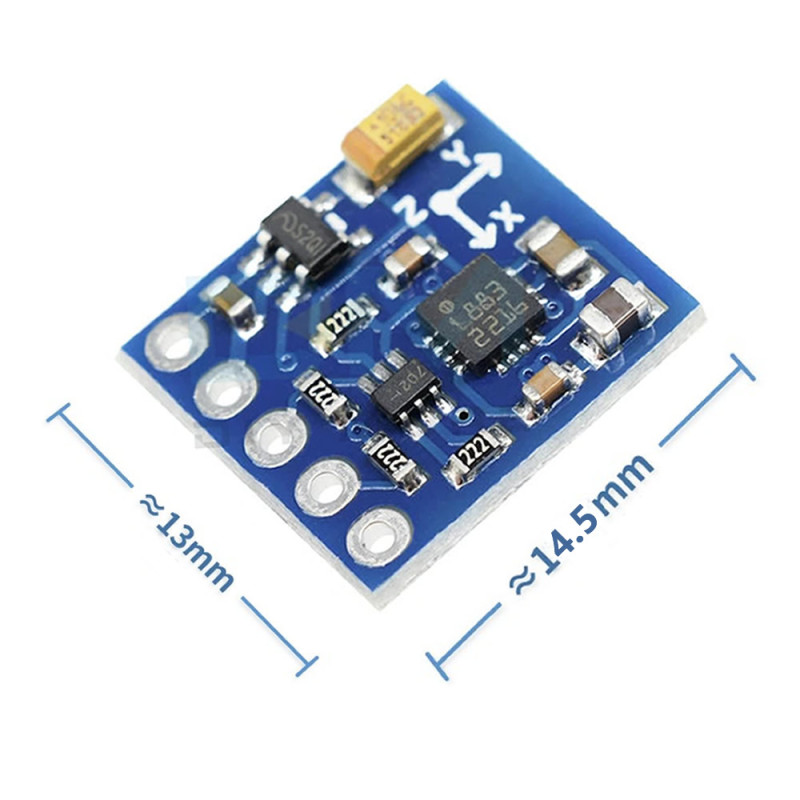

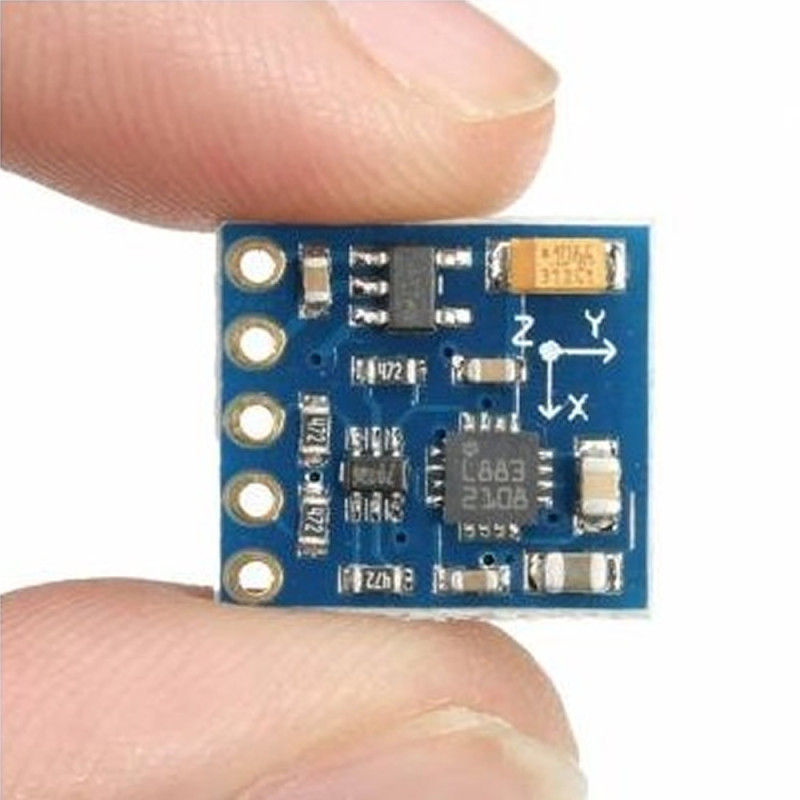

• Dimensions: 13mm x 14.5mm
• Weight: 2gr

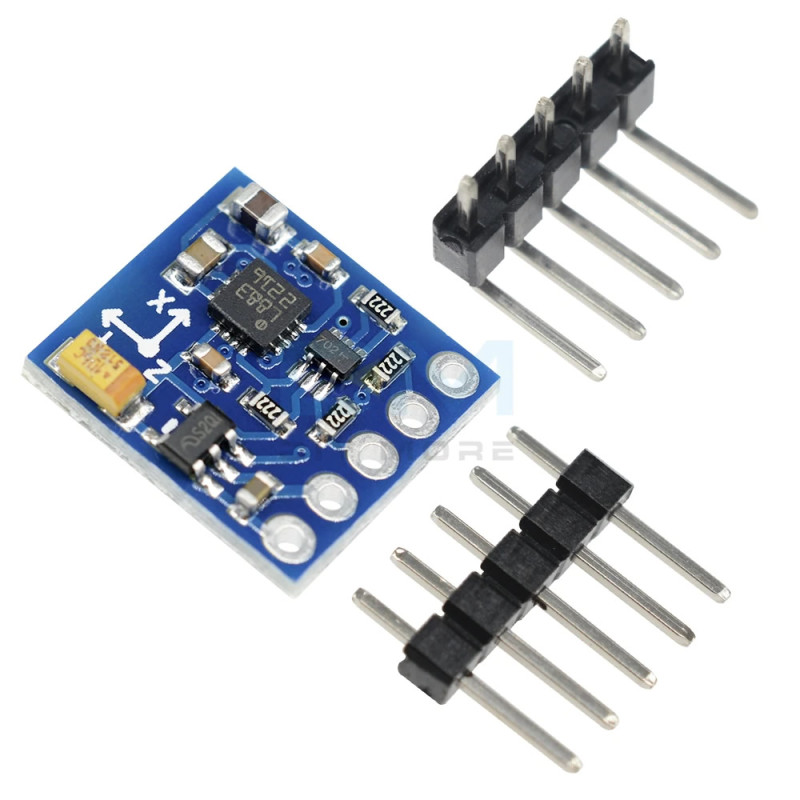

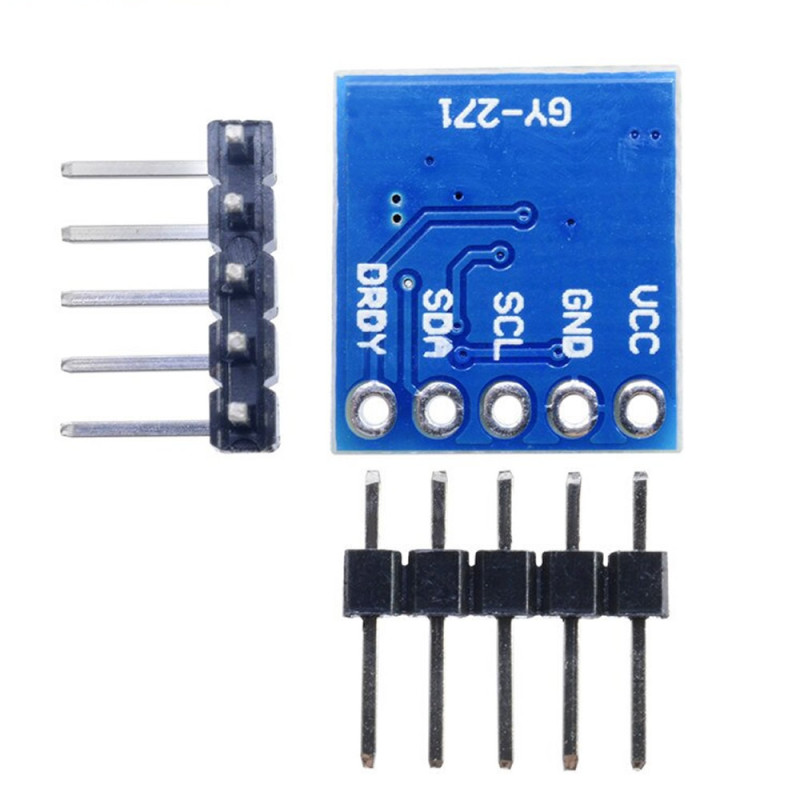

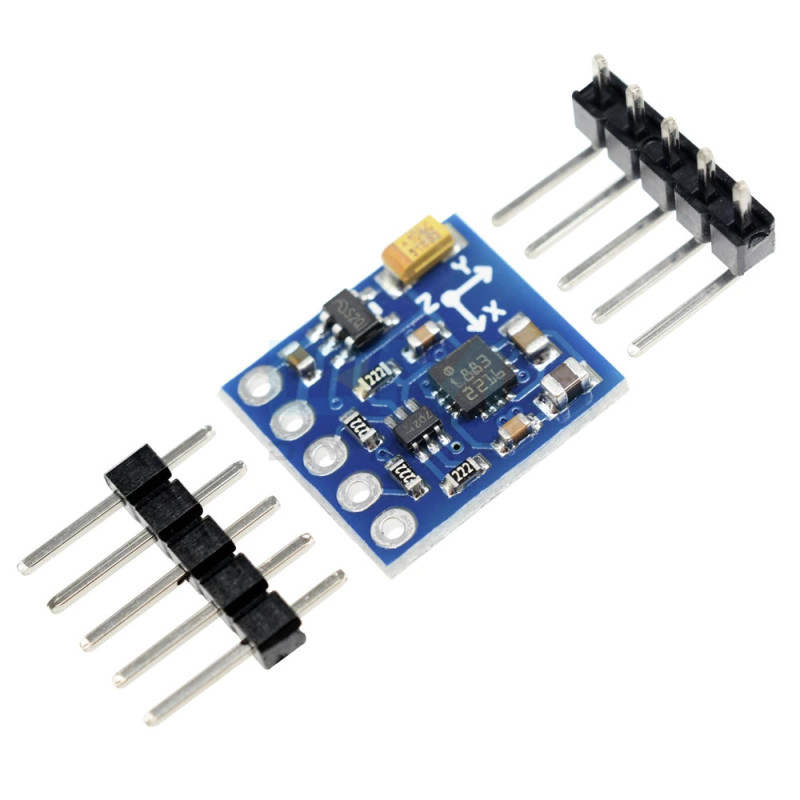

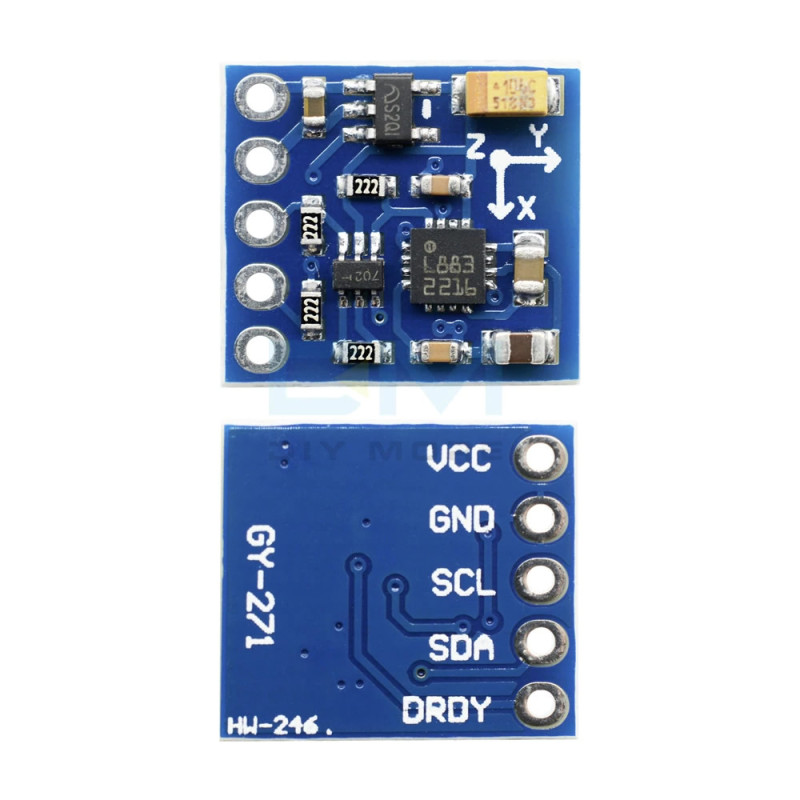

Pin Description:

• VCC: Supply + 3.3V to 5V;
• GND: Supply - Ground
• SCL  IIC Clock
• SDA  IIC Data
• DRDY: Data Ready

Package Contents:

• 1 pcs HMC5883 GY-271 Module
