GY-2561 TSL2561 Sensor Module

GY-2561 TSL2561 Infrared and Visible Light Sensor Module

Infrared Ir 40000 Lumen Brightness Illumination Detector IIC Phone Tablet Smart Home

    The GY-2561 TSL2561 light sensor module is a sensor that offers high precision infrared and visible light detection technology. Thanks to the TSL2561 integrated sensor, it gives accurate results by detecting ambient light in both the infrared and the visible spectrum. It has 2 photodiodes and 2 adc hardware units. Thus it can perform 2 types of light measurement at the same time. The measurement time can be changed. It can make short or longer measurements. It can measure between 0.1 / 40.000 lumens. It transmits the ambient light intensity digitally. This sensor is an ideal solution for measuring ambient lighting precisely and making automatic brightness adjustments accordingly.

     With its small size and low energy consumption, it is suitable for use especially in portable devices. Energy efficiency is increased and the user experience is improved. It can be widely used in applications such as automatic lighting systems, screen brightness adjustment (phones, tablets), industrial lighting control, smart home systems, agricultural plant growing light monitoring systems.

Features:

•  TSL2561 light sensor
•  Infrared (IR) light detection diode
•  Visible light detection diode
•  2 Pieces adc converter hardware
•  Operating voltage:  DC  3.3V / 5V
•  Operating current:  0.6mA

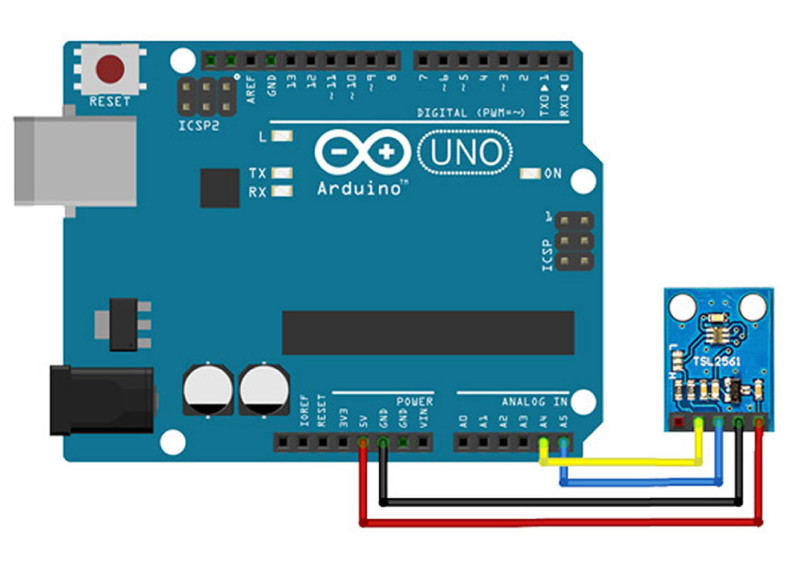

•  Communication: I2C (SCL, SDA)
•  High sensitivity: 0.1 / 40.000 lumens
•  It automatically blocks light noise at 50/60hz frequency.
•  Programmable gain setting
•  Programmable low and high light level alert support
•  Color:  Blue
•  Operating temperature: -20C /  65C
•  Two mounting holes

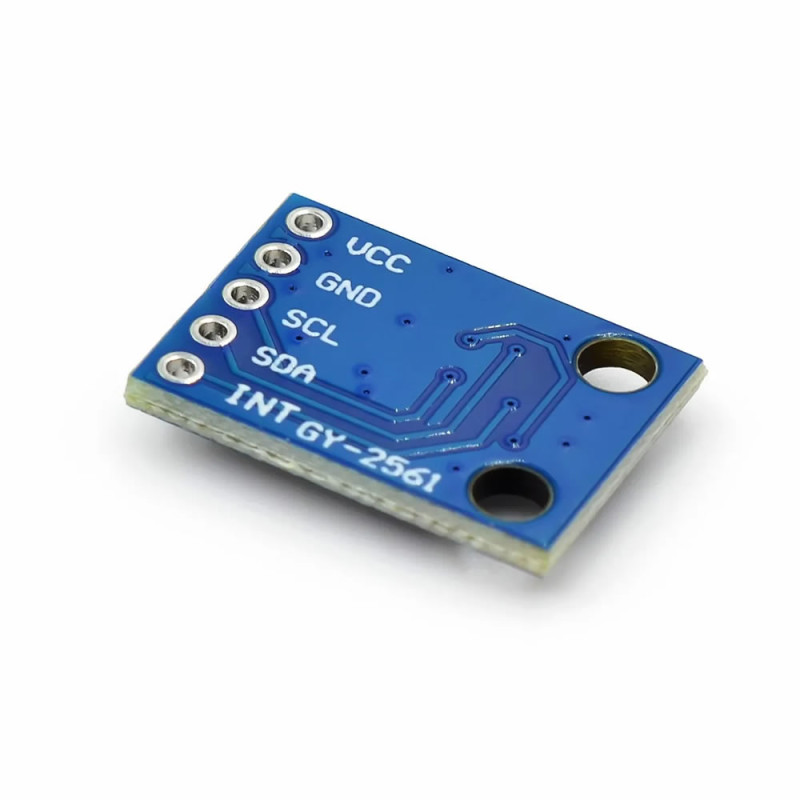

•  5 Pin communication connection empty header pads.

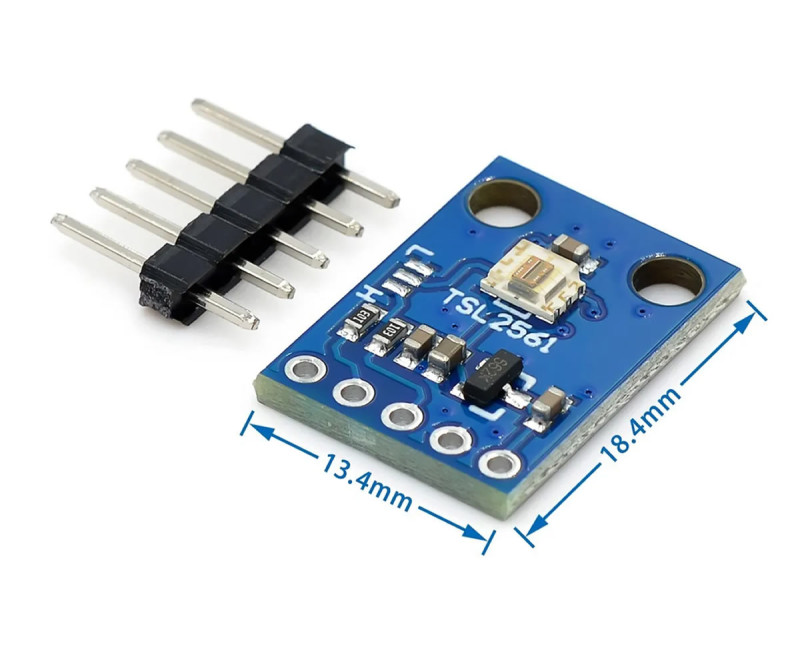

•  Dimensions:  13.5mm x 18.5mm
•  Weight:  1.5gr

Package contents :

• 1 Piece GY-2561 TSL2561 Sensor Module
