10Kg Weight Sensor

10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
10Kg Weight Sensor
0 reviews • Write a review
117.60TL
98.00TL + KDV
10 or more 99.96TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
  • Stok Durumu: Stok Var
  • Marka: OEM
  • SKU: RBZ.100.051
Add to Cart
Hemen Al Soru Sor
Add to Wish List Compare this Product
Tags: 10 Kg , Weight Sensor , Loadcell , HX711 , Scale , Balance , Arduino , Raspberry Pi , 10Kg

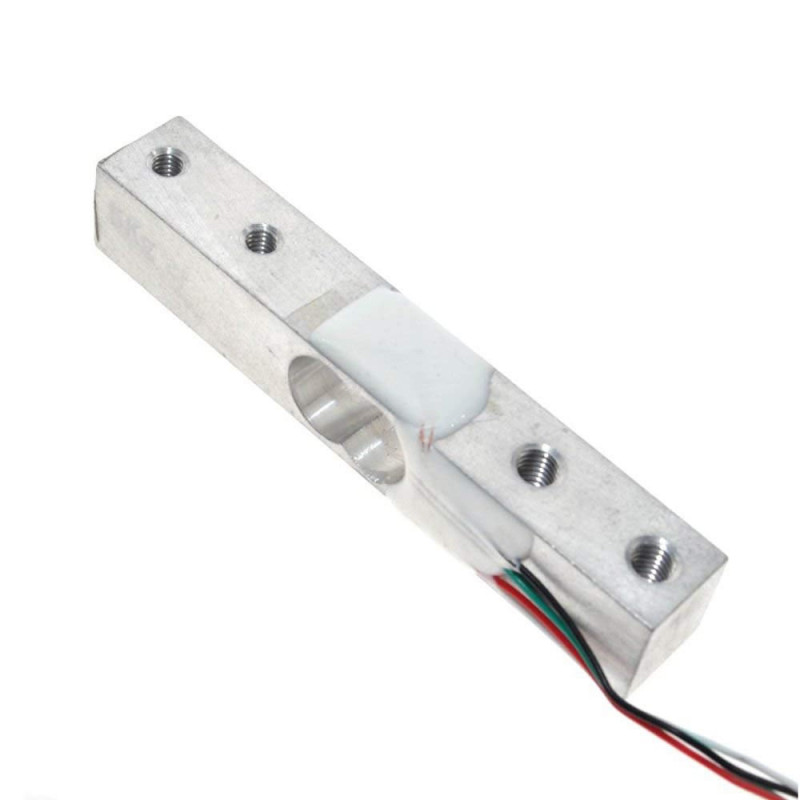

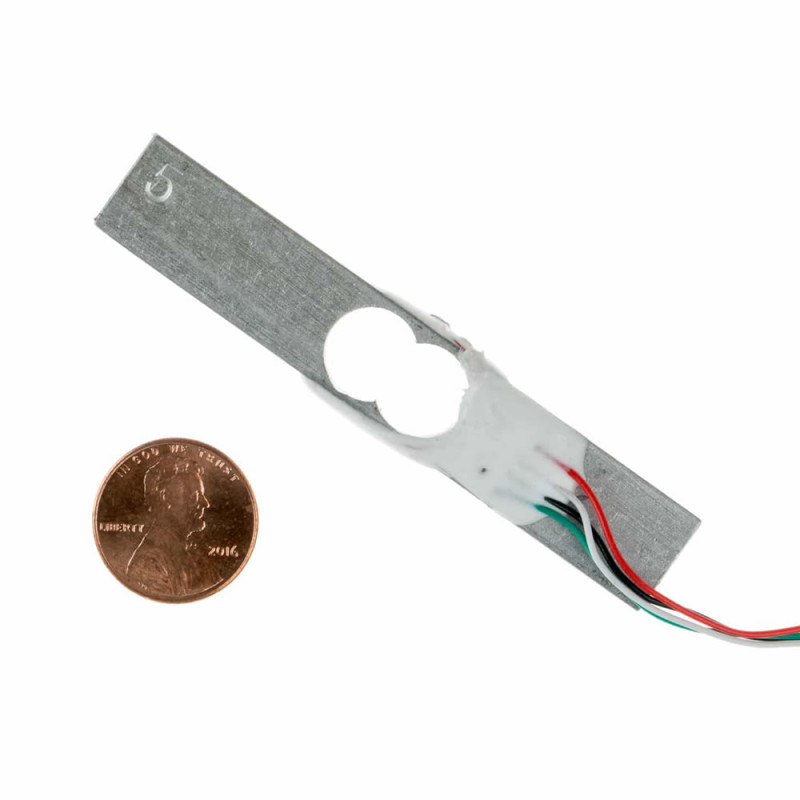

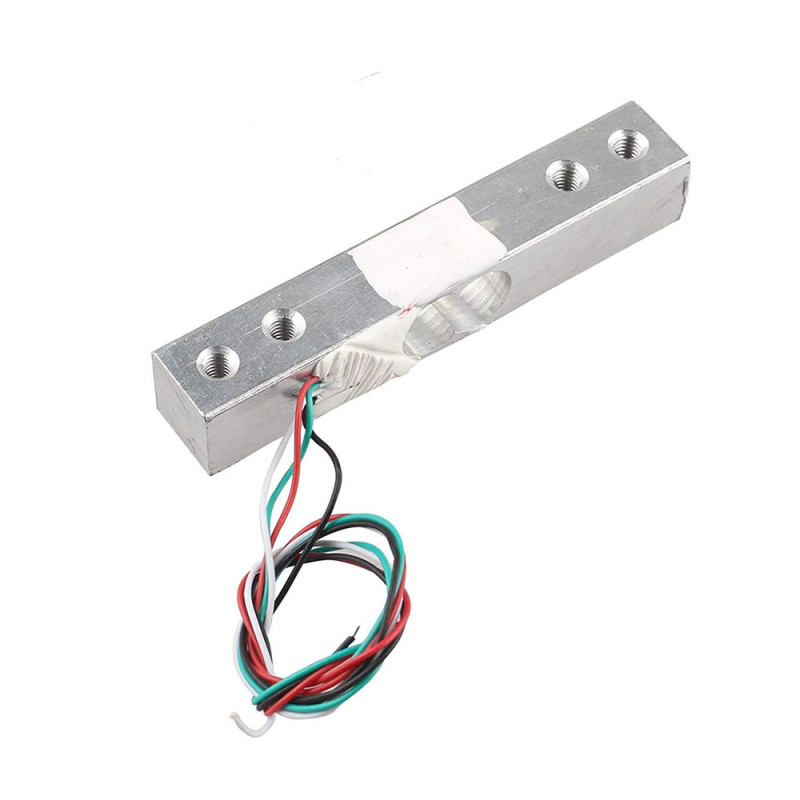

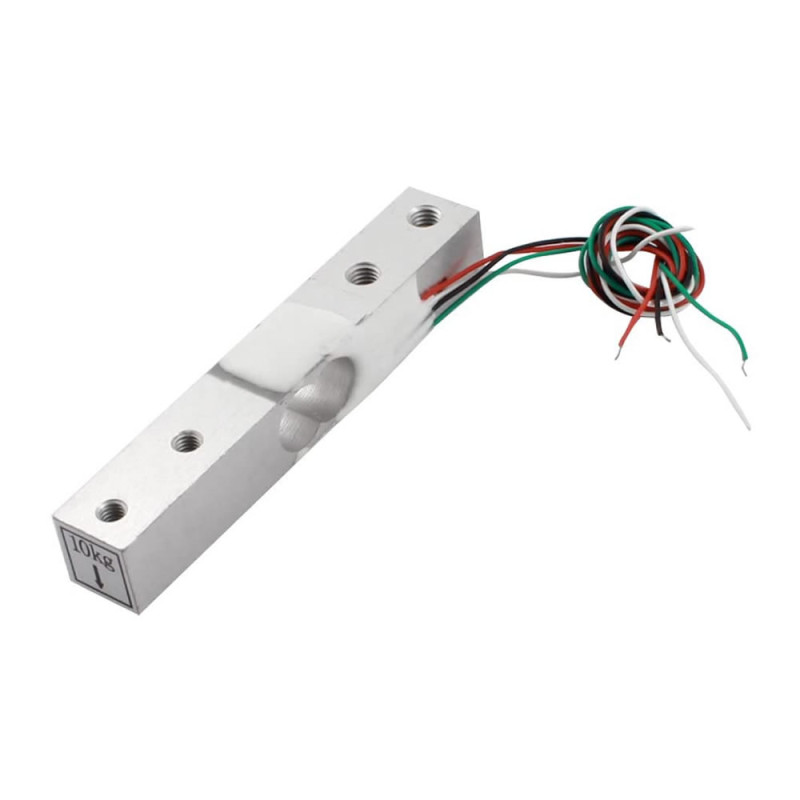

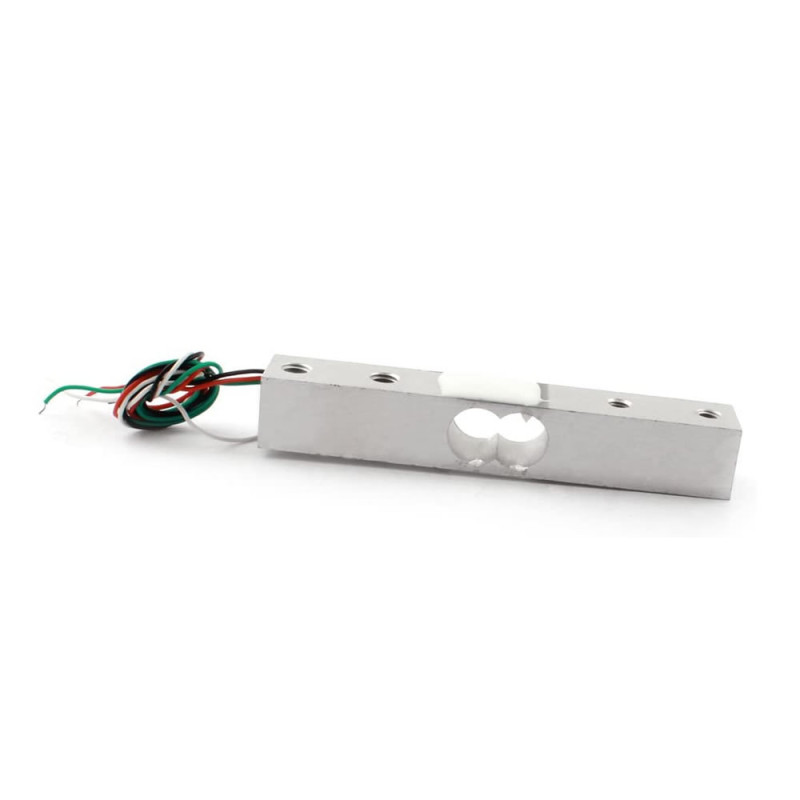

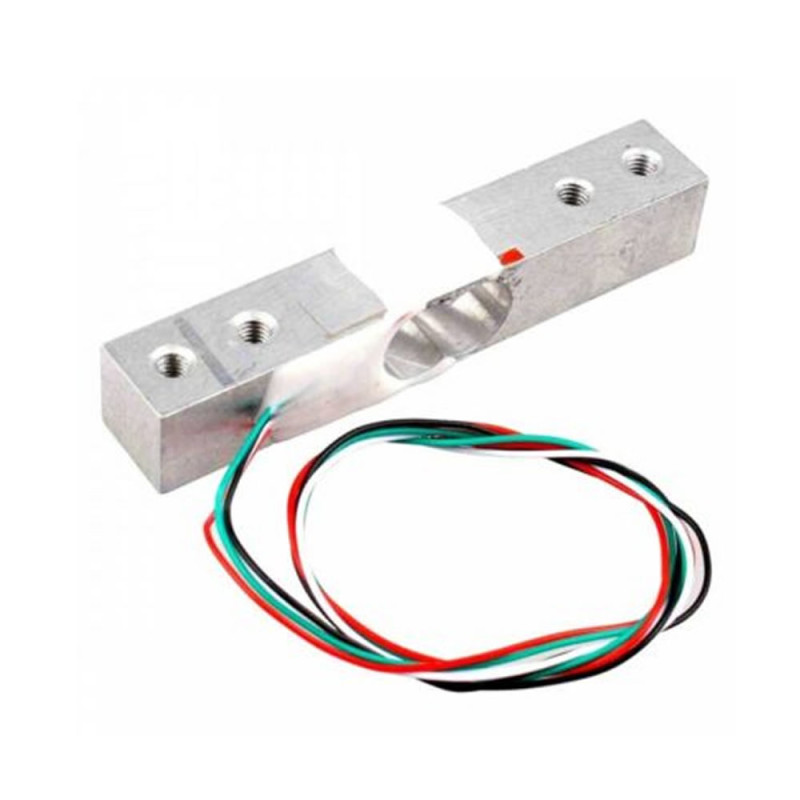

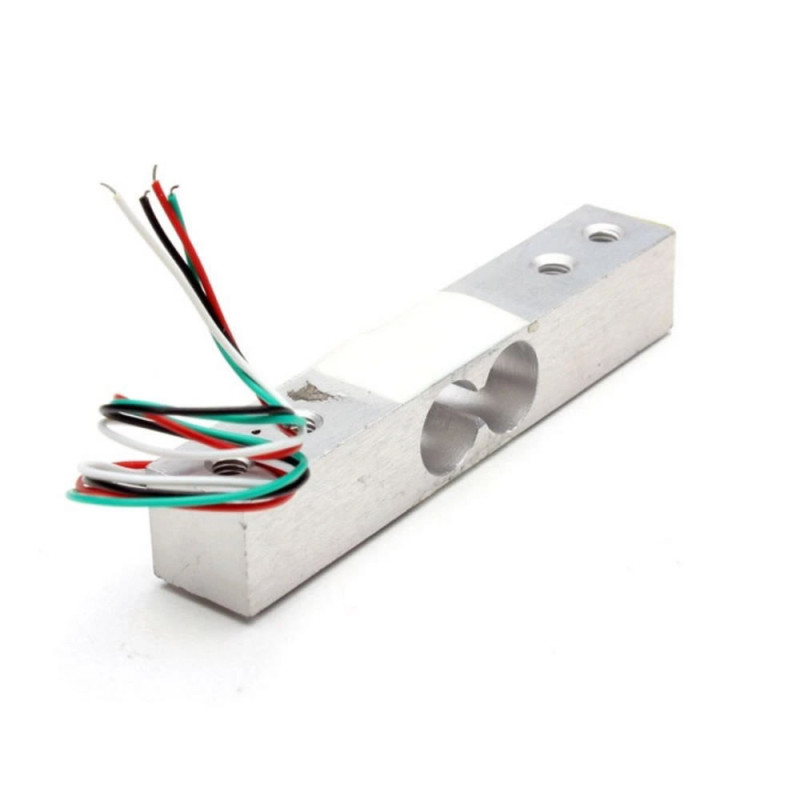

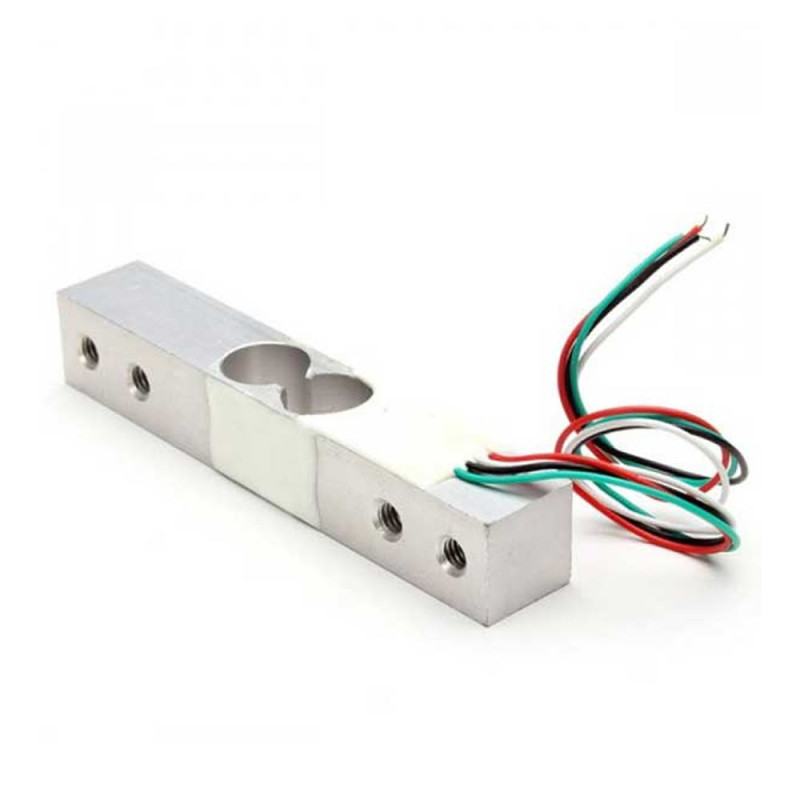

10 Kg  Weight Measurement Sensor

10kg Loadcell HX711 Scale Balance Arduino Raspberry Pi



      The Load Weight Sensor is used for measuring weights up to 1 Kilogram. If you want to increase the measurement weight you can increase the sensors in parallel. It has a half bridge structure. Measurement of 20 kg can be made with 2 sensors, and 40 kg with 4 sensors. It is manufactured from durable aluminum material.

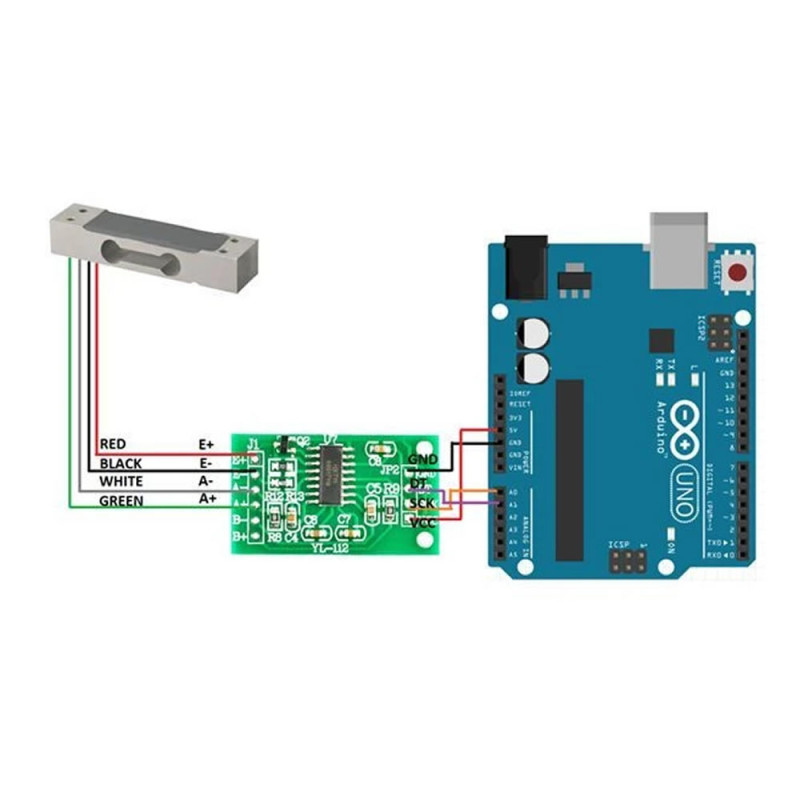

     There are 4 cables on the product. It provides analog output. It can be used with weight detection sensor modules such as HX711. An example arduino circuit connection is shown in picture number 8.



Features:

  •     Capacity: 10kg
  •     Comprehensive error (% F.S): 0.2
  •     Output sensitivity (mv / v): 1.1 ± 0.15
  •     Non-linearity (% F.S): 0.2
  •     Repeatability (% F.S): 0.1
  •     Hysteresis (% F.S): 0.2
  •     Creep (% F.S/3min): 0.1
  •     Zero Drift (% F.S/1min): 0.1
  •     Temperature. 0.2: zero (% F.S/10 ° C) Effect
  •     Temperature. Output Effect (% F.S/10 ° C): ≤ 0.15
  •     Zero Output (mv / V): ± 0.3
  •     Input Resistance (Ω): 1000 ± 50
  •     Output resistance (Ω): 1000 ± 50
  •     Insulation Resistance (M): ≤ 2000 (100VDC)
  •     Excitation voltage (V): 5 to 10
  •     Operating Temperature. Range (° C): -10 to +50
  •     Overload Capacity (% F.S): 150
  •     Wire connection method: red = Sig +, white = Exc -; blue = Exc +
  •     Dimensions (mm): 80mm x 13mm x 13mm
  •     Weight: 30gr



Package Contents:

  • 1 Piece 10 Kg  Weight Sensor
