DC 12V - 24V 30A Led Dimmer

DC 12V - 24V 30A Led Driver Dimmer

360W 720W Led Driver Voltage Adjustable Bulb Strip Light Brightness Control

Always test the product with a load connected to the output. The voltage change cannot be seen without a load.

     The 30A DC Led Dimmer is used to adjust the brightness of single colour 12V and 24V LED strips, LED lamps and bulbs between 0% and 100% with its rotary knob. Input is DC 12V - 24V and output current is up to 30A; up to 360W of LED load can be driven at 12V and up to 720W at 24V. As the knob is turned from OFF to ON, the light goes from fully off to full brightness; getting only the light you need saves wasted energy.

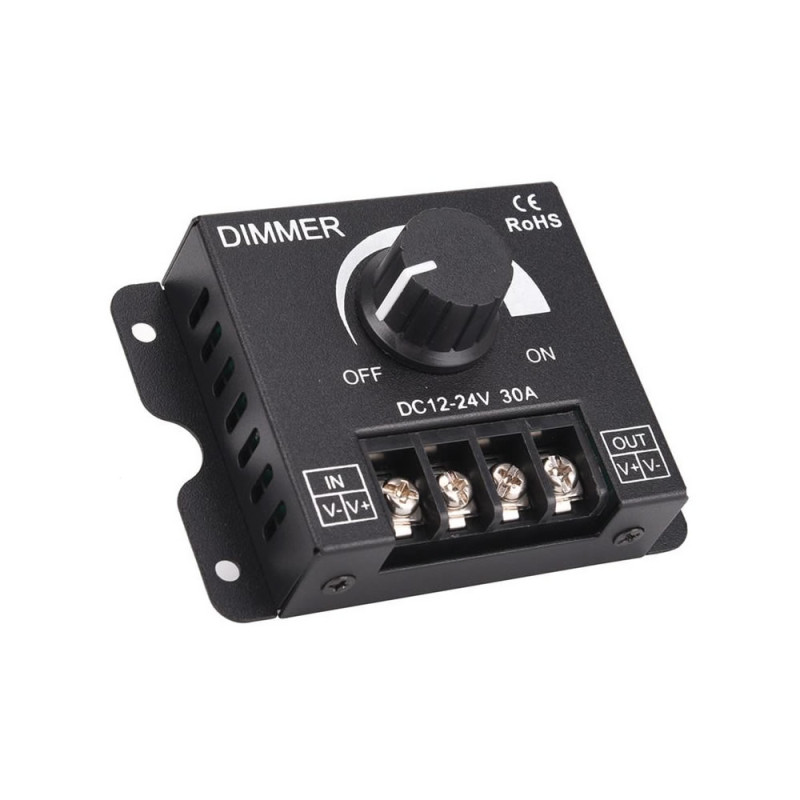

     Adjustment is done by PWM: the output switches the input voltage on and off rapidly and brightness changes with the on time ratio. Therefore the pulse voltage at the output is always equal to the input voltage; the dimmer cannot be used as a step down converter to run a 12V LED from a 24V supply. Input and output are connected through the 4 way screw terminal on the housing (IN V- V+, OUT V+ V-). With its metal bottom housing for cooling and 4 mounting ears it can be fixed to a wall, inside a cabinet or in a panel.

     It is generally suitable for simple resistive (LED type) loads. It is not suitable for use with motors; for motors you need a DC motor driver module. There are no protection circuits; it is a low cost but working Chinese made product suitable for certain applications.

Key features:

     High current: With 30A output current, 360W of LED load at 12V and 720W at 24V can be controlled by a single dimmer; suitable for long LED strip runs.

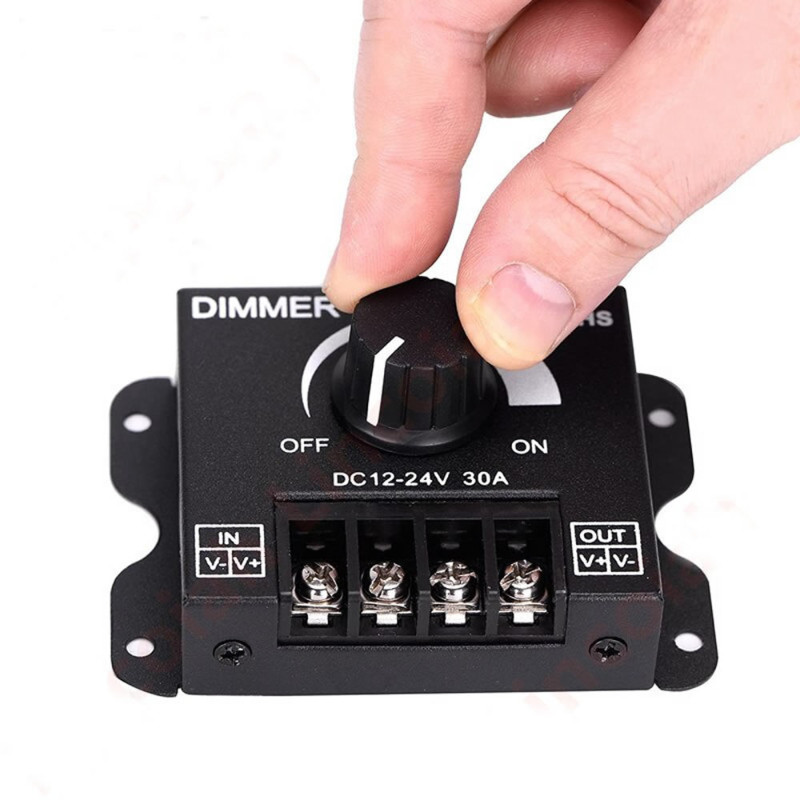

     Easy knob control: The rotary knob gives 0% - 100% brightness between OFF and ON; no remote control, programming or setup menu is needed.

     Works with 12V and 24V: Runs from a DC 12V - 24V input; the dimmer is powered from a supply with the same voltage as the LED.

     Screw terminal connection: Input and output terminals are marked IN V- V+ and OUT V+ V- on the housing; wires are connected with a screwdriver, no soldering.

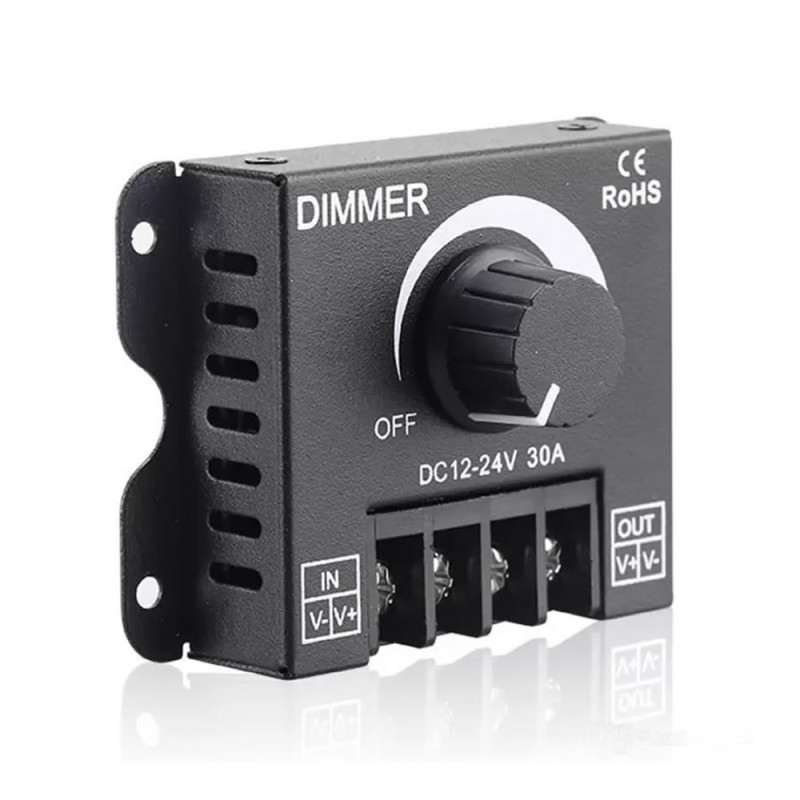

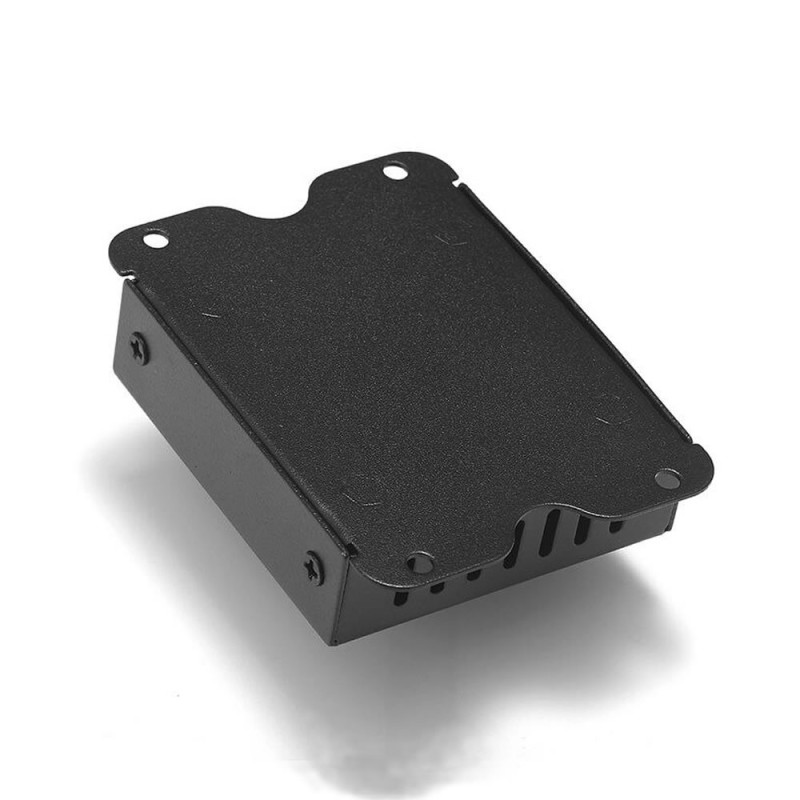

     Metal bottom housing: Heat from the power parts is transferred to the metal bottom housing; it is fixed to a solid surface with 4 mounting ears with 4mm holes.

Features:

• Product type: Knob controlled PWM dimmer (brightness controller) for single colour LED
• Model: 30A DC Led Dimmer
• Input voltage: DC 12V - 24V
• Output current: up to 30A
• Output power: up to 360W at 12V, up to 720W at 24V
• Output voltage: same as input voltage (PWM pulse)
• Dimming method: PWM
• Dimming range: 0% - 100% brightness
• Control: rotary knob (potentiometer), OFF - ON
• Standby consumption: approximately 1W at most
• Suitable load: resistive loads such as single colour LED strips, LED lamps and bulbs
• Unsuitable load: inductive loads such as motors, fans and pumps
• Connection: 4 way screw terminal (IN V- V+, OUT V+ V-)
• Protection circuit: none
• Voltage indicator: none
• Housing markings: CE, RoHS
• Operating temperature: -20°C - 60°C
• Mounting: 4 mounting ears with 4mm holes
• Material: Metal bottom housing for cooling
• Colour: Black

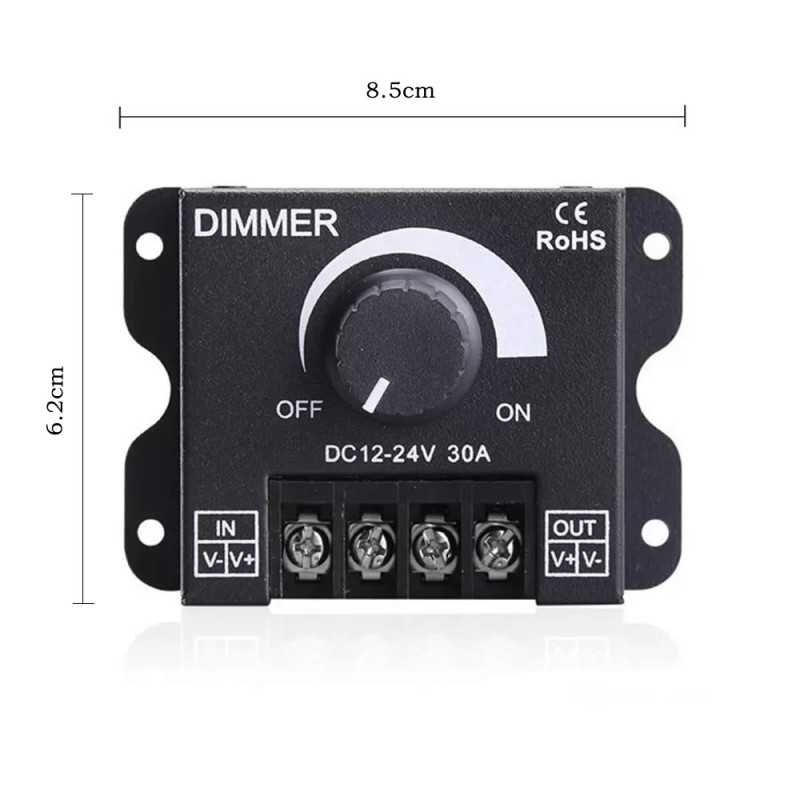

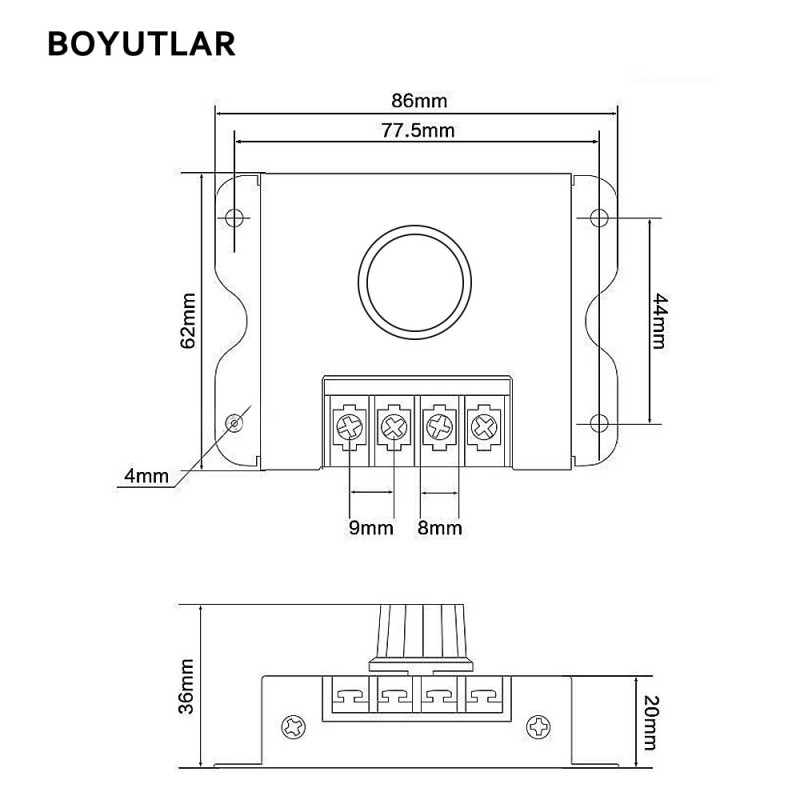

• Dimensions: 85mm x 62mm x 21mm (35mm including knob)
• Weight: 120gr

Usage information:

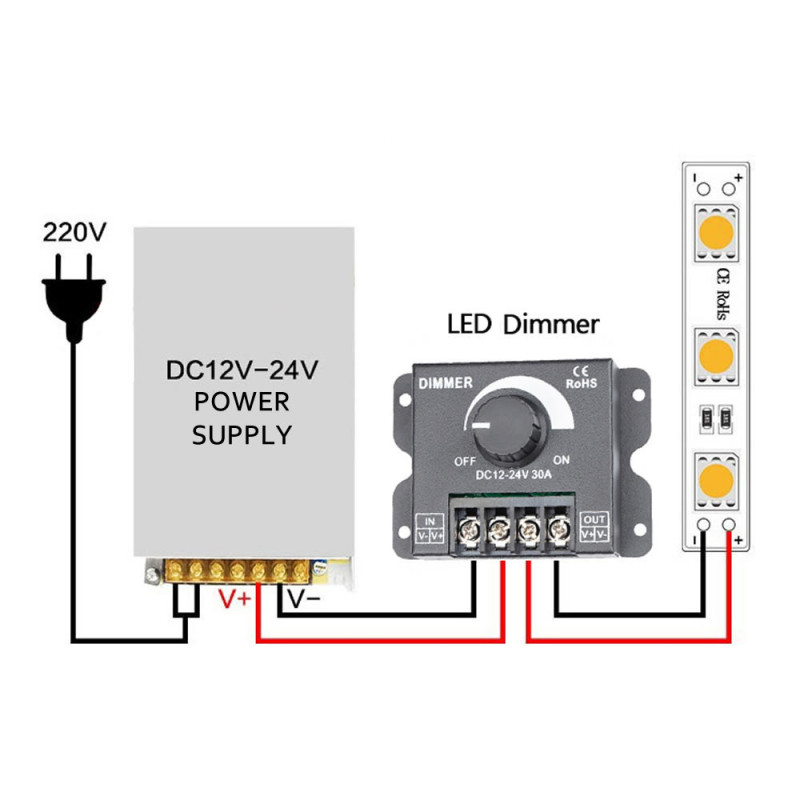

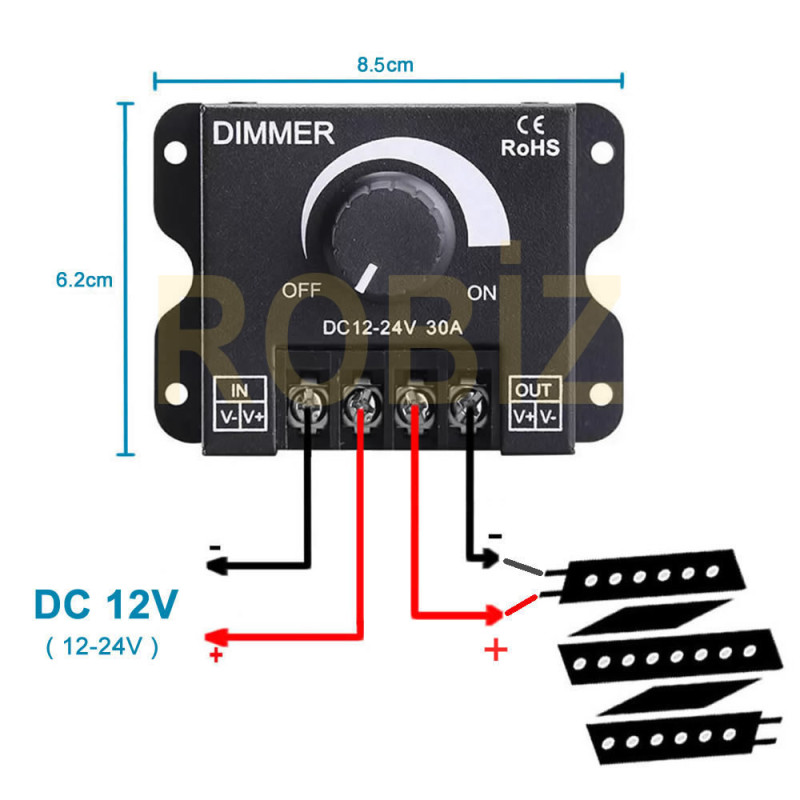

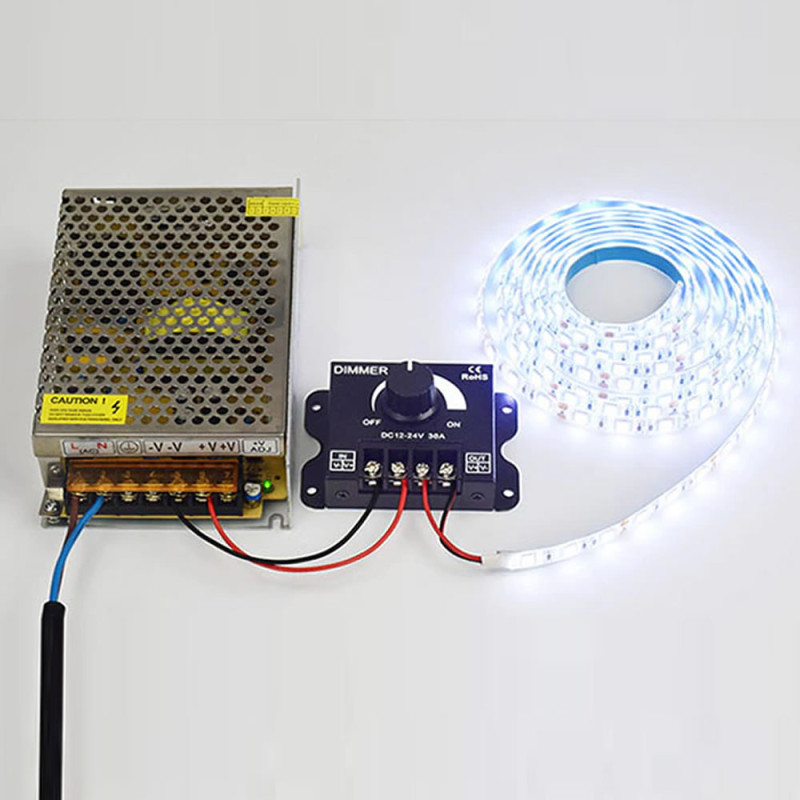

• Connect the power supply + to IN V+ and - to IN V-; connect the LED + to OUT V+ and - to OUT V-. Make the connections with the power off.
• Choose the power supply by the LED operating voltage: use a 12V supply for 12V LEDs and a 24V supply for 24V LEDs. The best solution is a power supply at the voltage the target circuit needs.
• The power supply and wire cross section must handle the total LED current; use short, thick wires at high currents.
• Always test the product with a load connected. Without a load, a voltmeter shows no voltage change at the output.

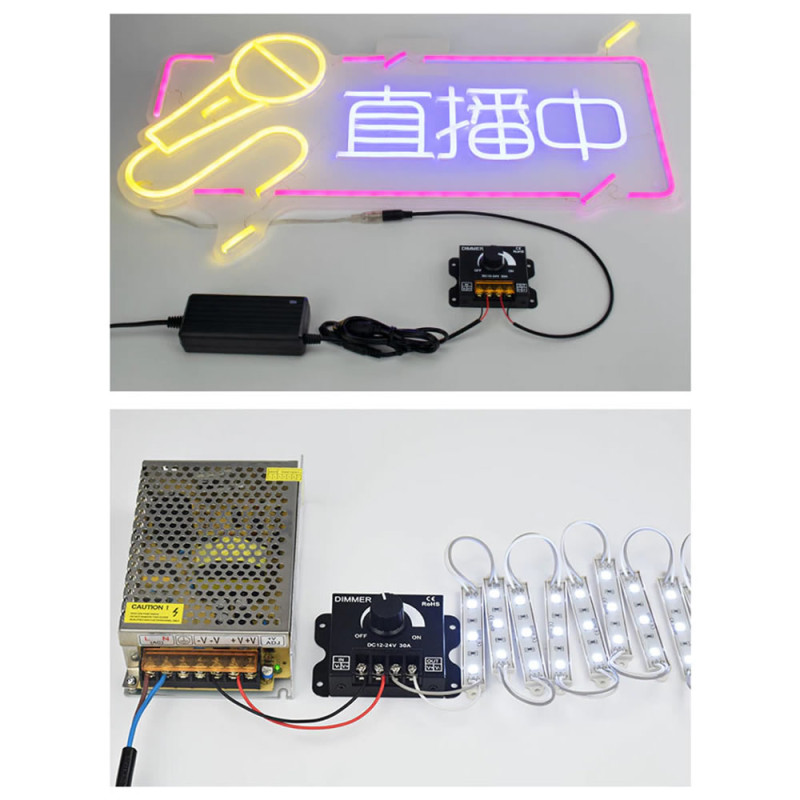

Applications:

•  LED strip brightness control
•  12V and 24V LED lamp and bulb lighting
•  Aquarium lighting
•  Caravan interior lighting
•  Boat and yacht lighting
•  Showcase and shelf lighting
•  Signboard lighting
•  Kitchen counter and under cabinet lighting
•  Garden and landscape lighting (12V / 24V)
•  Cove ceiling and decorative lighting

Things to consider:

•  It is not suitable for use with motors. If used with inductive or noisy loads, or in high power applications above its ratings, the product will fail.
•  There are no protection circuits. If the input voltage passes straight to the output, the product is considered failed; the mosfets are burnt. This is treated as incorrect use by the user.
•  The pulse voltage at the output equals the input voltage. Powering a 12V LED from 24V can make the LED overheat and burn out even with the knob turned down. Such incorrect use is the user's responsibility.
•  There is no voltage indicator; on a PWM output a voltmeter shows the average value, not the peak voltage reaching the LED.
•  30A and 720W are maximum values. For long use at high load, mount the housing in a ventilated place and stay below the ratings.

Package contents:

•  1 x 30A DC Led Dimmer
•  Note: Power supply, LED strip and connection cables are not included.
