- Stok Durumu: Stok Var
- Marka: OEM
- Model: 400KV Voltaj Üreteci
- SKU: RBZ.101.368

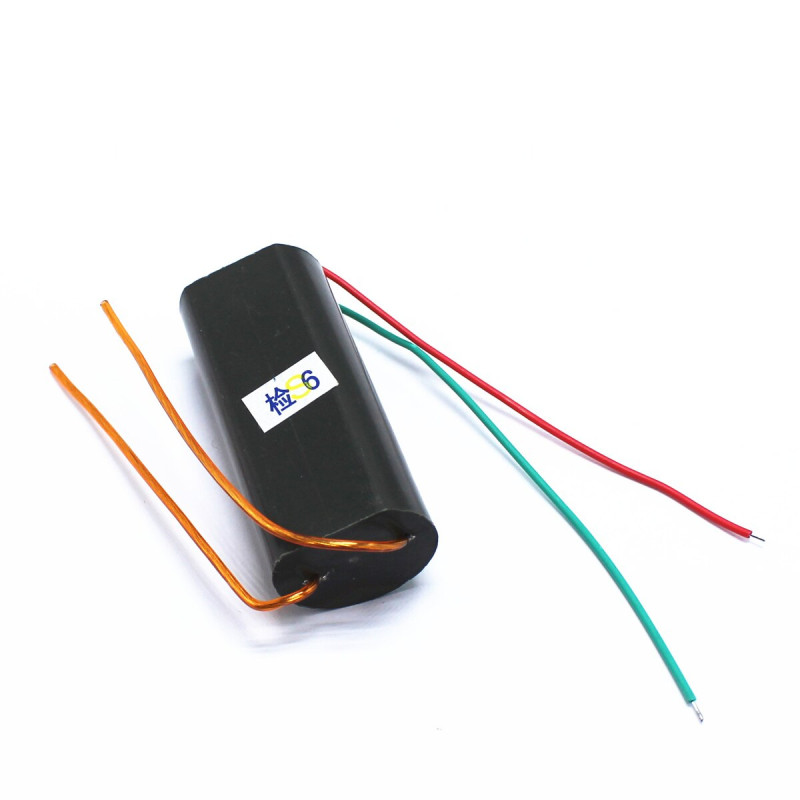

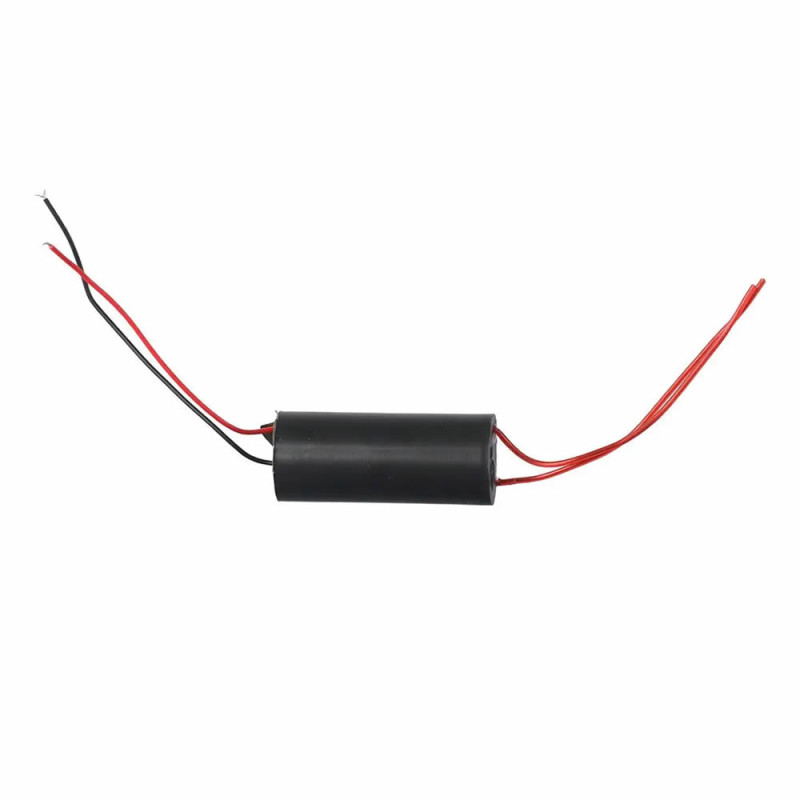

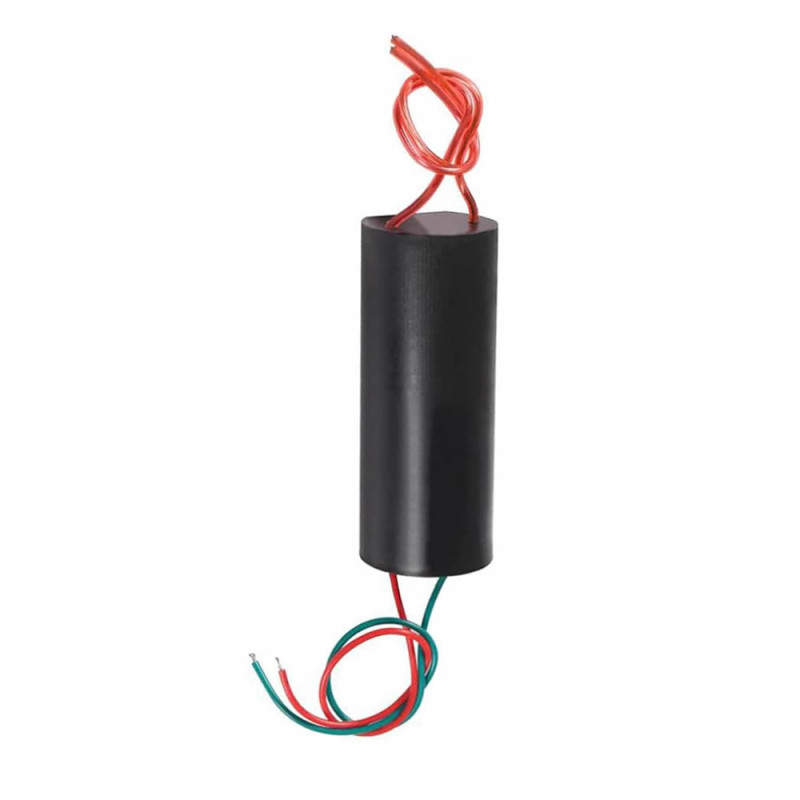

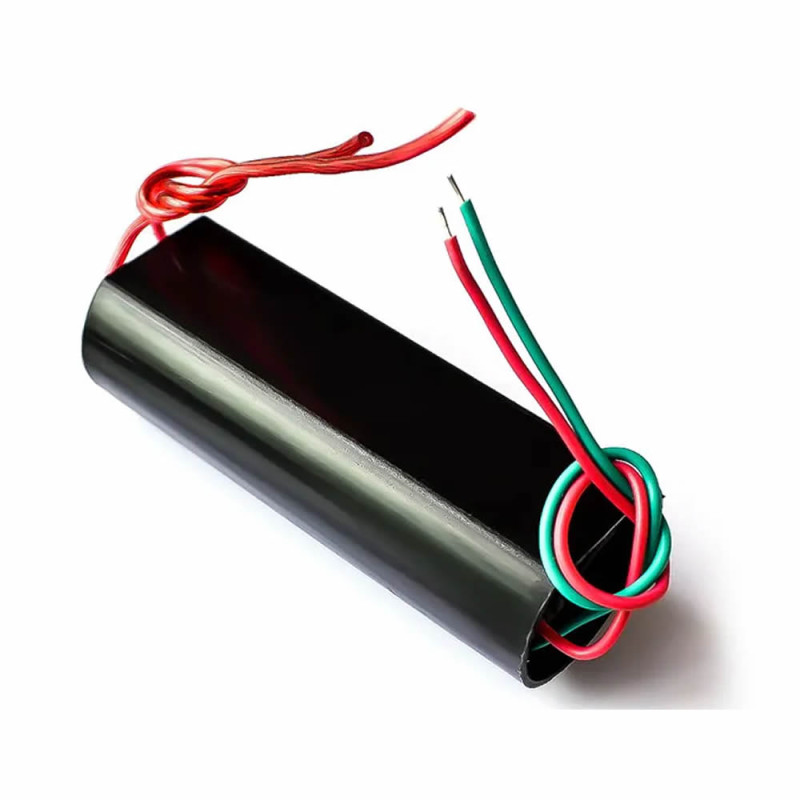

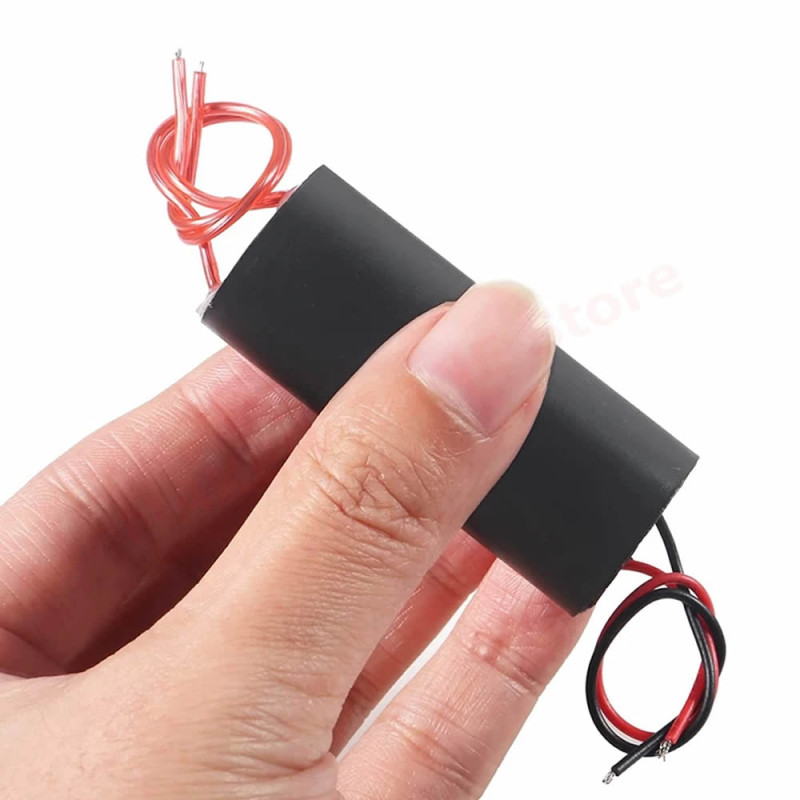

400kV High Voltage Generator Module
DC 3V/5V to 400kV Boost Transformer Converter Electromagnetic Arc Pulse Plasma Igniter Starter Step Up
It must be supplied with DC 3V / 5V. The product will be damaged at voltages above 5V.
We send the product after testing it. In case of a return, non-working products will not be accepted.

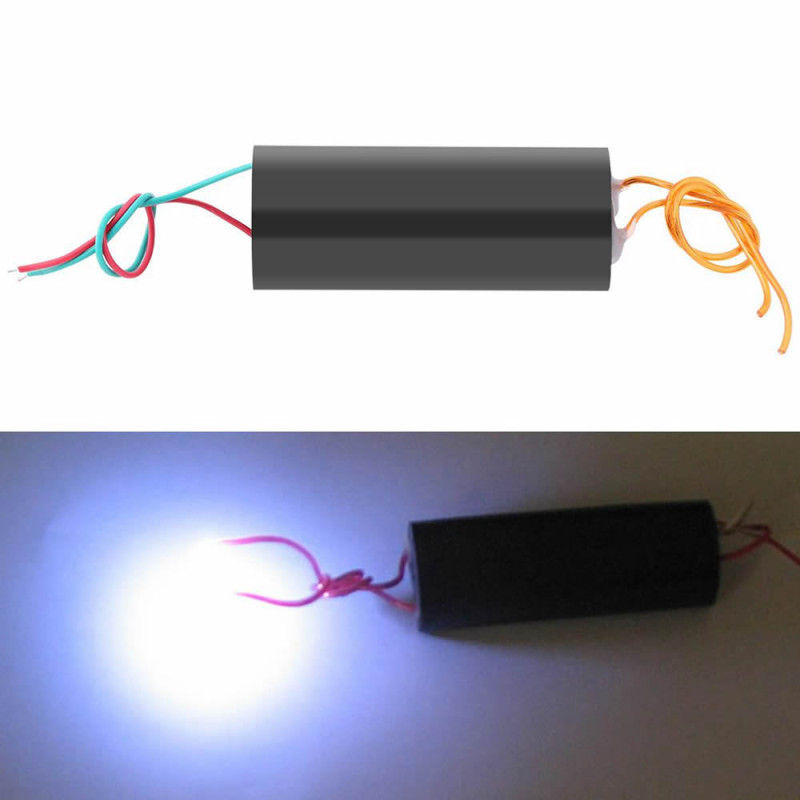

It is manufactured with Tesla coil principles. It boosts the input voltage between Dc 3V/5V to the 400kv level. The source current must have the capacity to provide 2A current. It creates an arc extending up to 0.5cm between the yellow output wires. Its use is simple. The supply input is made with the red and black cables. At the output, high voltage arcing occurs between the 2 purple cables.
Features:
- Input voltage: DC 3V / 5V
- Input current: 2A
- Output voltage: DC 400kV
- Output arc length: 15mm Maximum
- Usage time: Less than 1 minute
- Color: Black
- Temperature: -40C / +85C
- Cable length: 8cm

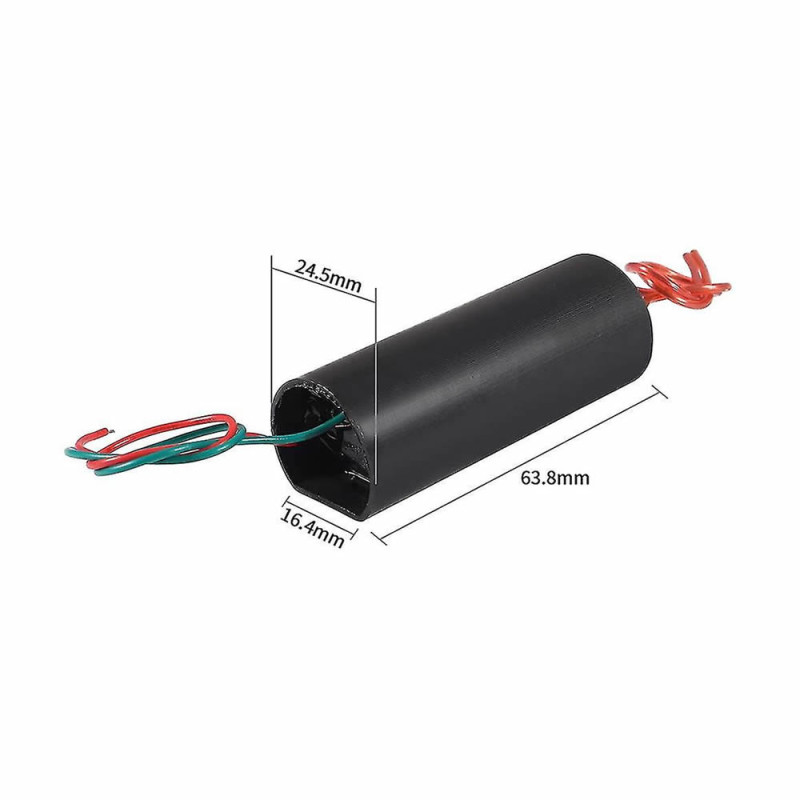

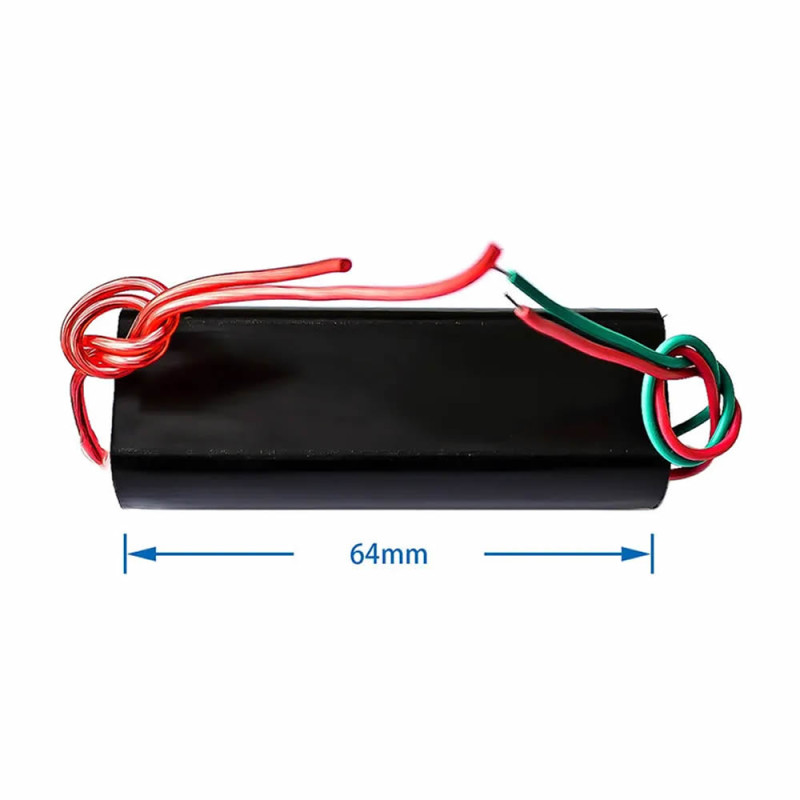

- Dimensions: 24mm x 64mm
- Weight: 40gr
Cable description:
- Red: Dc supply input positive
- Black: Dc supply input ground
- Purple: Output voltage cables
Package contents:
- 1 Piece 400KV Voltage Generator
