10kohm Potentiometer B10K 5 Pin
17.28TL
Ex Tax: 14.40TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 10kohm Pot B10K 5 Pin
- SKU: RBZ.100.879
5 Pin 10kohm Potentiometer B10K Switched Pot
Knurled 15mm Rotary Adjustable Resistor Volume Brightness Voltage Adjustment Amplifier Amp Car Tape Player Power Supply Test Measurement
10kohm rotary potentiometer. It has an on off switch. It has a 360 degree rotation angle. It is widely used in applications such as increasing and decreasing volume, voltage, brightness etc. and in areas such as various measurement test applications. You can use it with a suitable pot knob.
Features:
- Model: B10K 5 Pin
- 10kohm potentiometer
- 2 Pin switch
- Rotation angle: 320 Degrees
- Tolerance: +-%10
- Maximum voltage: DC / AC 50V
- Power: 0.05w
- Stop torque: 4kgfcm
- Switch life: 10000 on off cycles
- Switch voltage: DC 25V 1A
- Material: Metal / Plastic
- Knurled Shaft
- Color: Green / Gray
- Operating temperature: -20C / 85C
- Shaft diameter: 6mm

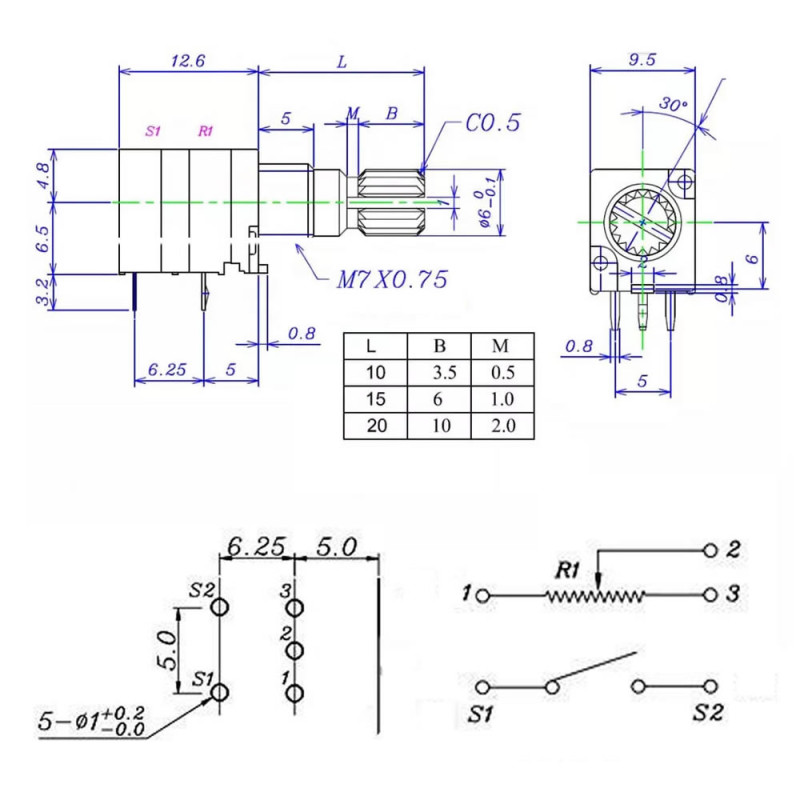

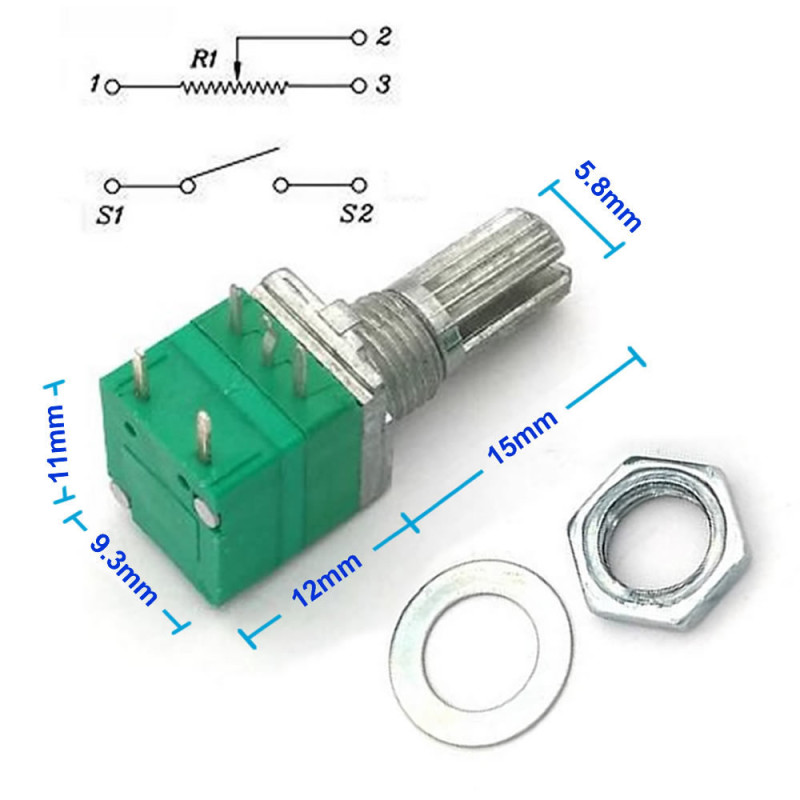

- Dimensions: 9,3mm x 11mm x ( 12mm + 15mm )
- Weight: 5,5gr
Package Contents:
- 1 Piece 10kohm Potentiometer B10K 5 Pin
.
