MAX7219 8 Digit Serial 7 Segment Display

MAX7219 8 Bit Digit Red 7 Segment Display

0.36 Inch Clock Serial Communication Digital Indicator Display Alarm 8 Digit Alphanumeric Numeral Time Queue Quantity Panel Meter Industrial Medical Device

If VCC GND is connected in reverse, the product may be damaged.

     It is a red 8 digit 7 segment display module that you can use for the numeric display function in your projects. The max7219 driver IC is used in the module. You can easily integrate it into your project together with Arduino and other mcu boards and use it as an output/display unit. You can control 8 pieces of 7 segment with 3 io pins. It is widely used in applications such as clock, time, queue and quantity.

     It can operate at DC 3.3V and 5V voltages. Numerals and some letters can be displayed. The numerals 0/9 and A, B, C, D, E, F and the dot can be shown. It is used with the supply and 3 control pins. It can be used via Arduino and mcu boards. The display capacity can be increased by connecting more than one display to each other. The texts are shown on the display without flicker.

Features:

• MAX7219 driver IC
• Operating voltage: DC 3.3V / 5V
• Operating current: 320mA
• Segment size: 0.36 inch
• Led color: Red
• More than 1 module can be connected to each other.
• Flicker free display
• Easy connection setup
• Operating temperature:  -10C  / 85C
• 2 Pieces 5 Pin male header connection socket 2.54mm
• 4 pieces mounting hole

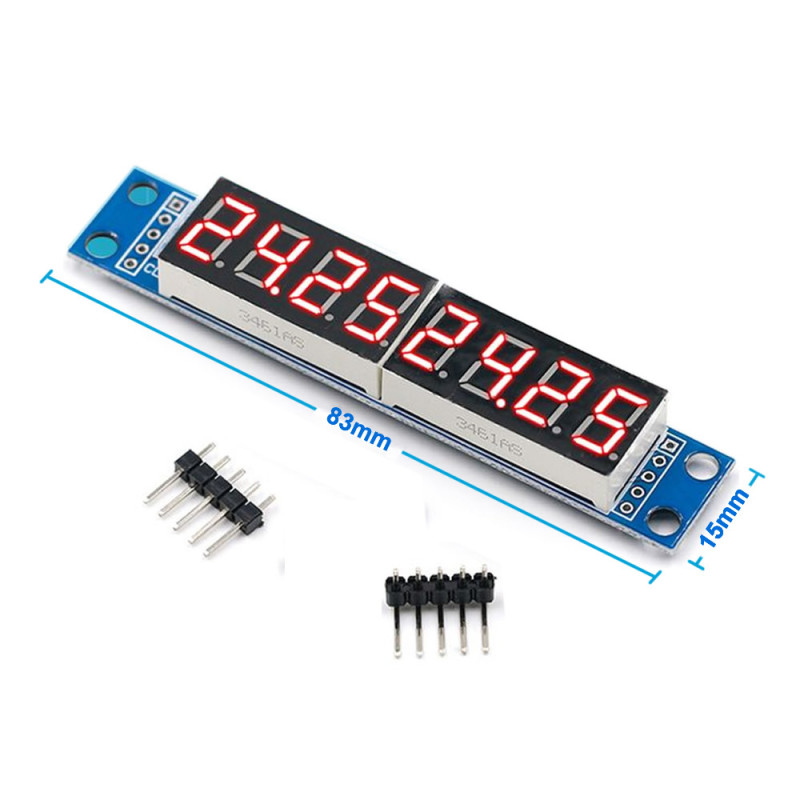

• Dimensions: 15mm x 83cm
• Weight: 13gr

Pin Connection:

• VCC: 5 V
• GND: GND
• DIN: Data pin
• CS: Select pin
• CLK: Clock pin

Note: If the supply pins are connected in reverse, the IC may be damaged.

Wiring Instructions:

• More than 1 module can be connected to each other.
• The left pins are the input pins. The right pins are the output pins for the next  module.

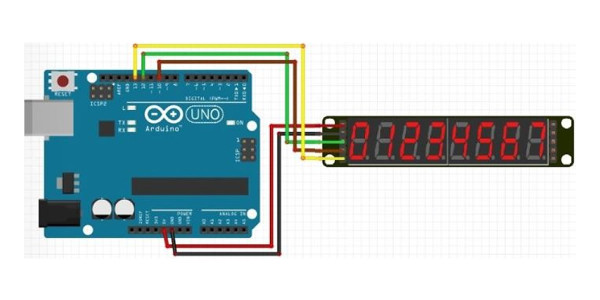

• The necessary connection must be made to the input pins via a board or arduino. The arduino connection is shown in picture number 8.

Package contents:

•    1 Piece MAX7219 8 Digit Serial 7 Segment Display
•    2 Pieces 5 pin male header socket

.
