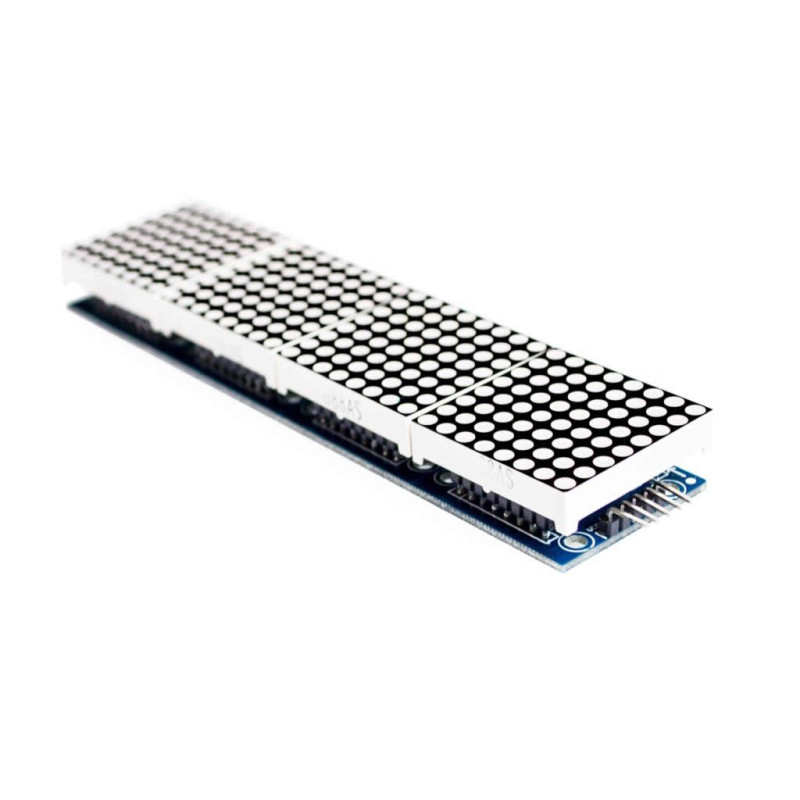

MAX7219 4-Unit Dot Matrix Module

MAX7219 4 Pieces 8x8 64 Dot Led Matrix Module

Dot Matrix 5V Common Cathode Led Display Clock Serial Communication Digital Indicator Display Alarm Digit Time Graphic Panel Queue System

If VCC GND are connected in reverse the product may be damaged.

     It is the driver module of 4 pieces of 8x8 red dot matrix (Dot led) displays with the MAX7219 integrated circuit. By controlling 4 Pieces 8x8 a total of 64 dots, you can use it as various indicator displays. You can create letters, digits or shapes. The max7219 is driven with an mcu. And the Max7219 transfers the related data to the display. It is used with the supply and 3 control pins.

     You can easily integrate it into your project together with Arduino and other mcu kits and use it as an output/indicator unit. It can be controlled with the supply and 3 io pins. It is widely used in applications such as clock, time, queue, quantity, shape and similar. By connecting more than one display to each other, the display capacity can be increased.

Features:

• MAX7219 driver integrated circuit
• 4 Pieces 8x8 common cathode red dot matrix

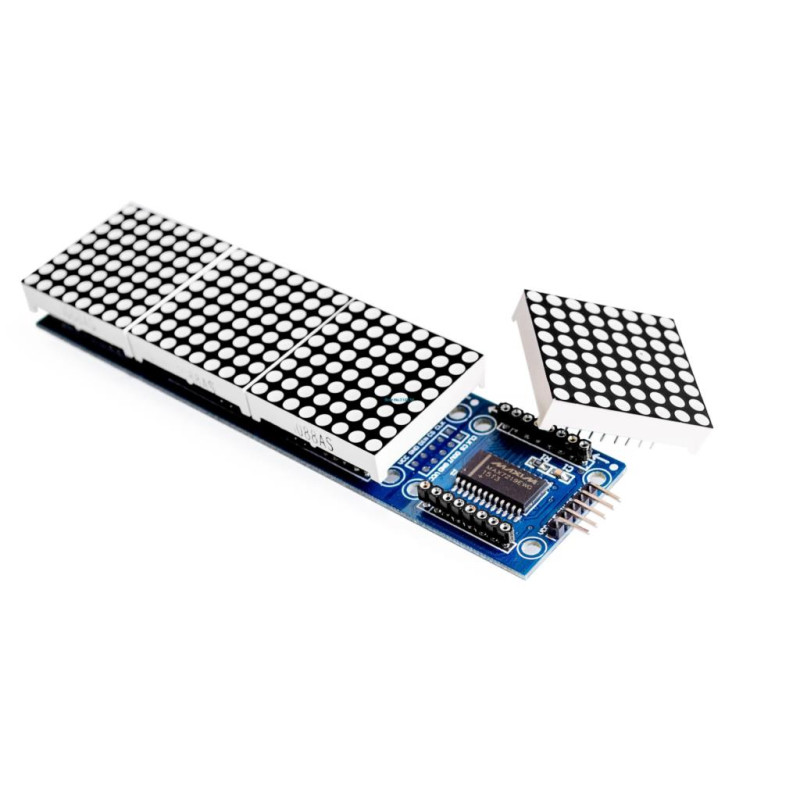

• Matrix Led modules can be removed from the board.
• Operating voltage: DC 3.3V / 5V
• 4 Pieces 8x8 common cathode red dot matrix
• Led Color: Red
• More than 1 module can be connected to each other.
• Easy connection setup
• Control can be provided with 5 pins.
• Flicker-free display presentation
• Operating temperature:  -10C  / 85C
• 2 Pieces 5 Pin male header connection socket 2.54mm
• 4 holes at the corners for mounting.

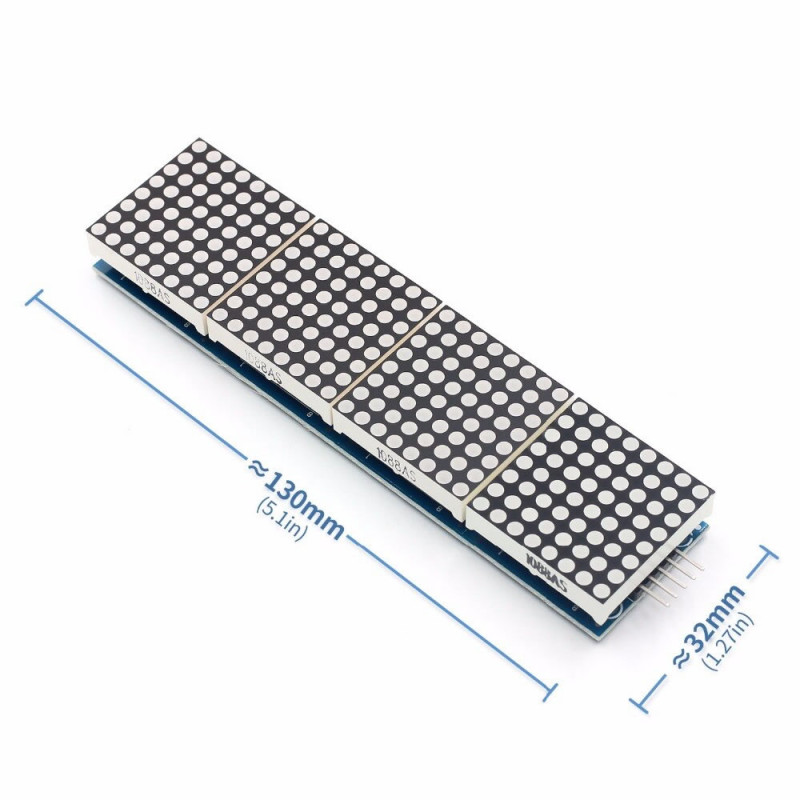

• Dimensions : 32mm x 130mm
• Weight: 50gr

Pin Connections:

• VCC:  5V
• GND: GND
• DIN: Data end
• CS: Selection pin
• CLK: Clock pin

Wiring Instructions:

• More than 1 module can be connected to each other.

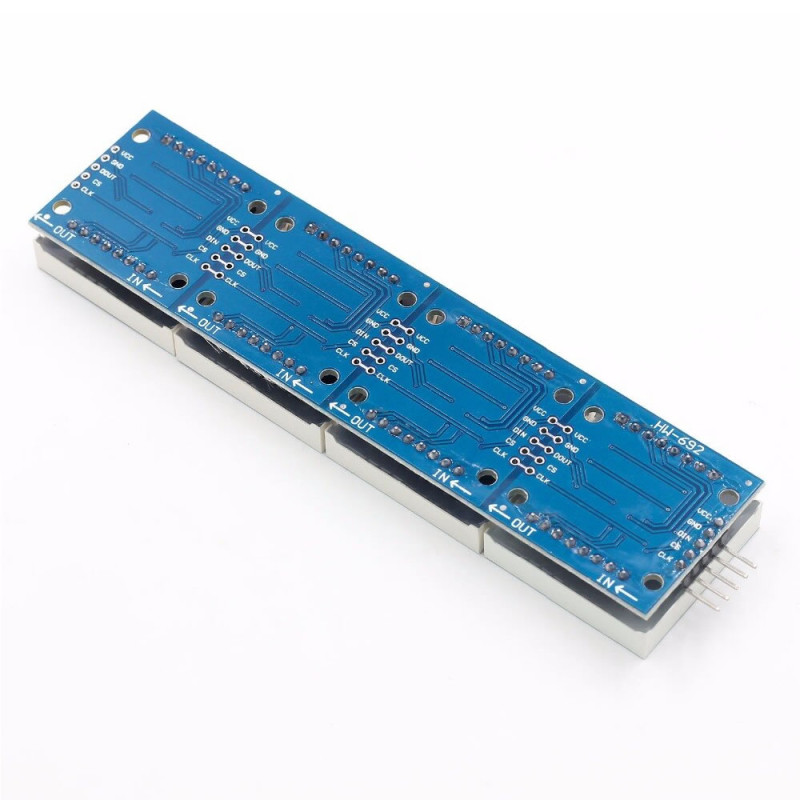

• The left pins are the input pins. The right pins are the output pins for the next  module.
• The necessary connection must be made to the input pins through a kit or arduino. The arduino connection is shown in image number 8.

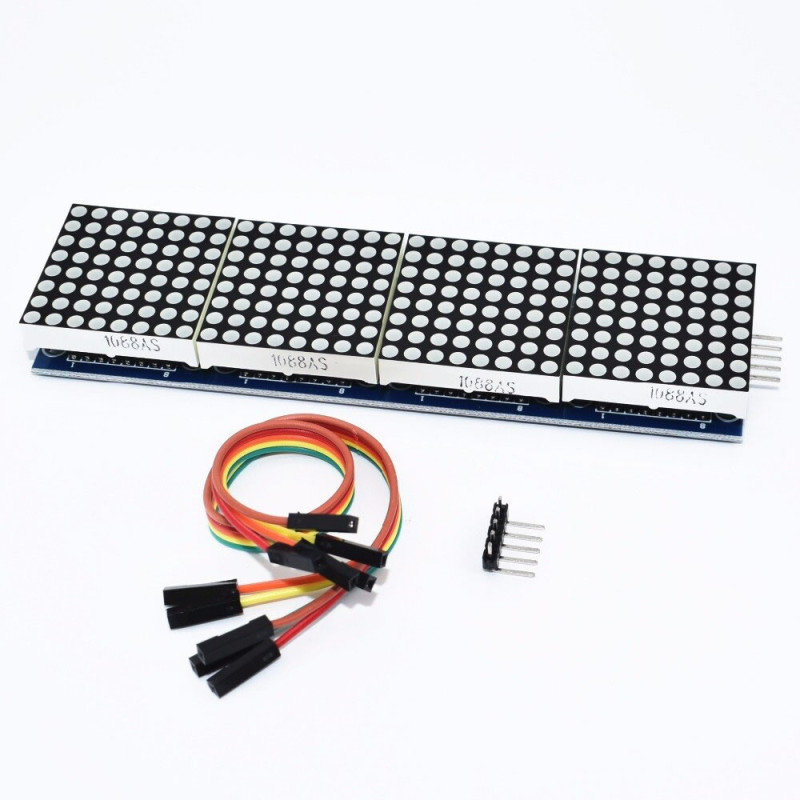

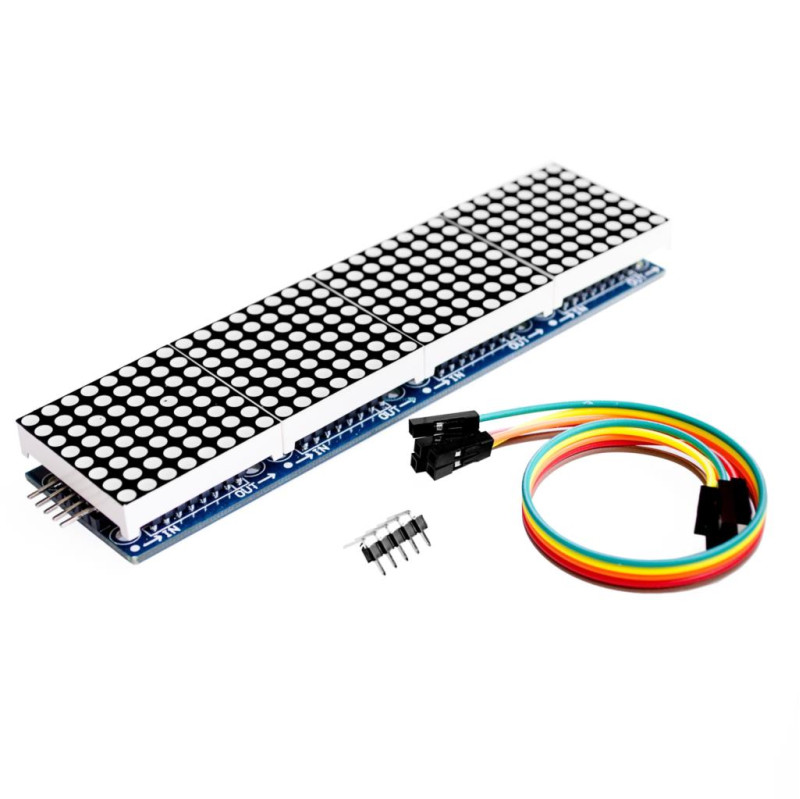

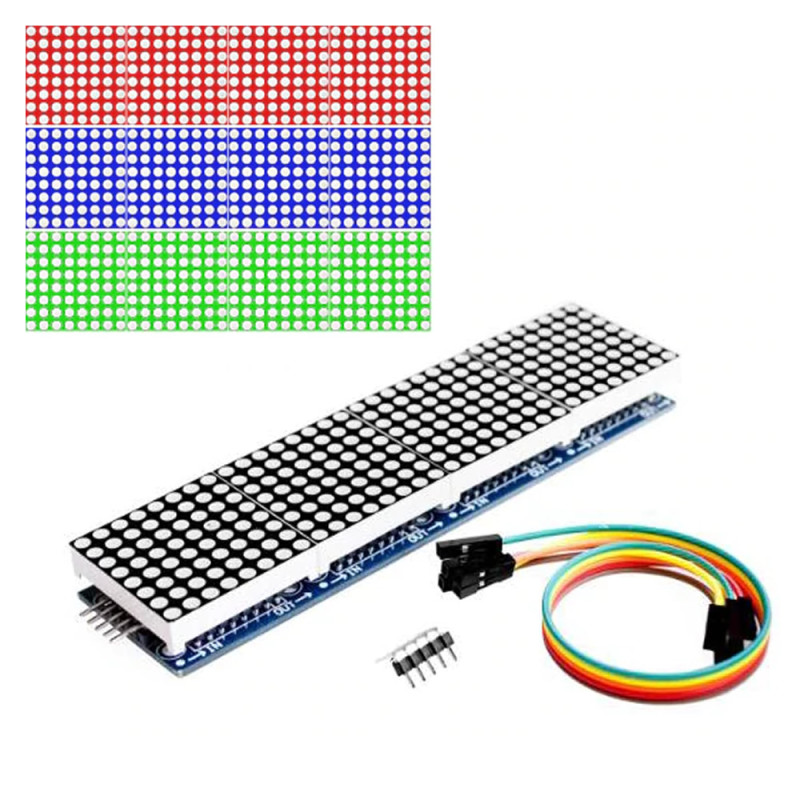

Package Contents:

•    1 Piece MAX7219 4-unit dot matrix module
•    1 Piece Female Female 5 pin dupont cable
•    1 Piece 4 pin male header socket

.
