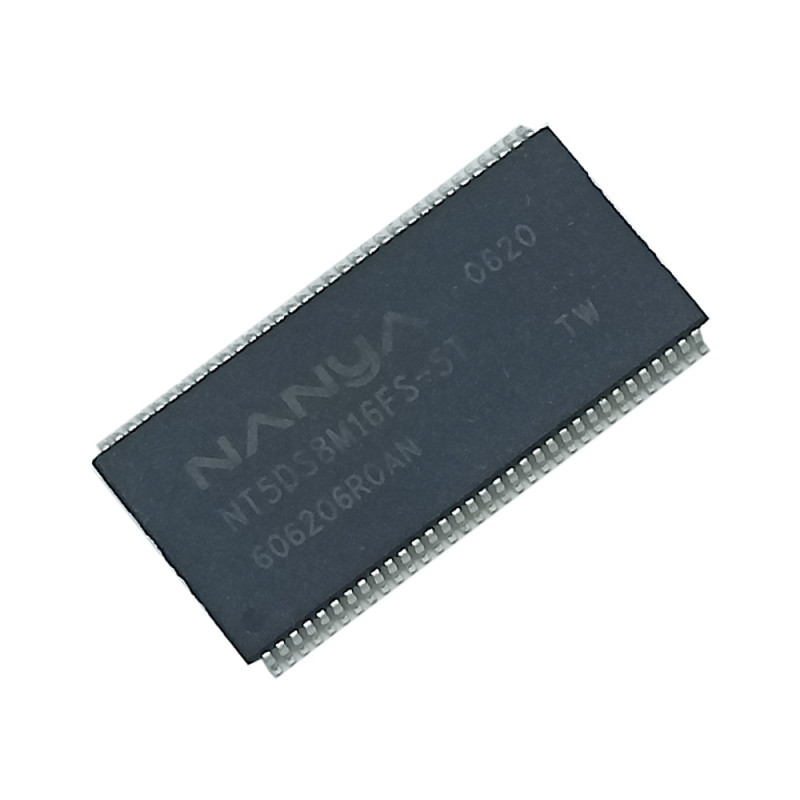

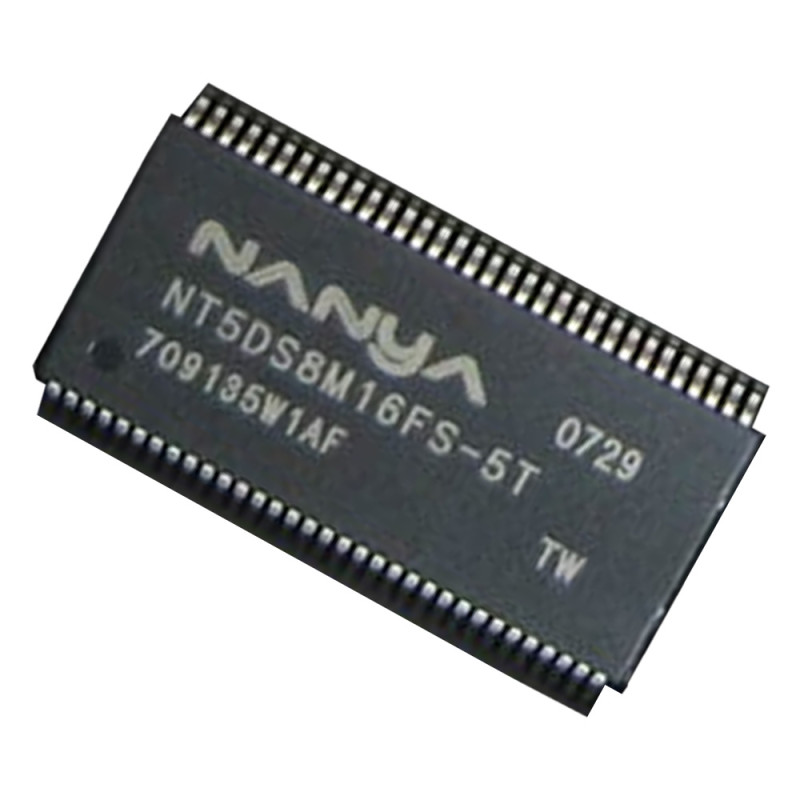

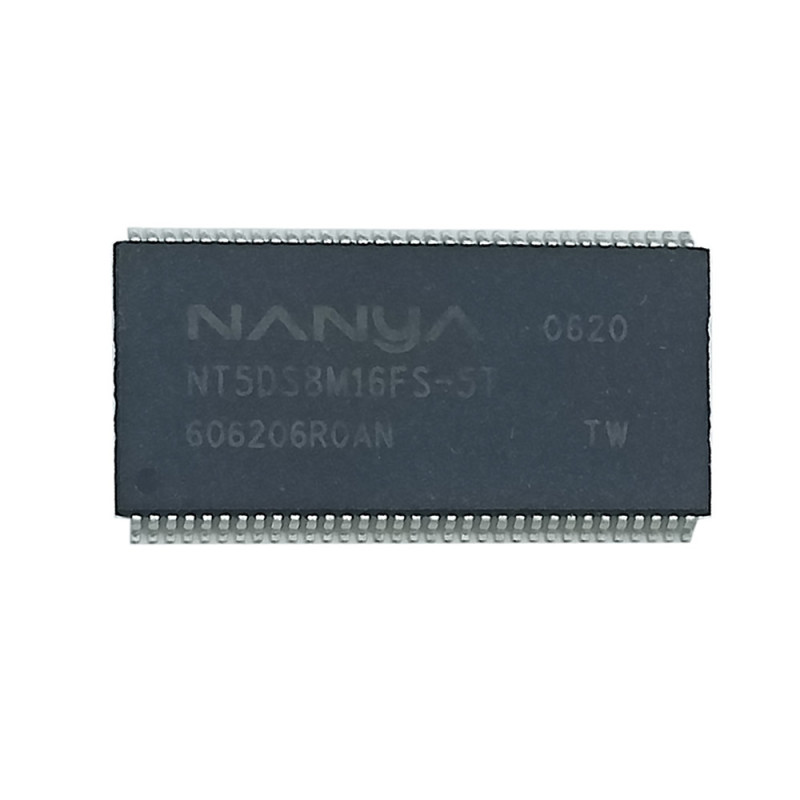

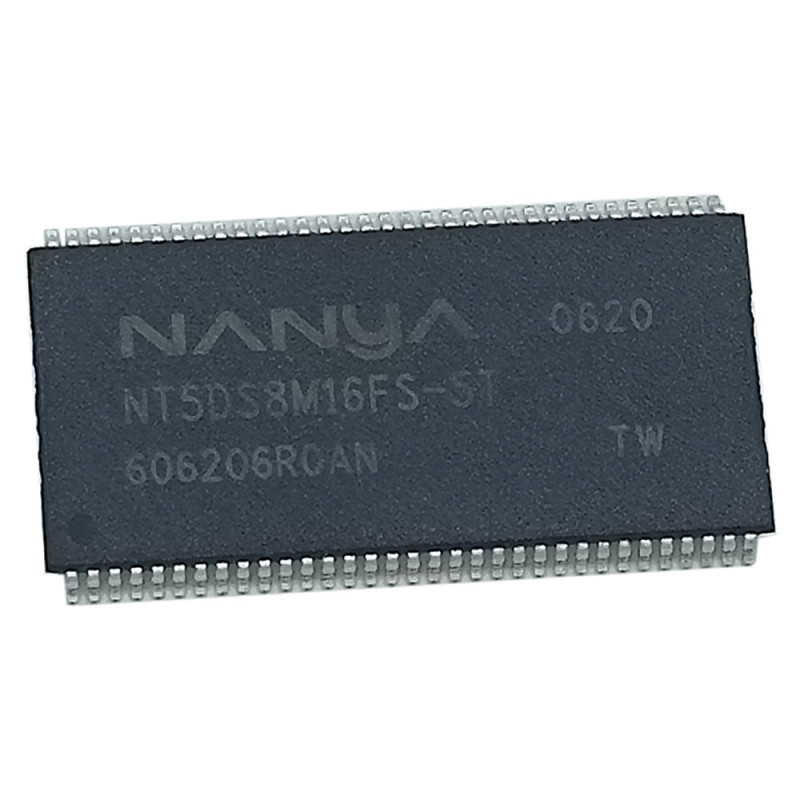

NT5DS8M16FS-5T 128Mb DDR SDRAM

Nanya NT5DS8M16FS-5T 128Mb DDR SDRAM

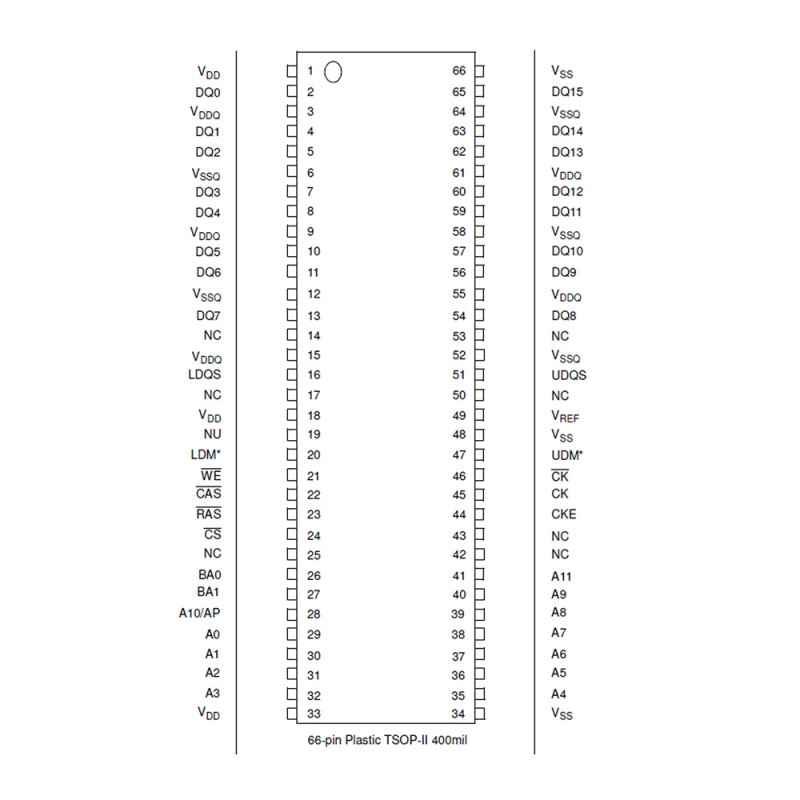

2.5V 66 Pin TSOP 8M x 16 Clock 200MHz CMOS Dynamic Random Access Memory

Datasheet:  expkits.com/pub/NANTS00441-1.pdf

Features

•  Double data rate architecture: two data transfers per clock cycle
•  Bidirectional data strobe (DQS) is transmitted and received with data, to be used in capturing data at the receiver
•  DQS is edge-aligned with data for reads and is centeraligned with data for writes
•  Differential clock inputs (CK and CK)
•  Four internal banks for concurrent operation
•  Data mask (DM) for write data
•  DLL aligns DQ and DQS transitions with CK transitions.
•  Commands entered on each positive CK edge; data and data mask referenced to both edges of DQS
•  Burst lengths: 2, 4, or 8
•  CAS Latency: 2, 2.5
•  Auto Precharge option for each burst access
•  Auto Refresh and Self Refresh Modes
•  7.8ms Maximum Average Periodic Refresh Interval
•  2.5V (SSTL_2 compatible) I/O
•  VDDQ = 2.5V ± 0.2V
•  VDD = 2.5V ± 0.2V

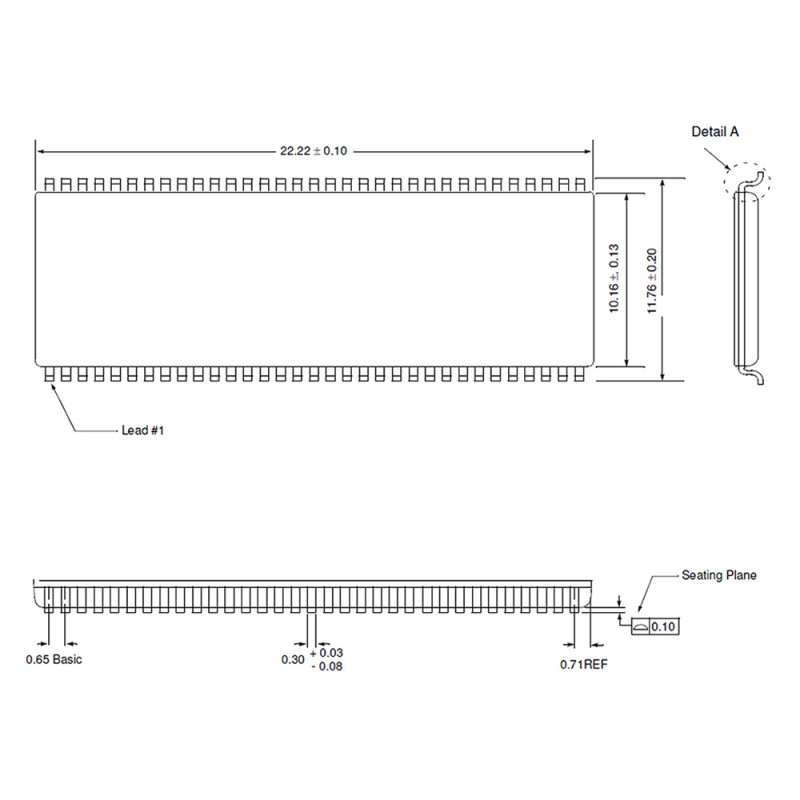

•  Package : 66pin TSOP-II / 60 balls 0.8mmx1.0mm pitch CSP.

Description

     The 128Mb DDR SDRAM is a high-speed CMOS, dynamic random-access memory containing 134,217,728 bits. It is internally configured as a quad-bank DRAM and is based on Nanya’s 110nm process.

     The 128Mb DDR SDRAM uses a double-data-rate architecture to achieve high-speed operation. The double data rate architecture is essentially a 2n prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins. A single read or write access for the 128Mb DDR SDRAM effectively consists of a single 2n-bit wide, one clock cycle data transfer at the internal DRAM core and two corresponding n-bit wide, one-half-clock-cycle data transfers at the I/O pins.

     A bidirectional data strobe (DQS) is transmitted externally, along with data, for use in data capture at the receiver. DQS is a strobe transmitted by the DDR SDRAM during Reads and by the memory controller during Writes. DQS is edgealigned with data for Reads and center-aligned with data for Writes.

     The 128Mb DDR SDRAM operates from a differential clock (CK and CK; the crossing of CK going high and CK going LOW is referred to as the positive edge of CK). Commands (address and control signals) are registered at every positive edge of CK. Input data is registered on both edges of DQS, and output data is referenced to both edges of DQS, as well as to both edges of CK.

     Read and write accesses to the DDR SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of an Active command, which is then followed by a Read or Write command. The address bits registered coincident with the Active command are used to select the bank and row to be accessed. The address bits registered coincident with the Read or Write command are used to select the bank and the starting column location for the burst access.

     The DDR SDRAM provides for programmable Read or Write urst lengths of 2, 4, or 8 locations. An Auto Precharge function may be enabled to provide a self-timed row precharge that is initiated at the end of the burst access.

     As with standard SDRAMs, the pipelined, multibank architecture of DDR SDRAMs allows for concurrent operation, thereby providing high effective bandwidth by hiding row precharge and activation time.

     An auto refresh mode is provided along with a power-saving Power Down mode.

     The functionality described and the timing specifications included in this data sheet are for the DLL Enabled mode of operation.

Package Contents:

• 1 Piece NT5DS8M16FS-5T 128Mb DDR SDRAM
