15cm Pcb Ruler

15cm Pcb Ruler

Smd Component Reference Tool

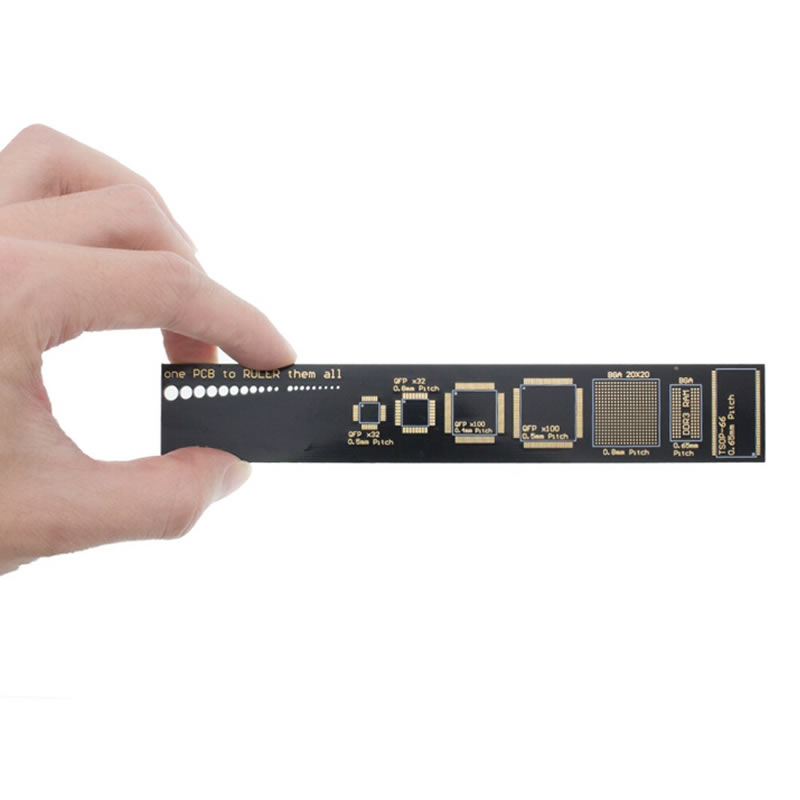

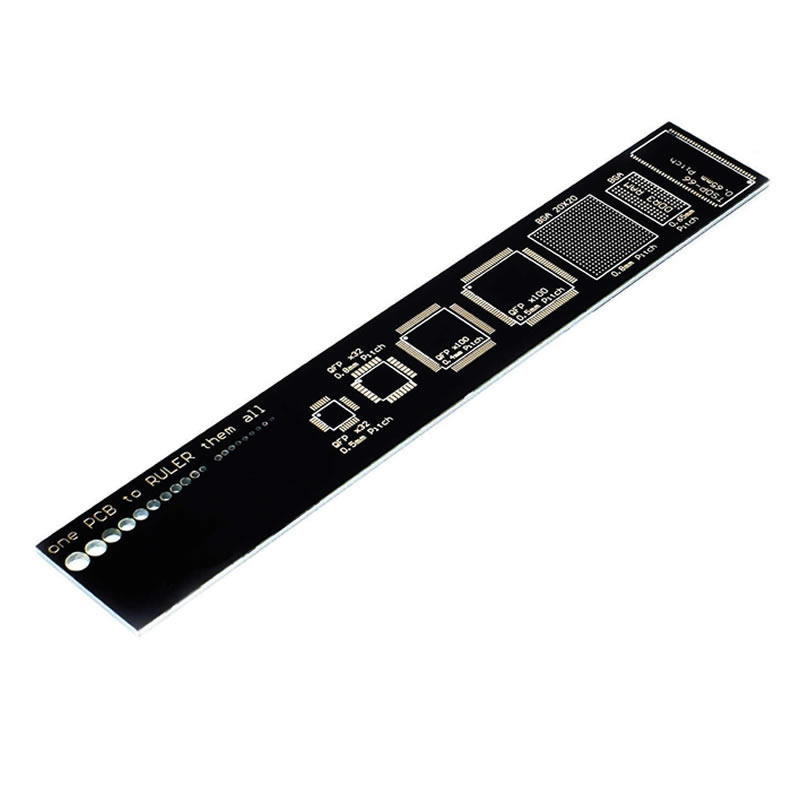

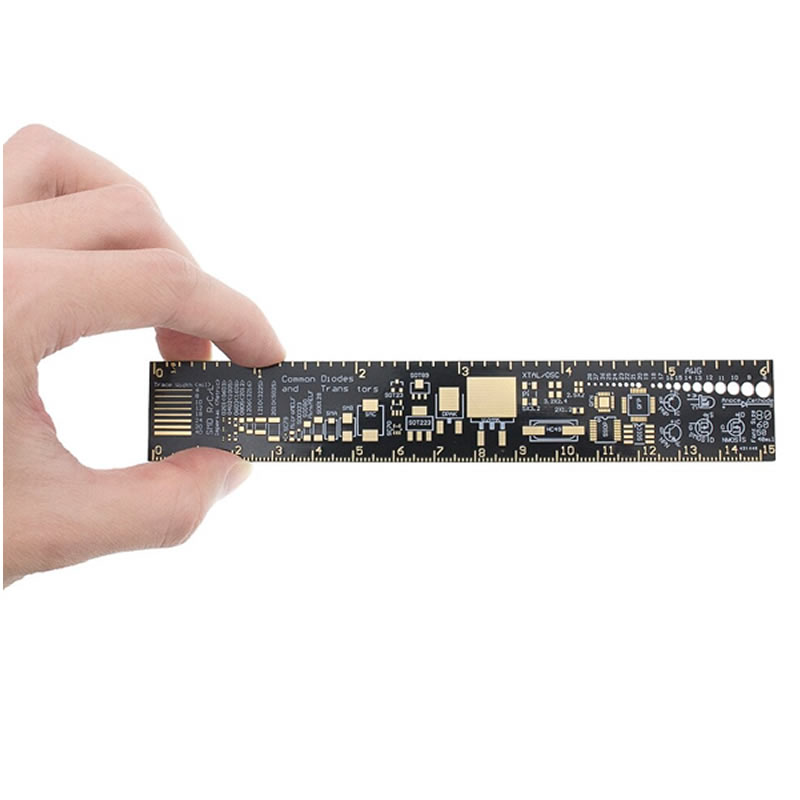

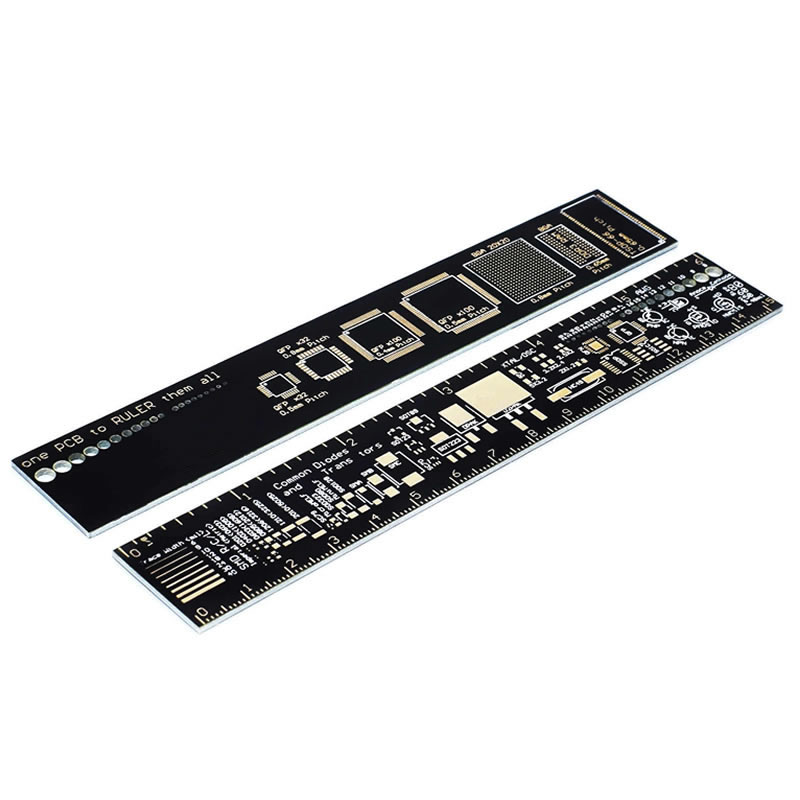

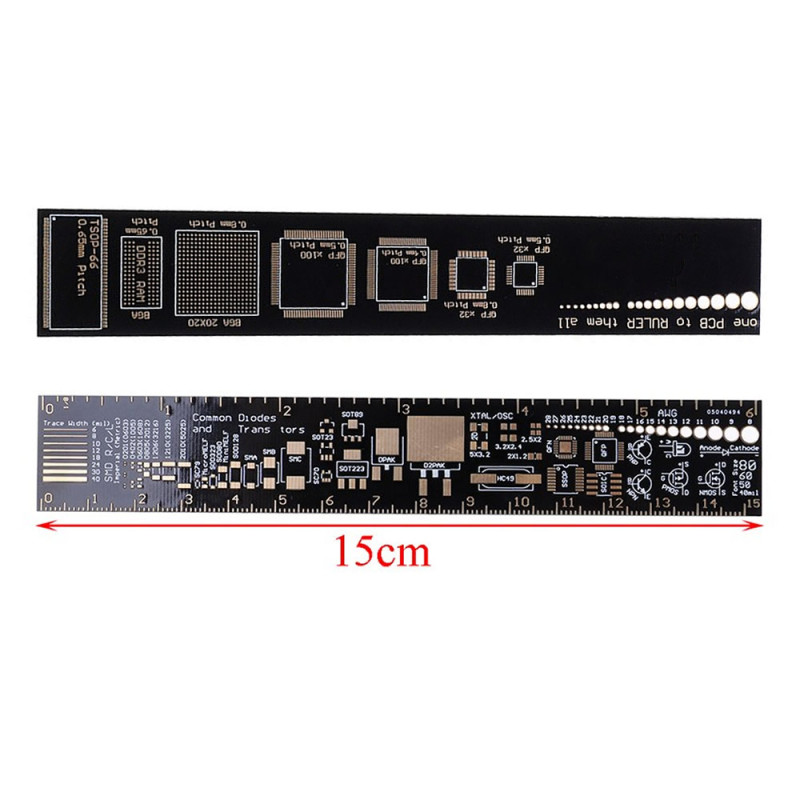

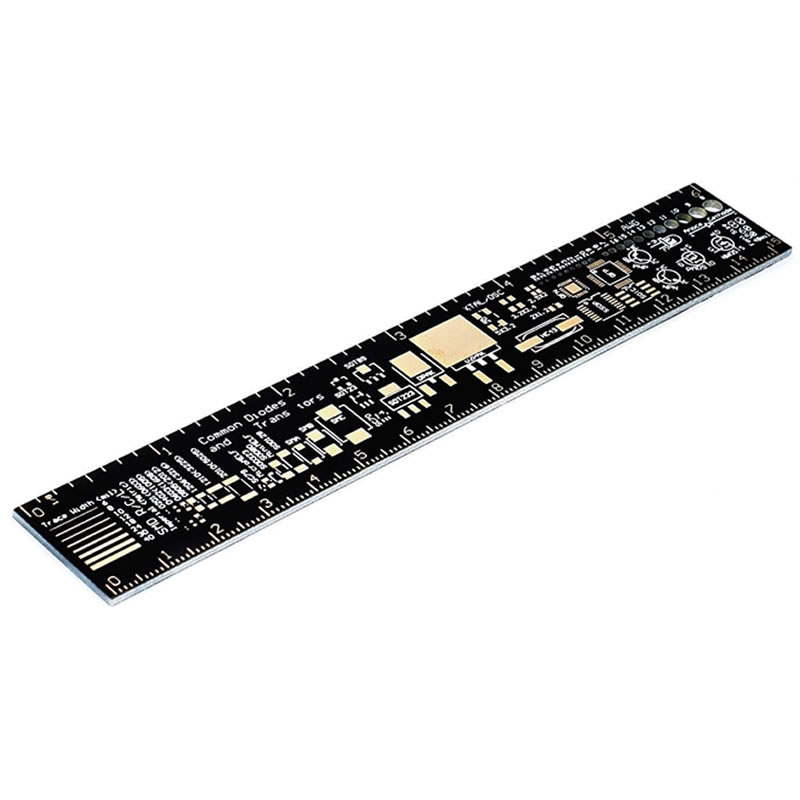

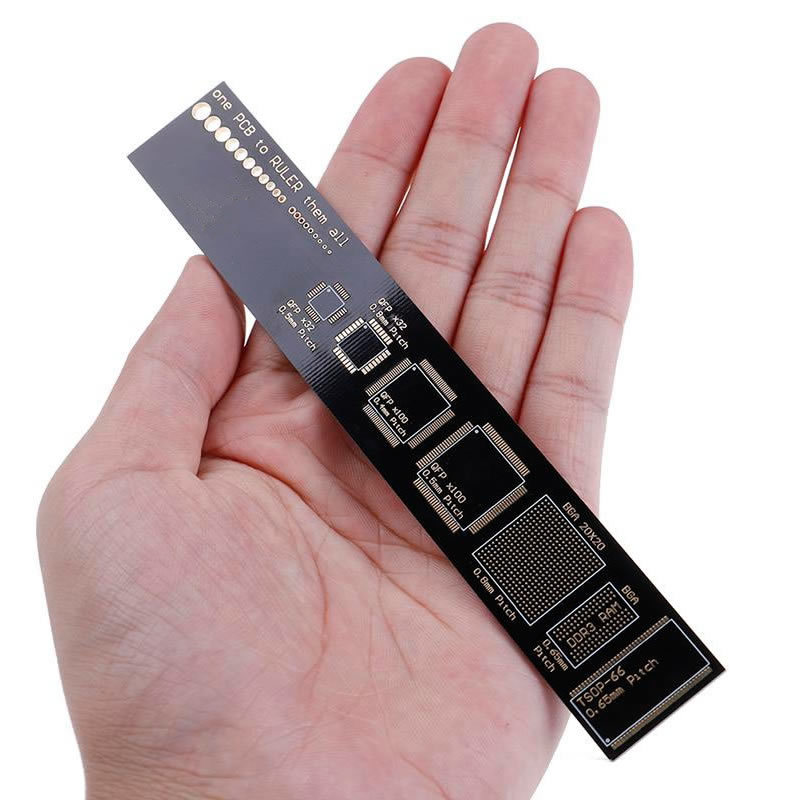

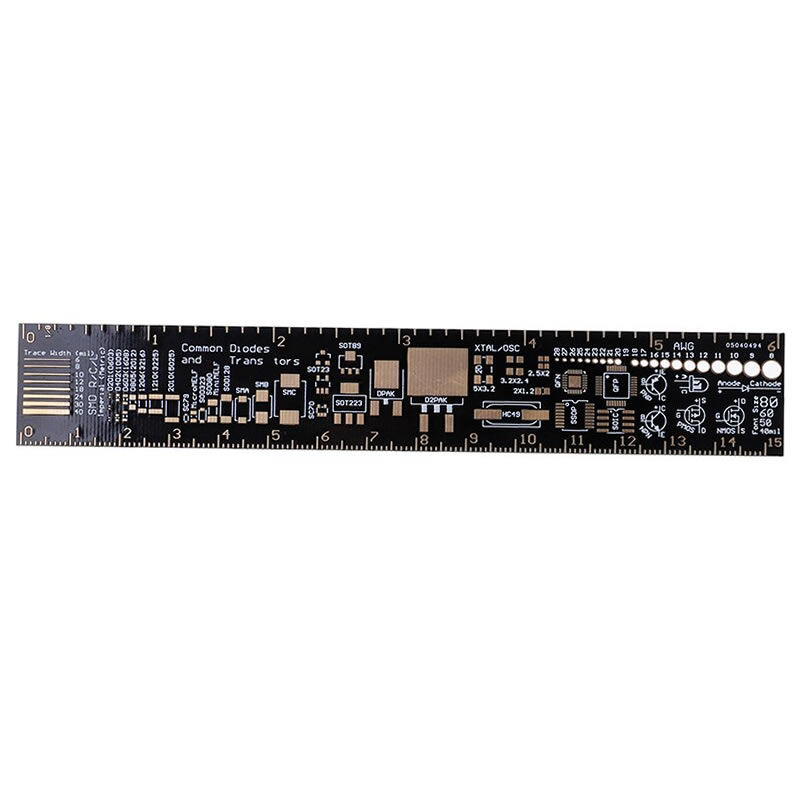

     The 15cm Pcb ruler has been developed for use in various length measurement tasks. One edge is marked as 15cm long according to the metric system. The other long edge is marked as 6 inch according to the inch length unit.

     At the same time, the actual sized versions of many electronic components are present on the ruler. It allows you to examine the actual dimensions of many electronic smd components. It makes it easier for you to decide which package type to use when ordering components or designing a pcb

     In addition, there is a font size guide, a trace width diagram and a series of AWG sized drill holes, so you can measure your wire thicknesses.

Features:

•     15cm long pcb type ruler
•     The inch side is 6 inch long.
•     Centimeter side: marked at 0.1cm intervals.

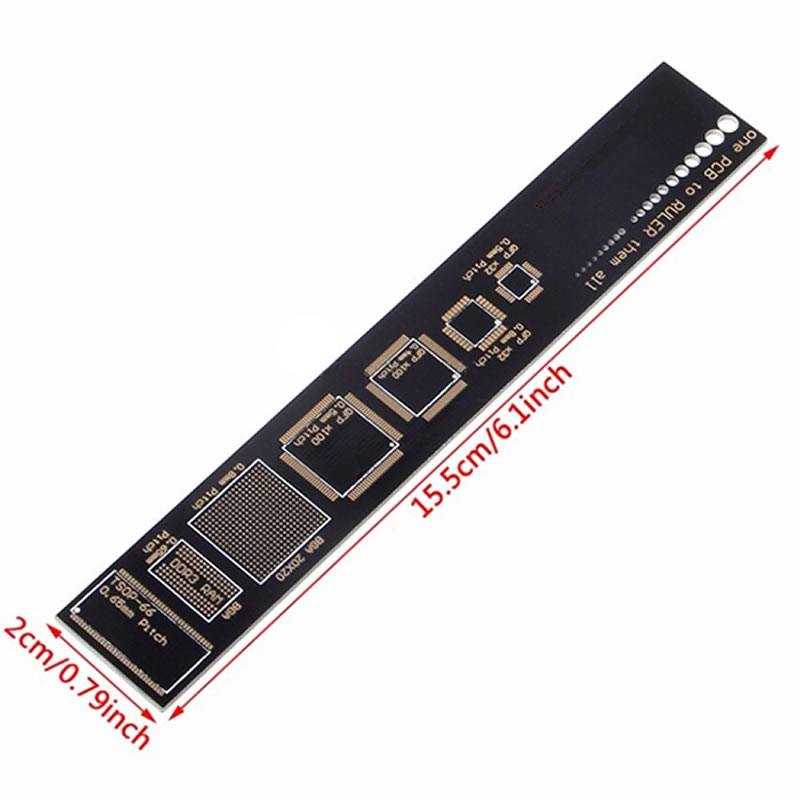

•     Dimensions: 25,6 mm x 153,98 mm x 1,64 mm
•     Weight: 12.07gr

List of reference smd components on the pcb:

• Pcb trace widths
• Smd components from 0201 to 5025
• Various smd diodes
• Various transistors
• Smd crystals
• Smd soic and tqfp smd integrated circuits
• Round holes in the awg system in various diameters.
• Various commonly used smd integrated circuits

Package Contents:

• 1 Piece 15cm Pcb Ruler
