2.4Ghz 15cm RF Cable
31.68TL
Ex Tax: 26.40TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: 2.4G RF Anten Kablosu
- SKU: RBZ.100.278
2.4Ghz 15cm IPEX RF Cable
50 ohm 1.5Dbi IPEX U.FL 2.4GHz RF Receiver Antenna Cable Wifi Bluetooth Gsm
An rf receiver antenna cable 15cm long operating at 2.4Ghz frequency. It is produced from high quality material. It has a 1.5Dbi Ufl connector. One end of the cable is left free in a way suitable for soldering. It can be used as an antenna extension cable for many rf receivers.
The signal quality is very stable. It is produced with precision machines. The signal loss is very low. Its sensitivity is high. With its IPEX socket it is compatible with many devices. It can be used with Wifi, bluetooth and gsm products.
Features:
- Frequency: 2.4GHz

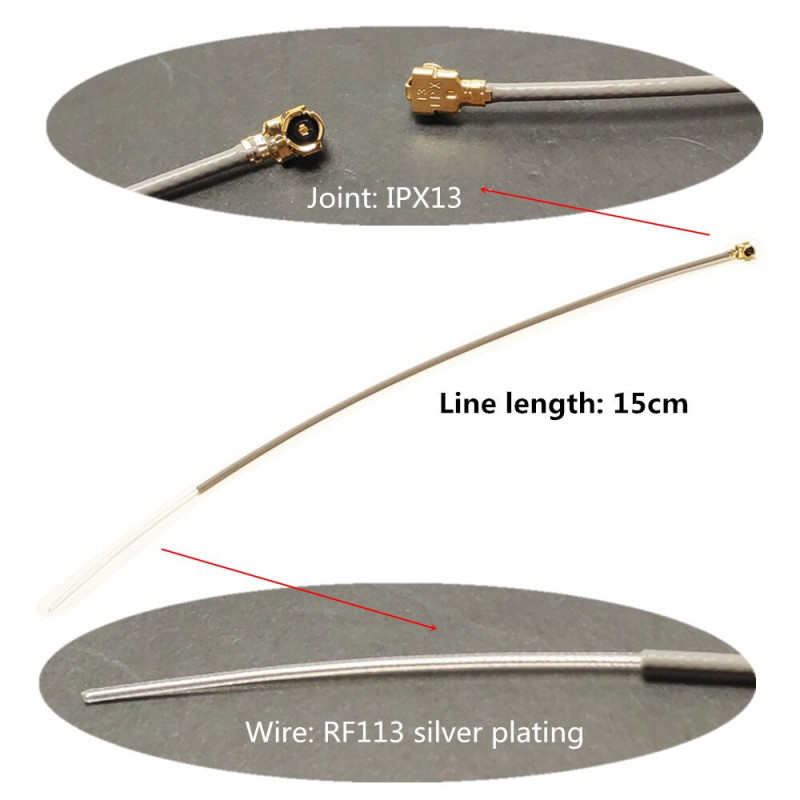

- Cable Length: 150mm
- Gain: 1-1.5 Dbi
- VSWR: < 2.0
- Impedance: 50 Ohm
- Max Input Power: 1W

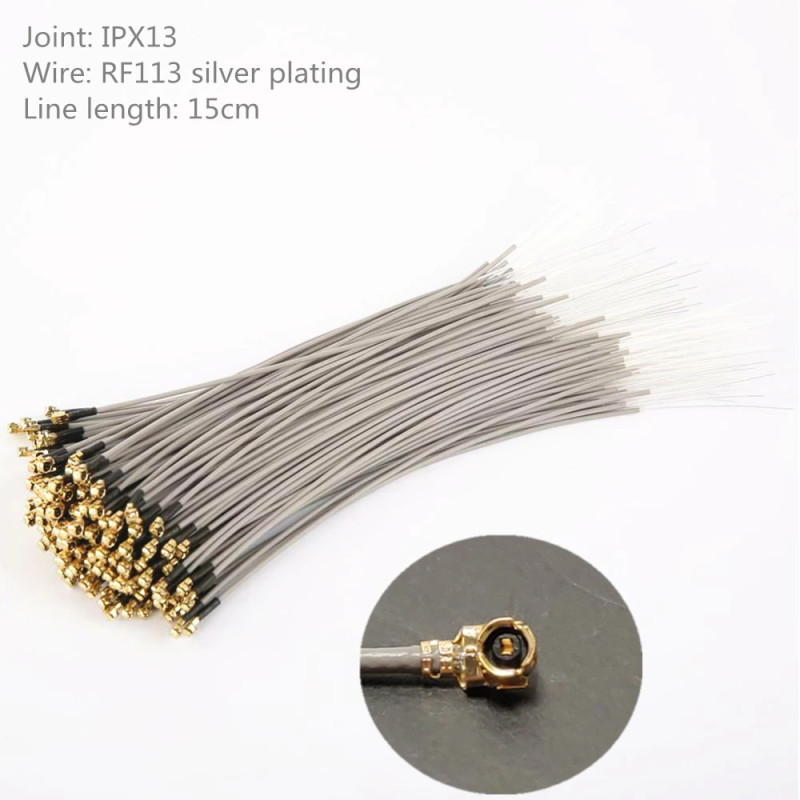

- Cable Type: RG-113 / RF113 silver plated wire
- Connector: IPX13 U.FL
- Polarization: Linear
- Material: Cu Copper
- Color: Gray
- Operating Temperature: - 40 to + 80C
Package Contents:
- 2.4Ghz 15cm RF Cable
.
