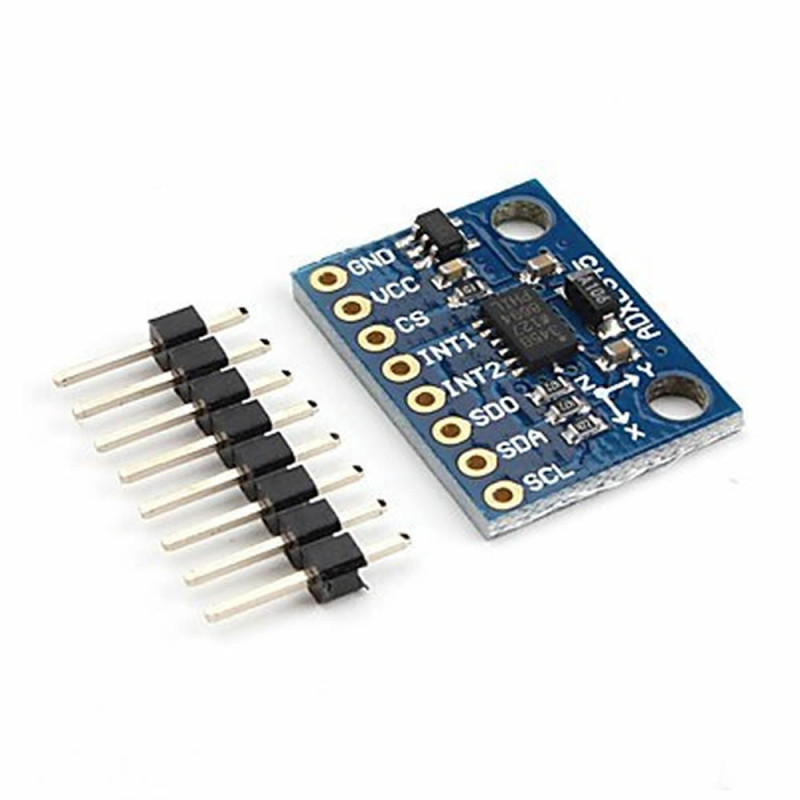

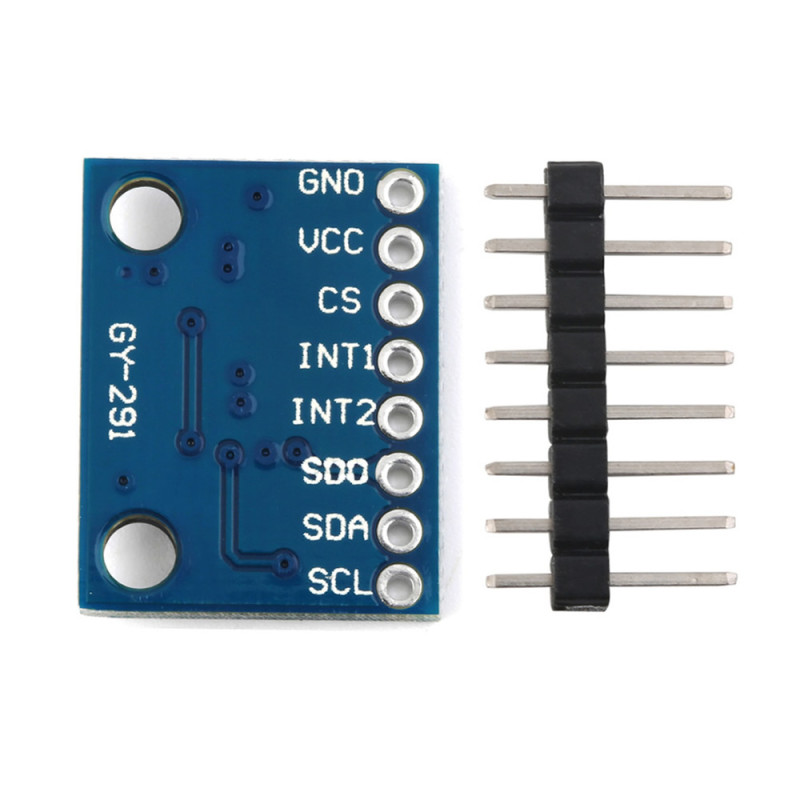

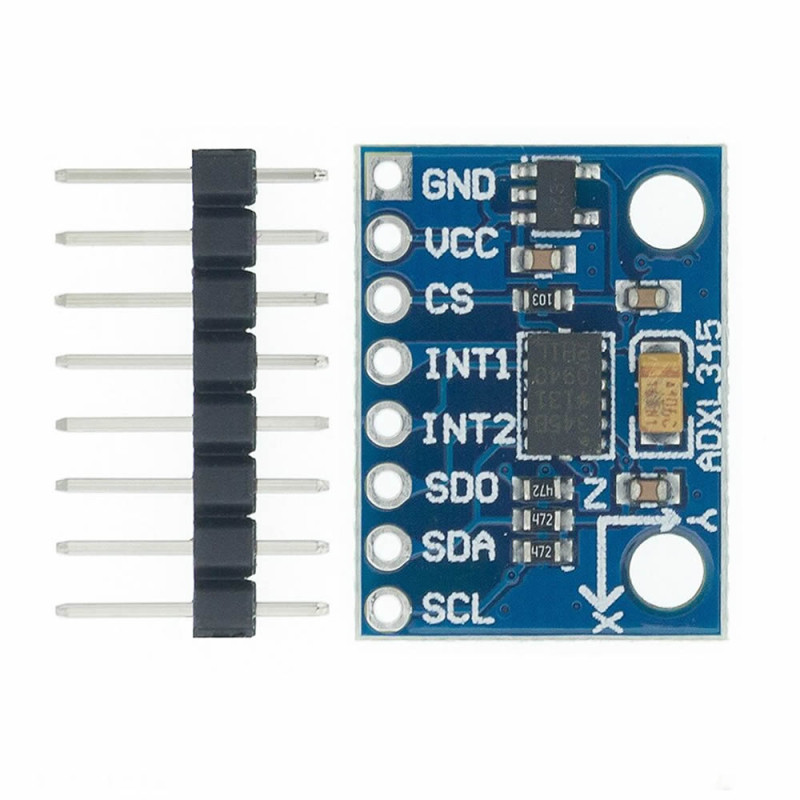

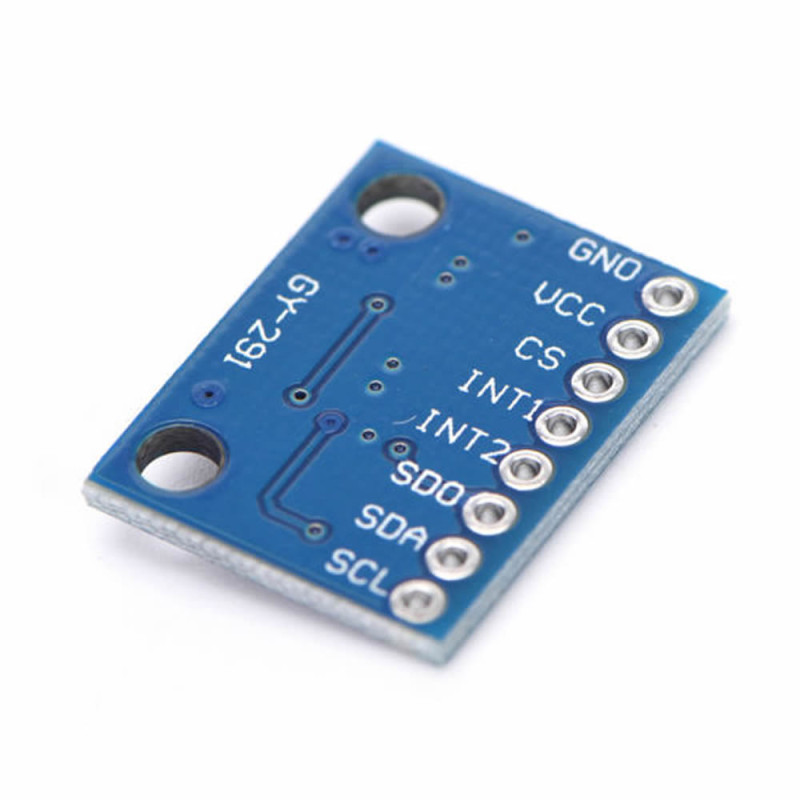

ADXL345 3 Axis Accelerometer Sensor Module GY-291

ADXL345 3 Axis Accelerometer Sensor Module GY-291

ADXL345 3 Axis Digital Acceleration Of Gravity Tilt Module

    ADXL345 is a small, low power consumption angular accelerometer sensor that can give output on 3 axes. It has a sensing range of ±16g, and output can be taken over the I²C line and over the SPI line.

    Since there is a built-in voltage regulator on the board, it can be powered with an input voltage between 3-5V. Along with this, there are also two interrupt pins on the board. These pins can be set for free fall, tap or double tap so that they give output.

Features:

• Chip: ADXL345.
• Operating Voltage: DC 3-5V.
• 3 Axis
• Measuring Range:  ± 2g / ± 4g / ± 8g / ± 16g.
• Communication: I2C / SPI
• Pin pitch: 2.54mm
• Color: Blue.
• Material: Metal
• Weight: 4g.

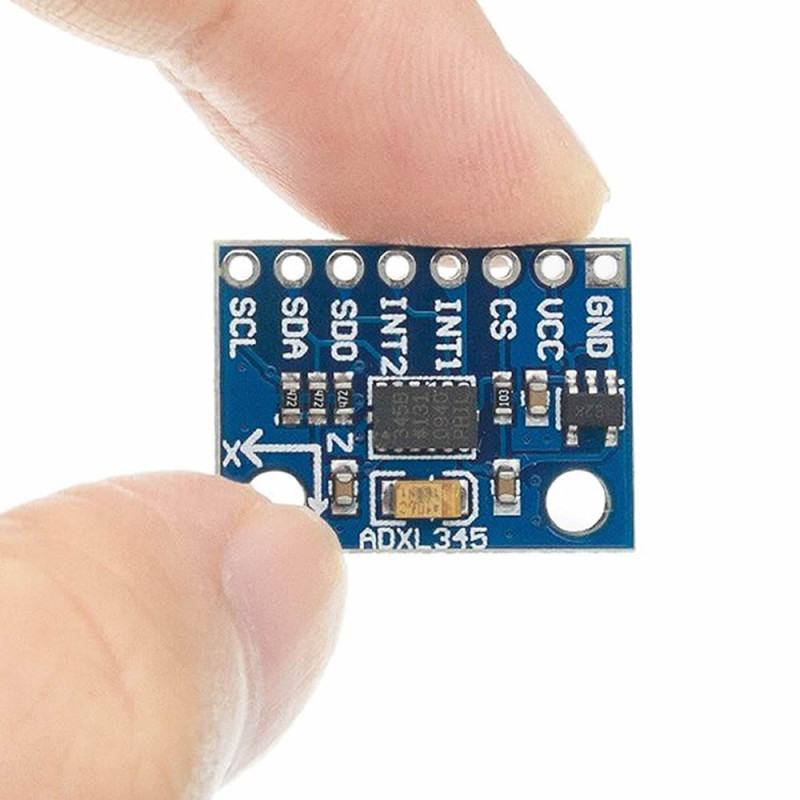

• Dimensions: 18mm x 13mm

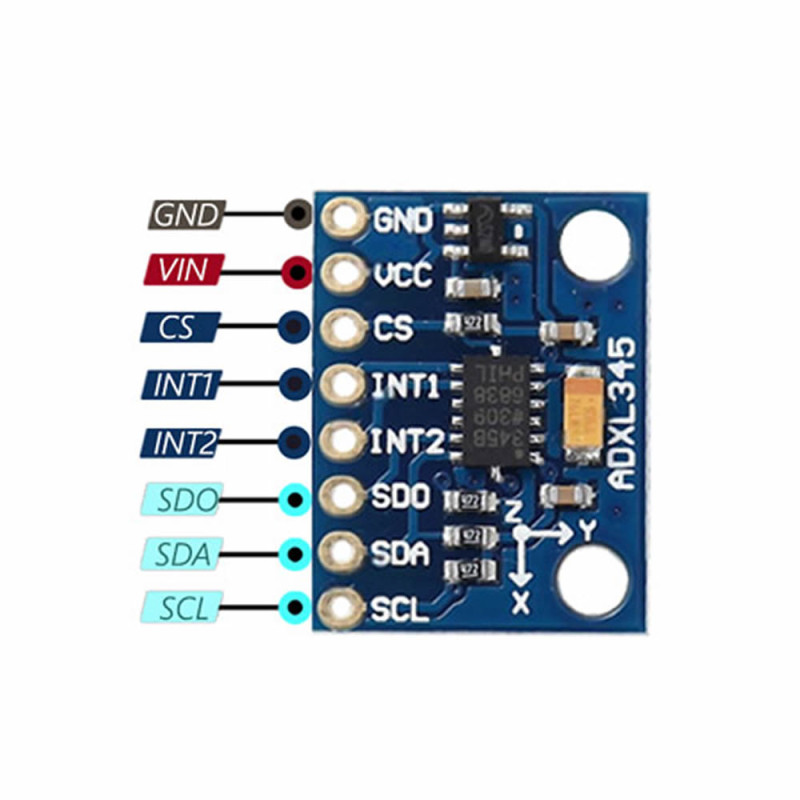

Pin Description:

•     VCC:  DC3  5 V
•     GND:  Ground
•     CS:    Chip Select
•     INT1: Interrupt 1
•     INT2: Interrupt 2
•     SDO: Data Output
•     SDA:  Data
•     SCL:  Clock

Package Contents:

•  1 Piece ADXL345 Sensor Module
