Ipex1 Male to Ipex1 Female 15cm Cable
38.22TL
31.85TL + KDV
10 or more 32.49TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.101.442

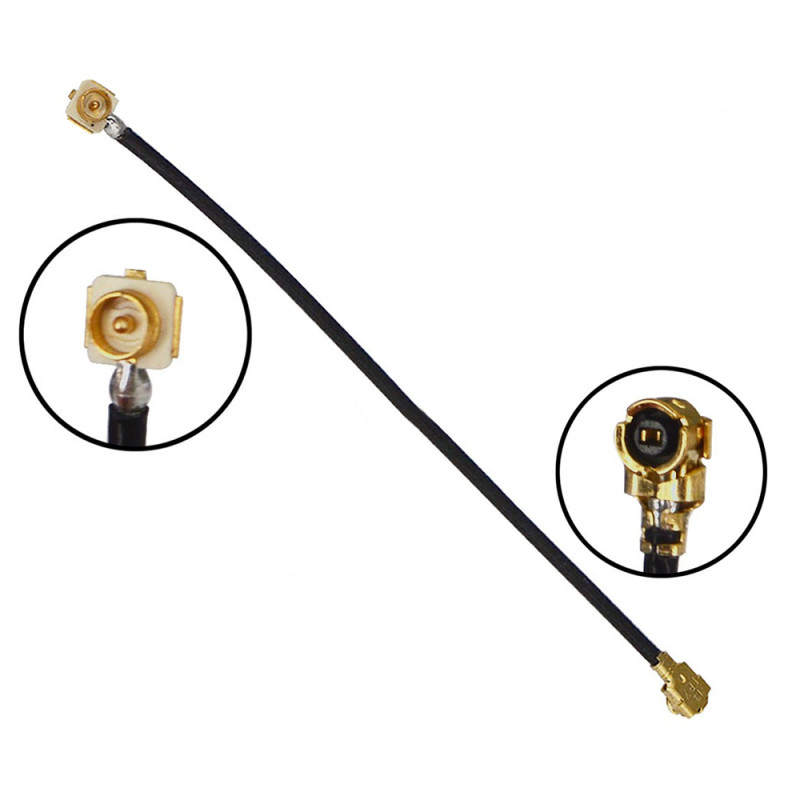

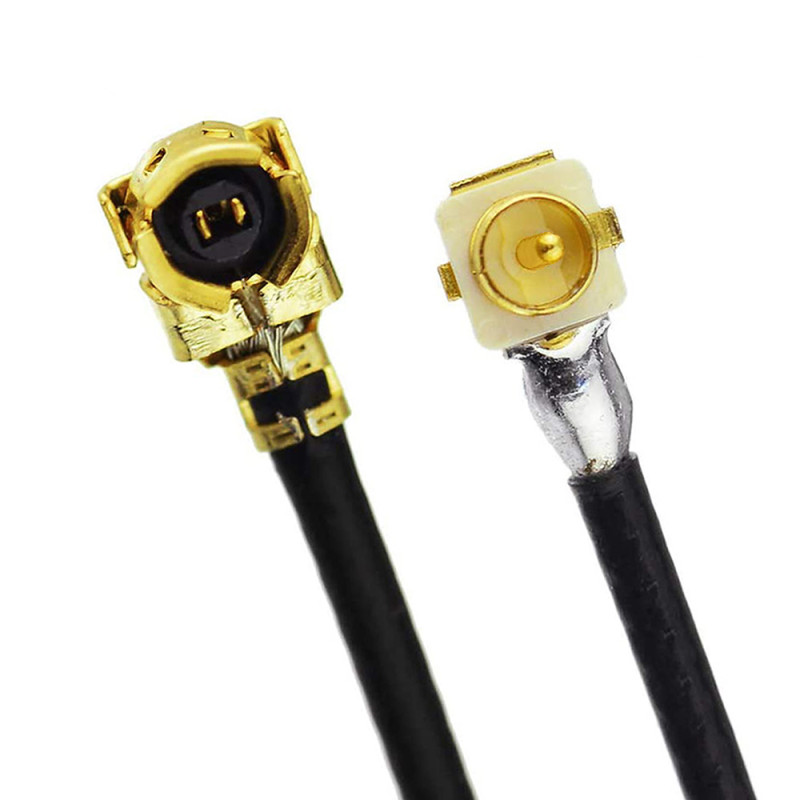

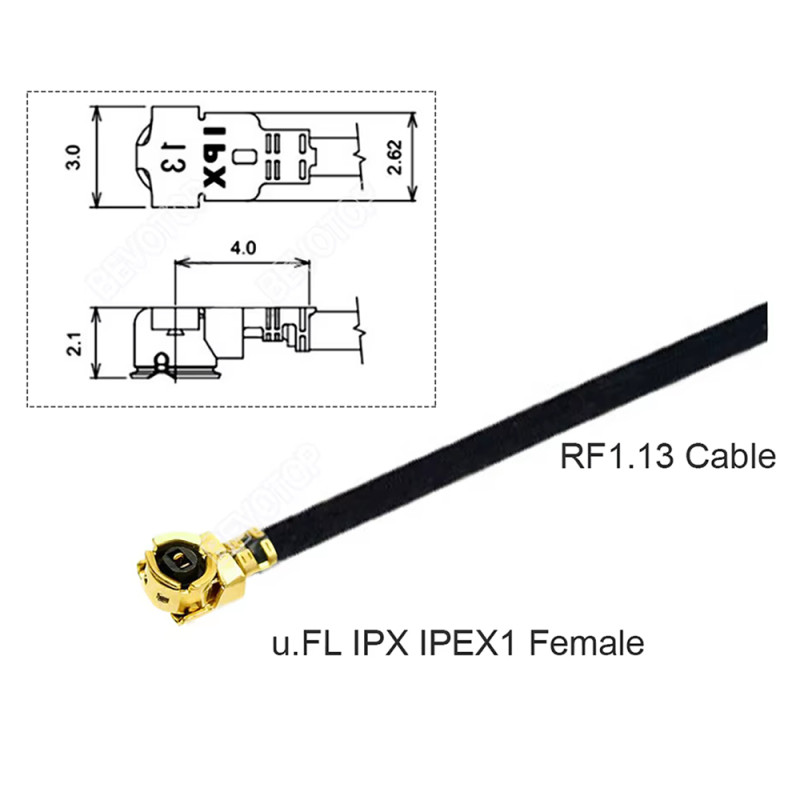

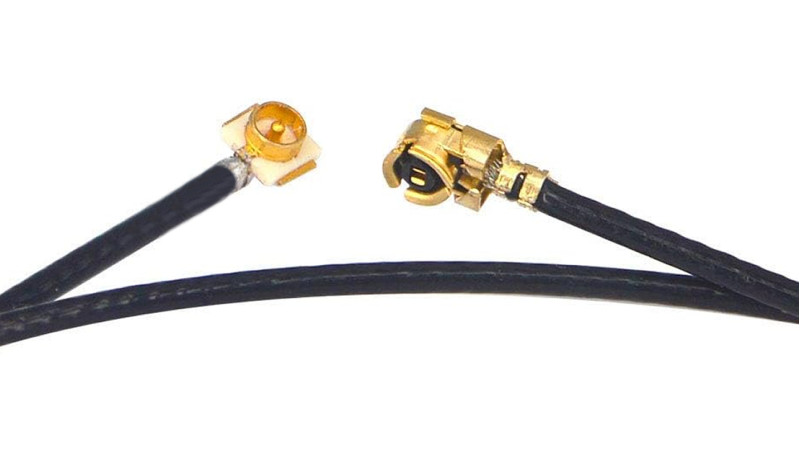

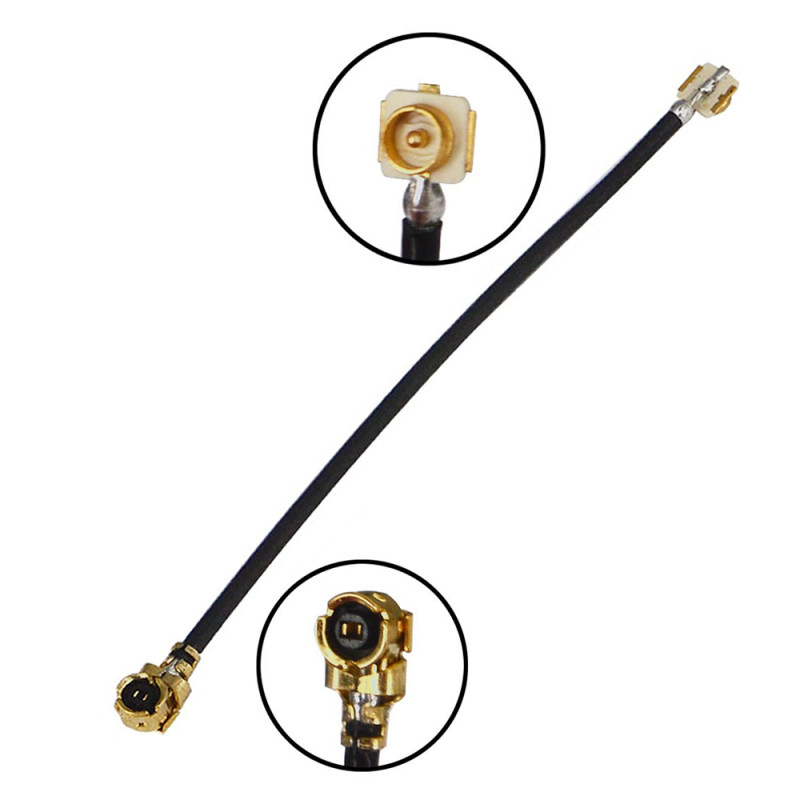

15cm Ipex1 Male Ipex1 Female RF Connection Cable
Gold Plated RF Antenna Mhf1 UFL U.FL Mini PCIe Phone Laptop Wifi Bluetooth Gsm Gps
Suitable for UFL socket. These types of sockets are used on mini pcie cards. Mhf4 sockets are generally used on M2 Ngff products.
High performance low loss flexible rf connection cable. One side is an ipex1 male socket. The other end is an ipex1 female socket. It can be used in a wide frequency range. It has a cable length of 15cm.
Features:

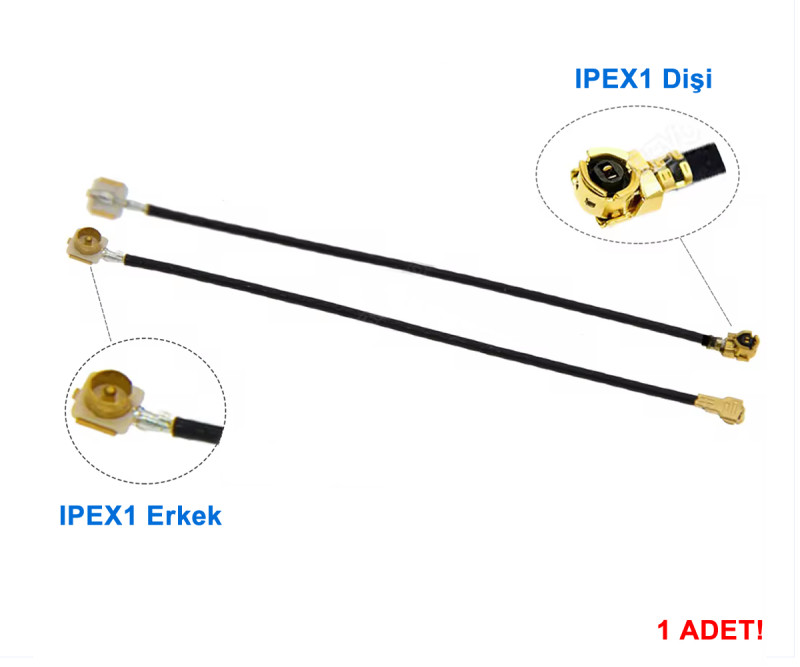

- Ipex1 Male to Ipex Female cable

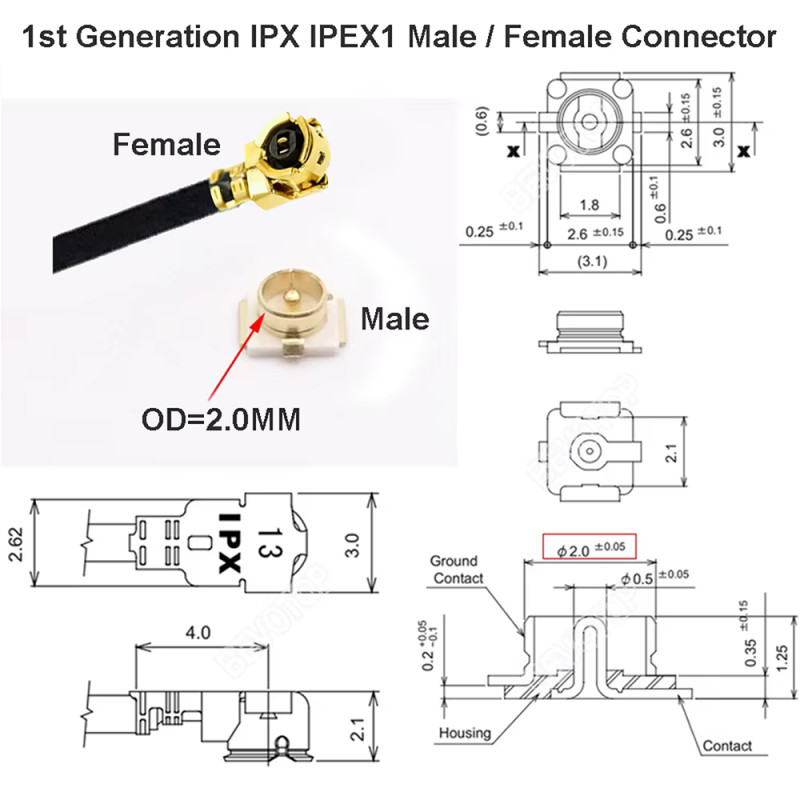

- Ipex Socket ( Mhf1 ) ( Suitable for Ufl socket )
- Cable thickness: 1.13mm
- Impedance: 50 ohm
- Contact resistance: 3mohm and below
- Frequency range: 0Hz / 12 GHz
- Voltage withstand：1000V maximum
- Flashover voltage：3000Vrms
- Vswr: 1.1 and below
- Operating temperature：-45C / 85C
- Life: less than 500 insertions and removals
- High performance
- Low loss

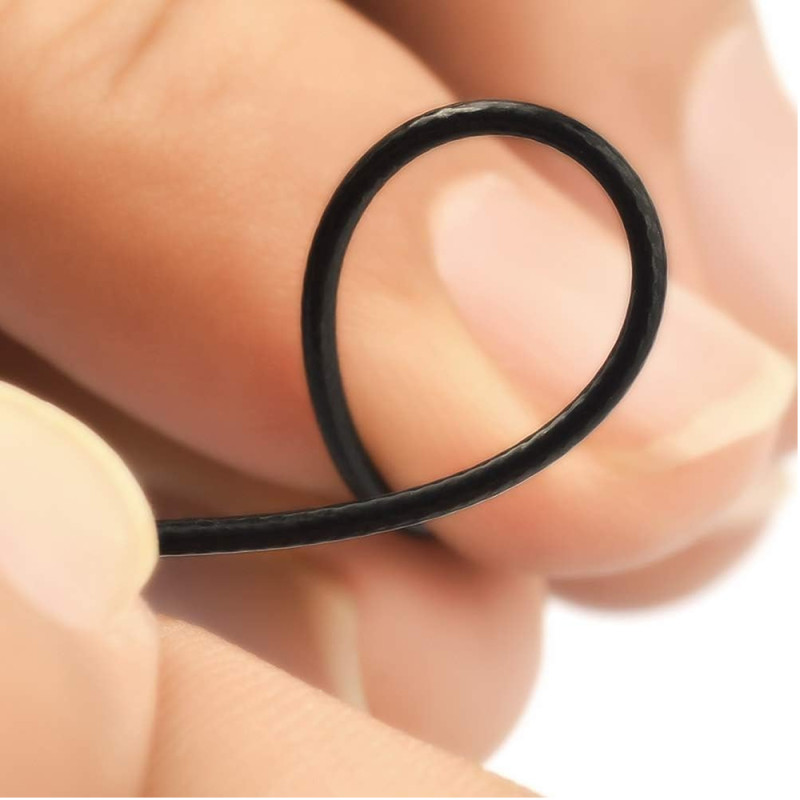

- Flexible structure
- Cable length: 15cm
- Weight: 0.5gr
Package contents:
- 1 Piece Ipex1 Male to Ipex1 Female 15cm Cable
