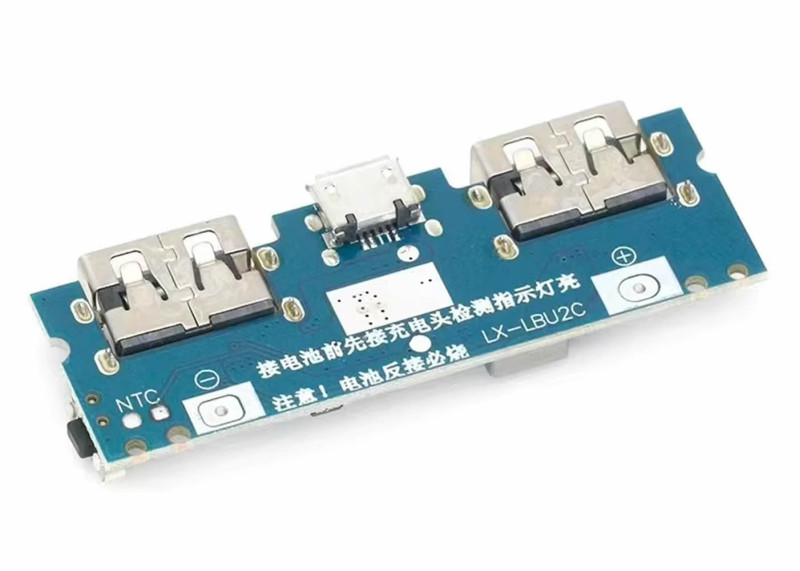

Powerbank 5V 2.4A Blue

Powerbank Circuit 5V 2.4A Dual Usb Output

Type C Micro Usb Input Lithium Lion 3.7V 18650 Battery Charge Mobile Portable Power Supply Battery Phone

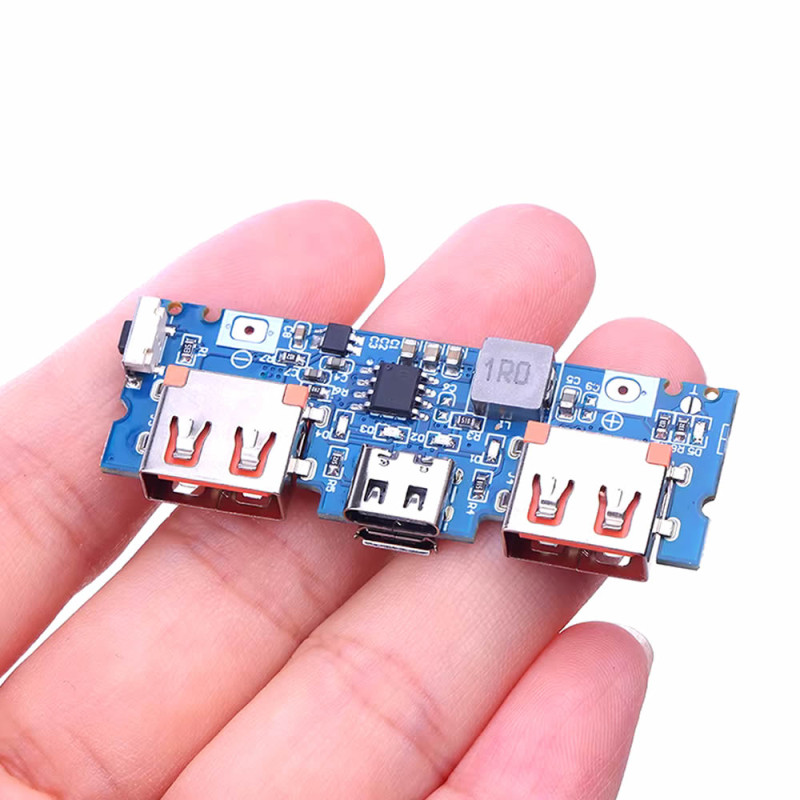

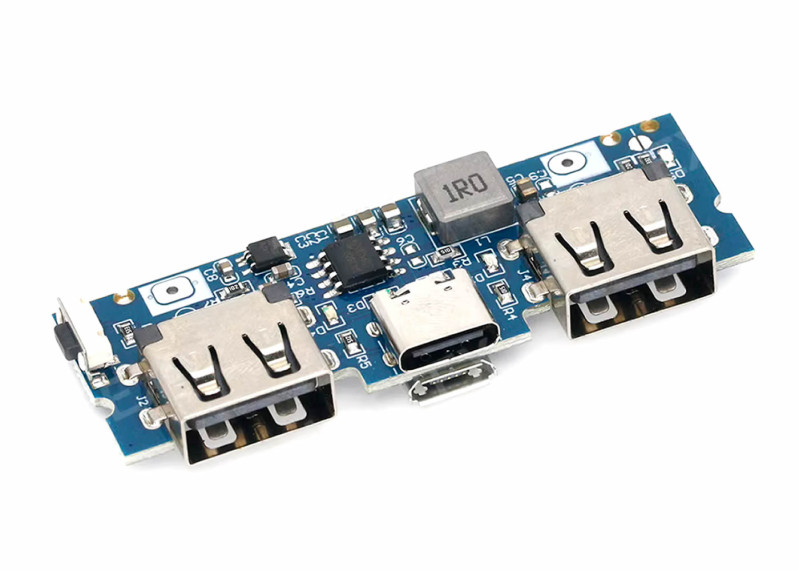

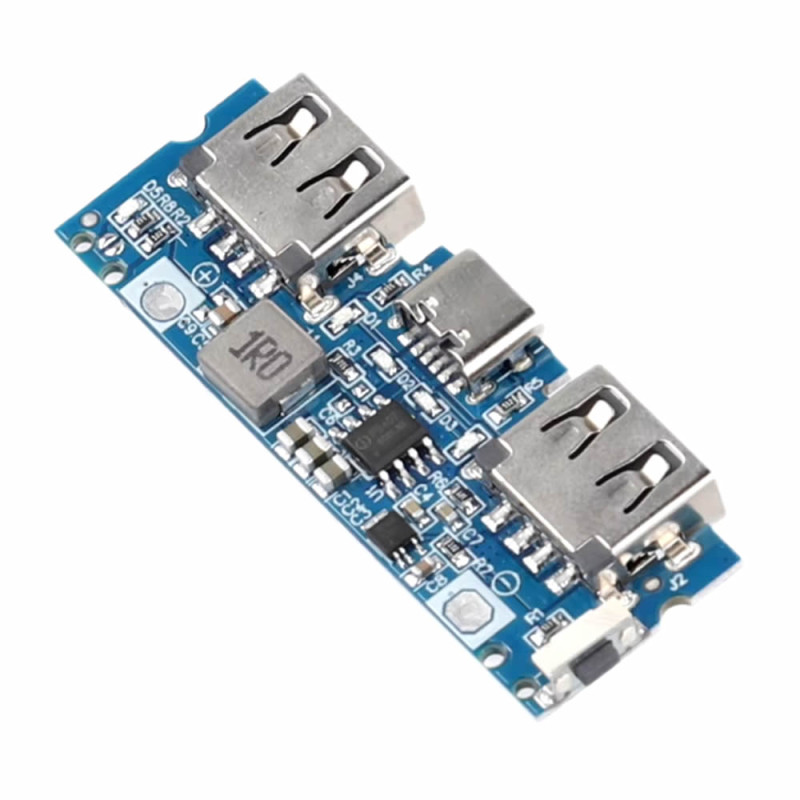

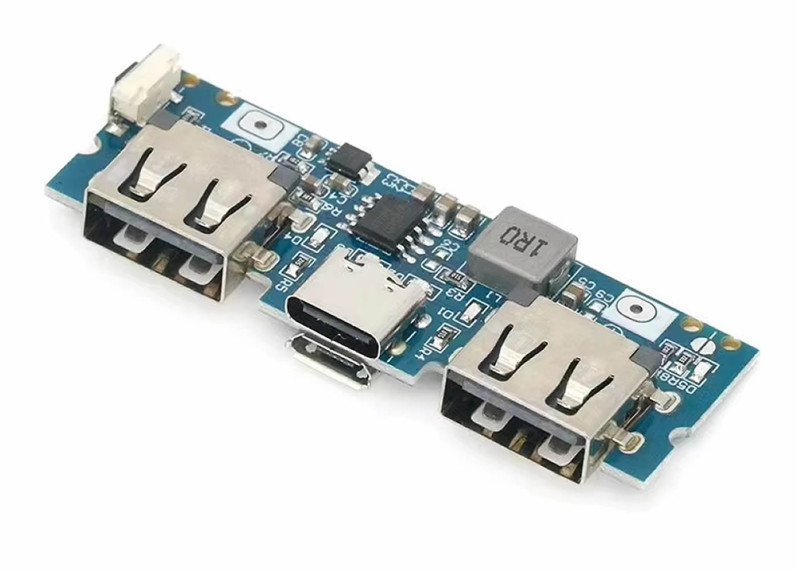

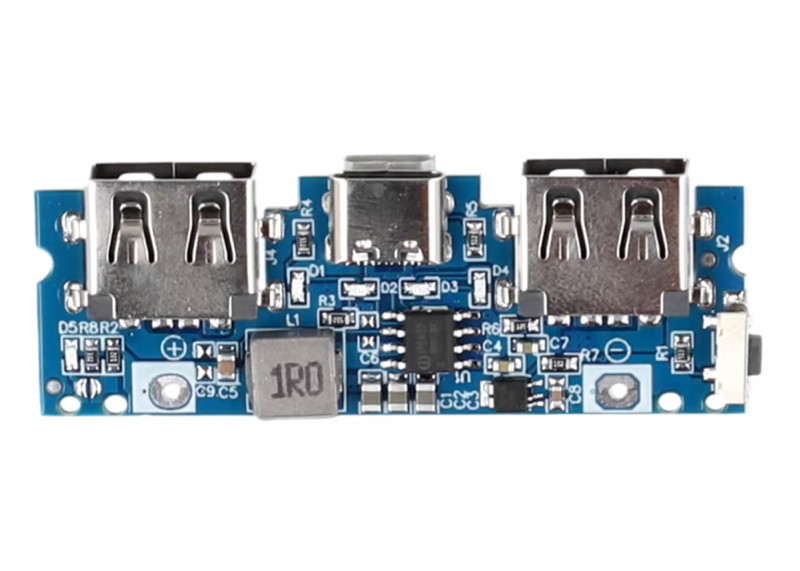

     Powerbank circuit with dual usb output 5V 2.4A. It can be turned on and off with the button on the side. The circuit can be turned on and off by short pressing the button. Long pressing turns the battery capacity indicator leds on and off. It charges the battery connected to the board through the Type C and Micro usb input sockets. There are 4 leds on the circuit indicating your battery capacity.

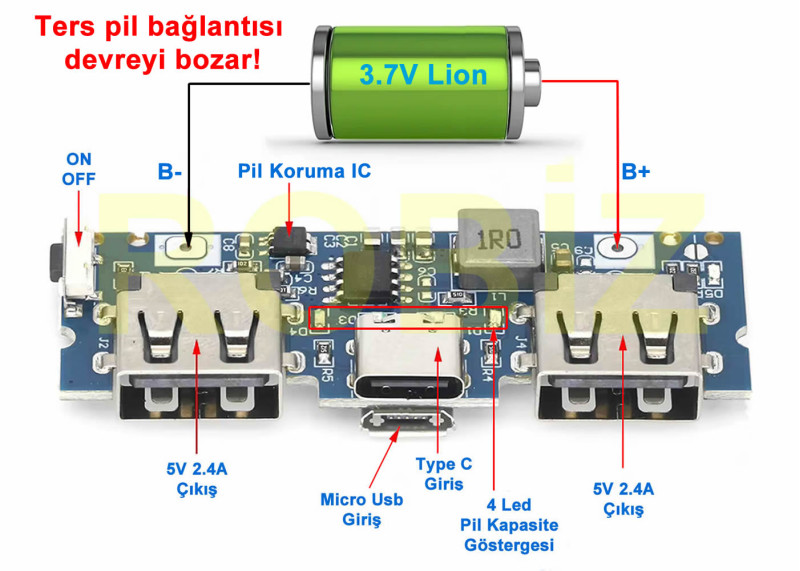

     The 3.7V lion battery connection is made through the B+ and B- pads. More than one battery can be connected in parallel. Increasing the number of parallel batteries increases the charging time. The discharge time also increases. The battery capacity should not be greater than 20000ma. Reverse battery connection damages the product. If batteries connected in series are connected, the product is damaged. It does not need a battery protection circuit. There is a battery protection circuit on the board.

Warnings:

• Connecting the battery in reverse causes permanent damage to the product.
• Battery connection cables should not be made with thin wires. They should be able to carry 5A current. They should not be too long
• Quality batteries should be used. Do not use old and worn batteries.
• More than one 3.7V battery cannot be connected to this circuit in series. You can increase the number of batteries in parallel. Increasing the number of parallel batteries increases the discharge time, and of course the charging time also increases.
• You should not use batteries with protection circuits. Current limited batteries may prevent this board from working at full capacity.
• Type c is an input port only. it does not provide output
• Do not solder the batteries with soldering irons for a long time and at high temperature. The use of nickel wire is recommended.

Features:

• Powerbank circuit with dual usb output
• Integrated:  IP5407
• Input voltage:  DC 5V  Type C / Micro usb
• Charging current: 2.1A
• Output voltage: 2 Pcs Usb A DC 5V
• Output current:  2.4A
• 7 Segment indicator display
• It can charge 3.7V lithium Lion batteries.
• Charging voltage: 4.2V
• Circuit on off button
• 4 pcs battery capacity indicator led.
• Efficiency: 90%
• High voltage protection
• High current protection
• High charge protection
• High discharge protection
• High temperature protection if Ntc is added ( 100k b3950 )
• Color: Blue
• Operating temperature: -10C  /  80C
• Mounting holes slots.

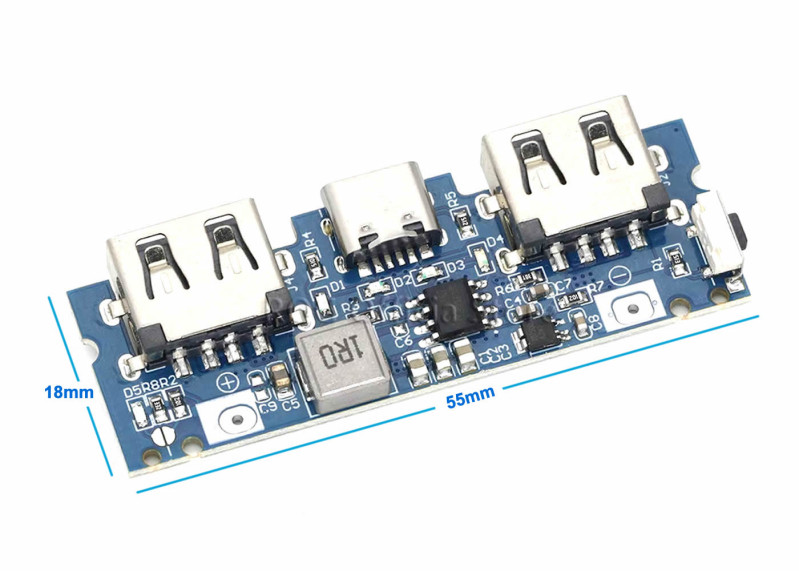

• Dimensions:  18mm x 55mm x 8mm
• Weight:   7gr

Package contents:

•      1 Pcs Powerbank 5V 2.4A Blue

.
