Breadboard Power Supply Module

Breadboard 3.3V 5V Power Supply Module

Usb Powered 2 Output Electronic Prototype Circuit Experiment Test MB102

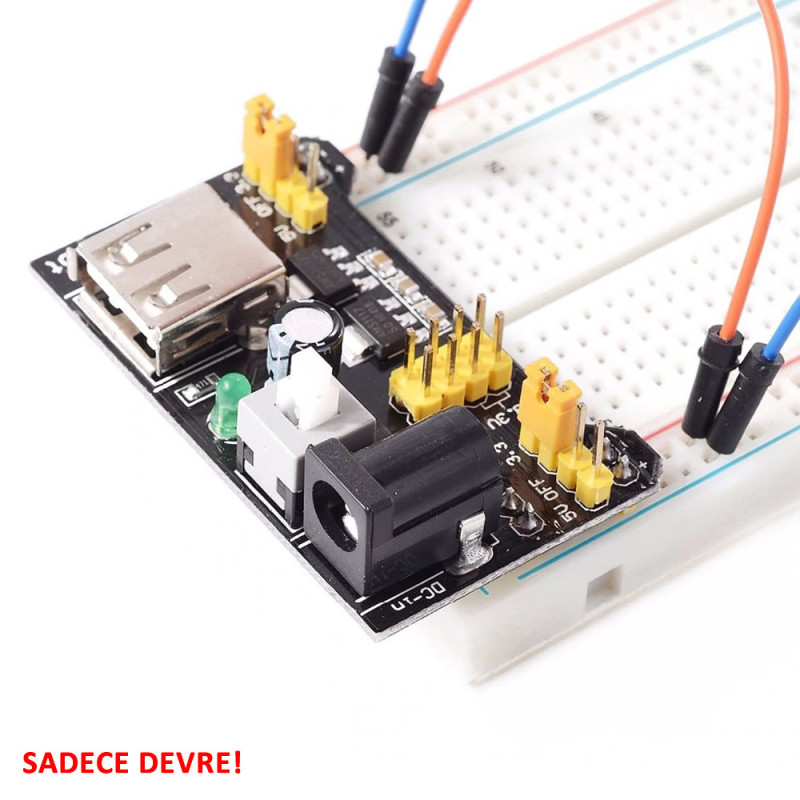

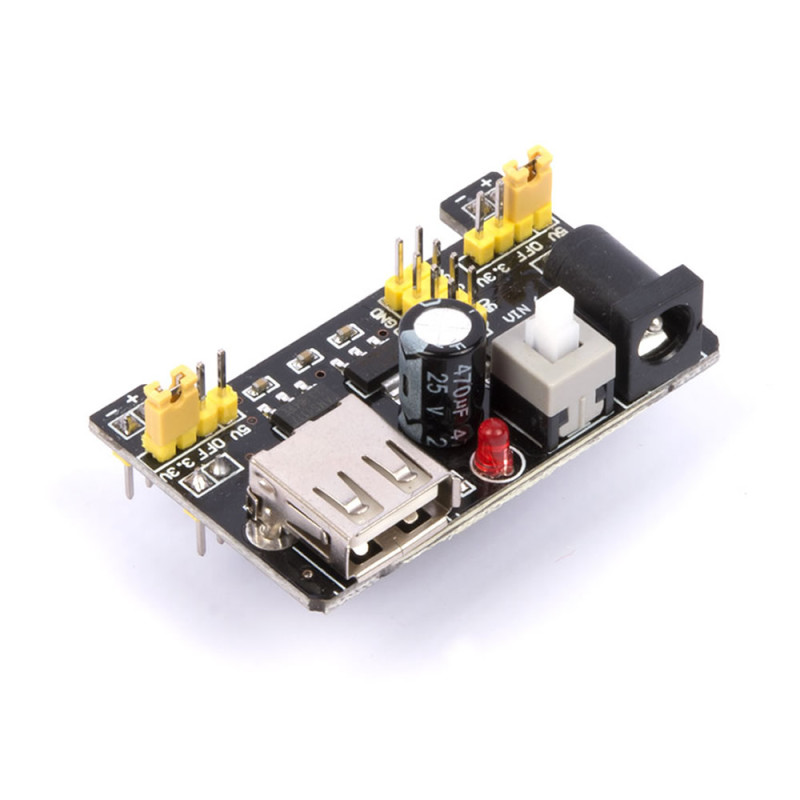

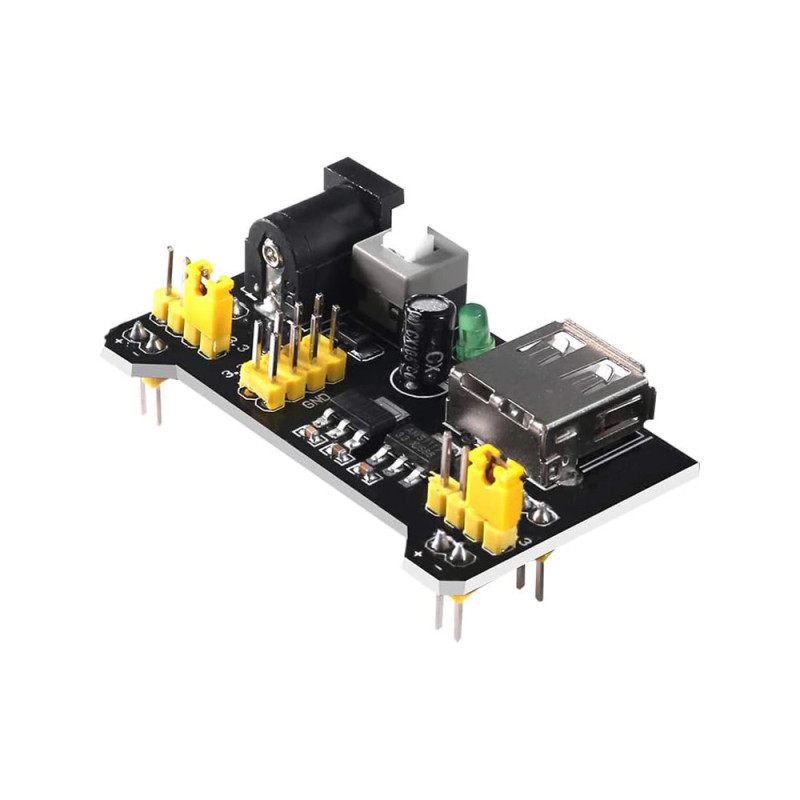

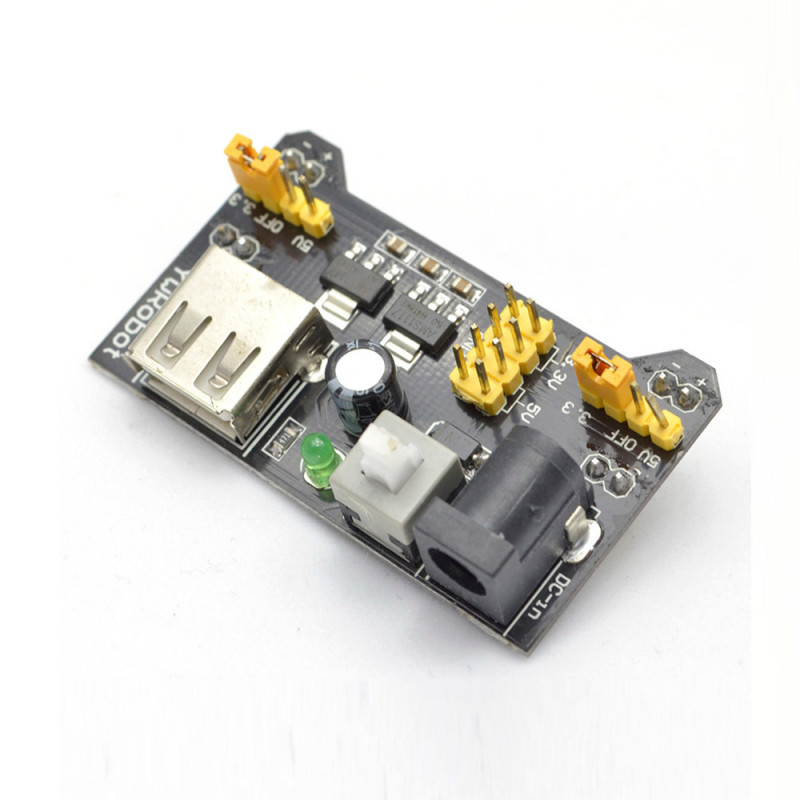

    Power supply board compatible with single breadboards. It is used by plugging into the supply rails on the 2 edges of the breadboard. The dc supply coming from the external supply socket is converted into DC 5v and 3.3V with 2 pcs ams1117 regulators. In addition, the board can be powered via the usb socket input.

     Product operation is controlled with the on off button. Product operation is monitored with the power indicator led. If a short circuit occurs in the circuit you have built on the breadboard, it can be noticed immediately by this led going out.

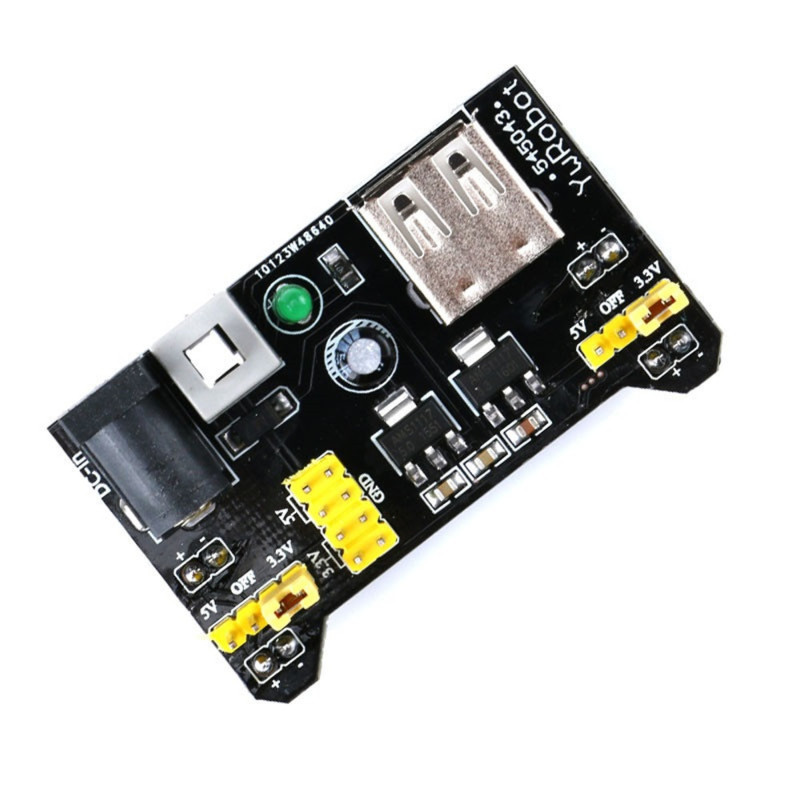

     Voltage selection is made via the 4-way selection headers on the board. By selecting 0V 3.3v or 5v, it can be transferred to the circuits on the breadboard. With the 2x4 pin male header you can also transfer power to external circuits.

Features:

• Breadboard power supply board
• Suitable for use with single Breadboards.
• 5V and 3.3V supply outputs  via Ams1117 regulators
• External supply voltage: DC 6.5V / 12V
• Internal supply: USB supply input socket Type-A
• Selectable output voltage on both sides: 0V / 3.3V / 5V
• Maximum output current is less than 700ma.
• Circuit on off button
• Output voltages can be set as 0V, 3.3V and 5V.

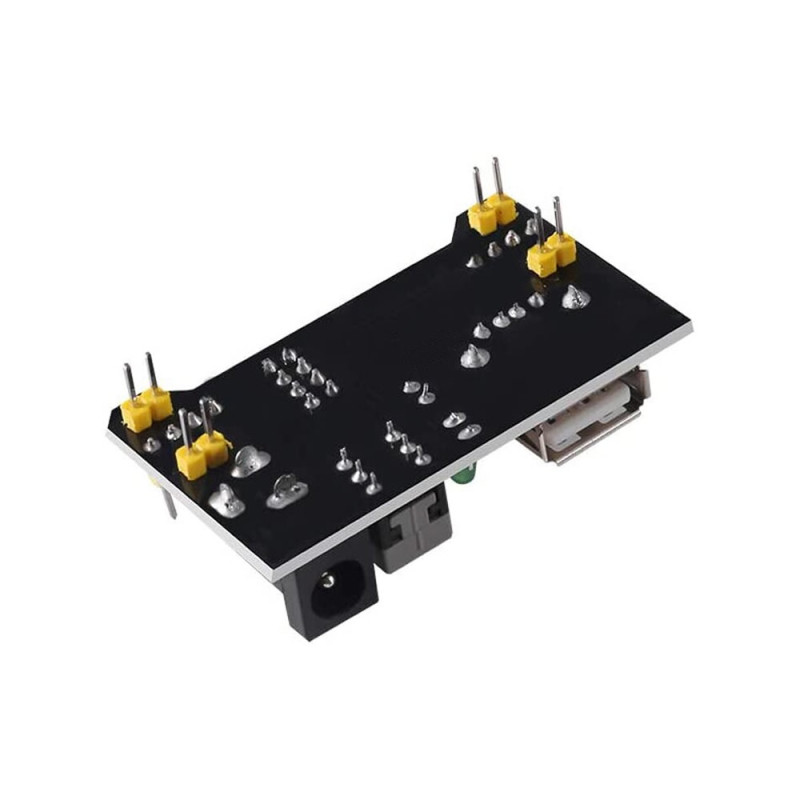

• 2 pcs double-sided male supply sockets under the board
• 2x4 Pin external circuit supply output  headers
• 2.1mm external supply input adapter socket
• Power indicator led
• Operating temperature: -10C  /  85C
• Color: Black

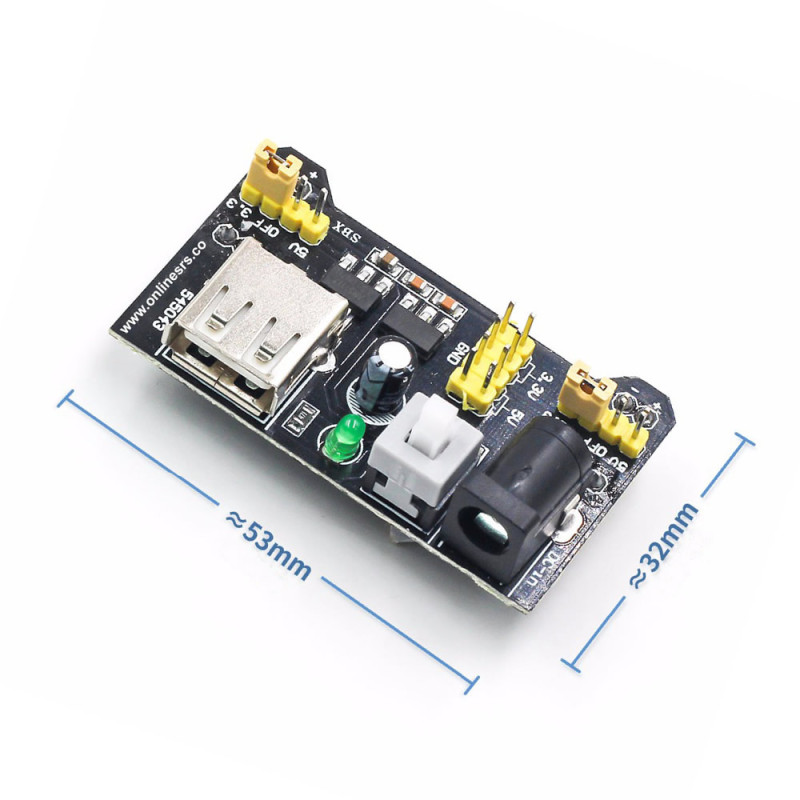

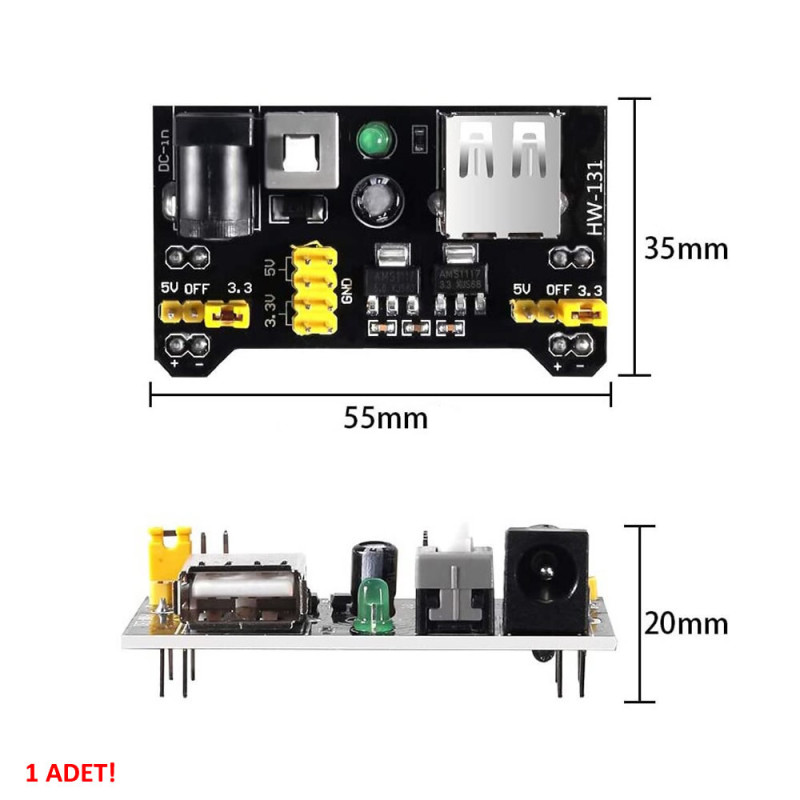

• Dimensions: 35mm x 55mm x 20mm
• Weight:  17 gr

Package Contents:

• 1 pcs Breadboard 3.3V 5V Power Supply Module
