16mm Metal Button Latch White Power Symbol Led

16mm Metal Button White Power Symbol Led Illuminated Panel Mount Flat Head Latching

DC 6A 12V IP67 Waterproof Switch Start Control Automation Car Machine Computer

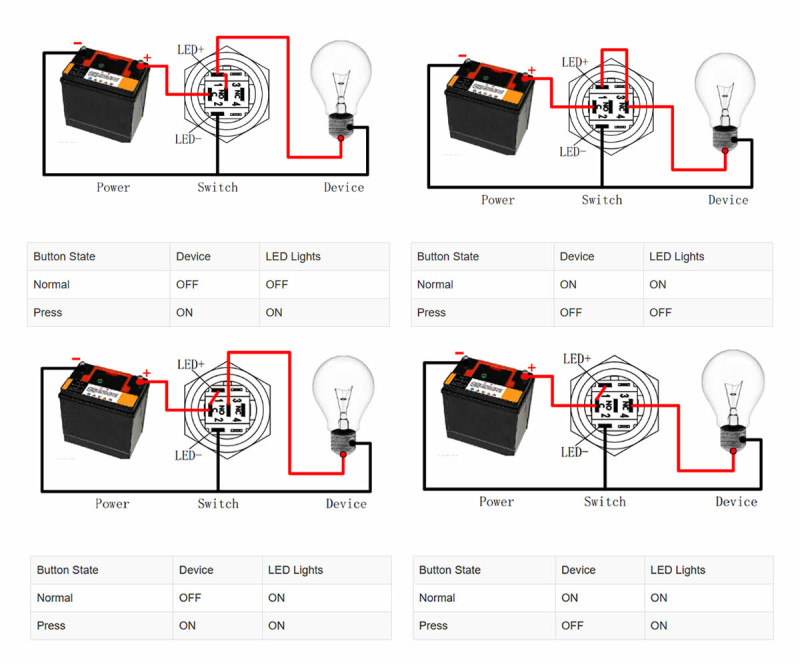

     16mm diameter 5 pin metal latch button switch. It has IP67 waterproof protection. It can be used in wet or dusty environments. It has a maximum DC 6A 12V switching capacity. It has COM, NO and NC output pins. It has a white color led indicator with a power symbol. The operating structure of the led and the switch is shown in the table below.

     The switch is latch ( latching permanent) type. It works so that it stays fixed when pressed. When the button is pressed again, it returns to the previous state and waits. Initially the Com and Nc pins are short circuited. When the button is pressed, the switch joins the Com and No pins. It is used by mounting on surfaces with a 16mm hole.

Features:

• 16mm Metal Panel Mount Button
• Operating current voltage capacity: 6A DC 12V

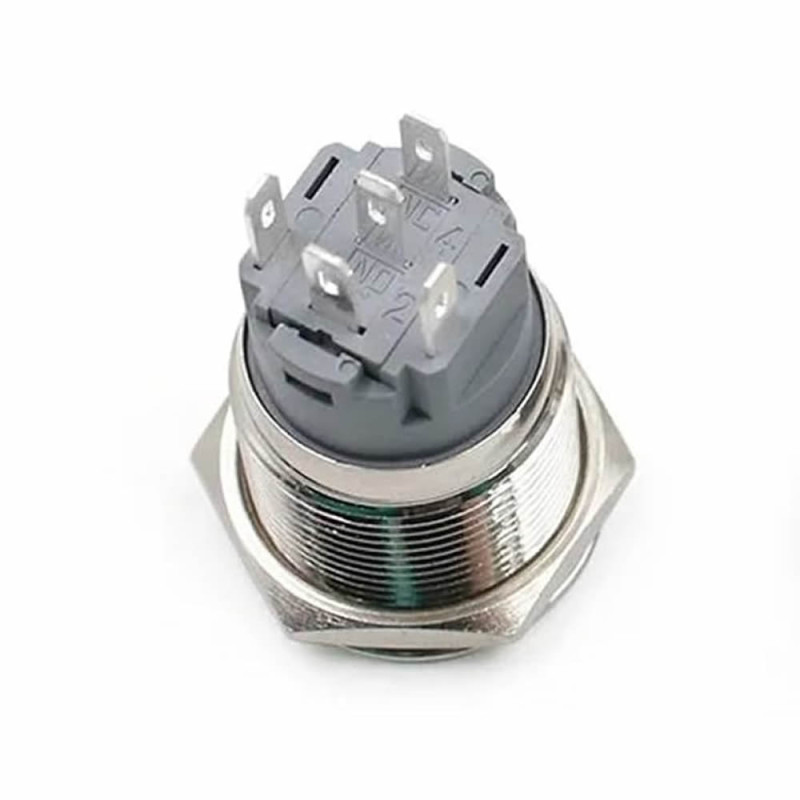

• Contact form:  NO  NC  COM
• Operating mode: Latch type stays in the pressed position. It returns to its old position on the next press
• Number of pins: 5
• Head type: Flat
• Led color: White
• Led indicator with power symbol
• Led current: 15mA
• Material: Metal / Plastic
• Protection type: IP67 / IK08
• Contact resistance:  less than 50mohm
• Insulation resistance:  1000Mohm
• Maximum pressing force: 3N / 5N
• Operating temperature: -20C  /  +85C
• Color: Metallic Gray
• Mechanical life: more than 50.000 on off
• Service life: 100.000 hours
• Screw type terminal connection socket
• Mounting hole: 16mm

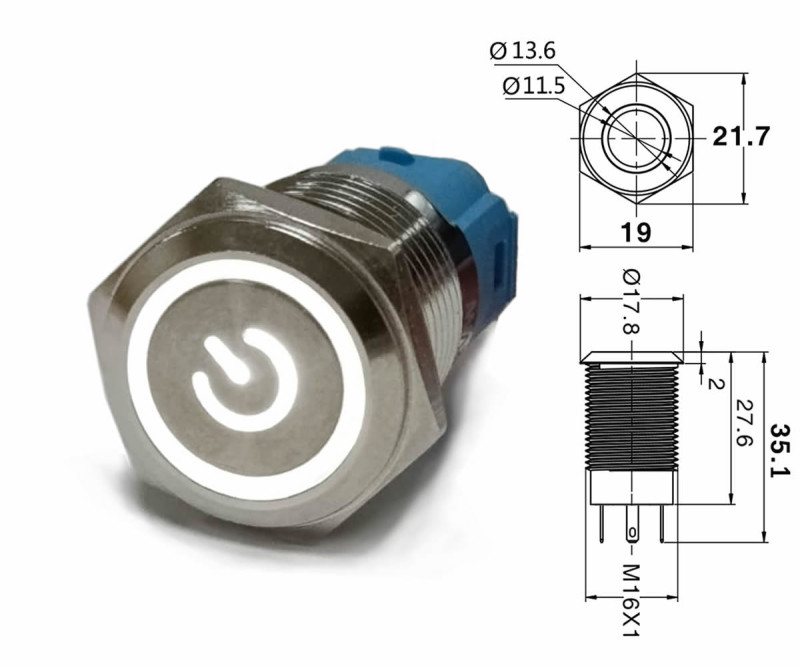

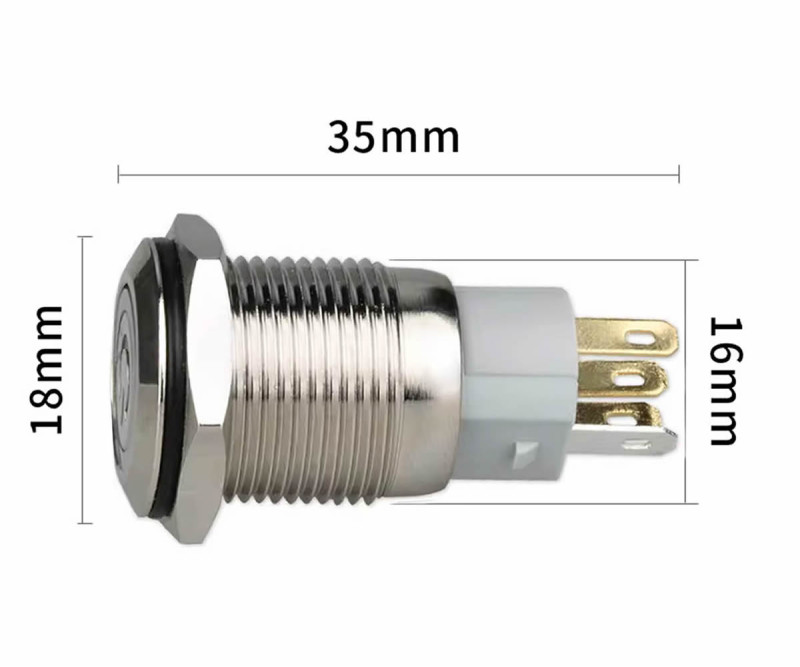

• Dimensions: 16mm (18mm) x 35mm
• Weight: 11.5gr

Package contents:

• 1 Piece 16mm Metal Button Latch White Power Symbol Led
