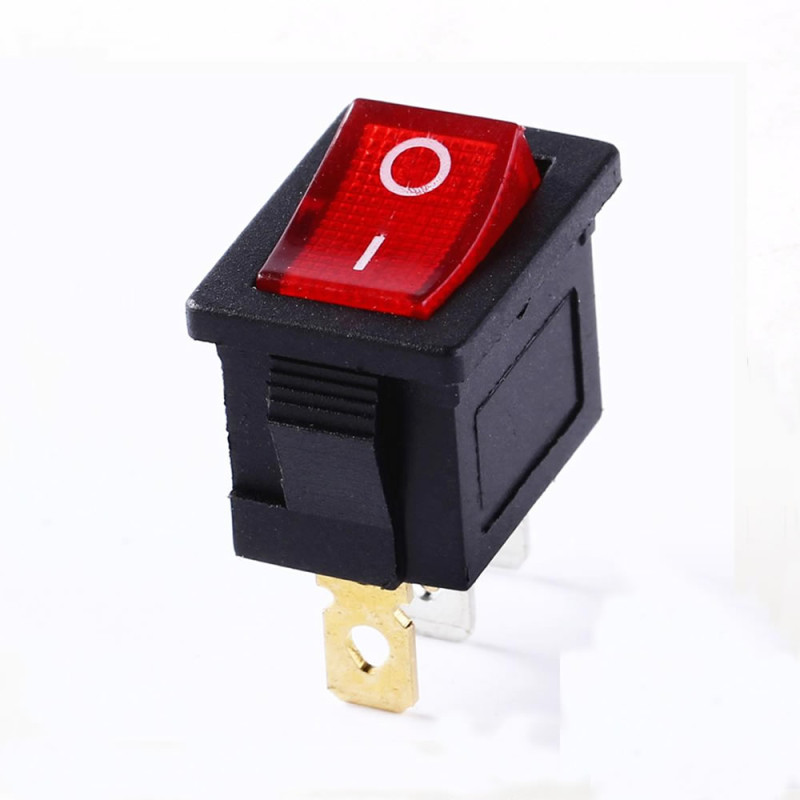

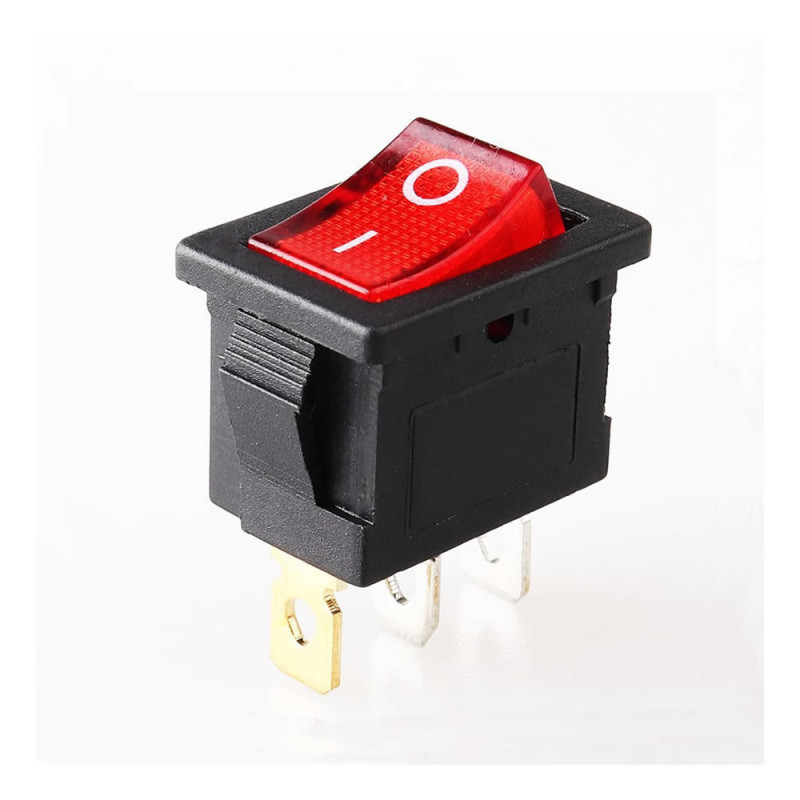

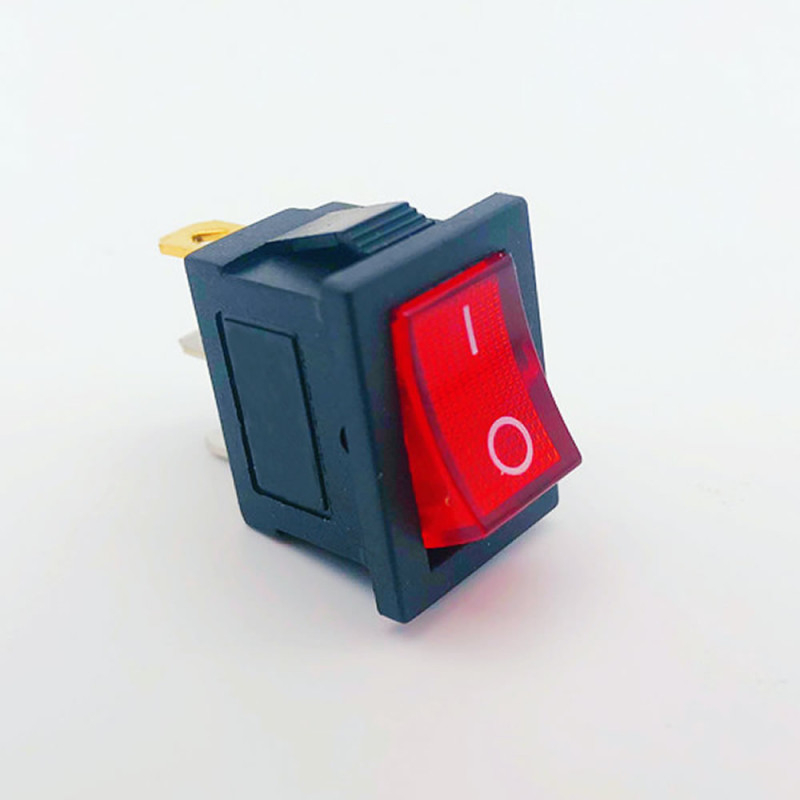

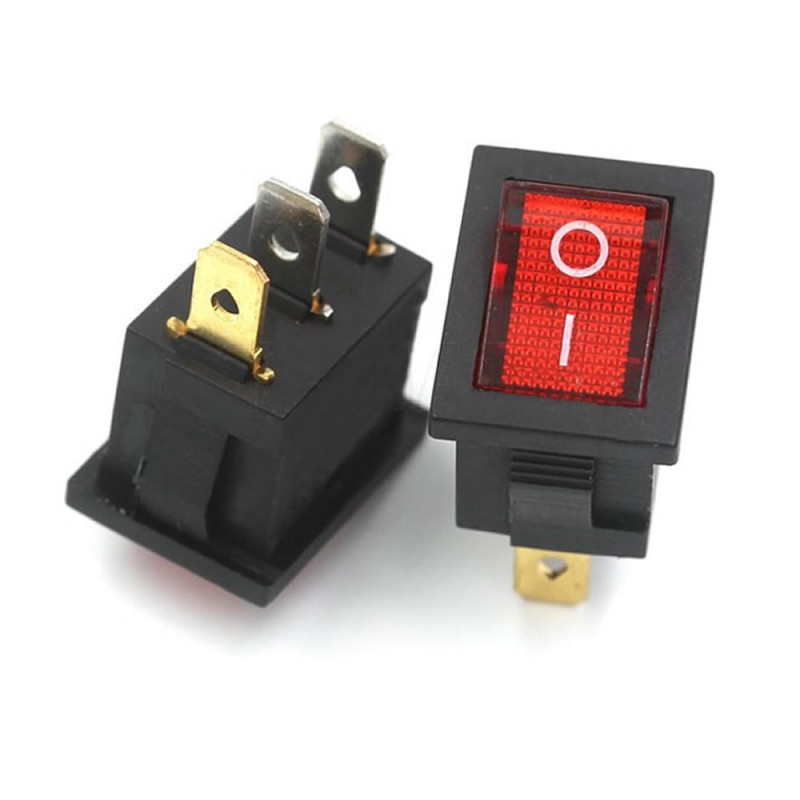

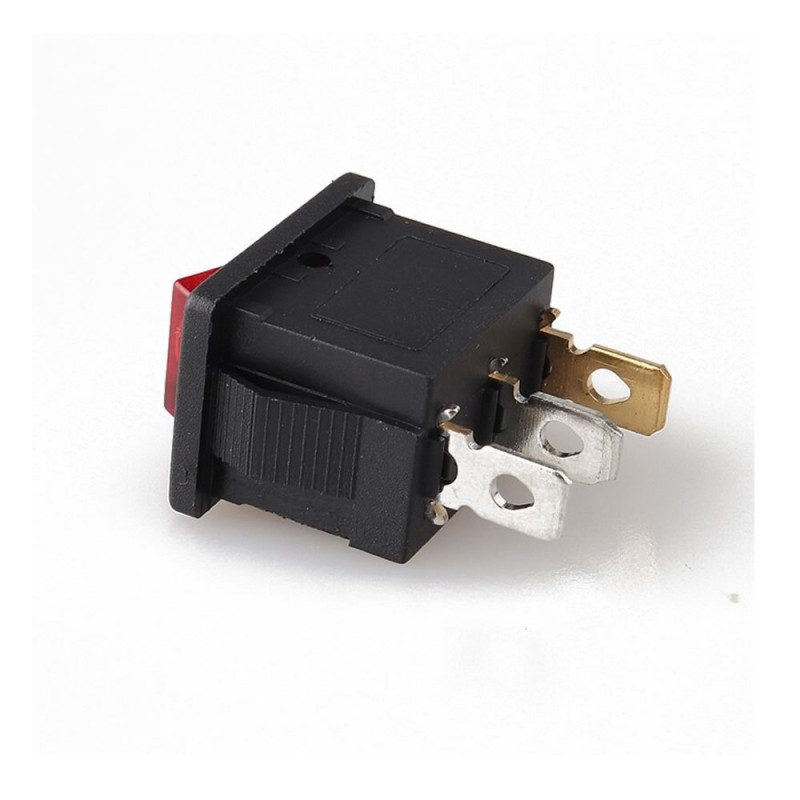

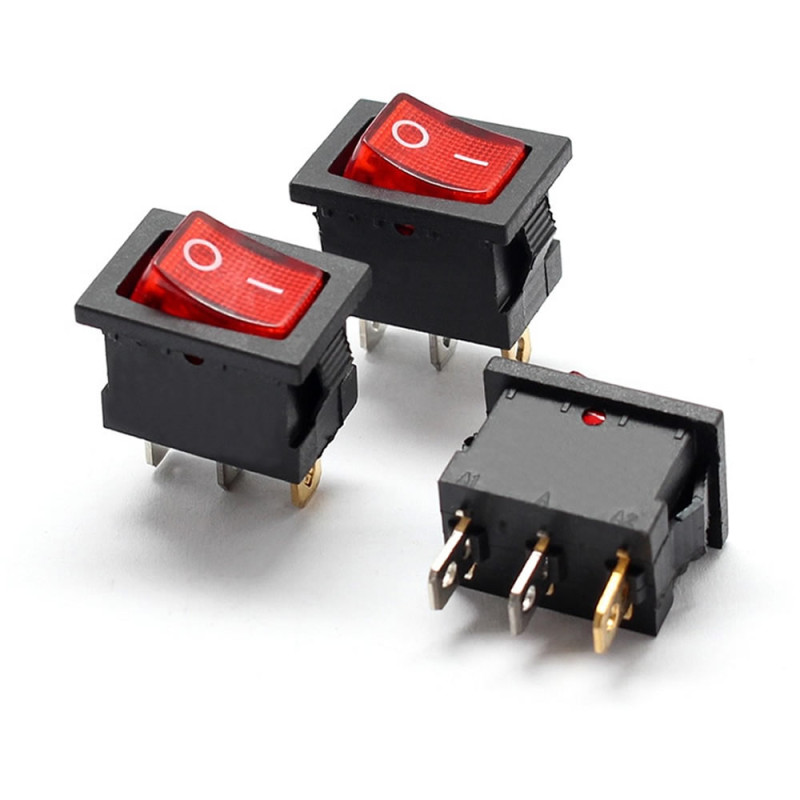

3 Pin Led Switch Kcd1

3 Pin Led Switch Rocker Switch Mini Button KCD1

ON / OFF 10A 250V Illuminated

     3 pin switch. It has a maximum switching capacity of 10A 250V. There are I O markings on the button. “I” means the switch is short circuit and electricity is going to the relevant device. “O” means the switch is open circuit and electricity is not going to the relevant device.

Features:

• 3 Pin switch
• Maximum current capacity: 10A 250V
• Function: SPST (ON)-OFF
• Label:     I= On   /   O= Off

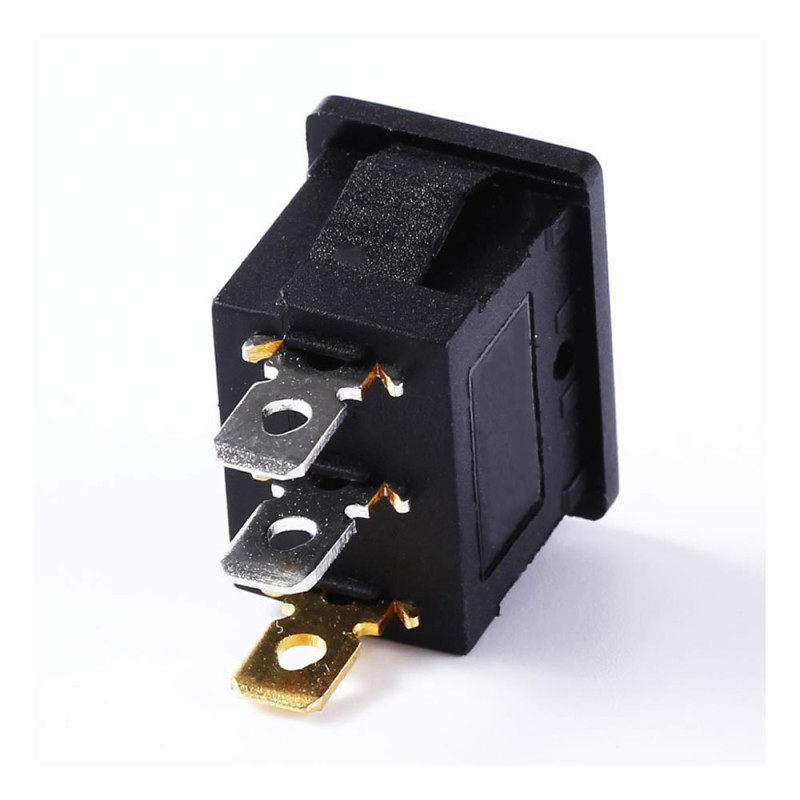

• Number of pins: 3
• Movement type: Latch / latching ( It stays continuously in the I or O state )
• Material: plastic /  metal
• Impedance 20mohm max
• Operating temperature:  -25C  /  +55C
• Color: black / red
• Life: more than 10000

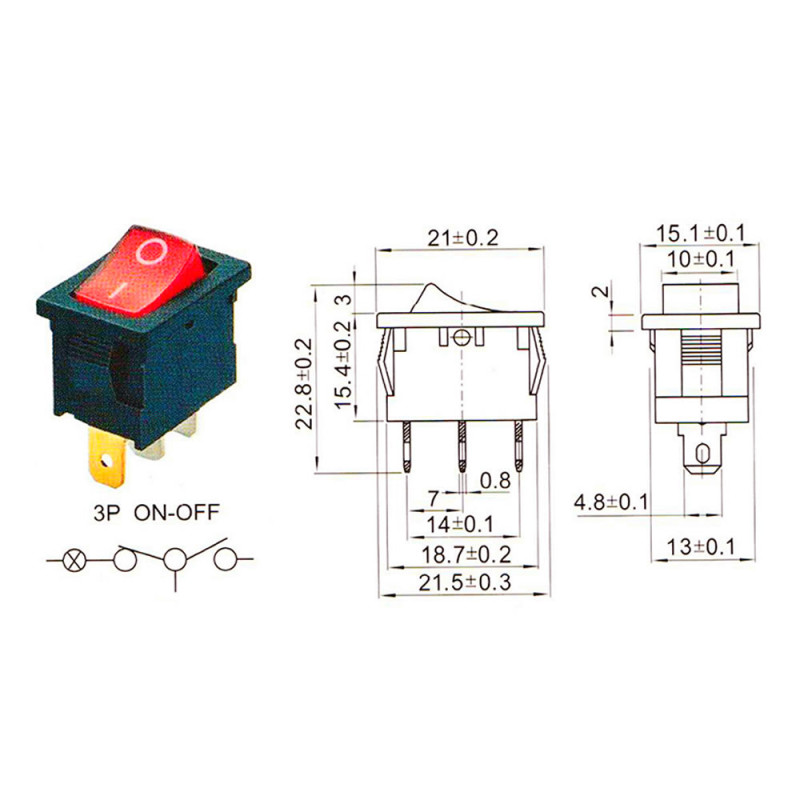

• Dimensions: 21mm x 15mm x 21,7mm
• Weight: 4.5gr

Package contents:

• 1 piece Led 3 Pin Switch Kdc1
