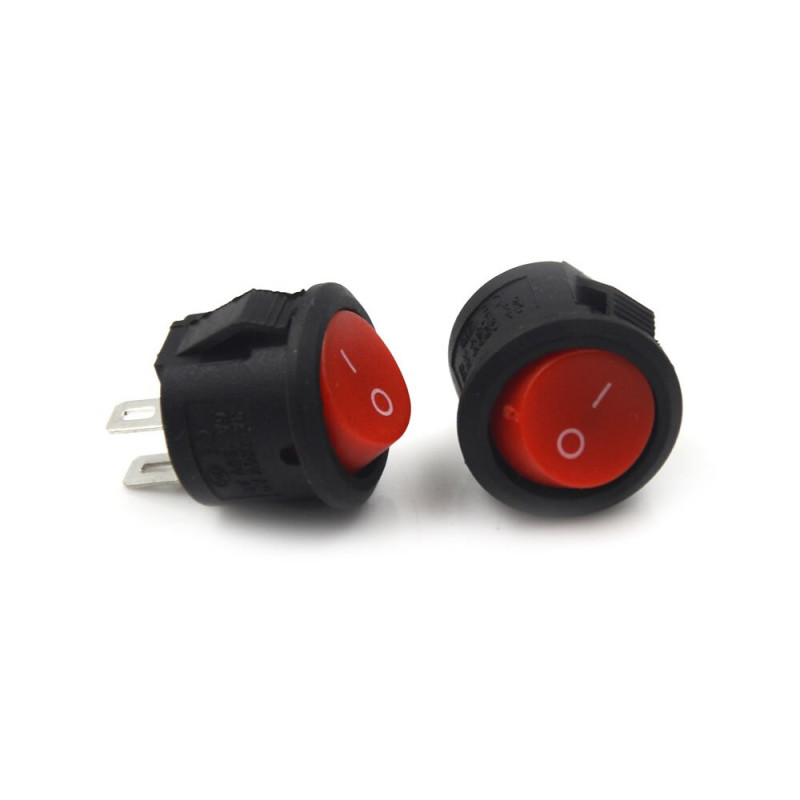

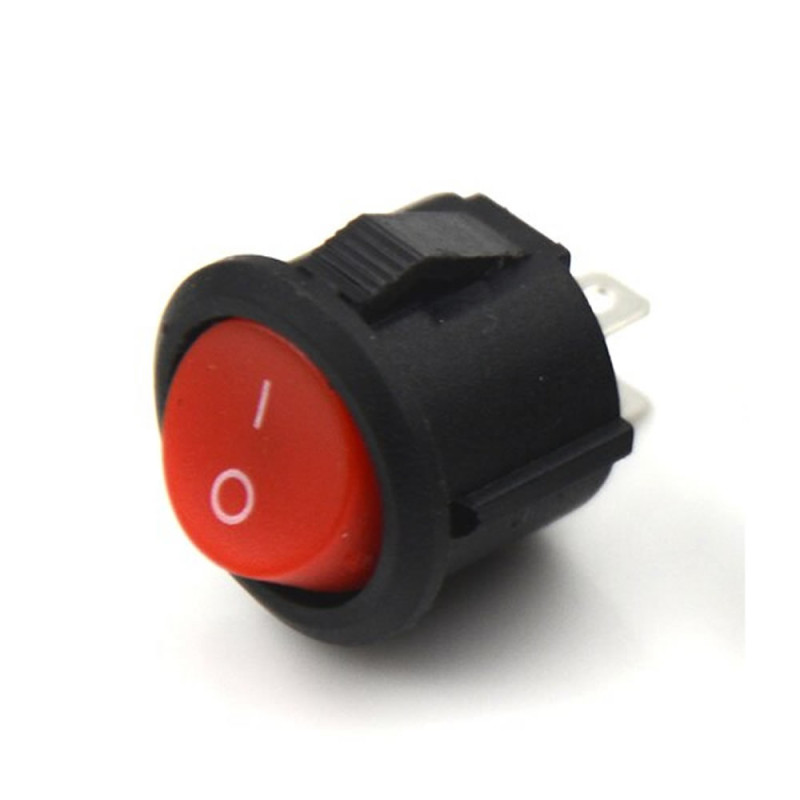

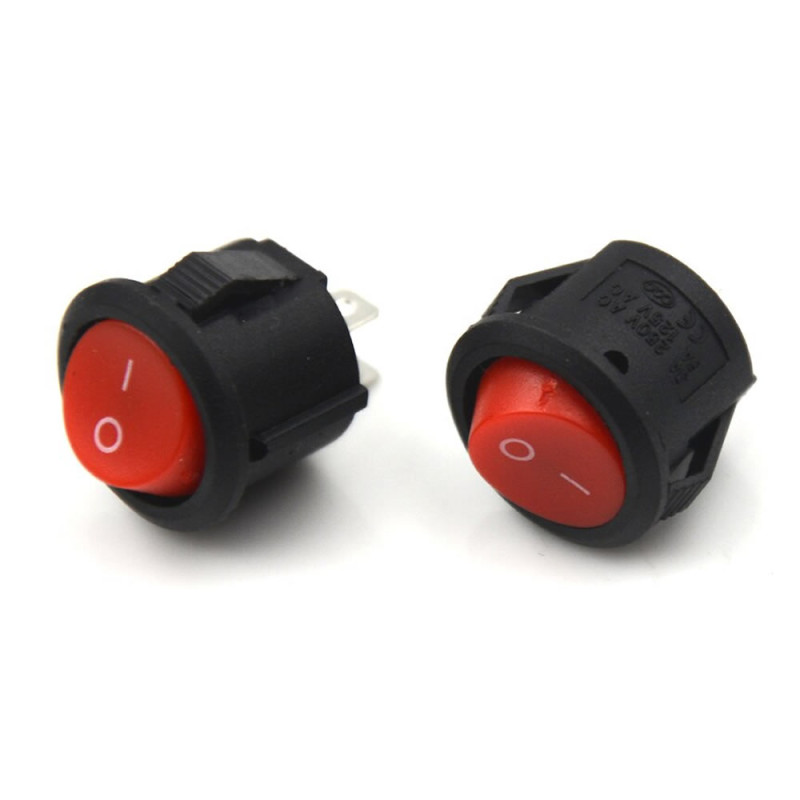

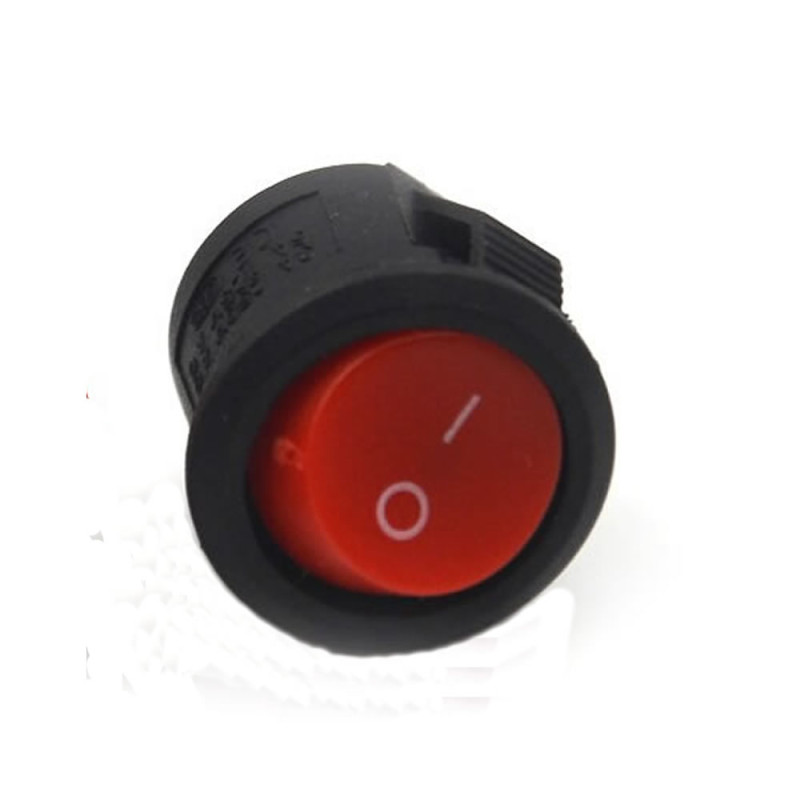

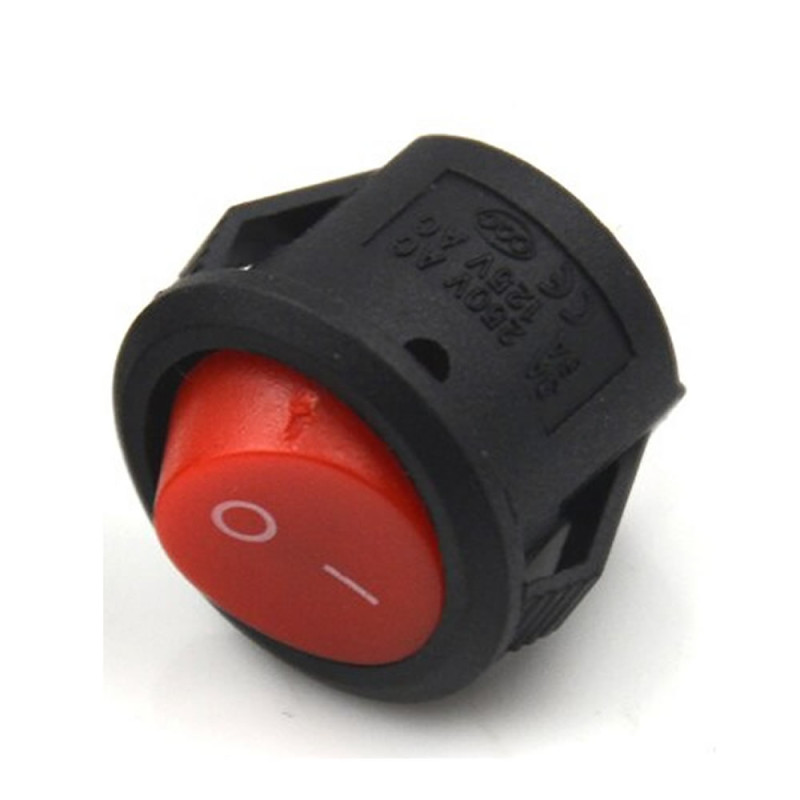

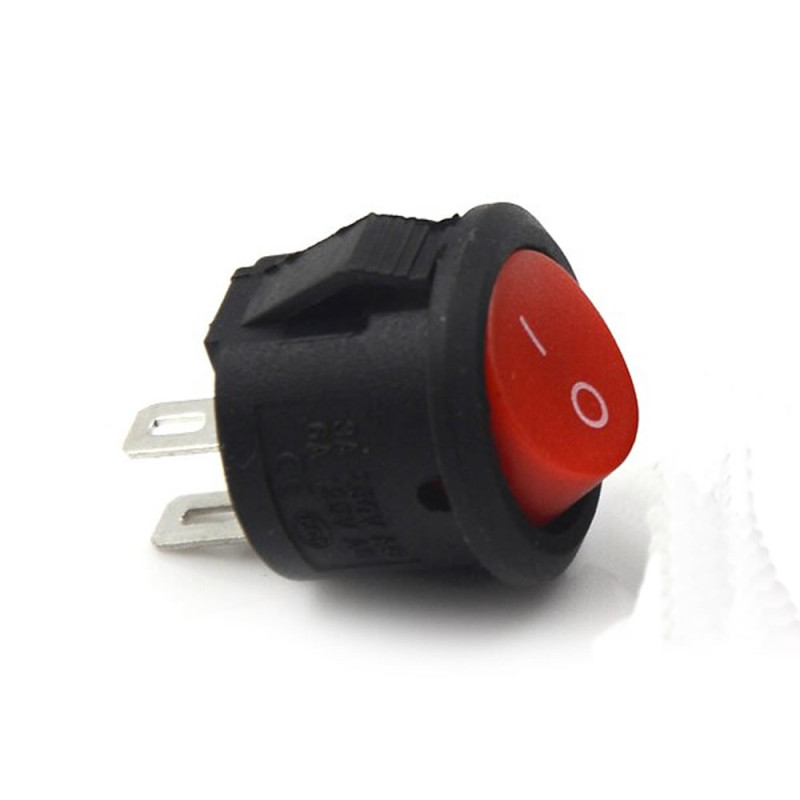

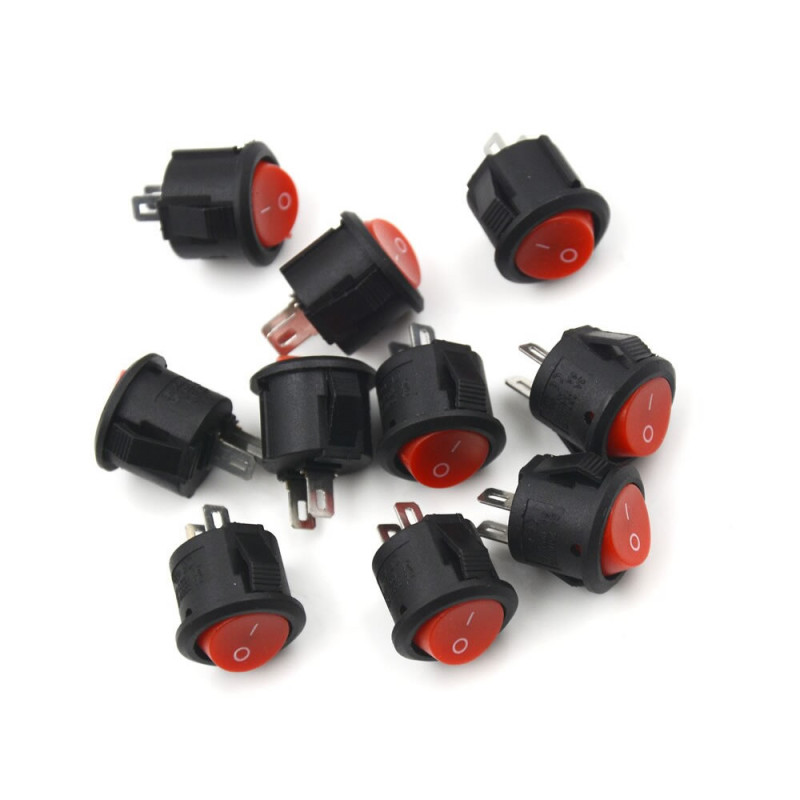

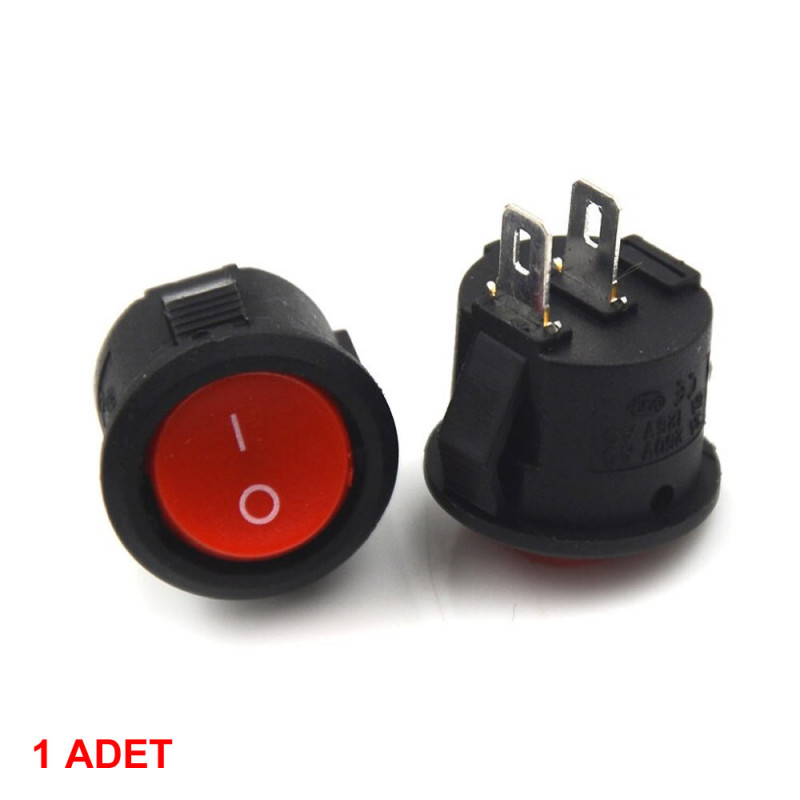

16mm Round 2 Pin Switch Red

16mm Round 2 Pin Switch Mini Button Red

Plastic On Off On / Off   3A 250V  3A 250V Latch Locking Rocker

     2 pin switch. It has a switching capacity of 3A 250V. There are I O markings on the button. “I” means the switch is short circuit and electricity is going to the relevant device. “O” means the switch is open circuit and electricity is not going to the relevant device. It stays in the position it is pressed.

Features:

• 16mm 2 Pin Switch
• Maximum current capacity: 3A 250V  /   6A 125V
• Function: SPST (ON)-OFF
• Label: I= On   -   O= Off
• Number of pins: 2
• Movement type: Latch / Latching ( It stays permanently in the I or O position )
• Material: Plastic /  Metal
• Resistance: 60mohm max
• Operating temperature:  -25C  /  +85C
• Color: Black / Red
• Lifetime: more than 10000

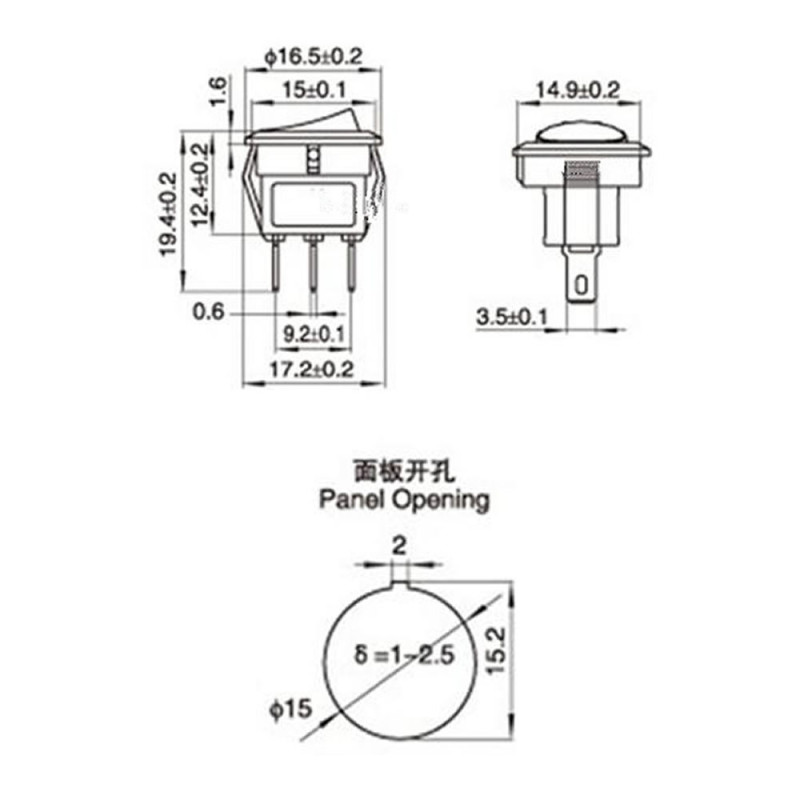

• Dimensions: 22,4mm x 16,9mm
• Weight: 2gr

Package contents:

• 1 Piece Round 2 Pin Switch Red
