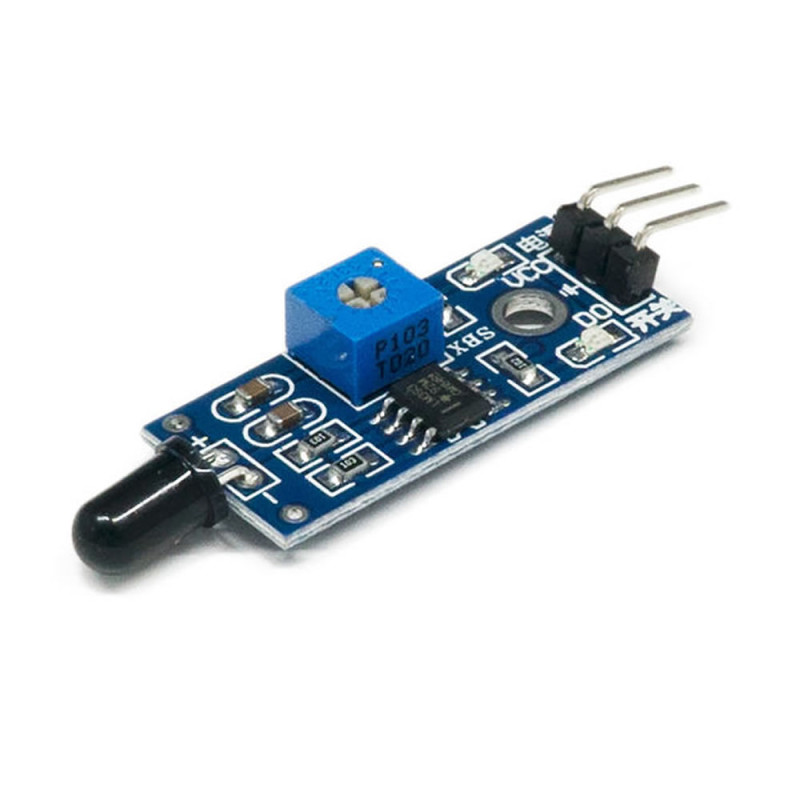

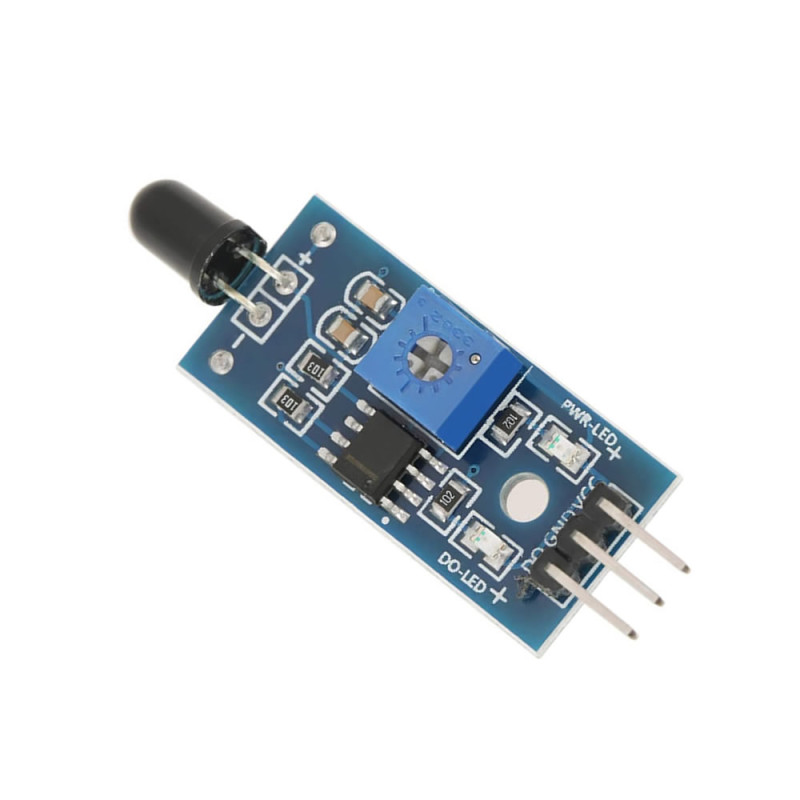

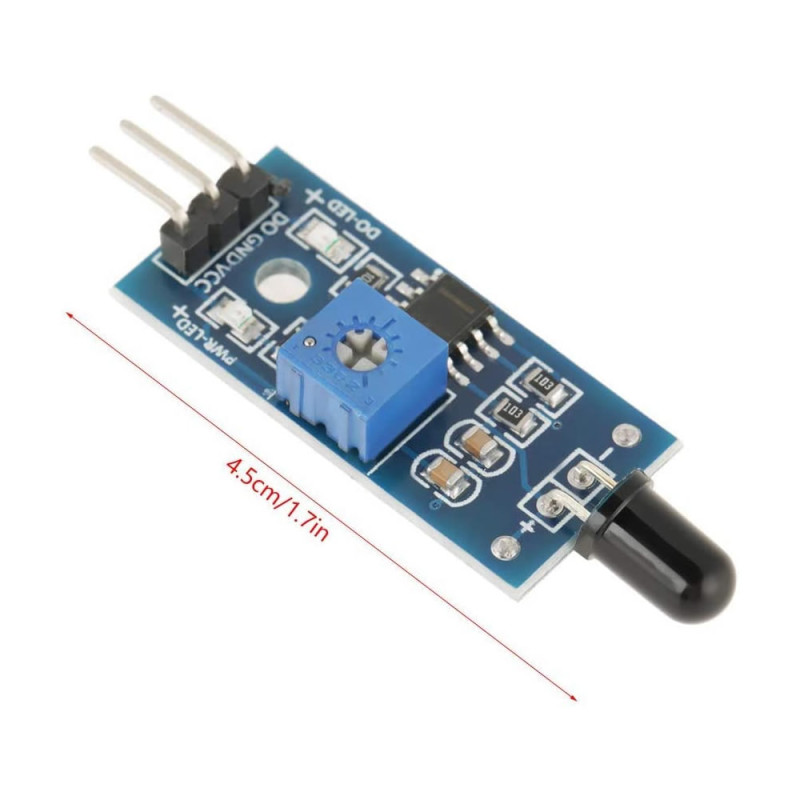

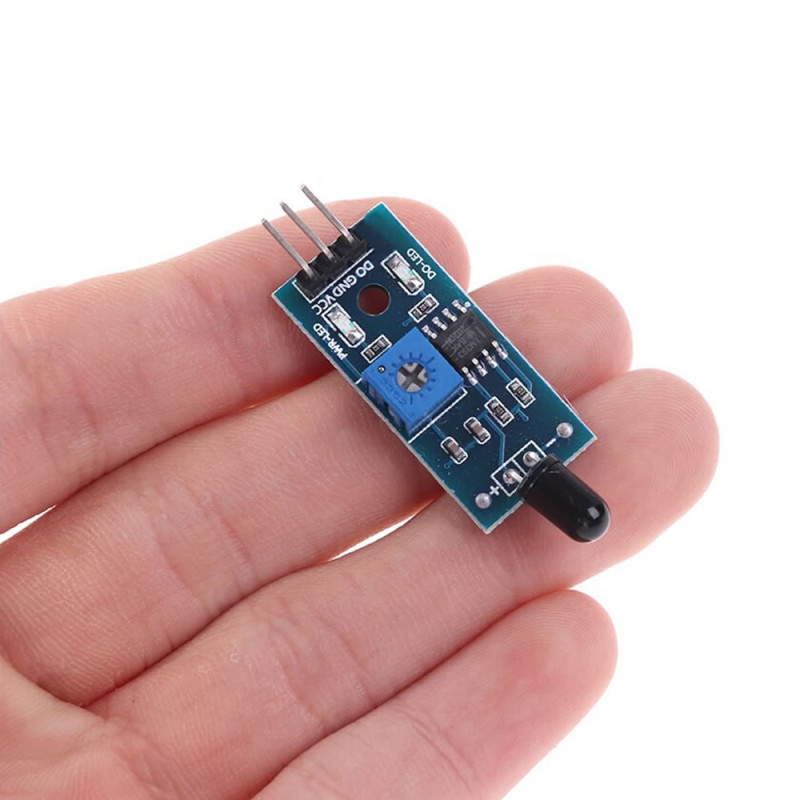

Flame Fire Detection Sensor

IR Infrared Fire Detector Security Alarm Robotic Coding Arduino Iot

     It is designed to detect the infrared light emitted by flame and fire sources. It is a compact and economical sensor module used in short range fire detection applications. It shows high sensitivity to IR light in the 760nm to 1100nm wavelength range. It provides a digital output with the LM393 comparator IC and can be used directly with microcontrollers.

     When a flame, sunlight or a strong IR source is detected, if the set threshold is exceeded the status led lights up and a digital LOW or HIGH level is produced from the DO pin.

     It can be used as a fire detection sensor in fire extinguishing robots. Sensitivity can be adjusted with the trimpot on it and a digital output is obtained. This module is suitable for fire alarm systems, automatic shutdown or triggering scenarios, experimental projects and educational applications.

Features:

•     Operating voltage: DC 3.3V - 5V
•     Operating current: 15mA
•     Signal output: Digital output (0 or 1)
•     Wavelength: It can detect IR light in the 760nm to 1100nm range.
•     High sensitivity to the flame spectrum
•     Detection angle: 60 degrees
•     Detection distance: Approximately 80cm with a lighter flame
•     The detection distance increases as the flame grows
•     It can be used in fire extinguishing robots and fire detection systems.
•     LM393 comparator IC
•     DO: Digital output pin
•     Sensitivity can be adjusted with the adjustment pot.
•     It can be used as an IR receiver board.
•     Mounting hole
•     3 pin male header connection

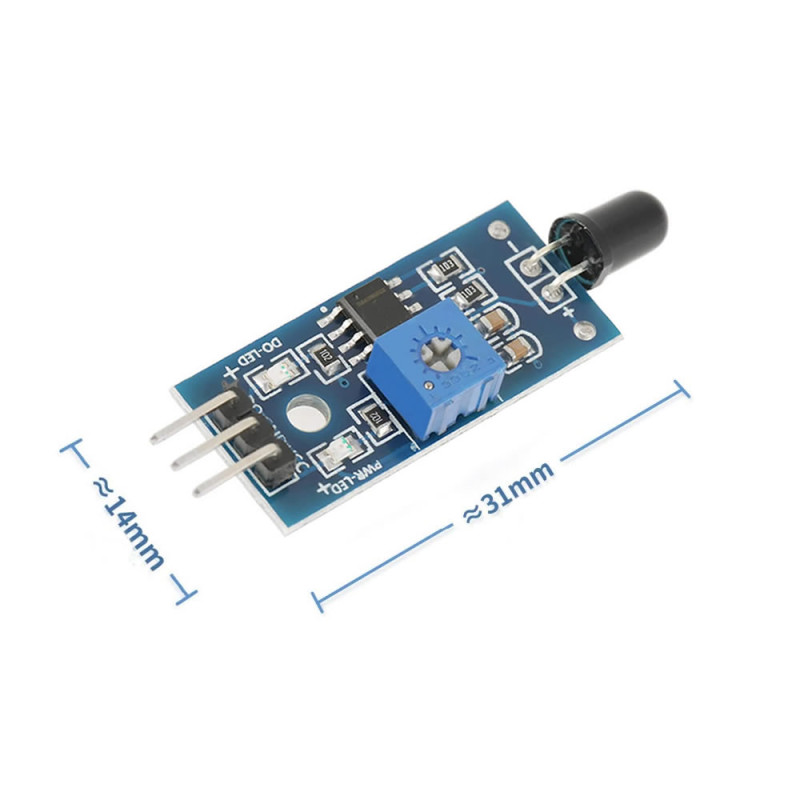

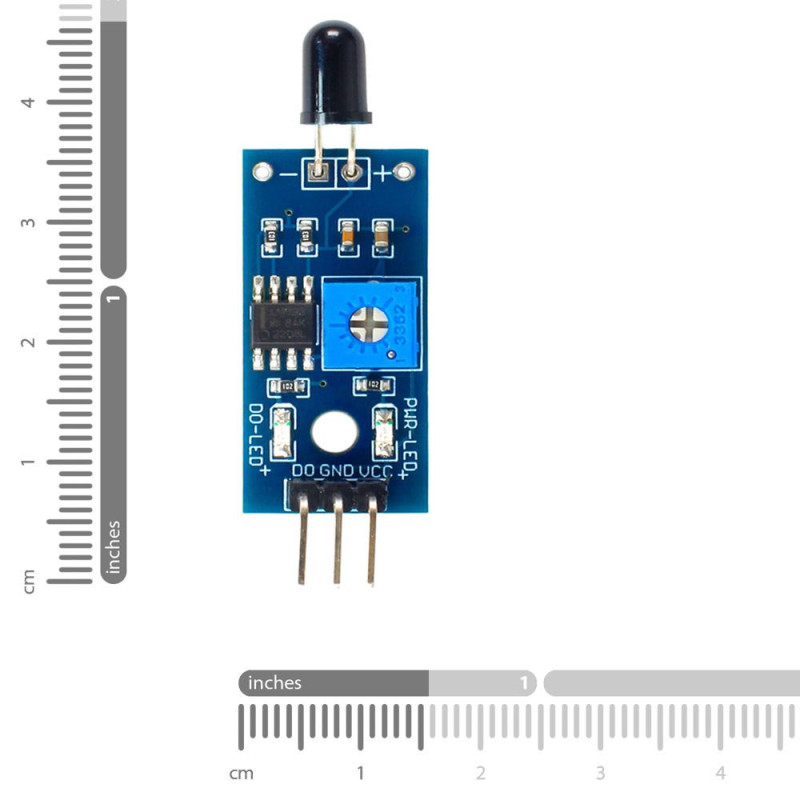

•     Dimensions: 14mm x 31mm
•     Weight:  3gr

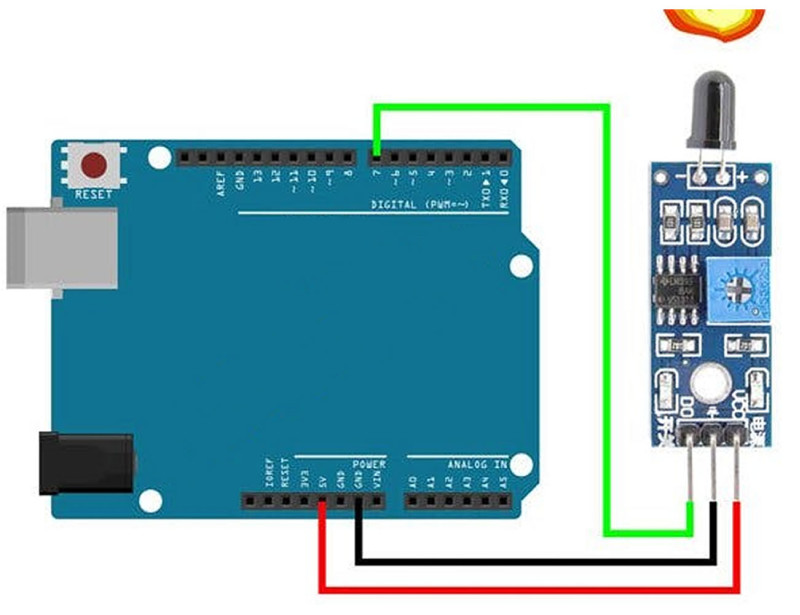

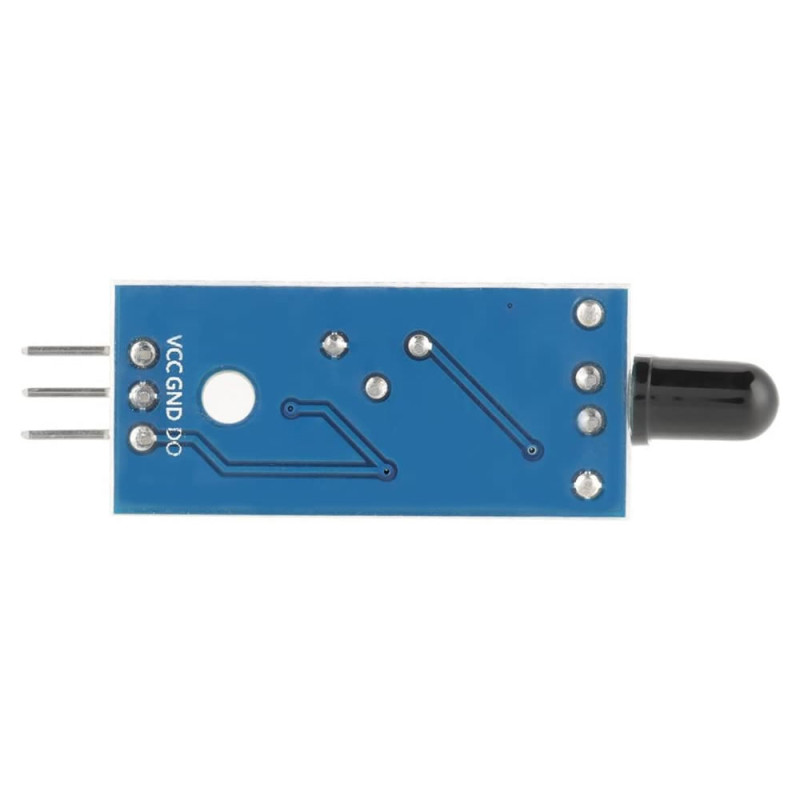

Pin descriptions:

• VCC: 3.3V or 5V supply input
• GND: Ground
• DO: Digital output pin

Areas of use:

• Fire alarm and warning systems
• Automatic fire extinguishing projects
• Industrial safety applications
• Arduino and similar microcontroller projects
• Education and experiment kits
• Flame detection in robotic projects
• Smart home security scenarios

• 1 Piece Flame Fire Detection Sensor
