IIC GM12864 Glcd Blue

2.2 Inch I2C IIC GM12864 V2.0 Blue Glcd Module

ST7567S DC 3.3V 5V 128x64 Pixel Graphic Lcd Display Screen Electronic Circuit Indicator Menu Image Text COG LCM

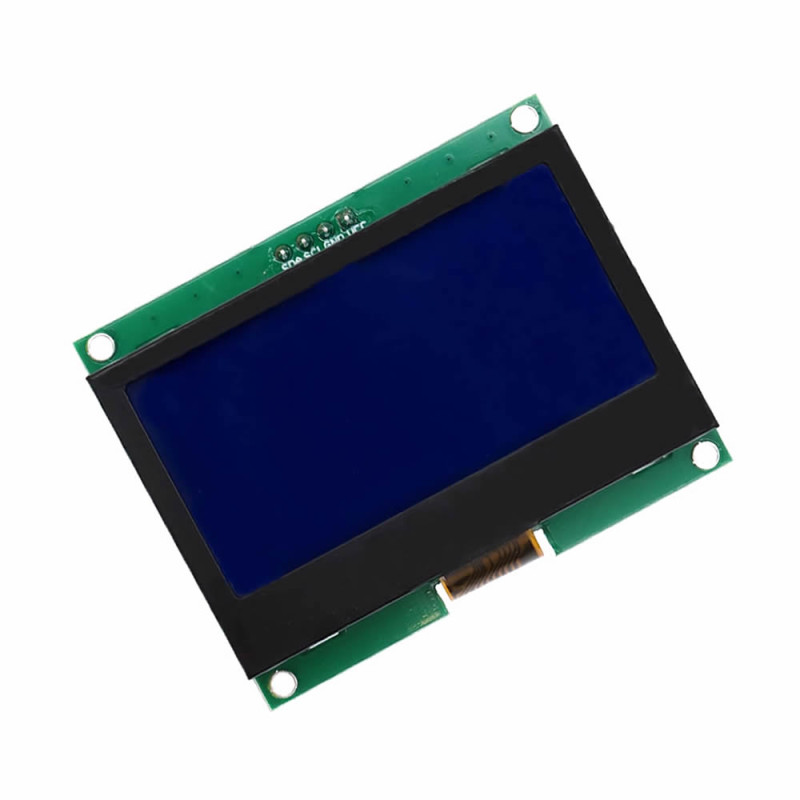

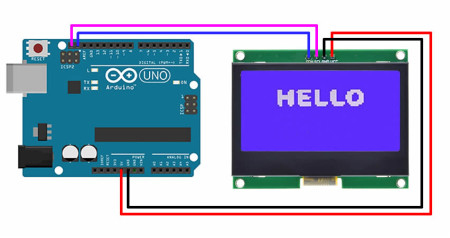

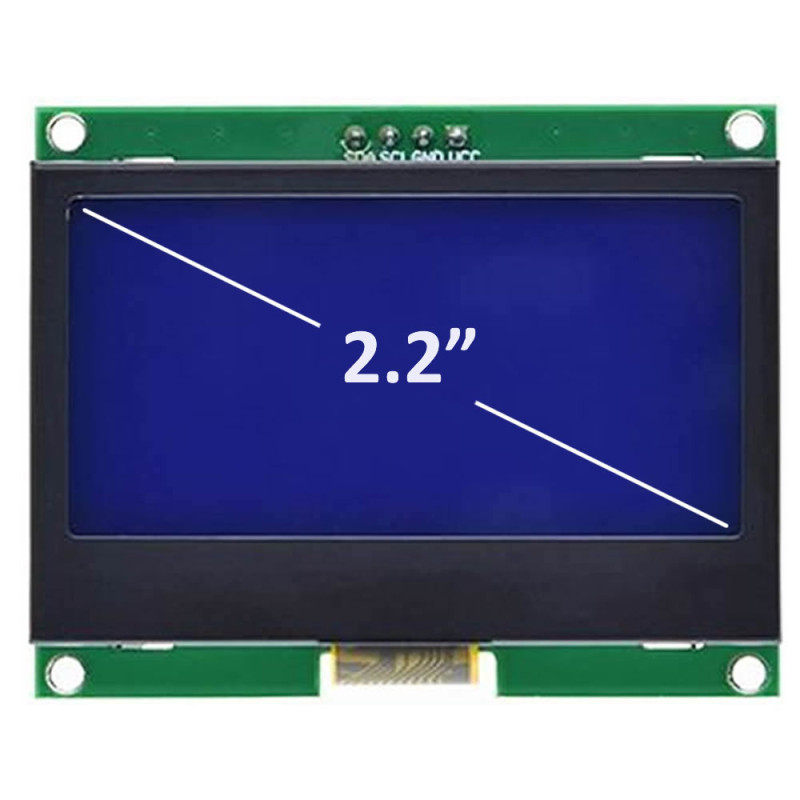

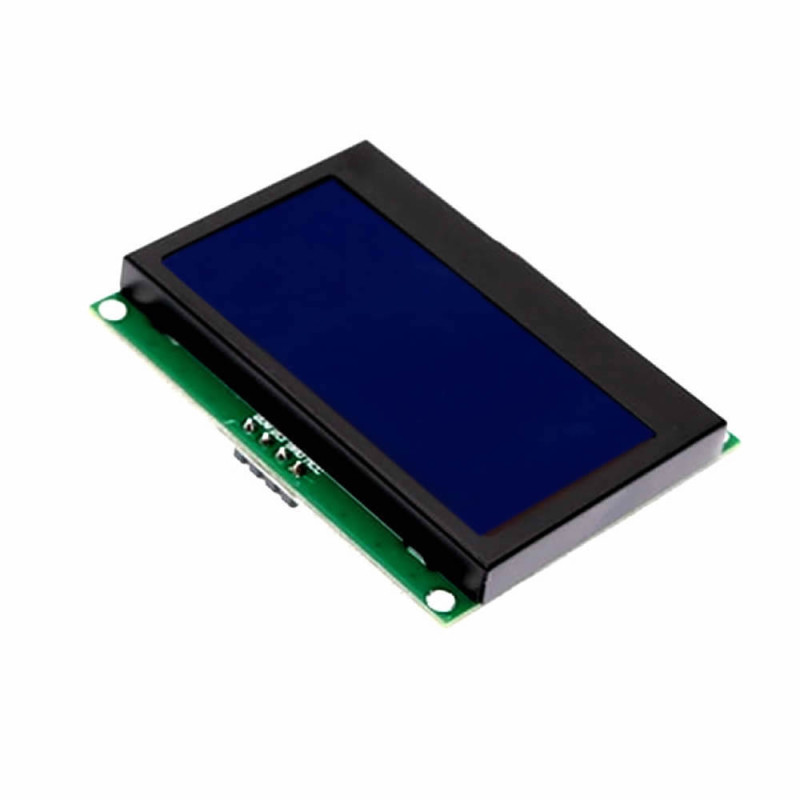

     128x64 blue graphic lcd module. It is a lcd screen with 2.2 inch 128 column 64 row resolution. It has the ST7567S driver integrated circuit. The product is driven with serial communication over IIC  . It can easily be used by many systems such as Arduino. .

     Unlike character lcds, text and graphics can be created in the desired sizes. 8192 Dots can be made active or passive as desired, giving the possibility of creating very nice images, menus and texts.

     It is white on a blue base. With its small structure it takes up little space in circuits. It can operate in a wide temperature range. It has low power consumption. It can operate with DC 3.3V /  5V supply.

Features:

• Model GM12864 V2
• Operating voltage: DC  3.3V / 5V
• Communication: IIC
• Driver: ST7567S
• Number of columns: 128
• Number of rows: 64
• Lcd color. Blue
• Text color: White
• Wide viewing angle
• High contrast
• Operating temperature: -20C / +70C

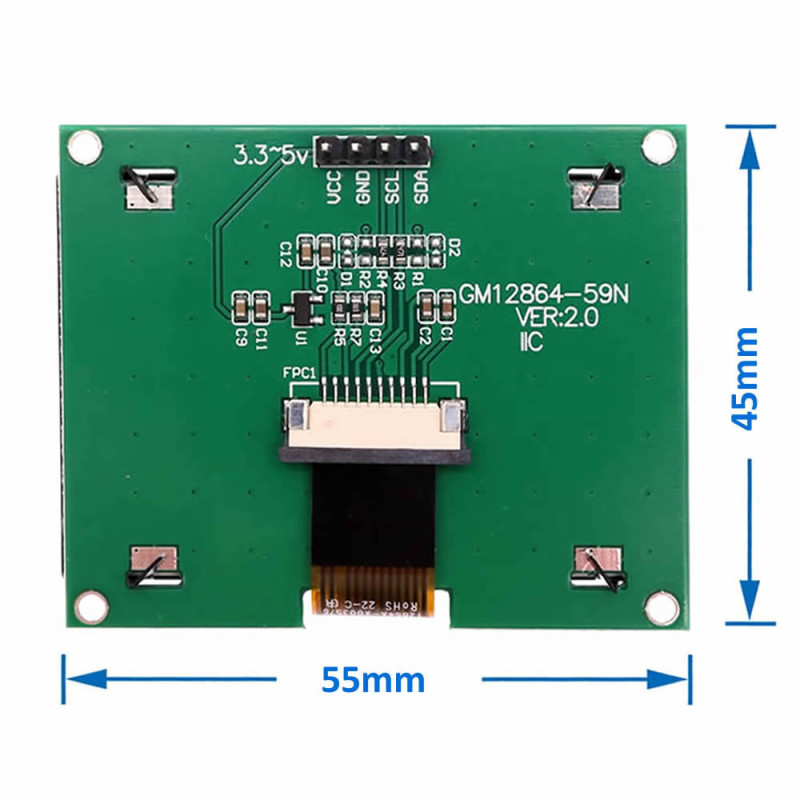

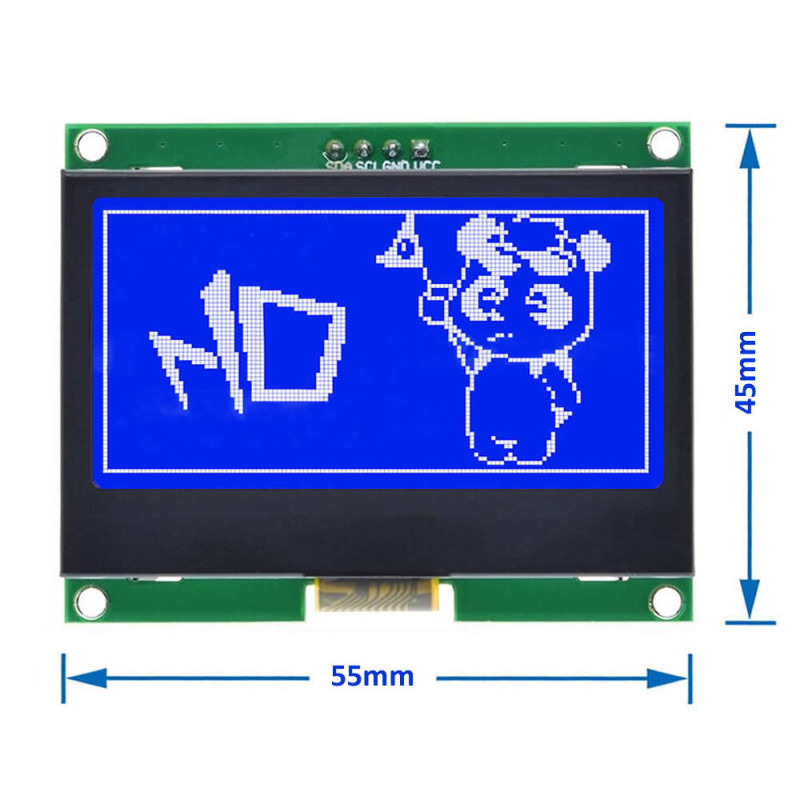

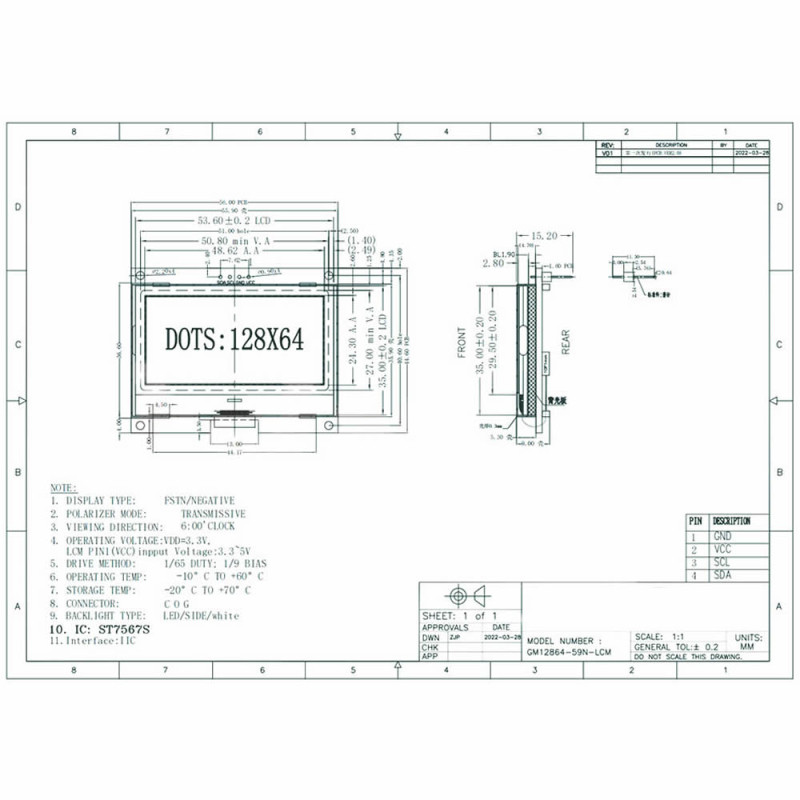

• Dimensions:  45mm x 55mm
• Weight: 28gr

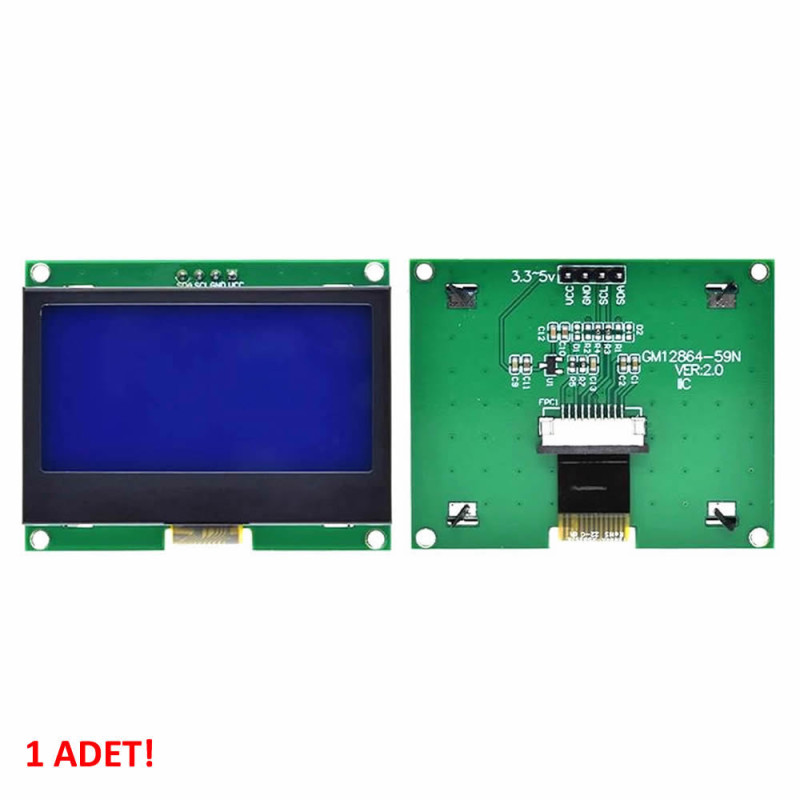

Pin Description:

• VCC: DC  3.3V / 5V
• GND: Ground
• SCL: I2C clock
• SDA: I2C Data

Driver and sample code:  github.com/luetee/ST7567S_128X64_I2C

Package Contents:

• 1 Piece IIC GM12864 Glcd Blue Module

.
