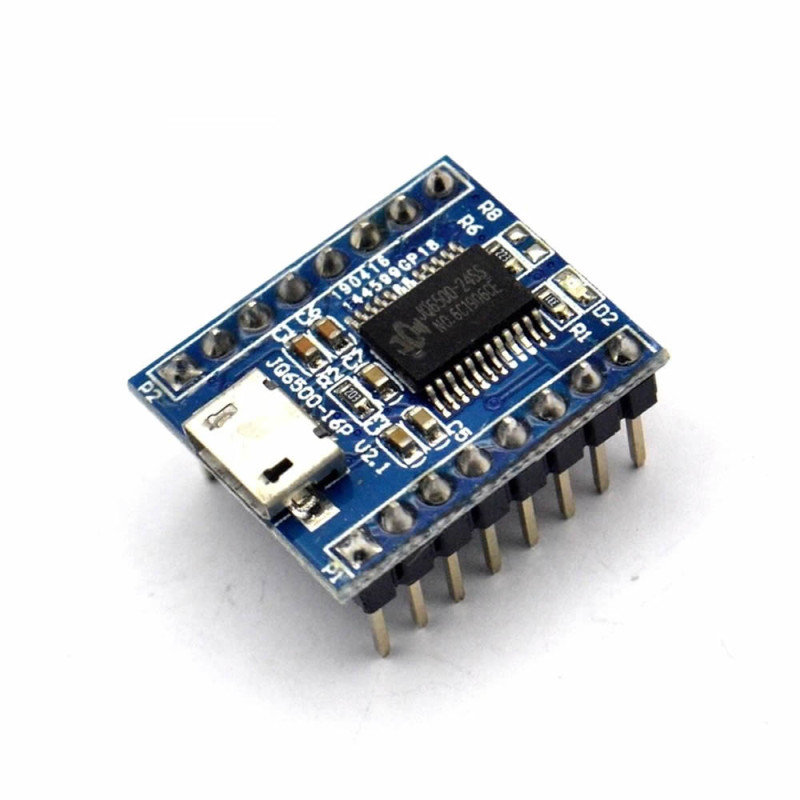

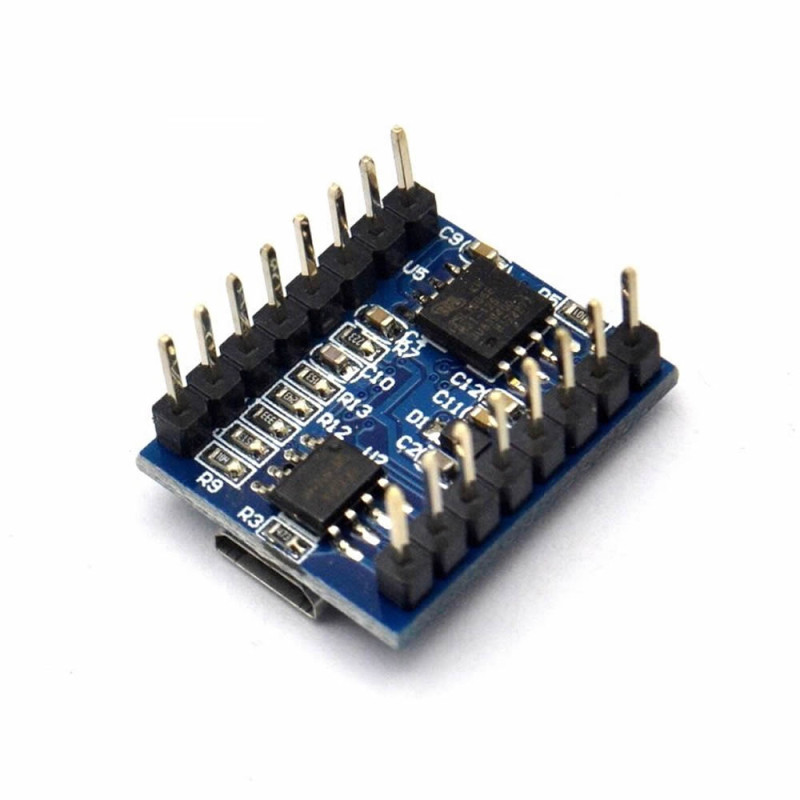

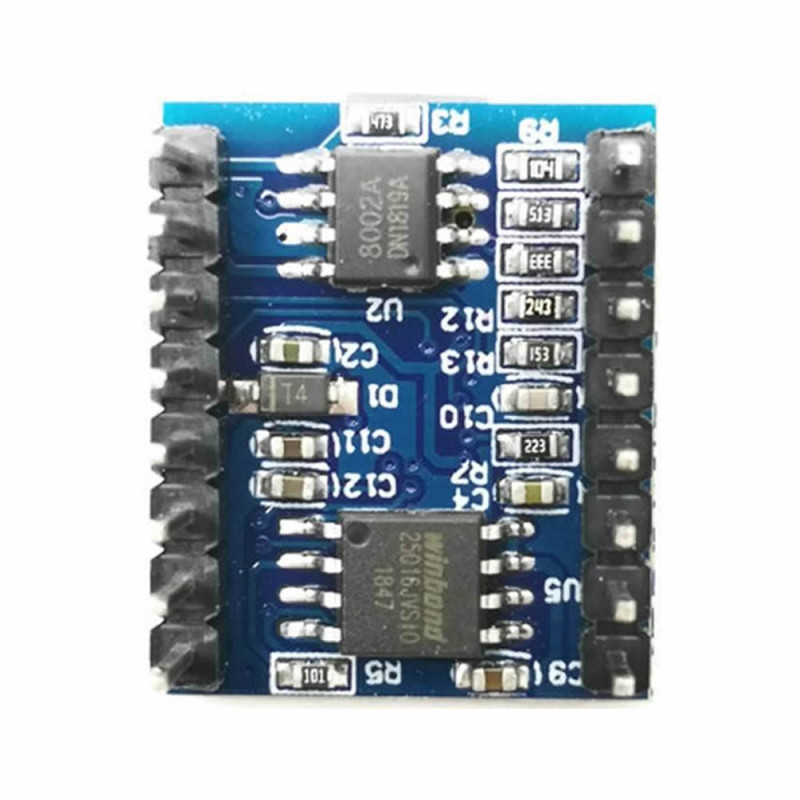

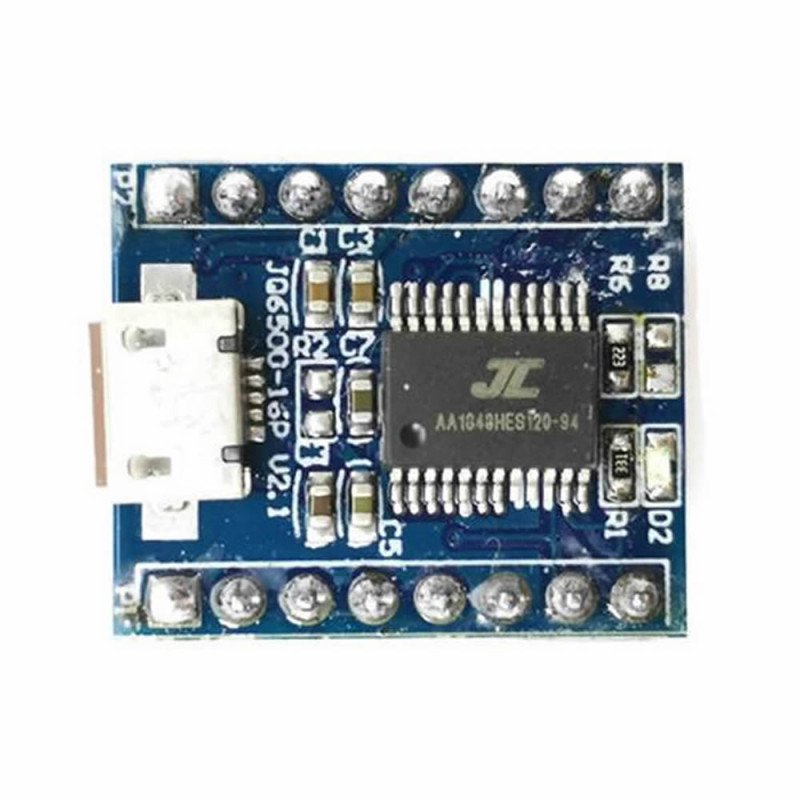

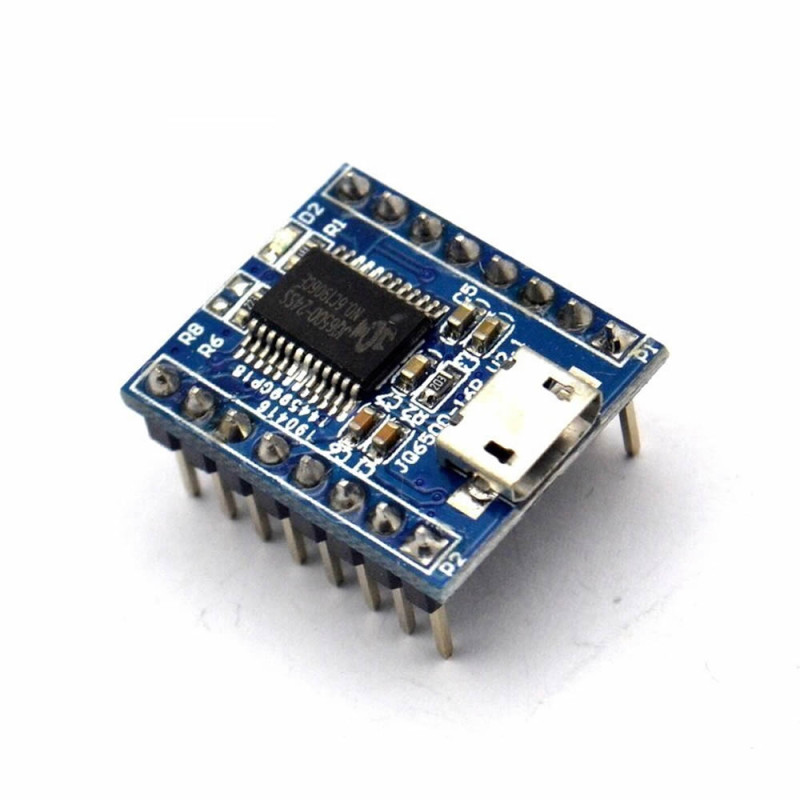

JQ6500 Mp3 Module

JQ6500 16Mbit Mini Audio Mp3 WMV Player

Audio Music Playback Board Micro Usb Uart Communication 5 Button Control

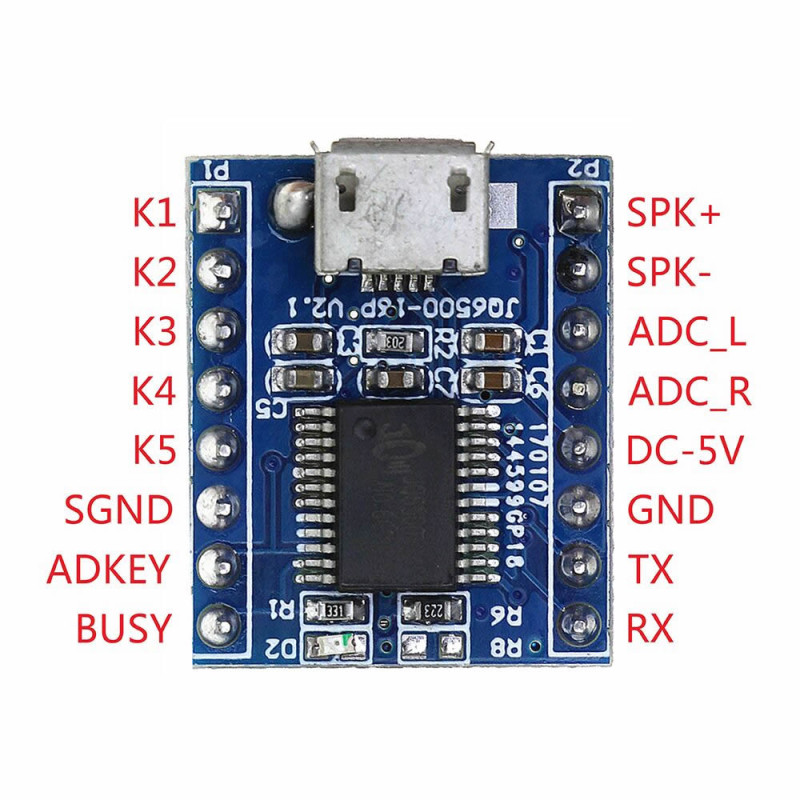

     It is a module that can play audio files with MP3 and WMV extensions. It has 16Mbit memory. You can easily upload your audio files via helper programs over the computer. Through the 5 pins on it you can assign different music files to different pins.

Features:

• Supply voltage: DC 3.5V - 5V
• Nominal current: 20mA
• Audio file upload and delete over Micro Usb
• Audio file playback support with TTL UART communication
• 16Mbit Flash memory support
• 24 bit DAC output
• Speaker: 3W
• FAT16, FAT32 file system support
• Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
• 11172-3 and ISO13813-3 layer3 audio decoding support
• 10 different sound effect support such as Jazz, Classic, Rock, pop etc.
• 30 level volume adjustment

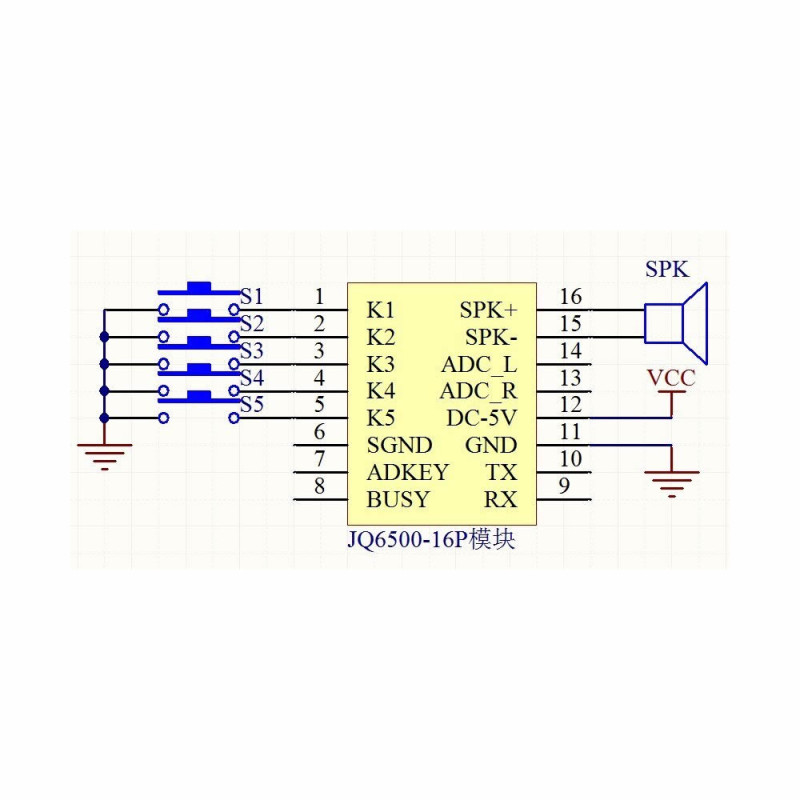

• 5 button audio file playback support
• Easily applicable package in DIP16 structure
• Operating temperature:   -40C  /  +85C

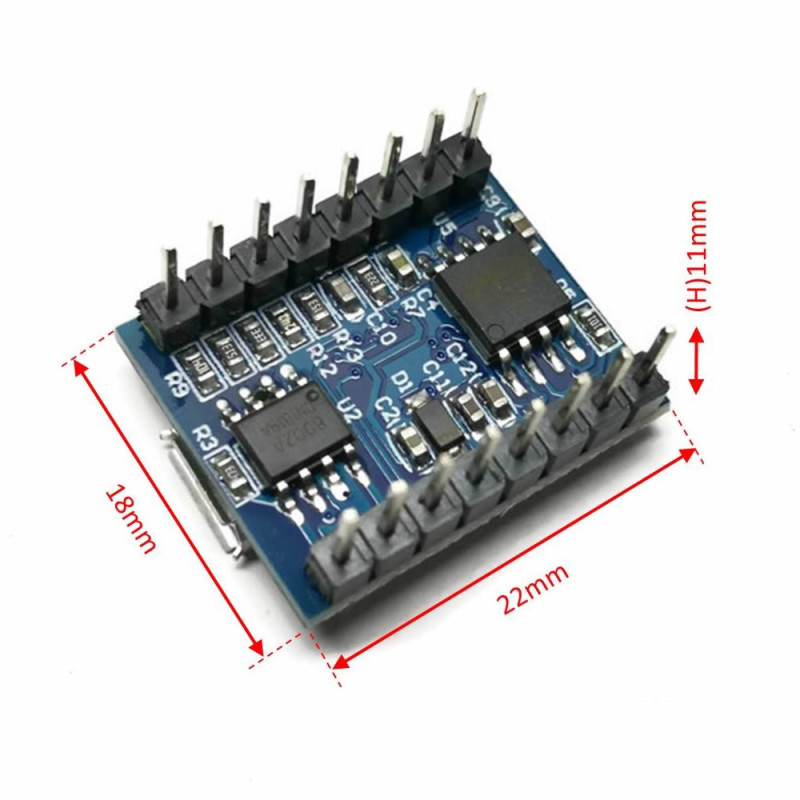

• Dimensions:  11mm x 18mm x 22mm
• Weight: 3gr

Package Contents:

• 1 Piece JQ6500 Module
