5730 12V 3W White Led Module

5730 12V 3W 32mm White Led Module

Aluminum Pcb 6 Led Lamp Lighting Light

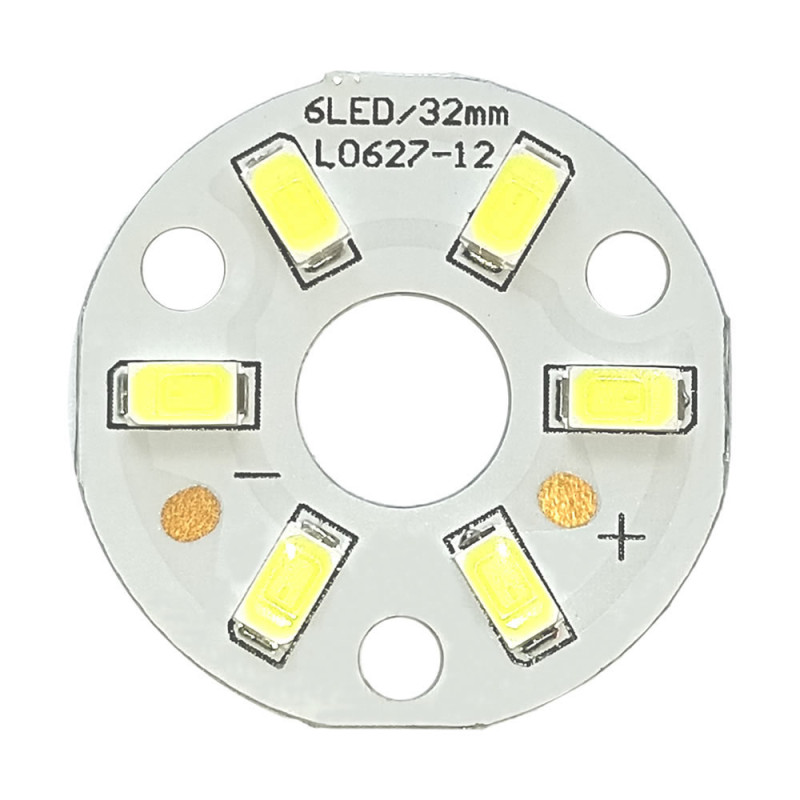

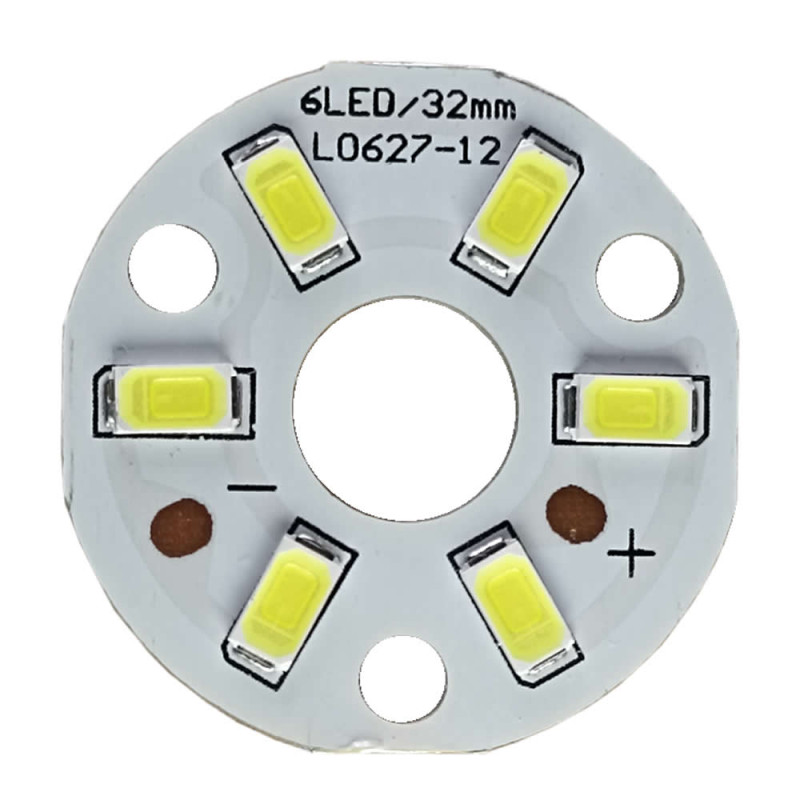

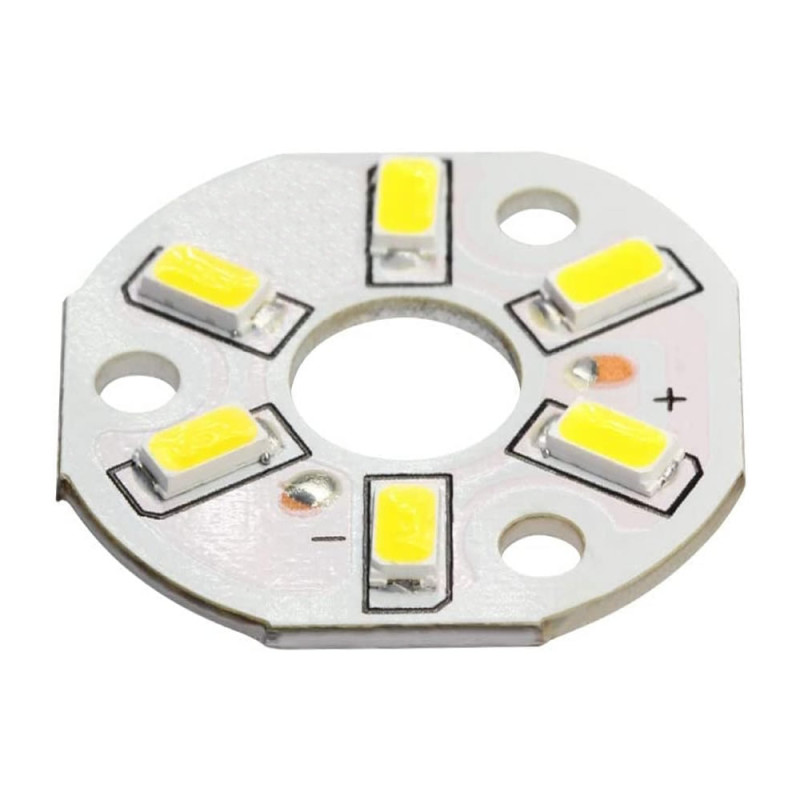

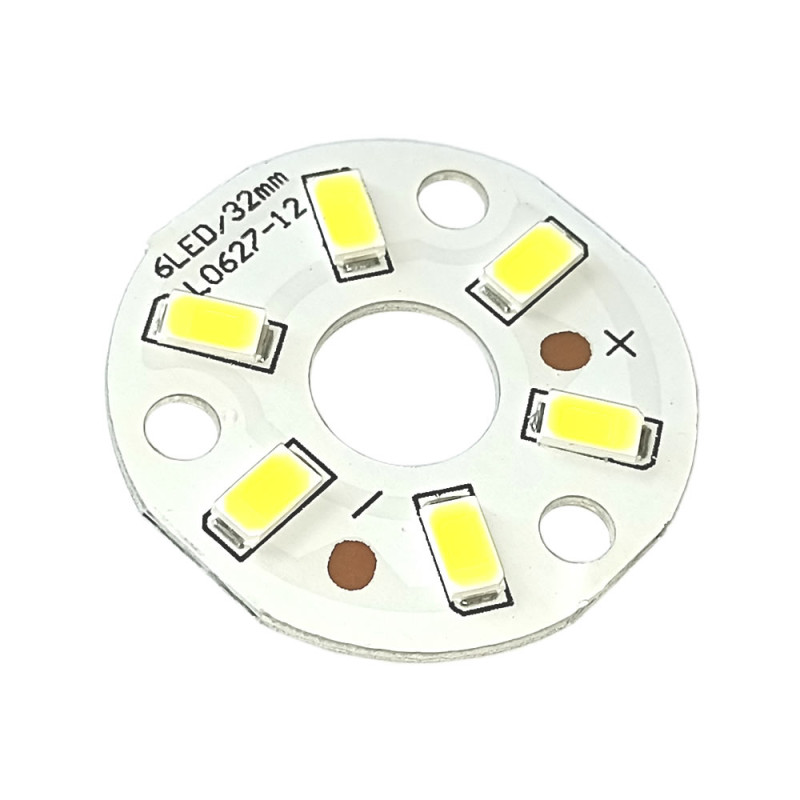

     The 5730 12V 3W White Led Module is a round light board made of 6 pieces of 5730 SMD LEDs arranged on a ring shaped aluminum PCB with a 32mm outer diameter. It is a 12V class board; it works at about 200mA with a constant current LED driver and gives white light close to daylight with a 5000K colour temperature. On the front side there are two solder pads marked + and -, a 10mm through hole in the centre and 3 pieces of mounting holes around it.

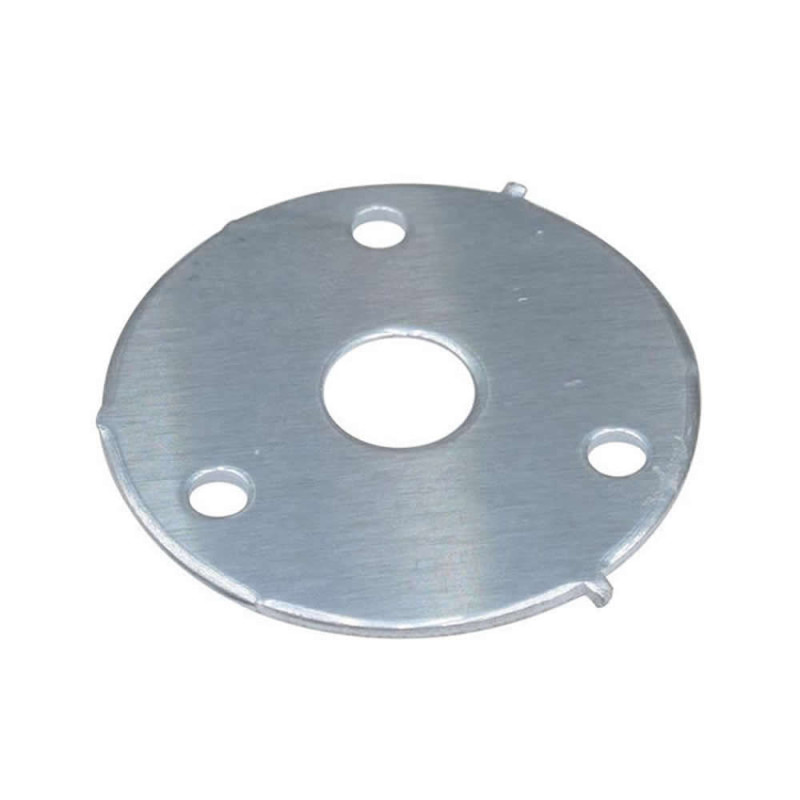

     The base of the board is aluminum; the heat generated by the LEDs is transferred through this base to a heatsink surface or to a metal fixture body. There is no current limiting resistor on the board, so it must be driven with an LED driver (constant current source). It is suitable for replacing the light board of failed LED bulbs and spots, for building recessed spots and small ceiling fixtures, or as a compact light source for showcase and cabinet lighting.

     What separates it from the 5V boards of the same family is its 12V supply and 32mm diameter; it is not meant for 5V USB supply. The 10mm hole in the centre lets a cable or a fixture screw pass through the middle of the board.

Key features:

     12V class board: The board is designed for 12V class LED bulbs, spots and fixtures; it works at about 200mA with a constant current LED driver. As there is no resistor on the board, it is not connected directly to a 12V adapter.

     Aluminum base: The ring shaped aluminum PCB carries the heat of the LEDs to the back of the board. When the board is seated on a heatsink surface or a metal body, the heat spreads better and LED life is preserved.

     6 pieces of 5730 LEDs: There are 6 pieces of 5730 SMD LEDs arranged in a ring on the board. The light is a white tone close to daylight with a 5000K colour temperature.

     Easy mounting: The board is screwed to the fixture through 3 pieces of mounting holes; a cable or screw can pass through the 10mm centre hole.

     Front side connection: The supply wires are soldered to the + and - marked pads on the front side; the back stays flat and sits fully on the surface.

Features:

• Product type: ring shaped 5730 SMD white LED module with 6 LEDs
• Model: 5730 12V 3W White Led Module
• Operating voltage: DC 12V class (with a constant current LED driver)
• Power: 3W maximum
• Operating current: about 200mA
• Driving: must be driven with an LED driver (constant current source); there is no current limiting resistor on the board
• LED count and type: 6 pieces of 5730 SMD LED (5.7mm x 3.0mm package)
• Light tone: white, 5000K colour temperature
• Beam angle: about 120 degrees (5730 LED)
• Connection: 2 pieces of solder pads marked + and - on the front side
• Heat dissipation: aluminum base, can be mounted on a heatsink surface or a metal body
• Board marking: 6LED/32mm
• Mounting holes: 3 pieces of screw holes and 1 piece of through hole in the centre
• Material: ring shaped aluminum PCB

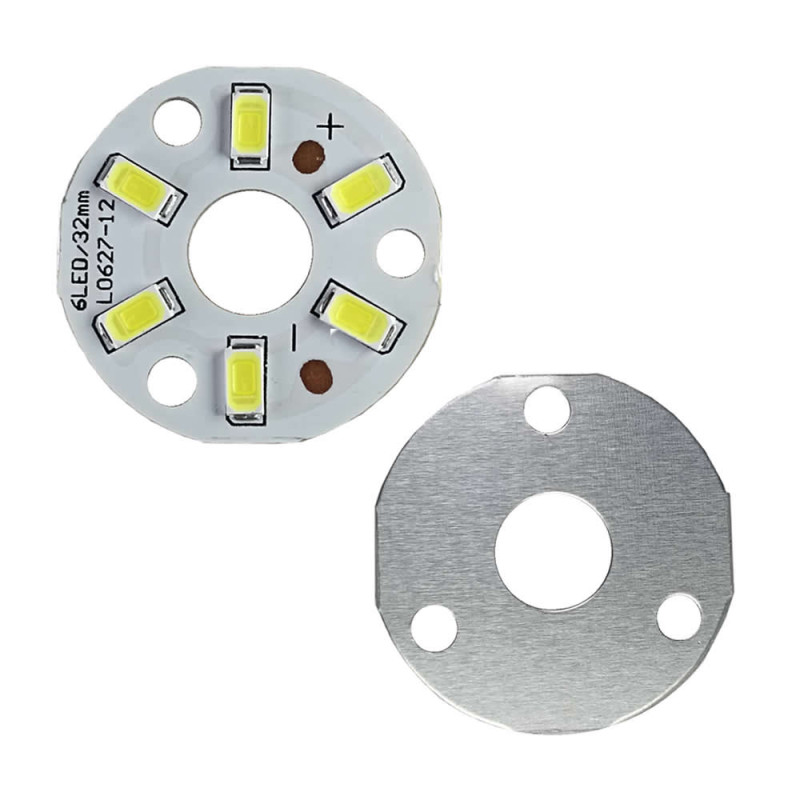

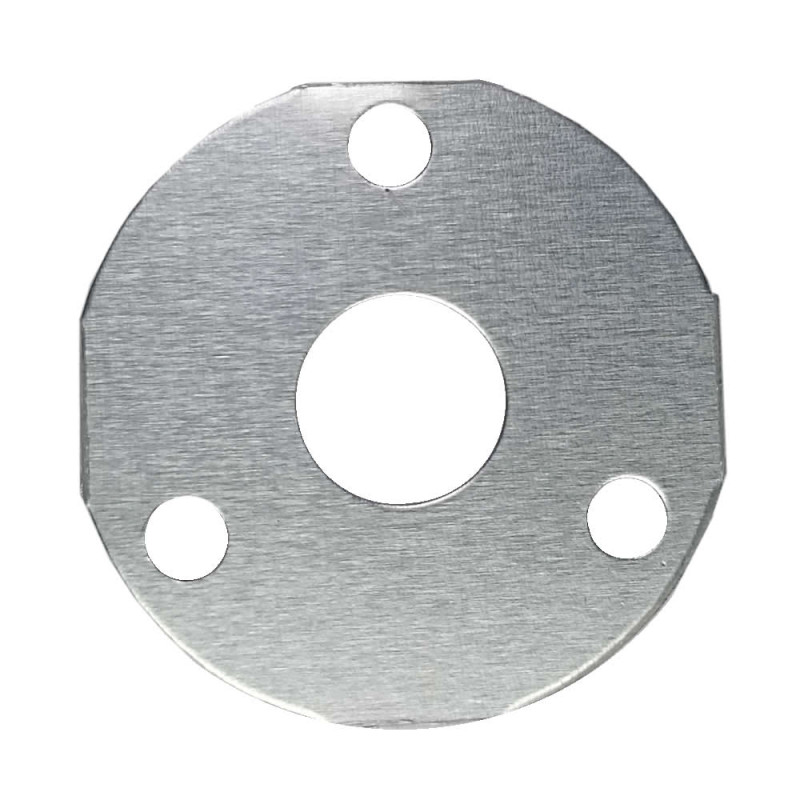

• PCB colour: white front side, grey aluminum back side

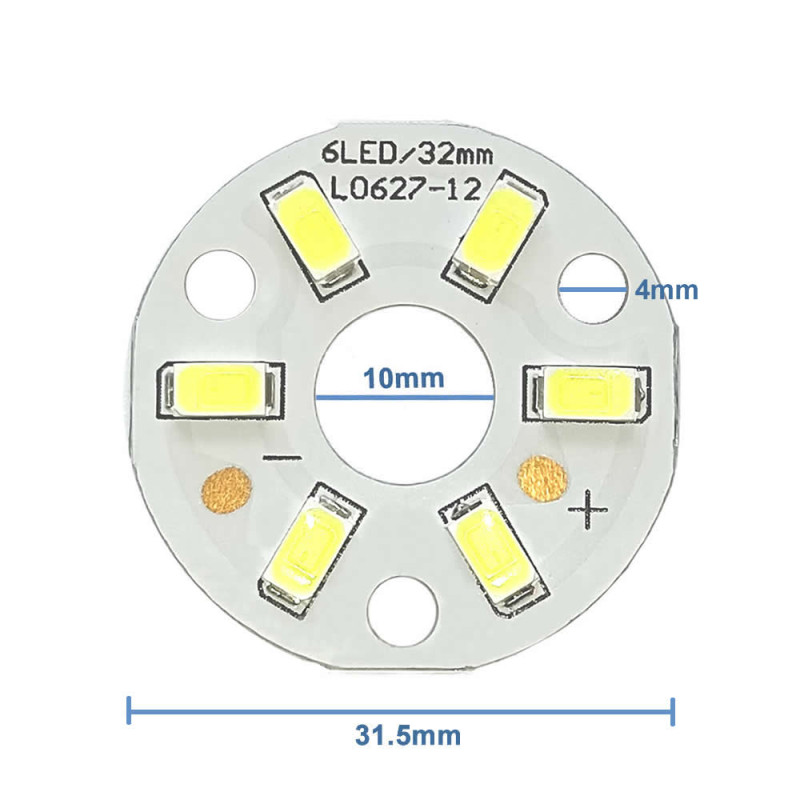

• Outer diameter: 32mm
• Inner diameter: 10mm
• Weight: 3gr

Usage information:

• Connect the board to an LED driver that supplies about 200mA constant current and whose output voltage range covers 12V. Solder the + end of the driver to the + pad of the board and the - end to the - pad; check the polarity before applying power.
• Fix the board to a heatsink surface or a metal fixture body by screwing it through the 3 mounting holes or with thermal paste / thermal adhesive; make sure the back side sits fully on the surface.
• When replacing the board of a failed bulb or spot, check the diameter, voltage and driver output of the old board; this board is suitable for 32mm diameter and 12V.

Areas of use:

•  Failed LED bulb repair (light board replacement)
•  Building and repairing recessed spots and spot fixtures
•  Small ceiling fixtures and ceiling lamps
•  Building desk lamps and lampshades
•  Showcase and product display lighting
•  Cabinet, drawer and in-shelf lighting
•  Building workshop and workbench lamps
•  Model and diorama lighting
•  Stair and corridor wall fixtures

Precautions:

•  There is no current limiting resistor on the board. Do not connect it directly to a 12V adapter or battery without current limiting; use an LED driver (constant current source).
•  This board is for 12V; it is not suitable for use with 5V USB or a powerbank. If you need a board that works with 5V, choose the 5V version.
•  For long operation, mount the board on a heatsink surface or a metal body; a board operated in the air without heat dissipation heats up and LED life is shortened.
•  Do not connect the polarity reversed; check the + and - connection before applying power.
•  Do not look directly at the lit LEDs from close up for a long time.

Package contents:

•  1 Piece 5730 12V 3W White Led Module
•  Note: LED driver, cable and heatsink are not included in the package.
