Mini Max3232 RS232 TTL Breakout

Mini Max3232 RS232 TTL Breakout Module

Uart 250kbps DC 3V 5V Serial Port Communication Arduino Mcu Satellite Receiver Dvd GSM Phone Firmware Update

     It is the board that converts the RS232 serial port on your computer to TTL logic level. It is made with the Max3232 integrated circuit. Using this board you can use it for communication between your computer and various electronic devices. It works trouble-free with circuits having a supply between DC 3.3V or 5V.

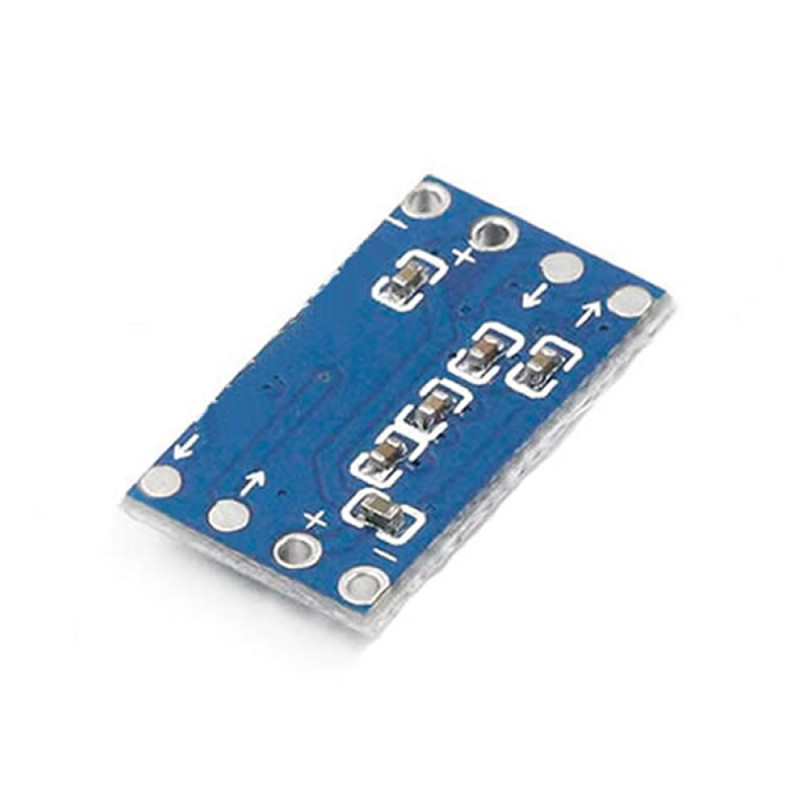

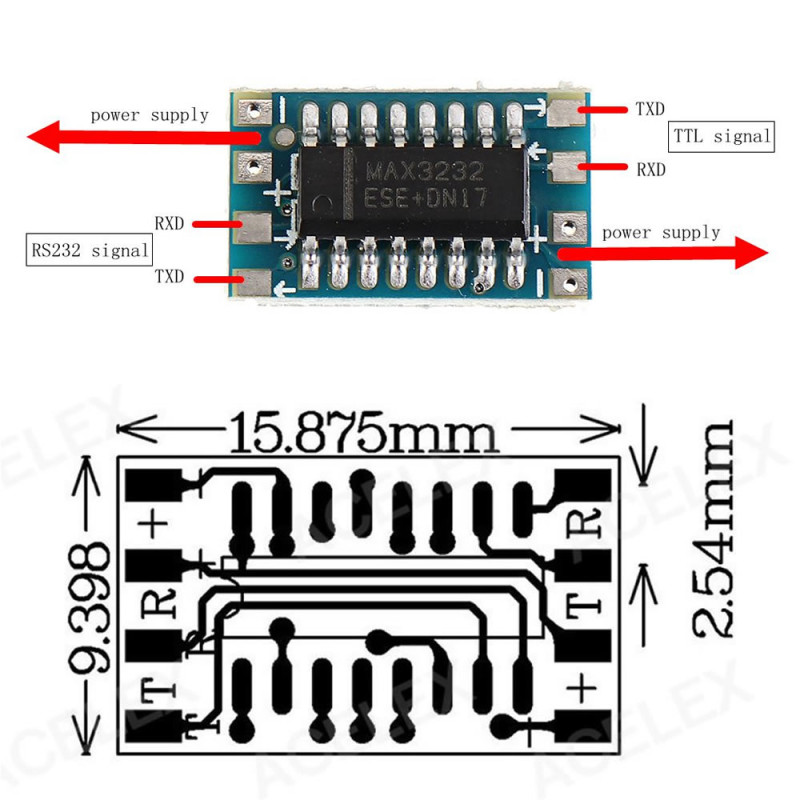

     There are power inputs shown with + and - located at the two ends of the board. There are supply pads on both sides. It is sufficient for you to supply power from only 1 side. Signal directions are shown with arrows. The arrow going inward is the input Rx terminal. The one going out is the tx terminal.

Features:

• Integrated circuit: Max3232
• Operating voltage: DC 3V / 5V
• Operating current: 6 mA
• Communication type: Rs232 Uart
• Baudrate:  Maximum 250 kbit/s
• Color: Blue / Black
• Operating temperature: -20C / 85C
• Pad spacing 2.54mm

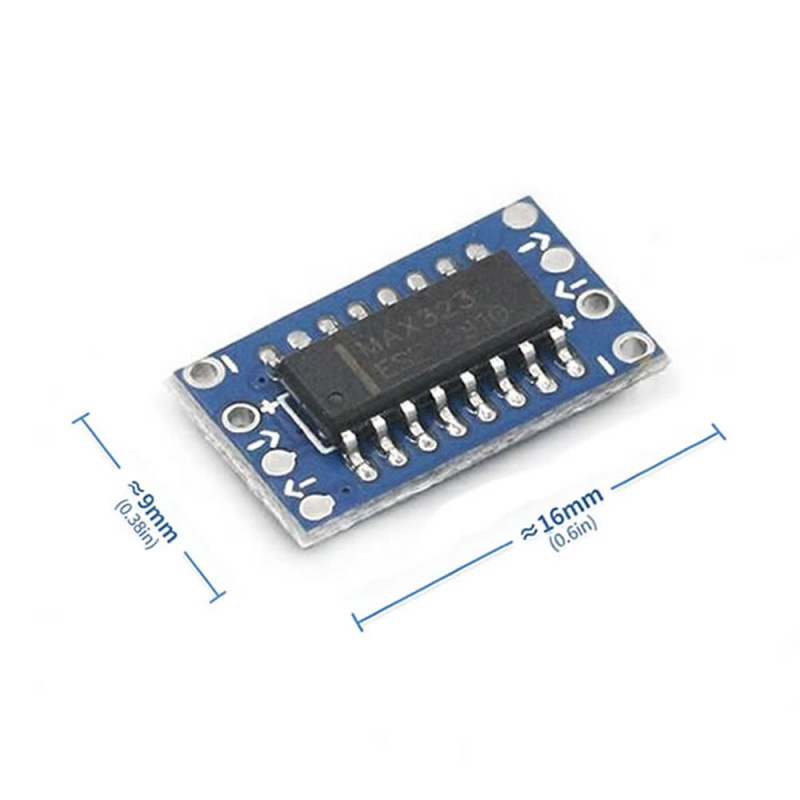

• Dimensions:  9mm x 16mm
• Weight: 2gr

Package contents:

• 1 Piece Mini Max3232 RS232 TTL Breakout
