0-50V 4A DC Filter

0-50V 4A DC Power Supply Filter

Noise Suppressor Reducer Filter Bead RFI EMI Interference Blocker Car Amplifier Industrial Control Measuring Instrument Medical

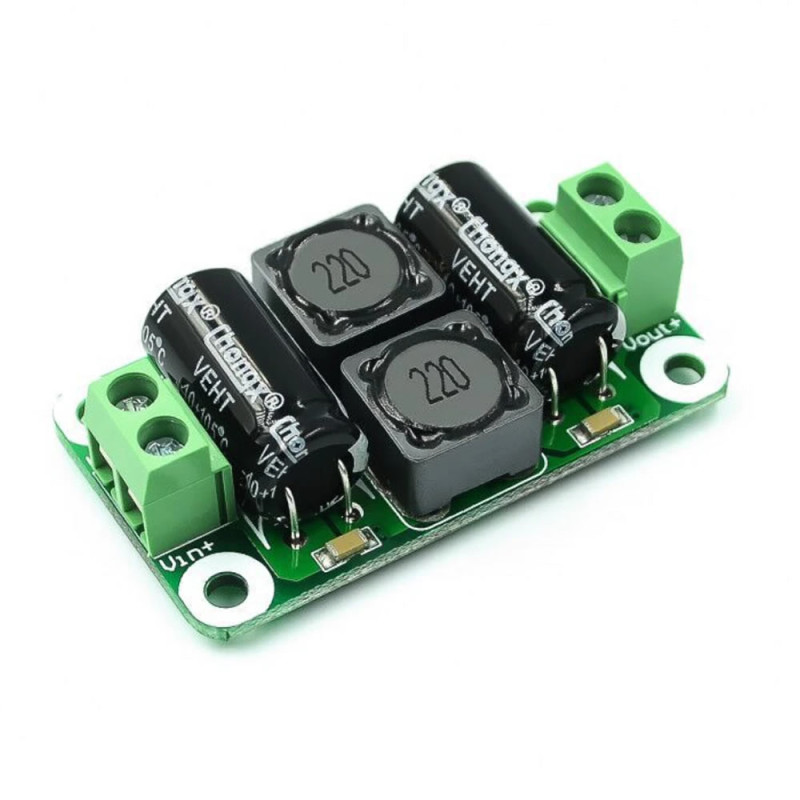

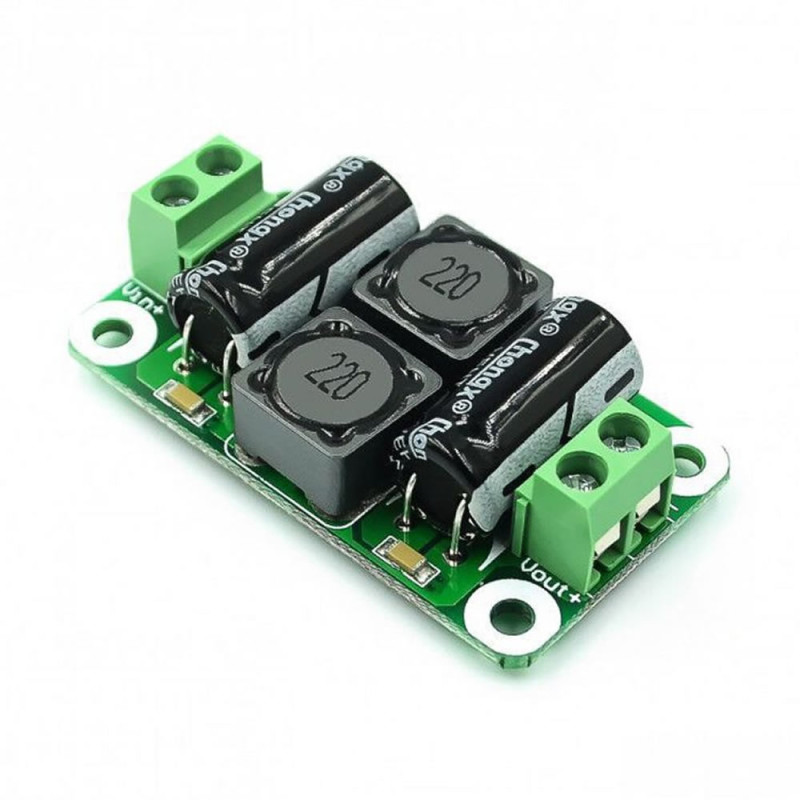

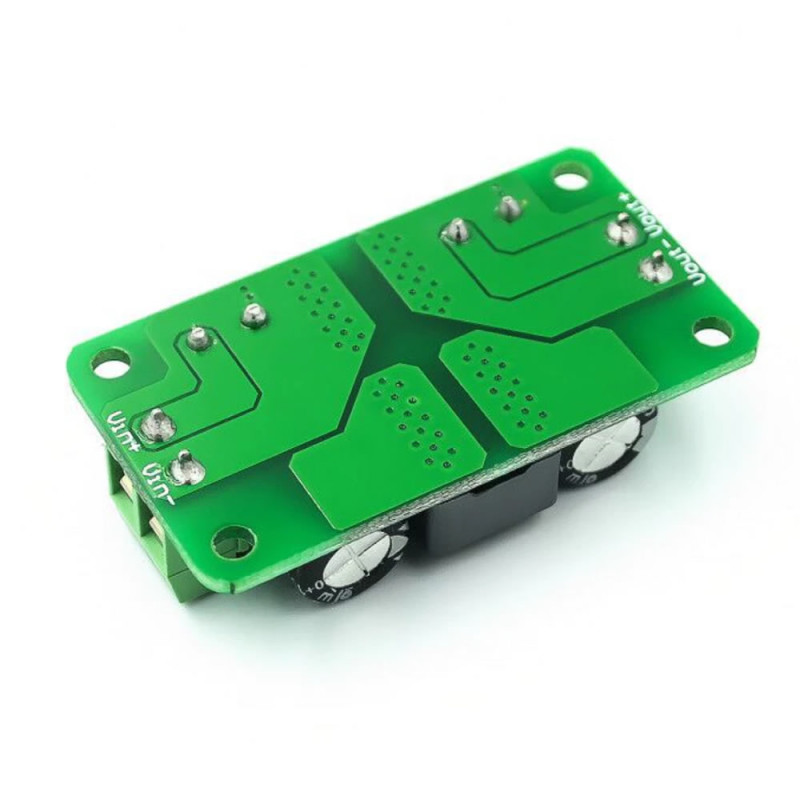

      It is a 0-50V 4A common differential mode LC DC Filter board. It provides suppression of noises such as EMI RFI etc. It provides filtering of the noises that would reach the target circuit. It provides suppression of the noises that may come from the power supply. It reduces the ripple noises in the supplies.

     During the operation of cars, a high amount of supply noises occur. It can be used so that external products to be operated from the cars own supply are not damaged and work properly. The cleanliness of the power supply voltage directly affects the sound quality in amplifiers. It can be used to suppress the noises coming from the power supply so that the sound comes out better. Similarly, you can use it in circuits and applications affected by source supply noises.

     It is connected in series between the source and the target. The output current can be increased by using more than 1 circuit in parallel.

Features:

• Operating voltage: 0V to 50V
• Operating current: 4A
• Common differential LC filter
• Low profile circuit design
• Can be used on its own. Does not require an external special part.
• Current can be increased by using more than one in parallel.
• Operating temperature: -10C  /  +85C
• Color: Green / Black
• Input output easy connection terminals
• 4 Pieces mounting hole

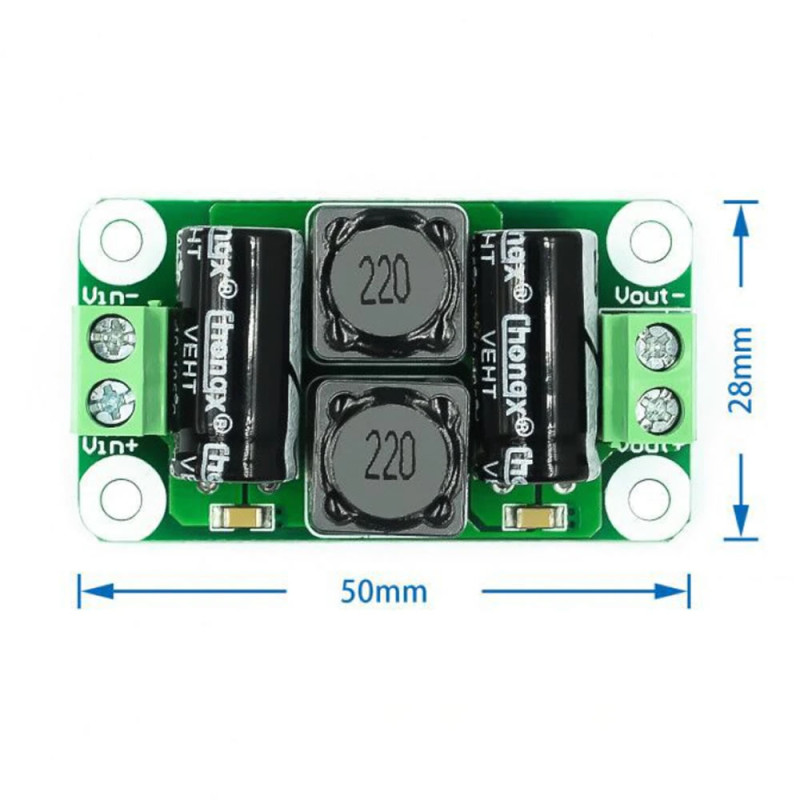

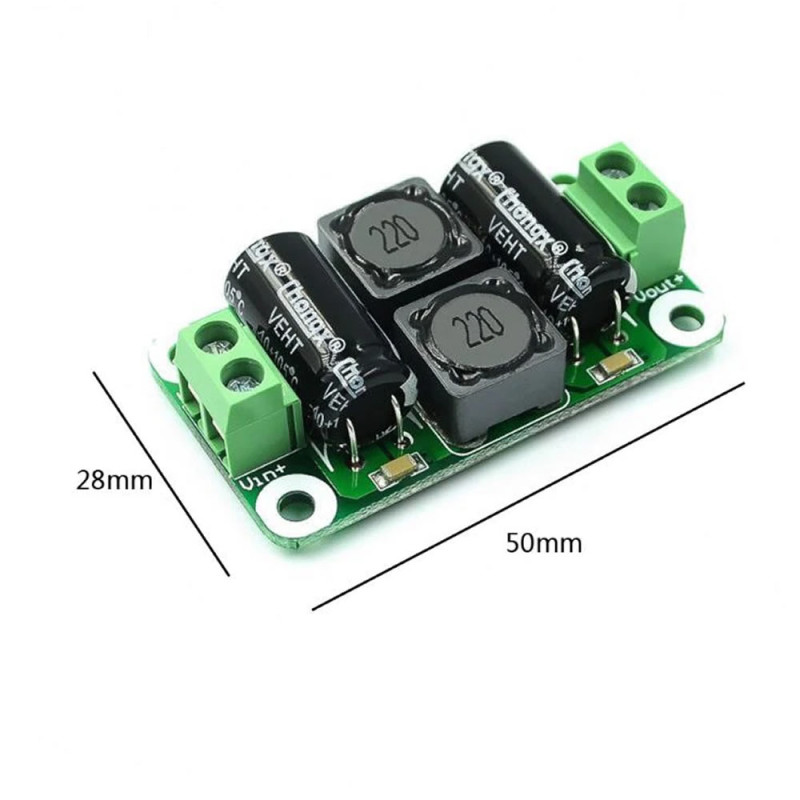

• Dimensions: 28mm x 50mm
• Weight: 18gr

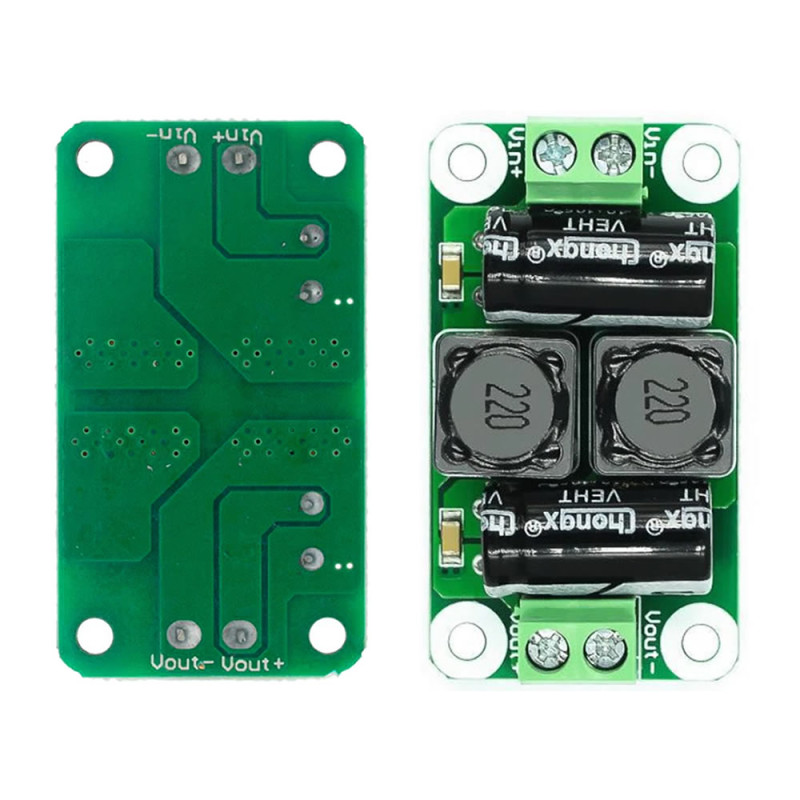

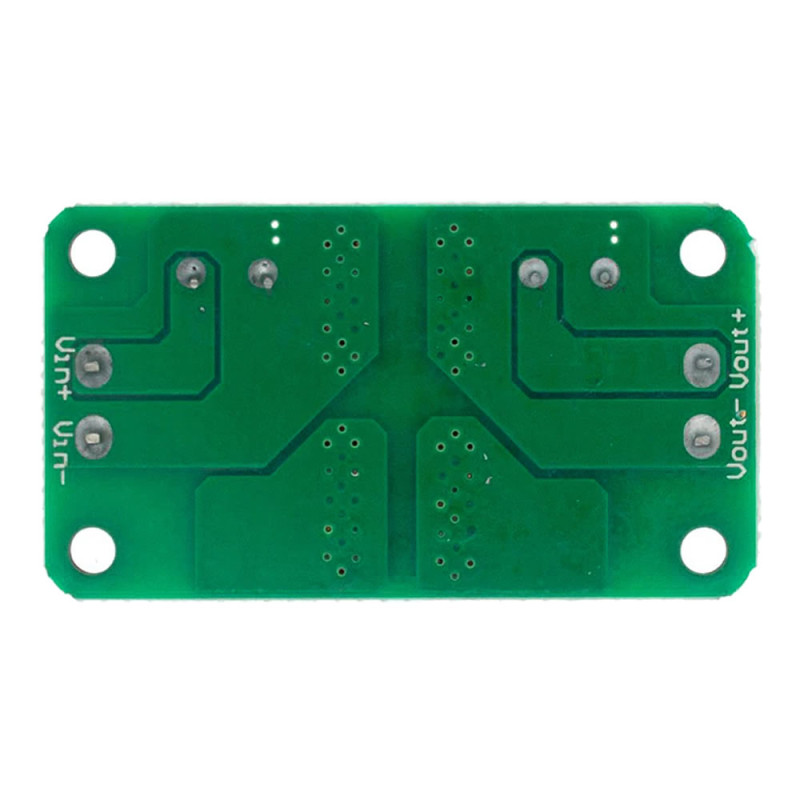

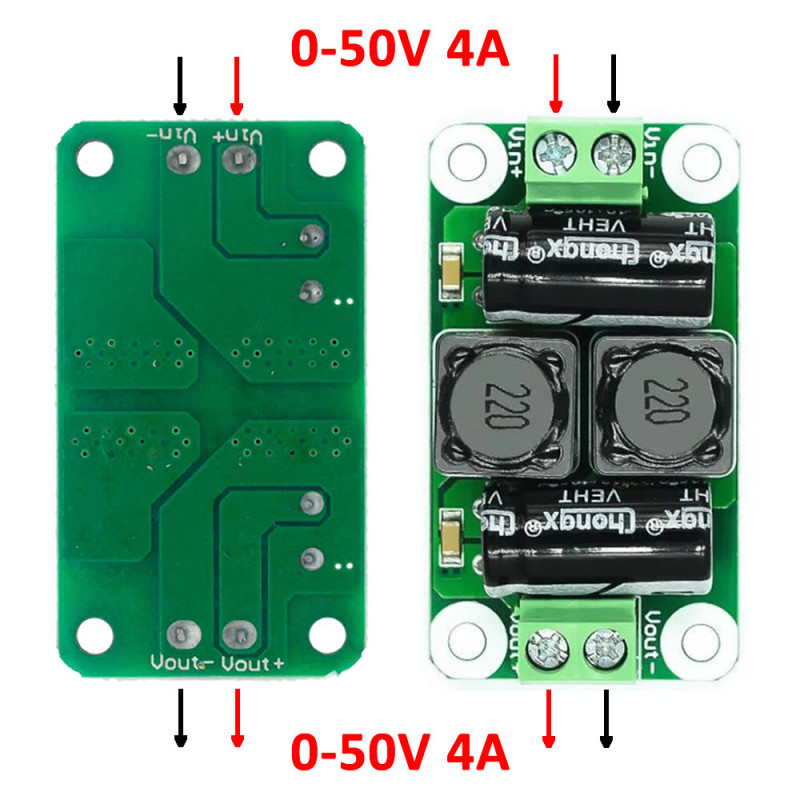

Pin Description:

• Vin+: Input supply + pin
• Vin-: Input supply - pin
• Vout+: Output supply + pin
• Vout-: Output supply - pin

Package Contents

• 1 Piece 0-50V 4A DC Filter

.
