12dbi Dual Band Antenna Rp Sma Male (Female)

12dBi Dual Band Antenna Rp Sma Male (Female)

2.4GHz 5.8GHz RF Gsm Wifi Signal Booster Antenna 2G/3G/4G LTE FPV Drone

Please pay attention to the socket type and gender ( Male – Female ) when purchasing !

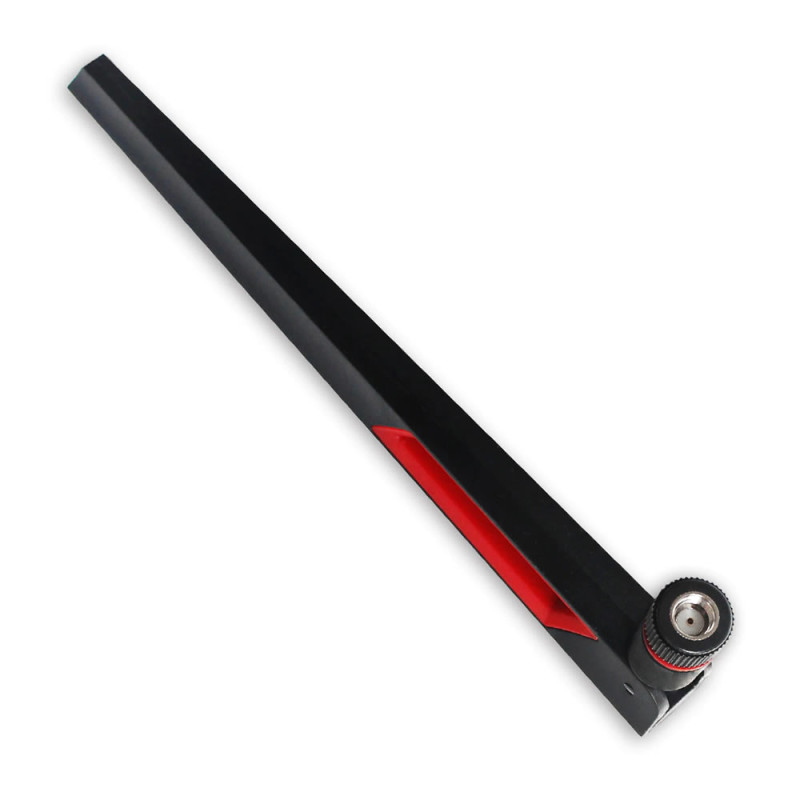

     This product is a dual band Wifi antenna with an RP-SMA male connector, working in the 2.4GHz and 5.8GHz bands with 12dBi gain (seller value, total of both bands). The nut of the RP-SMA male connector has an internal thread and there is a hole in the center instead of a pin; it screws directly onto the RP-SMA female (external thread, center pin) antenna socket of home and office modems, routers, access points and desktop Wifi network cards. It replaces your existing short antenna with a longer, higher gain antenna.

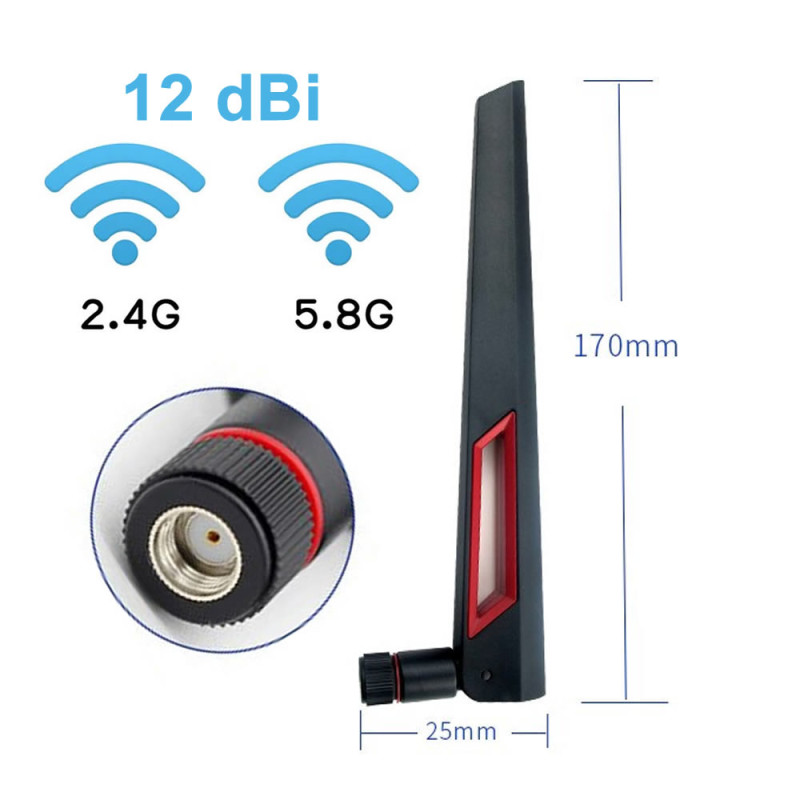

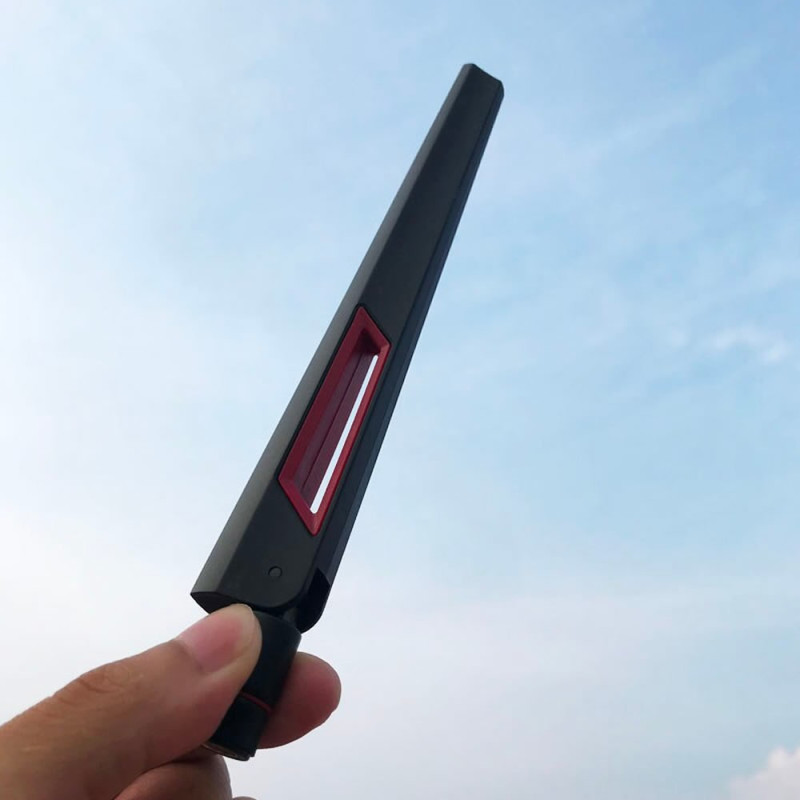

     The antenna is 195mm long when straight and 170mm when folded at its hinge; the body width is 25mm. Its black body has a red window detail and it weighs 25gr. Thanks to its hinge, the antenna can be set upright whether the device stands horizontally or vertically. It is an omnidirectional, vertically polarized stick antenna; impedance is 50ohm and VSWR is ≤1.5.

     There is also a version with the same look and an SMA male (center pin) connector; the product in this listing is the RP-SMA version common on routers and network cards. Increasing the RF power provides a better connection but also increases its harmful effect on living beings.

Key features:

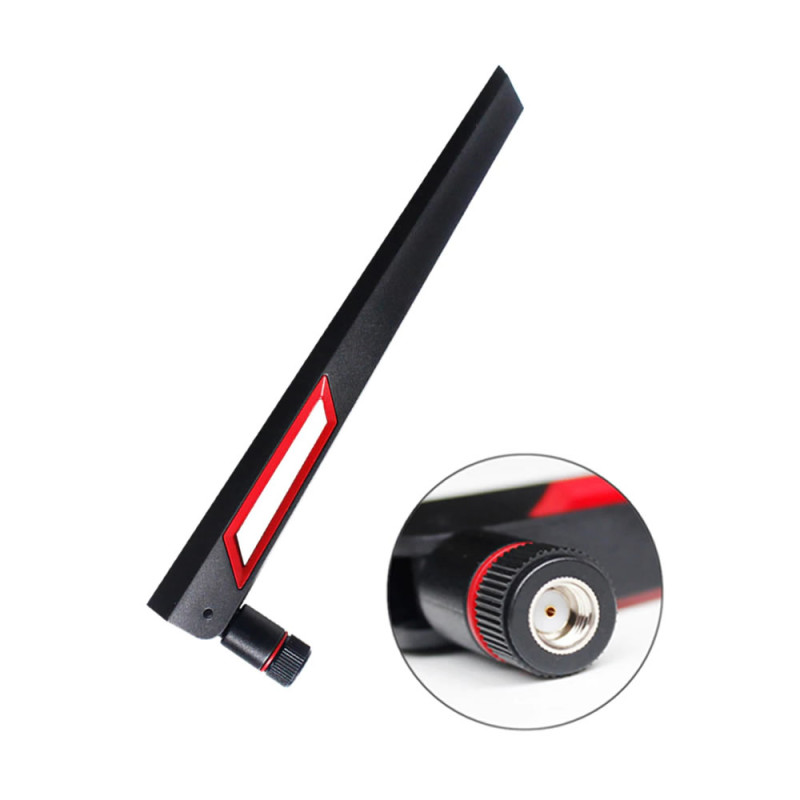

     RP-SMA male connector: The nut has an internal thread and the center has a hole. It fits the RP-SMA female antenna socket common on modems, routers and Wifi network cards without an adapter.

     Dual band 2.4GHz and 5.8GHz: A single antenna works in both the 2.4GHz and 5GHz Wifi bands; dual band modems and routers do not need a separate antenna for each band.

     12dBi high gain: It is longer and higher gain than the short antennas supplied with devices. 12dBi is the total value sellers give for both bands; the gain in a single band is lower.

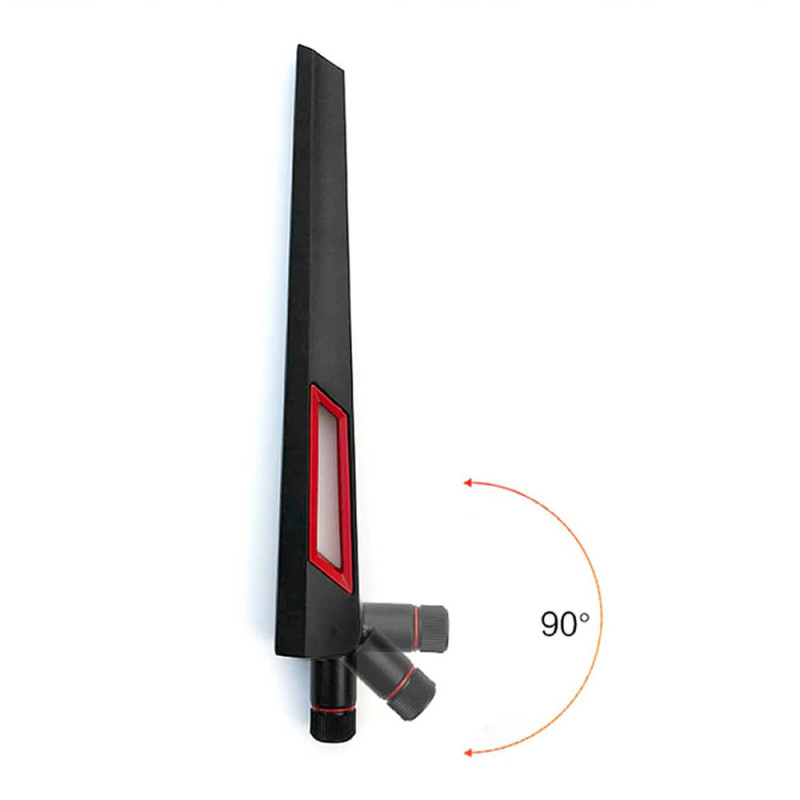

     Folding hinge: The antenna adjusts between 90 - 180 degrees at its hinge; it can be kept upright whatever the position of the device.

     50W input power: It withstands up to 50W input power, far above the output power of home and office wireless devices.

Features:

• Product type: Dual band Wifi stick antenna
• Model: 12dbi Dual Band Anten Rp Sma Erkek
• Connector: RP-SMA male (internal thread nut, center hole)
• Compatible socket: RP-SMA female (external thread, center pin)
• Frequency range: 2.4GHz (2400MHz - 2500MHz) and 5.8GHz (about 5150MHz - 5850MHz)
• Gain: 12dBi (total of both bands; lower in a single band)
• Radiation: Omnidirectional
• Polarization: Vertical
• VSWR: ≤1.5
• Impedance: 50ohm
• Max input power: 50W
• Angle: Adjustable between 90 - 180 degrees (hinged)
• Compatible devices: Modems, routers, access points, repeaters, PCI / PCIe and USB Wifi network cards with an RP-SMA antenna socket
• Compatible brands: RP-SMA socket models of brands such as TP-Link, Huawei, 3Com, Edimax, ASUS, HP, Linksys, D-Link, Belkin, SMC, Netgear, Planex
• Operating temperature: -20°C / +80°C
• Color: Black, with red window detail
• Dimensions: Straight 195mm, folded 170mm, width 25mm
• Weight: 25gr

Usage information:

• Check the antenna socket of your device: if the socket has an external thread and a pin in the center (RP-SMA female), this antenna fits. Remove the existing antenna by turning it counterclockwise and fit this antenna by turning it clockwise by hand; do not tighten with pliers.
• Set the antenna upright at its hinge. On devices with more than one antenna, keep the antennas parallel and upright.
• Keep the antenna in an open place, as far as possible from metal surfaces and walls.

Applications:

•  Router and modem antenna replacement, home and office
•  Access points and repeaters (range extenders)
•  Desktop computer PCI / PCIe Wifi network cards
•  USB Wifi adapters (with RP-SMA socket)
•  IP cameras and network video recorders
•  Mini PCs and industrial computers
•  Signal boosting: rooms with weak wireless coverage
•  Wireless bridge and point to point link trials
•  Education and laboratory applications


Precautions:

•  Please pay attention to the socket type and gender ( Male – Female ) when purchasing ! This product is RP-SMA male (center hole). It does not fit devices with an SMA female socket with a center hole (e.g. some 4G modems); they need the SMA male version.
•  The antenna is for the 2.4GHz and 5.8GHz Wifi bands; it is not used as the mobile line antenna of 2G / 3G / 4G (GSM, LTE) modems.
•  12dBi is the seller value given as the total of the gains of both bands; there is no 12dBi gain in each band separately, the gain in a single band is lower. The improvement depends on the walls and obstacles in the environment.
•  High gain stick antennas concentrate radiation in the horizontal plane; if the antenna is not upright or the device is on another floor, the signal may weaken.
•  Increasing the RF power provides a better connection but also increases its harmful effect on living beings.

Package contents:

•  1 Piece RP-SMA Male 12dBi Dual Band Wifi Antenna

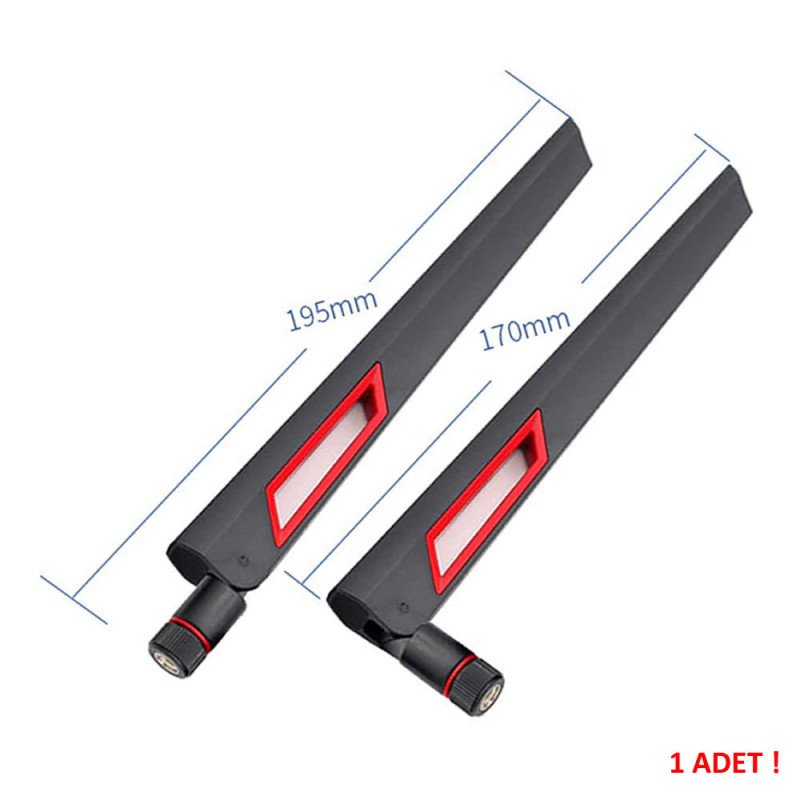

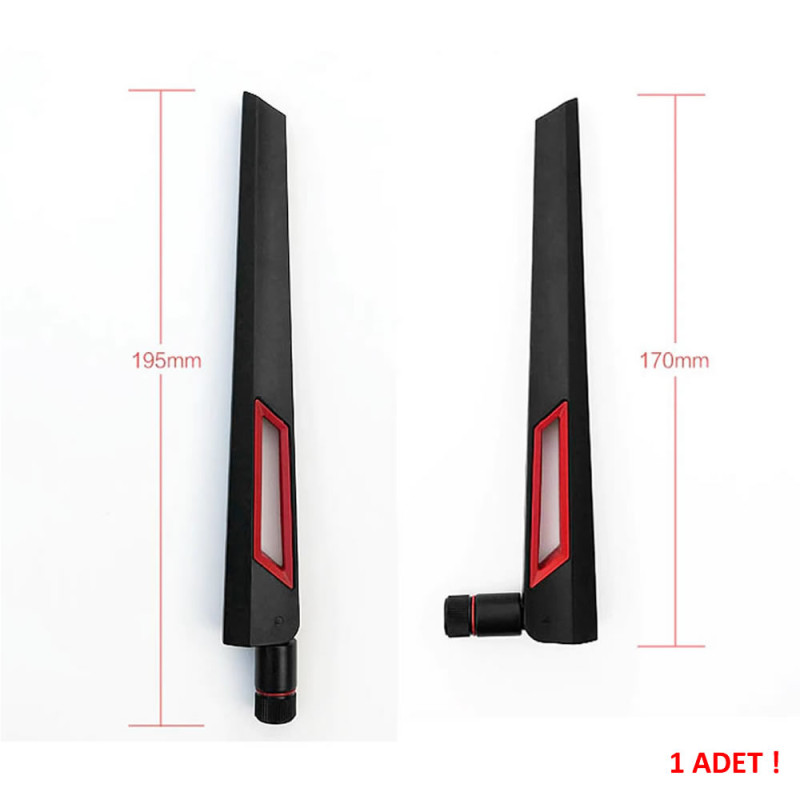

•  Note: The two antennas in the picture are the same antenna straight and folded; the package contains 1 antenna. Modem / router is not included in the package.
